Fiberglass Boat Molding Hydraulic Press Machine Hydraulic Press for Fiberglass Boat Forming

Fiberglass Boat Molding Hydraulic Press Machine Hydraulic Press for Fiberglass Boat Forming

The fiberglass boat molding hydraulic press machine is specially designed for manufacturing FRP boats, inflatable rescue boats, patrol boats, and other composite material vessels. It adopts advanced hydraulic forming technology to provide high-efficiency and high-precision molding solutions for fiberglass boat manufacturers.

WeChat QR Code
Scan to connect on WeChat
WhatsApp QR Code
Scan to chat on WhatsApp
+86 13562463338 zhongyou@chinazhongyou.cn

Description

The fiberglass boat molding hydraulic press machine is specially designed for manufacturing FRP boats, inflatable rescue boats, patrol boats, and other composite material vessels. It adopts advanced hydraulic forming technology to provide high-efficiency and high-precision molding solutions for fiberglass boat manufacturers.
This hydraulic press uses a high-strength steel frame structure and a powerful hydraulic system to provide stable pressing force during the molding process. It can accurately shape fiberglass reinforced plastic (FRP) materials according to different boat designs, ensuring excellent product quality and consistent production performance.
Applications:
Fiberglass rescue boat production
FRP fishing boat manufacturing
Patrol boat manufacturing
Composite material product forming
Marine equipment production
Custom fiberglass vessel manufacturing

Compression molding process

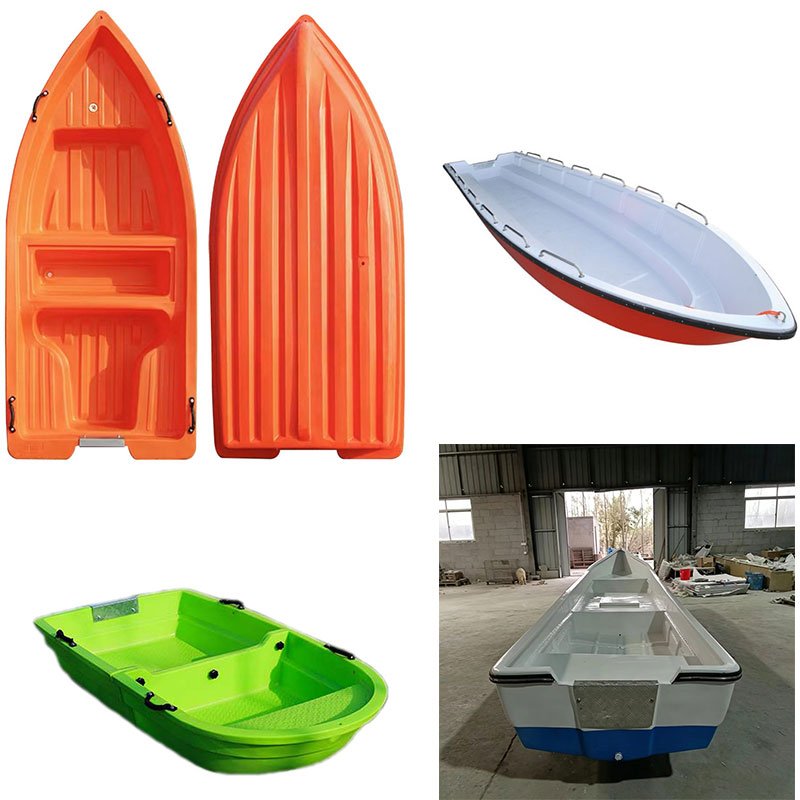

Fiberglass Boat Molding Hydraulic Press Machine Hydraulic Press for Fiberglass Boat Forming Compression molding process

Customer Case

Fiberglass Boat Molding Hydraulic Press Machine Hydraulic Press for Fiberglass Boat Forming Customer Case

Technical Specifications

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300

Detailed Parameters

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300
