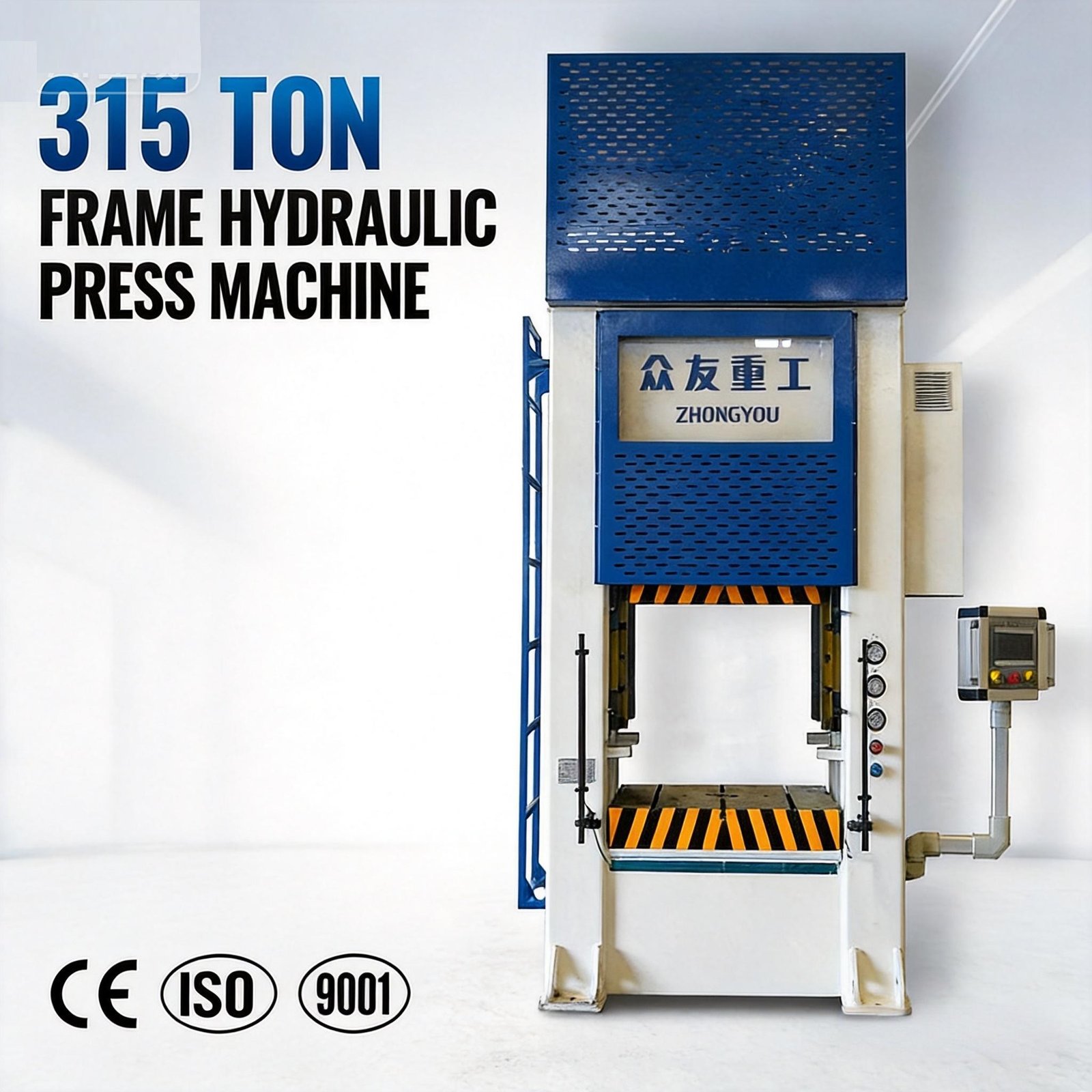

315 Ton Precision Hydraulic Press for Composite & Metal Parts
The 315-ton frame-type hydraulic press (also known as a gantry-type hydraulic press) is an open-frame pressure vessel constructed entirely of welded steel plates.
Description
The 315-ton frame-type hydraulic press (also known as a gantry-type hydraulic press) is an open-frame pressure equipment constructed from fully welded steel plates.
Key structural features: Machine body: Fully welded steel plate frame, subjected to vibration aging treatment, offering high rigidity and excellent precision retention.
Guidance: Rectangular guideways on all four corners and eight sides, or 45° inclined guideways; adjustable clearance; strong resistance to off-center loading
Hydraulic System: Independent power unit; integrated two-way cartridge valve system; few leakage points; reliable operation
Control: PLC + touchscreen, supports both constant pressure and constant stroke processes, with options for manual, semi-automatic, and fully automatic operation
Main Application Areas: Automotive Industry: Interior component forming, body panel stamping, longitudinal beam forming (with automated feeding for high-volume production)
Kitchenware/Stainless Steel: Sinks, cookware, head forming—this is the most typical application for the 315-ton frame-type press
Heads/Containers: Pressure vessel heads, tank end caps; capable of medium-depth drawing when equipped with a hydraulic cushion
Hardware/Sheet Metal: Blanking (requires a cushioning device), bending, flanging, straightening, and press fitting
Powder/Non-metallic: Powder metallurgy compaction, SMC molding, and hot pressing of rubber products
Views: 0
Compression molding process
Customer Case
Technical Specifications
Detailed Parameters
