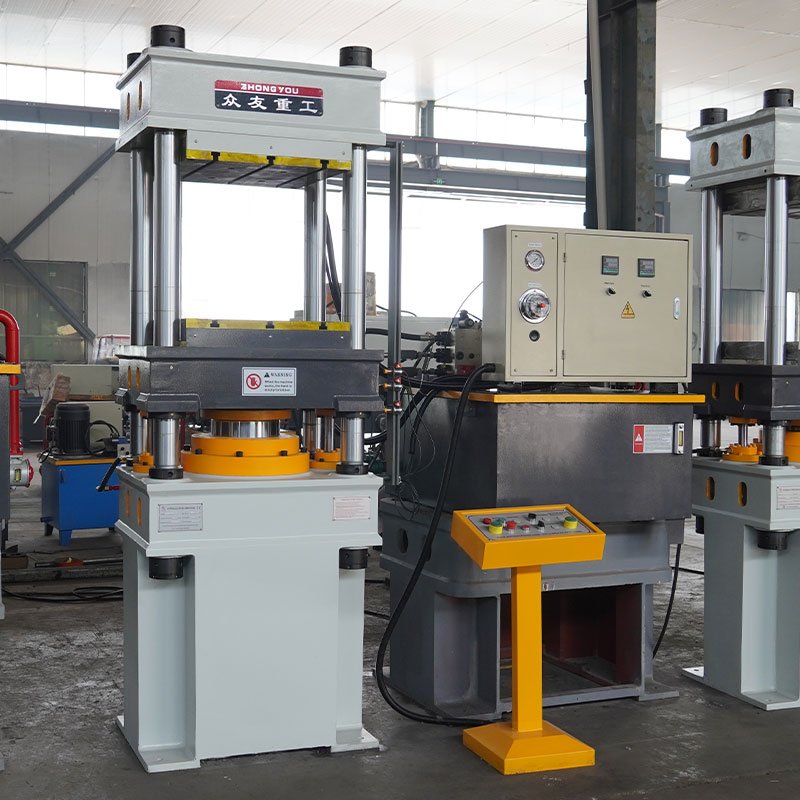

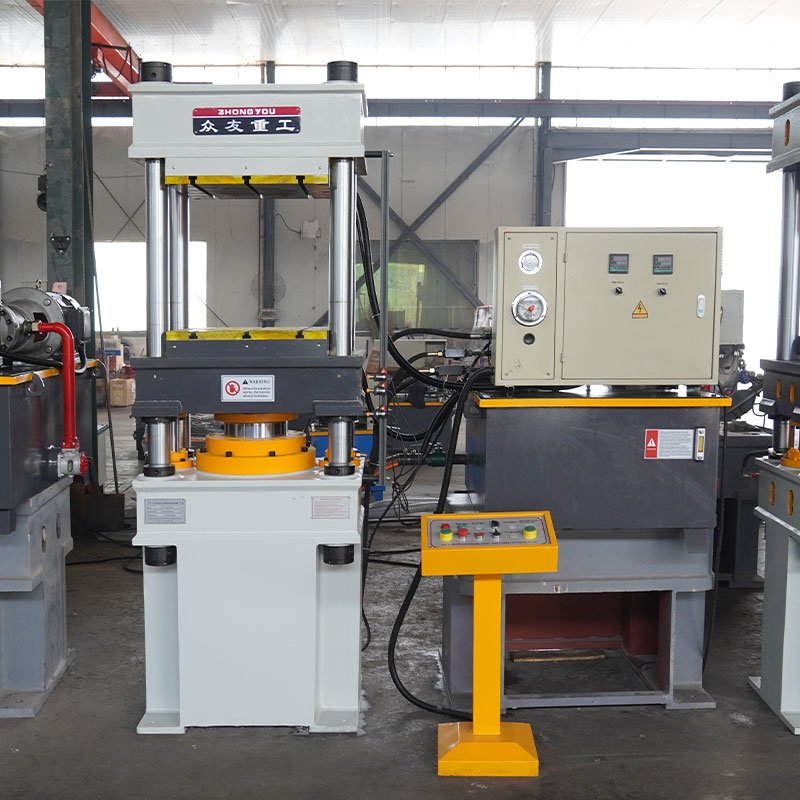

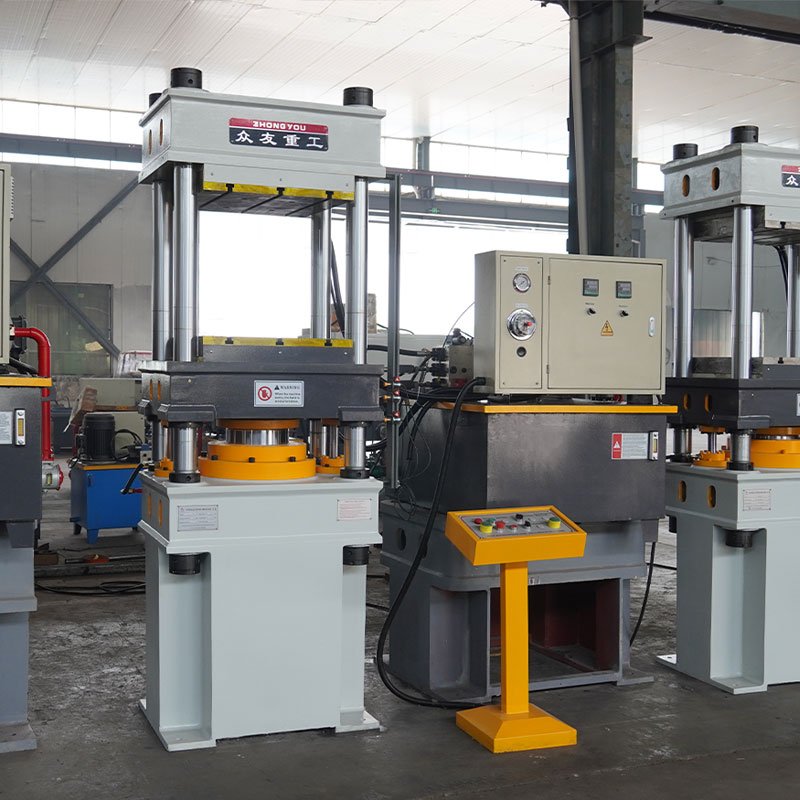

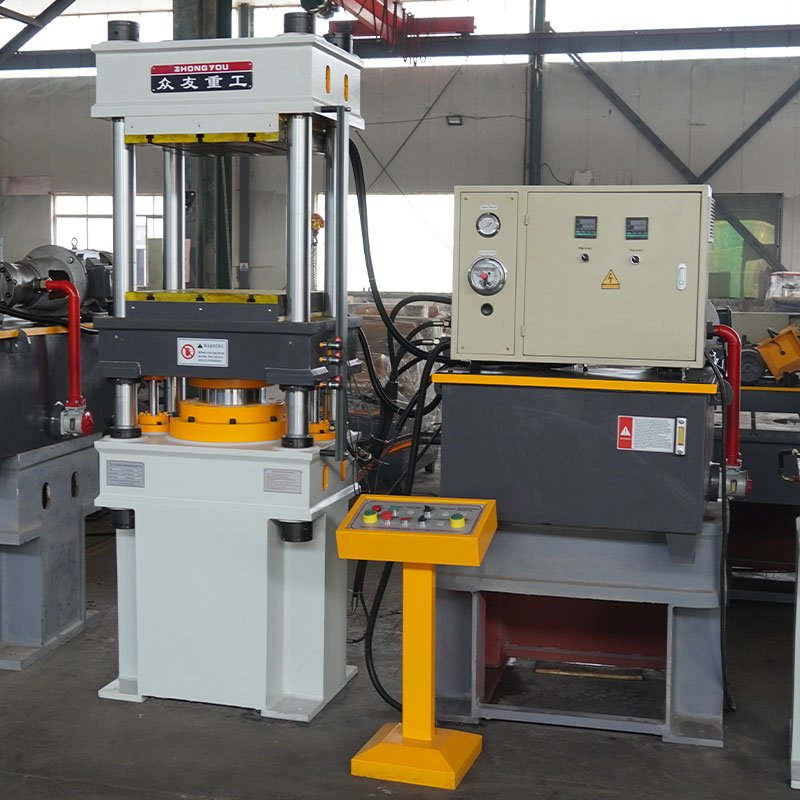

160T Two Beam Four Column Carbon Fibre Automotive Parts Presses

160T Two Beam Four Column Carbon Fibre Automotive Parts Presses

SKU: HPS-2000 In Stock

2000-ton capacity
Energy saving design
Low maintenance
CE certified

Contact Sales

WhatsApp Email Call Now

Description

Carbon fibre reinforced composites are widely used in automotive lightweighting (e.g. body, chassis, interior) due to their low density and high specific strength.Carbon Fibre Auto Parts Hydraulic Press is a hydraulic equipment specially designed for carbon fibre auto parts moulding.
High-precision moulding: the carbon fiber auto parts hydraulic press adopts advanced temperature control system and precise pressure sensor, which can maintain constant temperature and pressure during the whole moulding process to ensure the perfect combination of carbon fiber and resin, improve the mechanical properties of the products, and reduce the scrap rate.
High-efficiency production: by optimising the forming process and improving the automation level, the hydraulic press is able to produce more high-quality products in a shorter period of time to meet the market’s large demand for high-performance composite materials.
Intelligent control: With the introduction of automated control system and intelligent algorithms, the hydraulic press can automatically adjust the moulding parameters, optimize the production process, and monitor the product quality in real time, reducing the skill requirements for operators.
Technical Advantages
Hydraulic system and heating system work in synergy: the lower top hot press drives the lower platen upward through the hydraulic system, which cooperates with the fixed or adjustable upper platen to exert pressure on the material.At the same time, the hot press plate is heated up by electric heating, oil heating or steam heating, so that the material is softened, deformed or cured under high temperature and high pressure, and the material can be shaped, combined or surface treated.
Wide material adaptability: it can adapt to different kinds and specifications of carbon fibre materials to meet the needs of different fields.With the continuous development of new material technology, the hydraulic press can continuously expand its material adaptability.
Energy saving and environmental protection: through optimising the design and control of the hydraulic system, it reduces energy consumption and the impact on the environment.At the same time, improved productivity also means lower energy consumption per unit of product

Compression molding process

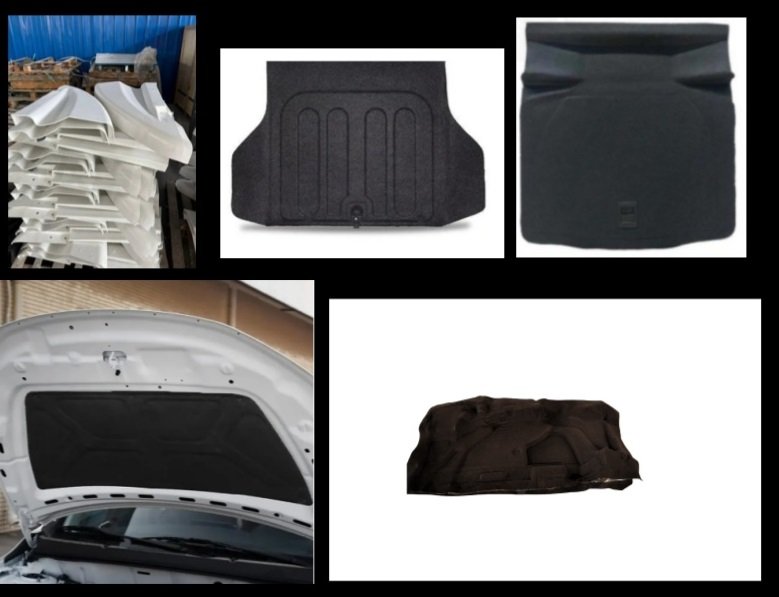

Customer Case

Technical Specifications

Parameter	Unit	YQ32-63	YQ32-100A	YQ32-100B	YQ32-200A	YQ32-200B	YQ32-315A	YQ32-315B
Nominal Force	kN	630	1000	1000	2000	2000	3150	3150
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	700	800	900	1100	900	1250	1000
Maximum Stroke of Slider	mm	400	500	600	500	600	800	600
Effective Area of Workbench	mm	610×500	630×550	750×700	1000×1000	800×800	1260×1160	800×800
Slider Free Fall Speed	mm/s	100	100	100	100	100	100	100
Pressing Speed	mm/s	11-22	7-15	7-15	7-18	7-18	7-12	7-12
Return Speed	mm/s	80	90	90	90	90	100	90
Ejecting Force	kN	100	200	200	400	400	630	630
Maximum Ejecting Stroke	mm	160	200	200	200	200	300	300

Name	Unit	YQ32-400	YQ32-500	YQ32-630	YQ32-800	YQ32-1000	YQ32-1250	YQ32-1600
Nominal Force	kN	4000	5000	6300	8000	10000	12500	16000
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	1250	1500	1500	1500	1500	1500	1500
Maximum Stroke of Slider	mm	800	900	900	900	900	900	900
Effective Area of Workbench	mm	1250×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Slider Free Fall Speed	mm/s	100	100	150	100	180	180	190
Pressing Speed	mm/s	5-11	10-18	9-18	7-18	10-18	6-15	6-14
Return Speed	mm/s	100	180	200	90	220	200	220
Ejecting Force	kN	630	1000	1000	400	1000	1000	1600
Maximum Ejecting Stroke	mm	300	300	300	200	300	300	300

Detailed Parameters

Parameter	Unit	YQ32-63	YQ32-100A	YQ32-100B	YQ32-200A	YQ32-200B	YQ32-315A	YQ32-315B
Nominal Force	kN	630	1000	1000	2000	2000	3150	3150
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	700	800	900	1100	900	1250	1000
Maximum Stroke of Slider	mm	400	500	600	500	600	800	600
Effective Area of Workbench	mm	610×500	630×550	750×700	1000×1000	800×800	1260×1160	800×800
Slider Free Fall Speed	mm/s	100	100	100	100	100	100	100
Pressing Speed	mm/s	11-22	7-15	7-15	7-18	7-18	7-12	7-12
Return Speed	mm/s	80	90	90	90	90	100	90
Ejecting Force	kN	100	200	200	400	400	630	630
Maximum Ejecting Stroke	mm	160	200	200	200	200	300	300

Name	Unit	YQ32-400	YQ32-500	YQ32-630	YQ32-800	YQ32-1000	YQ32-1250	YQ32-1600
Nominal Force	kN	4000	5000	6300	8000	10000	12500	16000
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	1250	1500	1500	1500	1500	1500	1500
Maximum Stroke of Slider	mm	800	900	900	900	900	900	900
Effective Area of Workbench	mm	1250×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Slider Free Fall Speed	mm/s	100	100	150	100	180	180	190
Pressing Speed	mm/s	5-11	10-18	9-18	7-18	10-18	6-15	6-14
Return Speed	mm/s	100	180	200	90	220	200	220
Ejecting Force	kN	630	1000	1000	400	1000	1000	1600
Maximum Ejecting Stroke	mm	300	300	300	200	300	300	300
