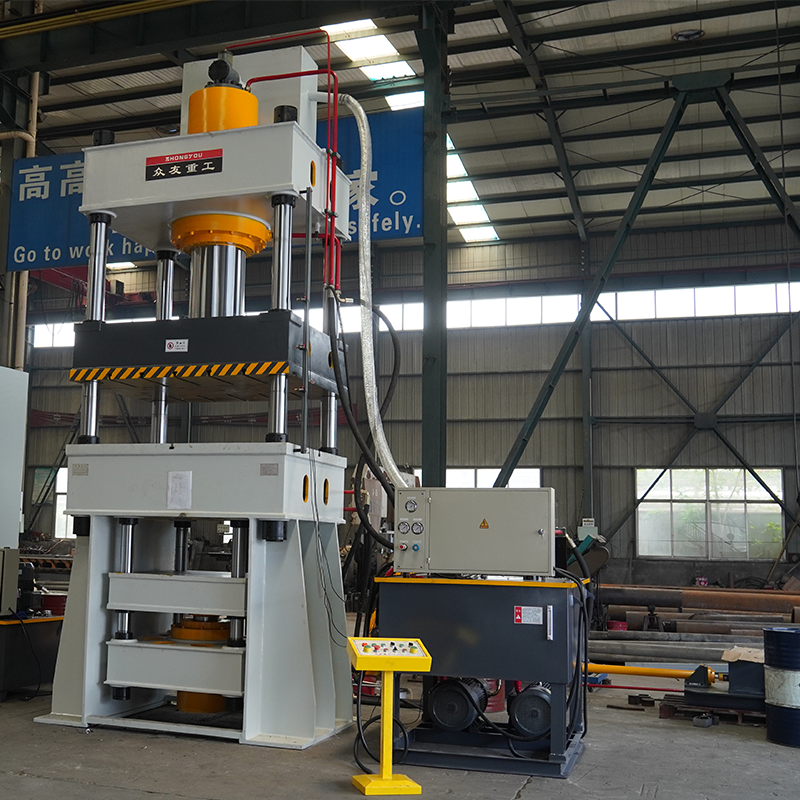

Water Tank Head Deep Drawing Hydraulic Press Machine
The Water Tank Head Deep Drawing Hydraulic Press Machine is specially designed for manufacturing various metal tank heads, stainless steel water tank covers, pressure vessel heads, and industrial container components. It adopts advanced hydraulic forming technology to achieve high-precision deep drawing and shaping of metal plates.
Description
The Water Tank Head Deep Drawing Hydraulic Press Machine is specially designed for manufacturing various metal tank heads, stainless steel water tank covers, pressure vessel heads, and industrial container components. It adopts advanced hydraulic forming technology to achieve high-precision deep drawing and shaping of metal plates.
This hydraulic press is widely used for forming stainless steel, carbon steel, aluminum, and other metal materials. With strong pressing force, large working stroke, and high rigidity frame structure, the machine ensures uniform forming pressure, smooth product surface, and excellent dimensional accuracy.
Equipped with a PLC control system and touch screen operation interface, the machine can accurately control pressure, speed, stroke, and holding time. It can be customized with hydraulic cushions, heating systems, automatic feeding devices, and different molds according to customer production requirements.
The machine is suitable for producing water tank heads, pressure vessel ends, chemical equipment heads, boiler heads, and other deep-drawn metal components.

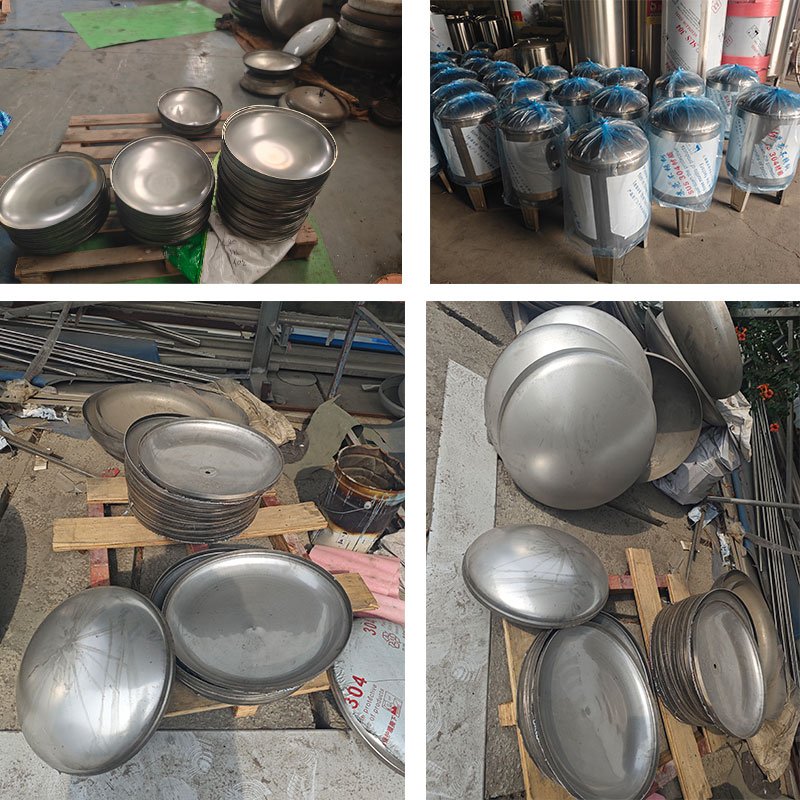

Compression molding process
Customer Case
Technical Specifications
| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |
Detailed Parameters
| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |
