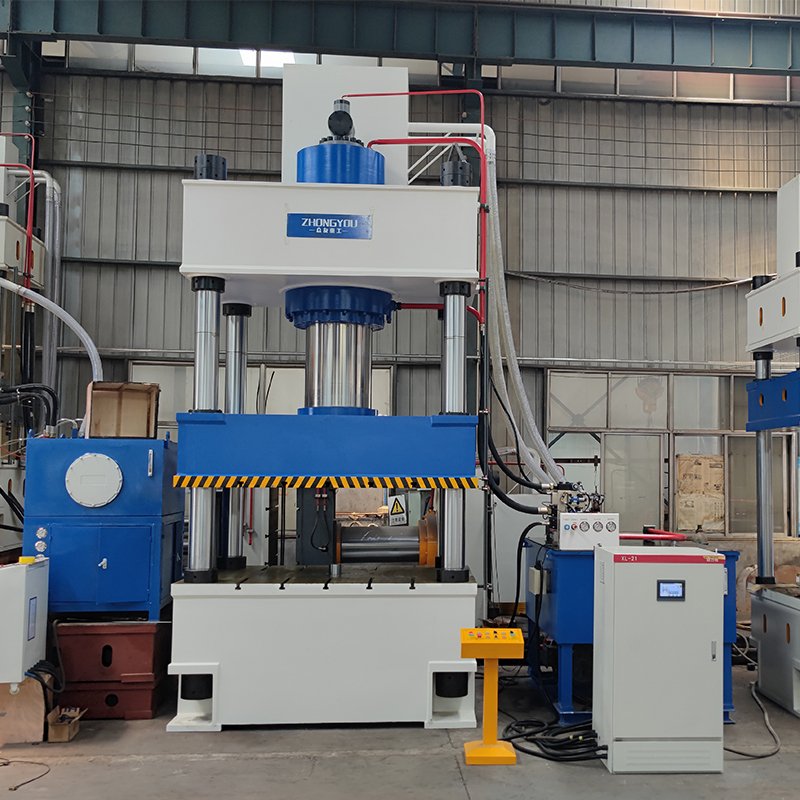

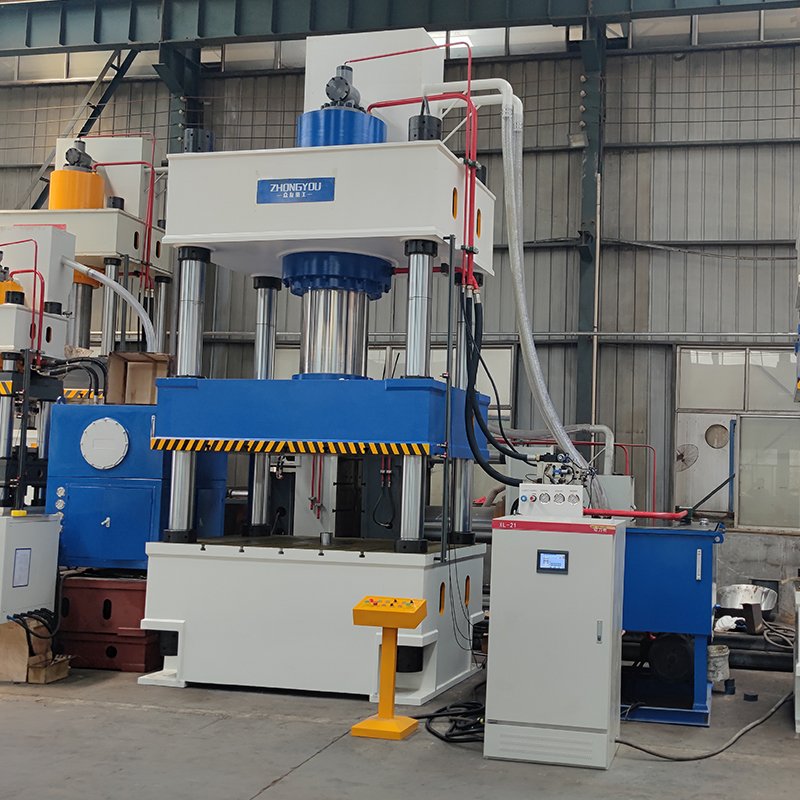

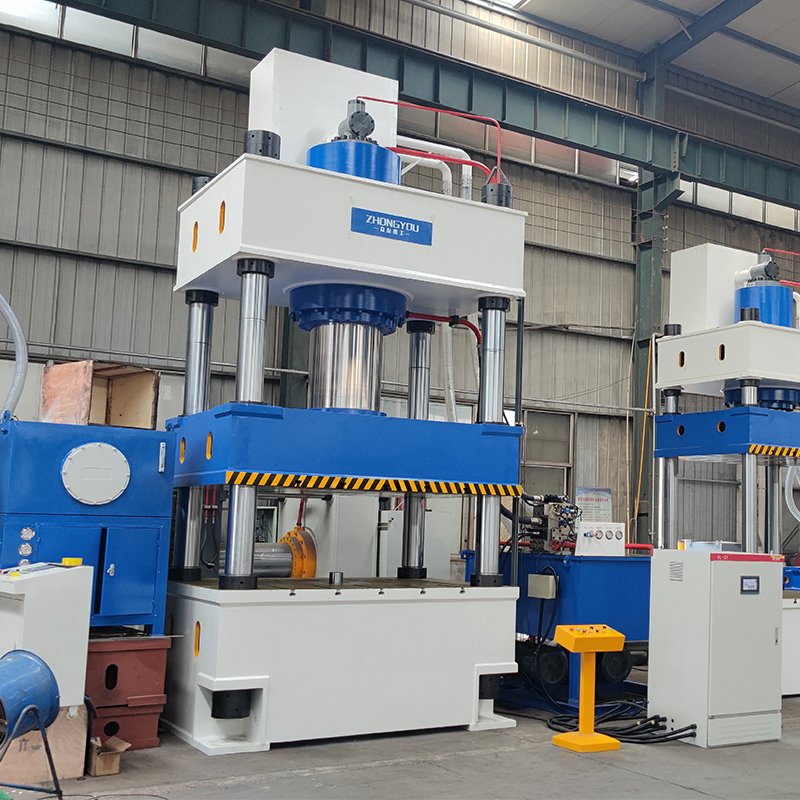

Hydraulic presses for the manufacture of bulletproof panels

Hydraulic presses for the manufacture of bulletproof panels

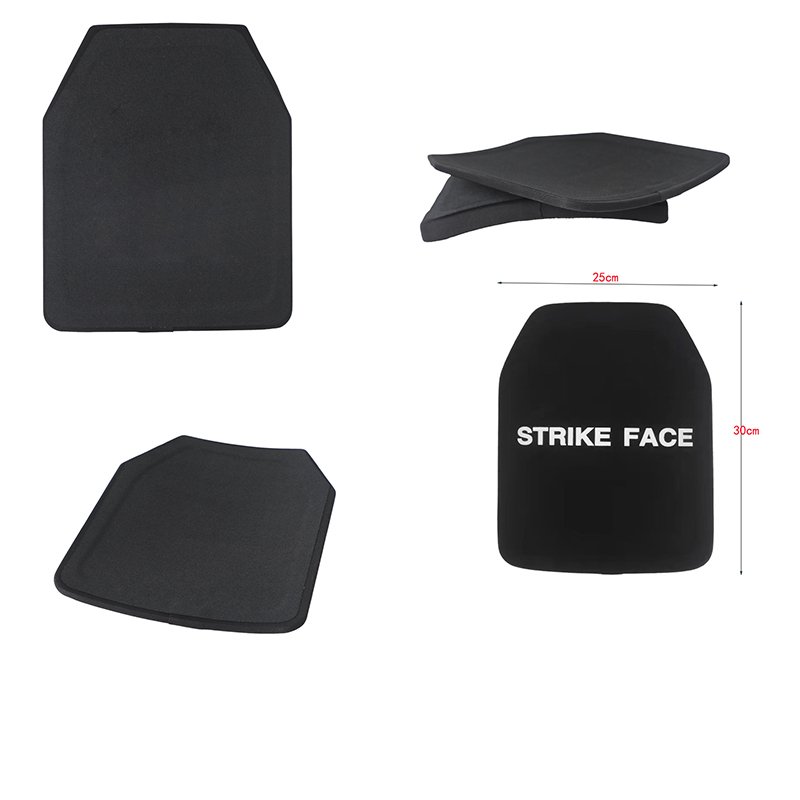

Bulletproof plate forming hydraulic press is specially used for processing metal materials (such as steel plate, aluminum alloy) or composite materials (such as ceramic-based composite materials, ultra-high molecular weight polyethylene UHMWPE and its composite plates) into bulletproof plates with high-strength protective properties of the core equipment.

SKU: HPS-2000 In Stock
  • 2000-ton capacity
  • Energy saving design
  • Low maintenance
  • CE certified

Contact Sales

WhatsApp Call Now

Description

Bulletproof plate molding hydraulic press is based on Pascal’s law, which realizes material pressing by transferring pressure through high-pressure oil. Its core structure includes:
Hydraulic system: it consists of oil pump, hydraulic valve, oil tank and pipeline to provide stable and high pressure oil source.
Actuator: hydraulic cylinder and piston combination, the oil pressure is converted into mechanical force to push the mold closed or open the mold.
Control system: PLC or numerical control system is adopted to realize precise regulation and control of pressure, speed, holding time and other parameters.
Mold system: special molds are designed according to the characteristics of bulletproof plate materials (such as ceramic, PE, aramid fiber) to ensure molding precision.

Bulletproof plate molding hydraulic press is the core equipment for bulletproof equipment manufacturing, and its performance directly determines the protection level and production efficiency of bulletproof plate. Through the integration of high pressure control, precision molding and intelligent technology, the future hydraulic press will further promote the development of bulletproof materials to high-performance, lightweight direction!

Compression molding process

Hydraulic presses for the manufacture of bulletproof panels Compression molding process

Customer Case

Hydraulic presses for the manufacture of bulletproof panels Customer Case

Technical Specifications

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300

Detailed Parameters

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300
