hydraulic press for sale
This series of hydraulic presses is a universal pressing device suitable for the pressing process of plastic material. Such as powder molding, plastic molding, cold/ hot extrusion metal forming, sheet metal stretching and stamping, bending, flanging, correction, and other processes.
- 2000-ton capacity
- Energy saving design
- Low maintenance
- CE certified
Description
This series of hydraulic presses is a universal pressing device suitable for the pressing process of plastic material. Such as powder molding, plastic molding, cold/ hot extrusion metal forming, sheet metal stretching and stamping, bending, flanging, correction, and other processes.
hydraulic press machine performance feature:

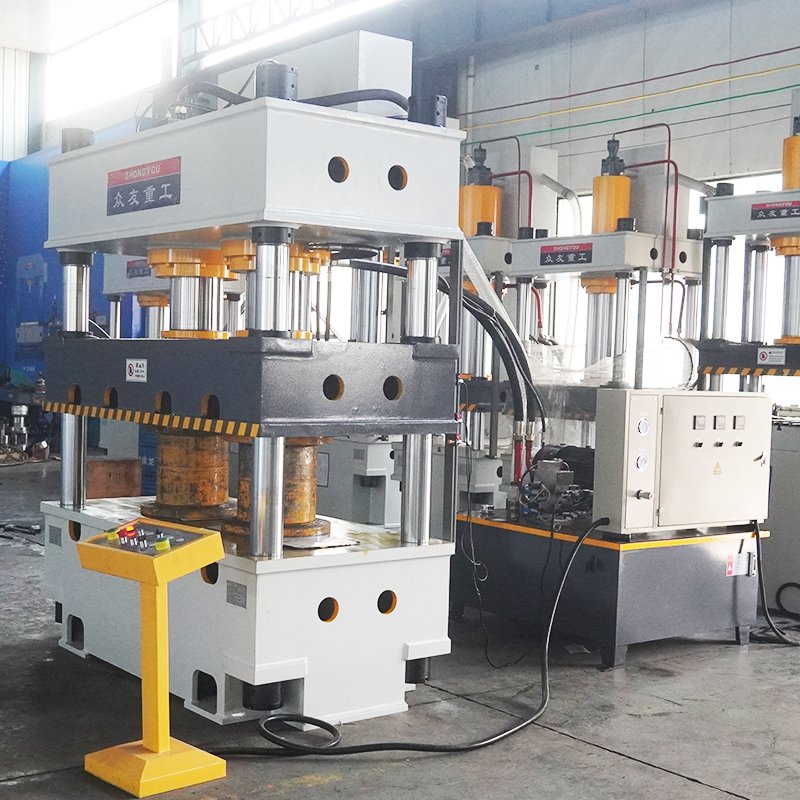

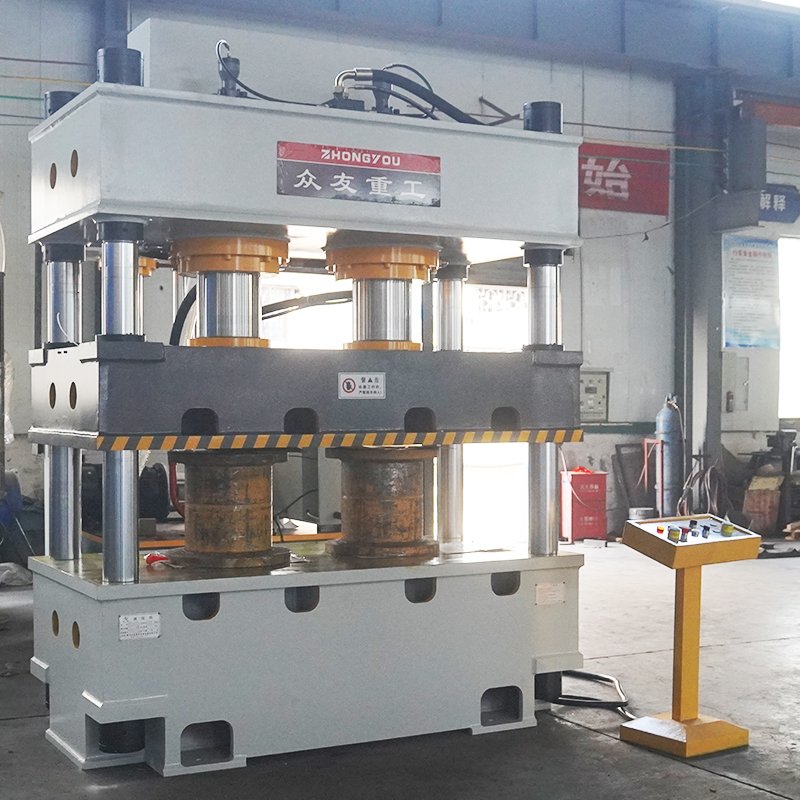

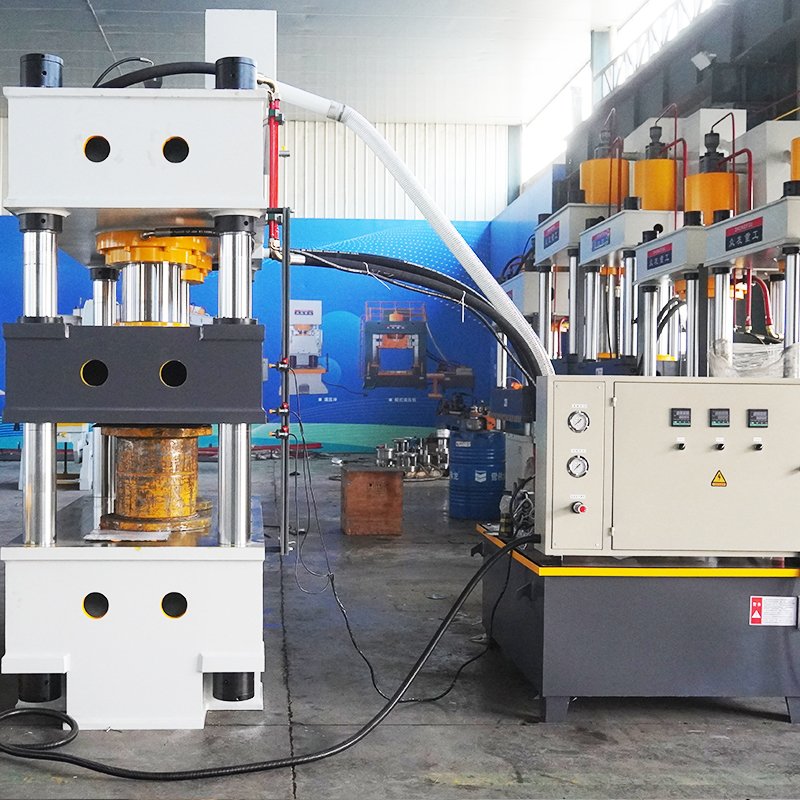

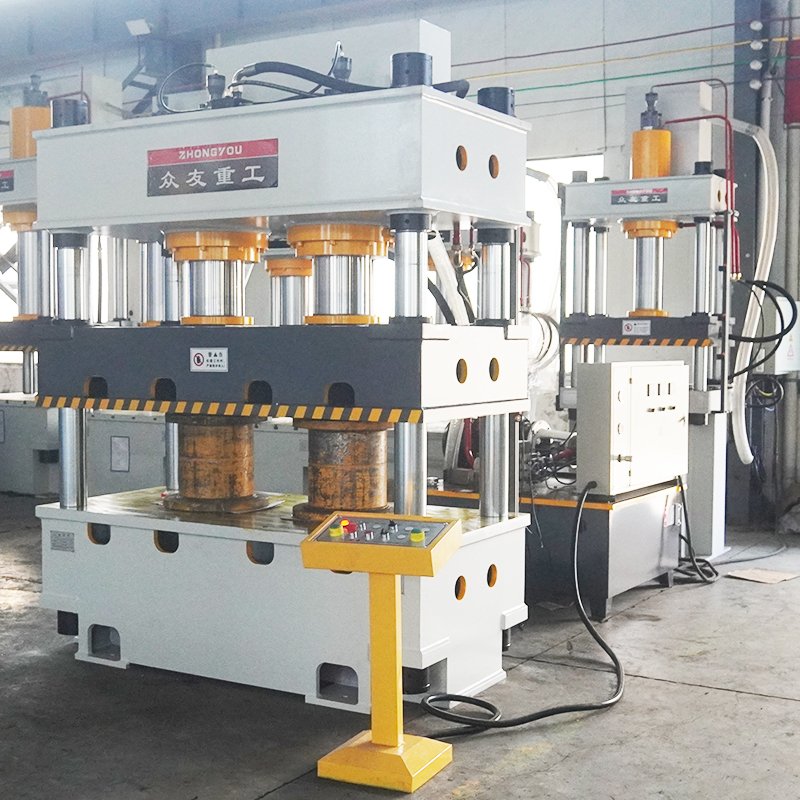

1. Three beams and four columns structure, this structure is a sample, economical, practical. strong resistance to unbalance loading.
2. The integrated system of integral cartridge valve is adopted for reducing the leakage point. It greatly improves the life of the machine itself.
3. It can be equipped with PLC programmable controller, Making the whole machine easier to operate and easier for workers to master operating technology.
4. Adopt the button centralized control, with adjustment for manual, semi-automatic, and automatic operation
5. Slider working pressure no-load fast down and slow travel range can be adjusted according to process requirements
6. This series of products contain a lot of tonnages: From 63 to 1600 tons, moreover, we can also customize according to customers’ needs.
7. Independent and reliable electrical system is widely used In a variety of plastic material applications such as extruding, bending, folding and stretching, etc .also suitable for pressing various plastic and powder wares
Compression molding process
Customer Case
Technical Specifications
| YQ32 Technical Parameters | |||||||||
| 单位 Unit |
YQ32—63 | YQ32—100A | YQ32—100B | YQ32—200A | YQ32—200B | YQ32—315A | YQ32—315B | YQ32—400 | |
| Nominal force | KN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 | 4000 |
| Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Max.open height | mm | 700 | 800 | 900 | 900 | 1100 | 1000 | 1250 | 1250 |
| Max Stroke of Slider | mm | 400 | 500 | 600 | 600 | 700 | 600 | 800 | 800 |
| Effective table size | mm | 610×500 | 630×550 | 750×700 | 800×800 | 1000×1000 | 800×800 | 1260×1160 | 1260×1160 |
| Down speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing speed | mm/s | 11～22 | 7～15 | 7～15 | 7～18 | 7～18 | 7～12 | 7～12 | 5～11 |
| Return speed | mm/s | 80 | 90 | 90 | 90 | 90 | 90 | 100 | 100 |
| Ejection cylinder force | KN | 100 | 200 | 200 | 400 | 400 | 630 | 630 | 630 |
| Stroke of ejection cylinder | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 | 300 |
| 单位Unit | YQ32—500 | YQ32—630 | YQ32—800 | YQ32—1000 | YQ32—1250 | YQ32—1600 | |||
| Nominal force | KN | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | ||
| Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | ||
| Max.open height | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | ||
| Max Stroke of Slider | mm | 900 | 900 | 900 | 900 | 900 | 900 | ||
| Effective table size | mm | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 | ||
| Down speed | mm/s | 150 | 150 | 180 | 180 | 180 | 190 | ||
| Pressing speed | mm/s | 10～18 | 9～18 | 9～18 | 10～18 | 6～15 | 6～14 | ||
| Return speed | mm/s | 180 | 200 | 180 | 220 | 200 | 220 | ||
| Ejection cylinder force | KN | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 | ||
| Stroke of ejection cylinder | mm | 300 | 300 | 300 | 300 | 300 | 300 | ||
Detailed Parameters
| YQ32 Technical Parameters | |||||||||
| 单位 Unit |
YQ32—63 | YQ32—100A | YQ32—100B | YQ32—200A | YQ32—200B | YQ32—315A | YQ32—315B | YQ32—400 | |
| Nominal force | KN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 | 4000 |
| Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Max.open height | mm | 700 | 800 | 900 | 900 | 1100 | 1000 | 1250 | 1250 |
| Max Stroke of Slider | mm | 400 | 500 | 600 | 600 | 700 | 600 | 800 | 800 |
| Effective table size | mm | 610×500 | 630×550 | 750×700 | 800×800 | 1000×1000 | 800×800 | 1260×1160 | 1260×1160 |
| Down speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing speed | mm/s | 11～22 | 7～15 | 7～15 | 7～18 | 7～18 | 7～12 | 7～12 | 5～11 |
| Return speed | mm/s | 80 | 90 | 90 | 90 | 90 | 90 | 100 | 100 |
| Ejection cylinder force | KN | 100 | 200 | 200 | 400 | 400 | 630 | 630 | 630 |
| Stroke of ejection cylinder | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 | 300 |
| 单位Unit | YQ32—500 | YQ32—630 | YQ32—800 | YQ32—1000 | YQ32—1250 | YQ32—1600 | |||
| Nominal force | KN | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | ||
| Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | ||
| Max.open height | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | ||
| Max Stroke of Slider | mm | 900 | 900 | 900 | 900 | 900 | 900 | ||
| Effective table size | mm | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 | ||
| Down speed | mm/s | 150 | 150 | 180 | 180 | 180 | 190 | ||
| Pressing speed | mm/s | 10～18 | 9～18 | 9～18 | 10～18 | 6～15 | 6～14 | ||
| Return speed | mm/s | 180 | 200 | 180 | 220 | 200 | 220 | ||
| Ejection cylinder force | KN | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 | ||
| Stroke of ejection cylinder | mm | 300 | 300 | 300 | 300 | 300 | 300 | ||
