Hydraulic press for forming fishtail end caps for motorway guardrails

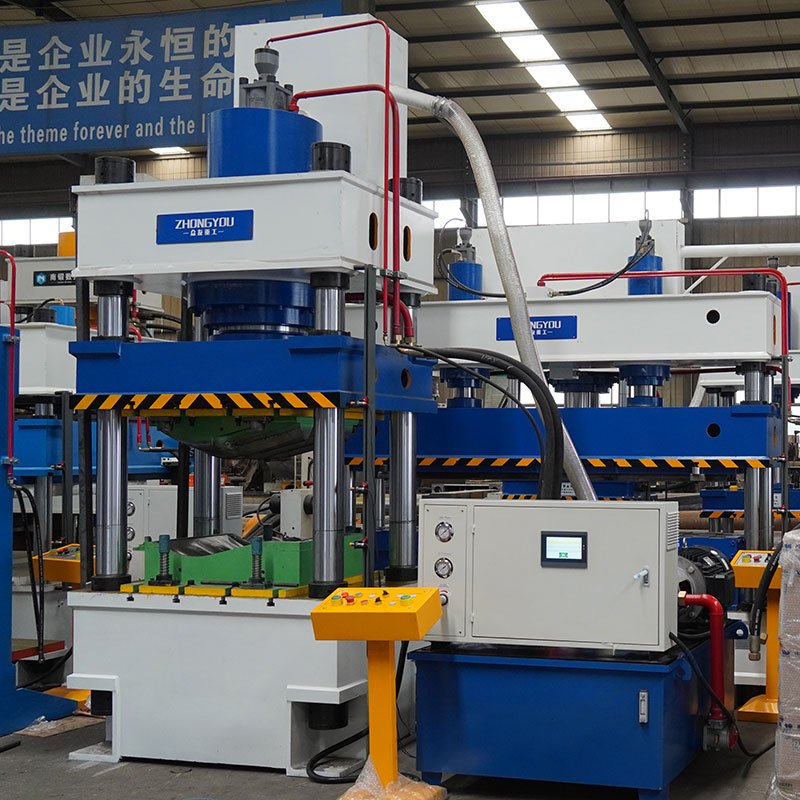

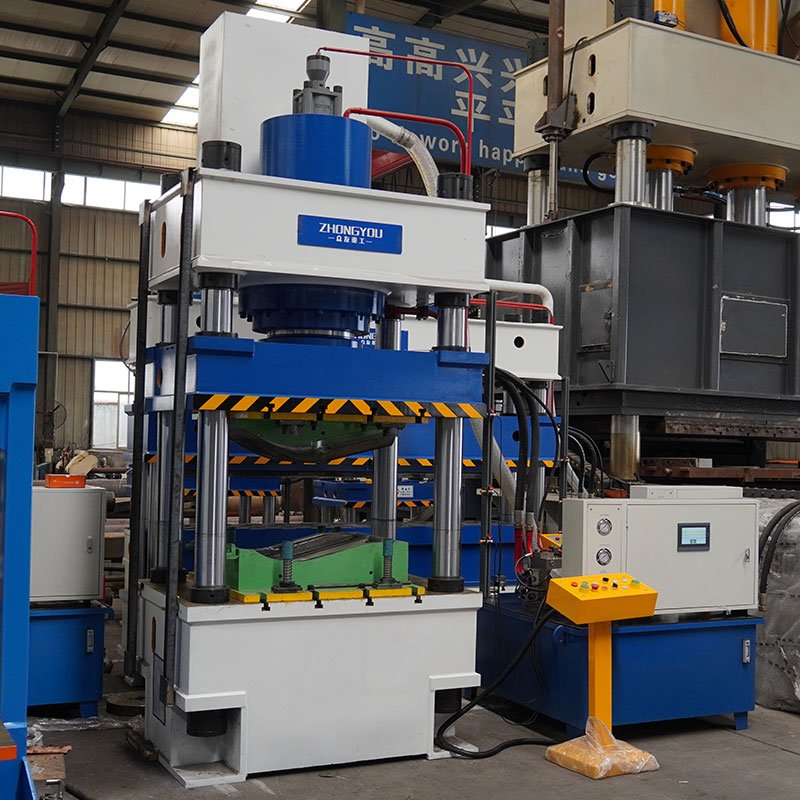

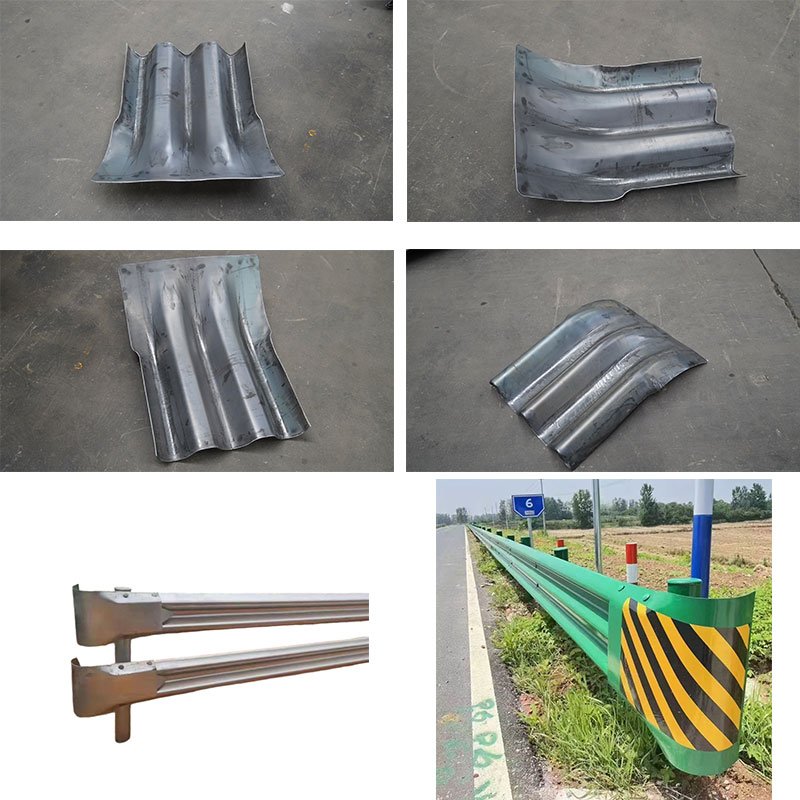

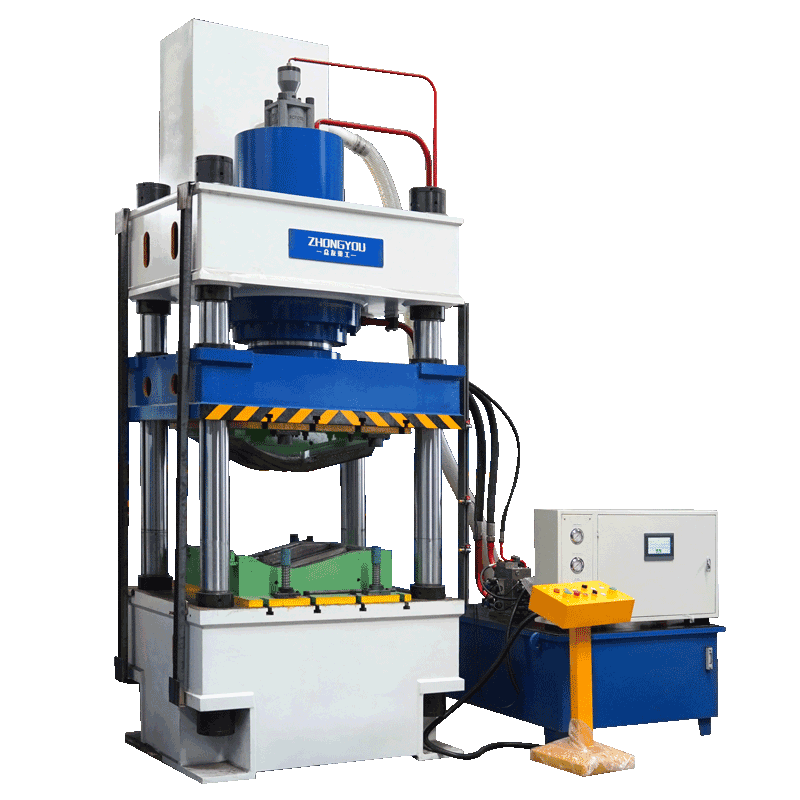

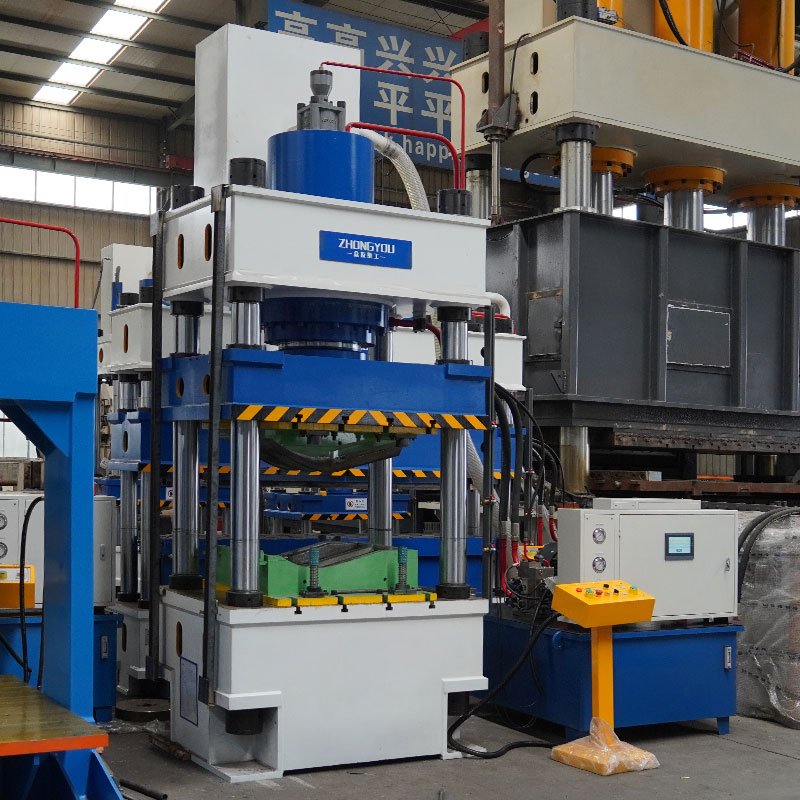

The hydraulic press for forming motorway guardrail end sections is a specialised four-column hydraulic press designed for transport infrastructure. It is primarily used for processing the end sections of crash barriers on motorways, provincial roads and national highways. It can perform integrated forming processes such as fishtail ends, end caps, tapering, bending and stretching on guardrail panels, and is compatible with standard two-wave and three-wave guardrail panels. It is a core piece of standard processing equipment for guardrail manufacturers.
Description
The hydraulic press for forming motorway guardrail end sections is a specialised four-column hydraulic press designed for transport infrastructure. It is primarily used for processing the end sections of crash barriers on motorways, provincial roads and national highways. It can perform integrated forming processes such as fishtail ends, end caps, tapering, bending and stretching on guardrail panels, and is compatible with standard two-wave and three-wave guardrail panels. It is a core piece of standard processing equipment for guardrail manufacturers.
Featuring a three-beam, four-column integrated structure, the entire machine is fabricated from high-strength, thick-walled steel plates welded together. It has undergone high-temperature ageing treatment to eliminate internal welding stresses, ensuring minimal deformation and vibration even during prolonged high-pressure operation. Its rigidity far exceeds that of standard general-purpose hydraulic presses, making it suitable for high-frequency continuous stamping operations. Four reinforced guide columns, combined with wear-resistant bronze bushings, ensure high positioning accuracy and excellent load-bearing capacity.
Views: 0
Compression molding process
Customer Case
Technical Specifications
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
