Deep Drawing Hydraulic Press For Sheet Metal Stainless Steel Basin Stretching Machine

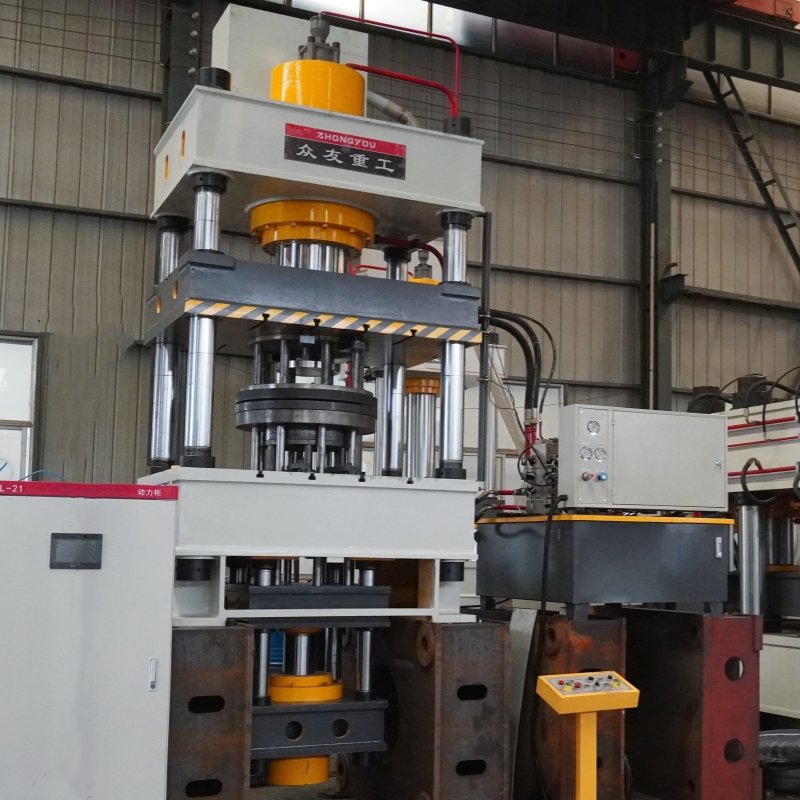

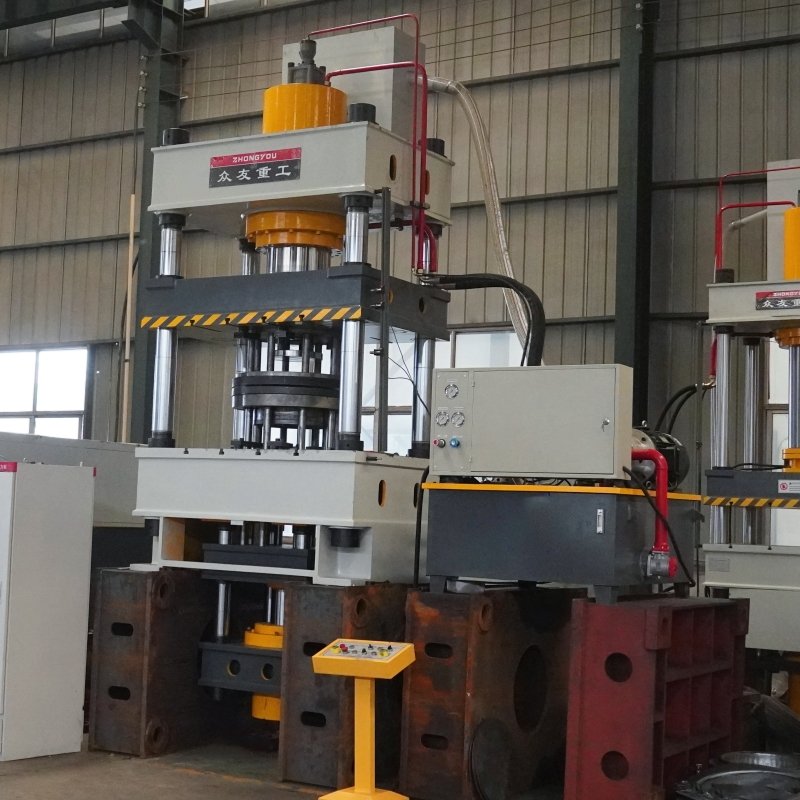

This is ZHONGYOU Deep Drawing Hydraulic Press for stretching and forming metal sheets and stainless steel basins. The machine has strong pressure (400 tons) and high precision, the stretched products have excellent molding effect and can meet the customers’ strict process requirements. Our engineers equipped the machine with molds and tested it in the workshop, and as you can see in the picture, our Deep Drawing Hydraulic Press passed the test perfectly!In addition, we can also provide you with production line equipment such as annealing furnaces and trimming machines.
- 2000-ton capacity
- Energy saving design
- Low maintenance
- CE certified
Description
This is ZHONGYOU Deep Drawing Hydraulic Press for stretching and forming metal sheets and stainless steel basins. The machine has strong pressure (400 tons) and high precision, the stretched products have excellent molding effect and can meet the customers’ strict process requirements. Our engineers equipped the machine with molds and tested it in the workshop, and as you can see in the picture, our Deep Drawing Hydraulic Press passed the test perfectly!In addition, we can also provide you with production line equipment such as annealing furnaces and trimming machines.
1.The fuselage has a three-beam and four-column structure, featuring high stability, high precision, and convenient maintenance.

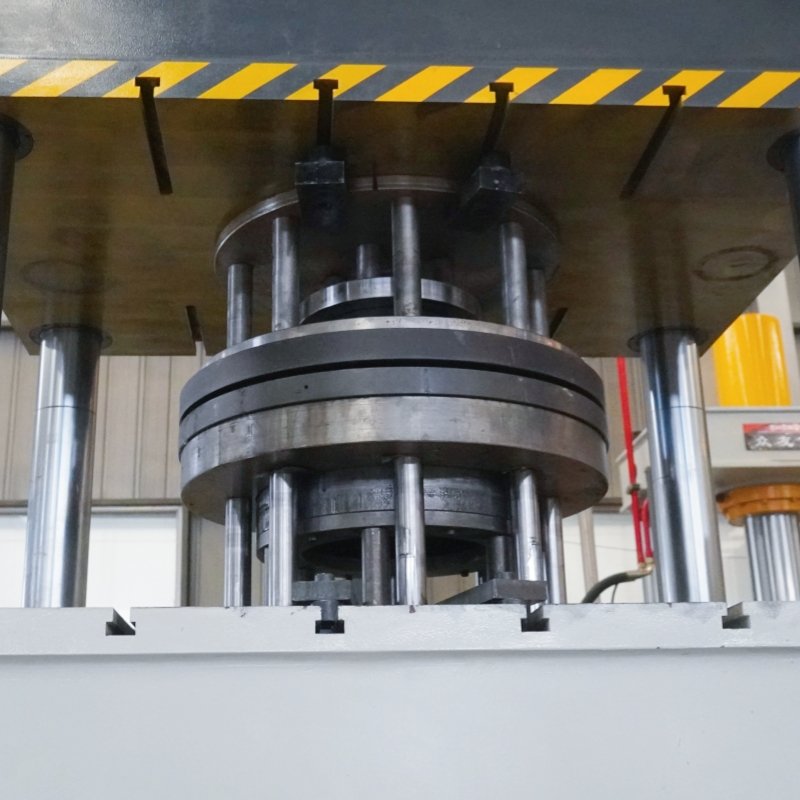

2.The machine is equipped with a hydraulic cushion ejection device, specifically designed for the deep drawing and forming process of metal sheets.
3.The control system is equipped with a PLC programmable controller. By setting different programs, the machine can complete the pressing of products with different specifications, further enhancing the equipment performance.
4.The pressure, speed, and pressure-holding time of the machine are adjustable, providing conditions for improving product quality and producing more products with different specifications.
4.It is operated through buttons, and the operation method is simple and easy to learn, which is conducive to improving production efficiency.
Compression molding process
Customer Case
Technical Specifications
| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |
Detailed Parameters
| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |
