CNC Vertical Turning Machine VTC75 for Industrial Parts Machining
VTC75 CNC vertical lathe for precision turning, boring and drilling of wheels, flanges and large metal parts. Customized CNC machining solutions available from the manufacturer.
Description

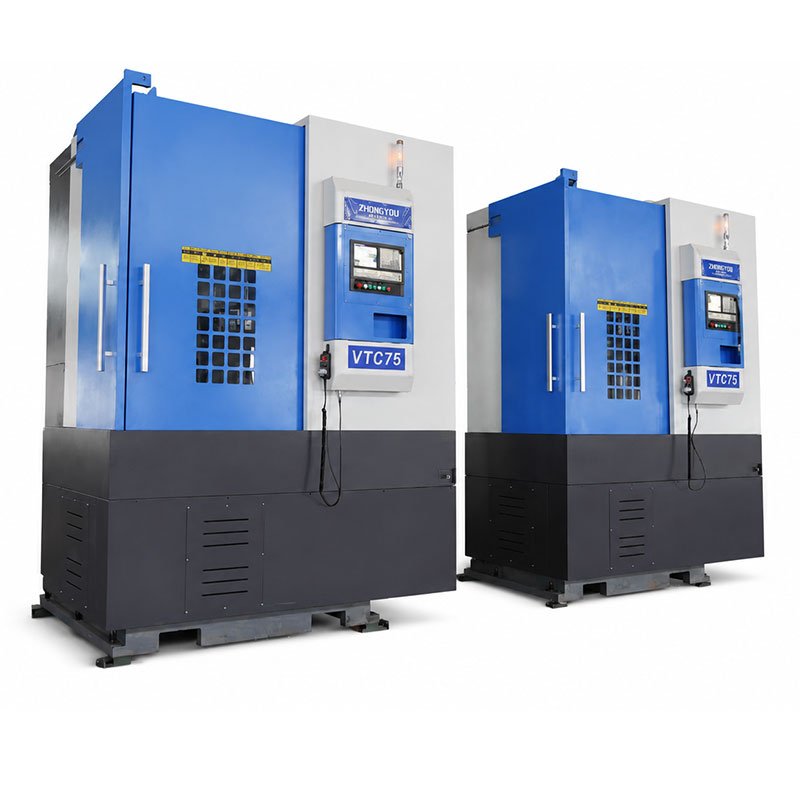

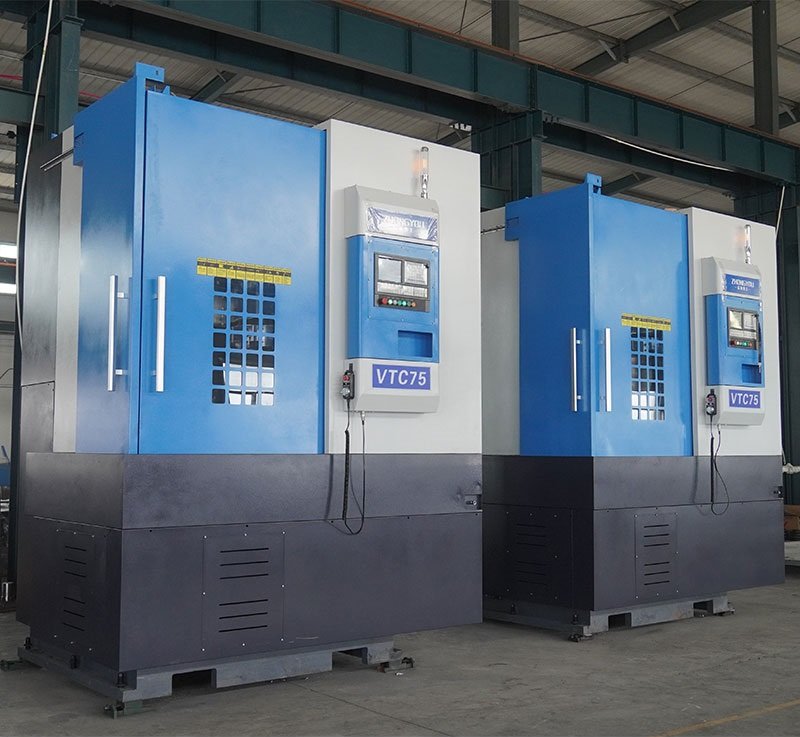

The VTC75 CNC Vertical Lathe is a high-performance vertical turning machine designed for precision machining of various metal components. With its vertical spindle structure, the machine provides excellent stability and convenient workpiece loading, making it suitable for machining parts with large diameters, short lengths and relatively high weight.
The VTC75 is widely used for turning, boring, drilling, tapping and other machining operations. Its CNC control system allows machining parameters and processing programs to be set accurately, helping improve machining consistency and production efficiency.
As an experienced hydraulic and industrial machinery manufacturer, Shandong Zhongyou Heavy Industry Machinery Co., Ltd. provides CNC vertical lathe solutions for customers in different industrial sectors. We can offer equipment selection, technical consultation, customized machine configurations and production support according to customer requirements.
Compression molding process

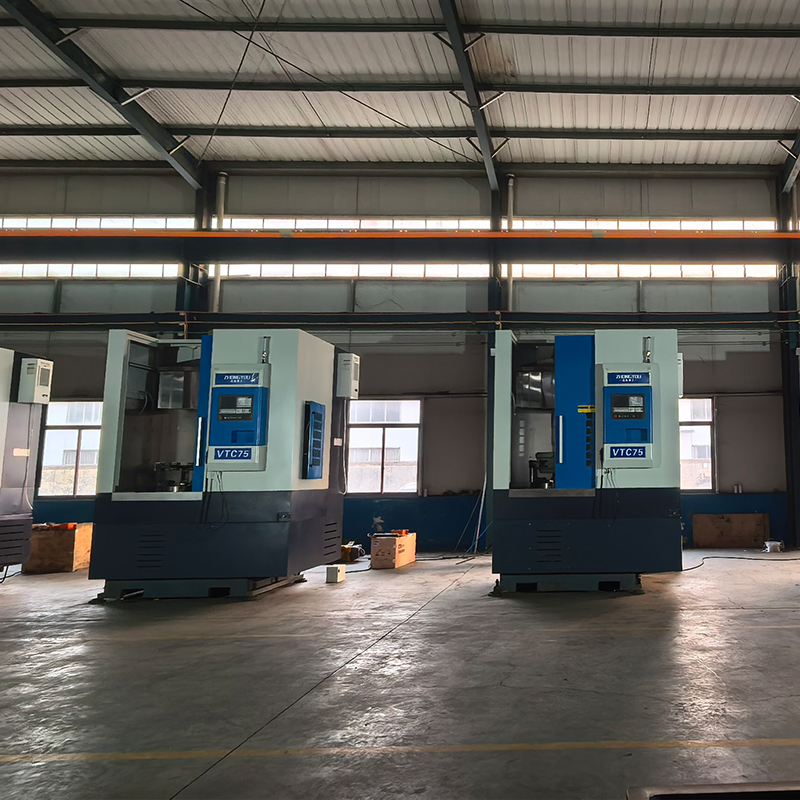

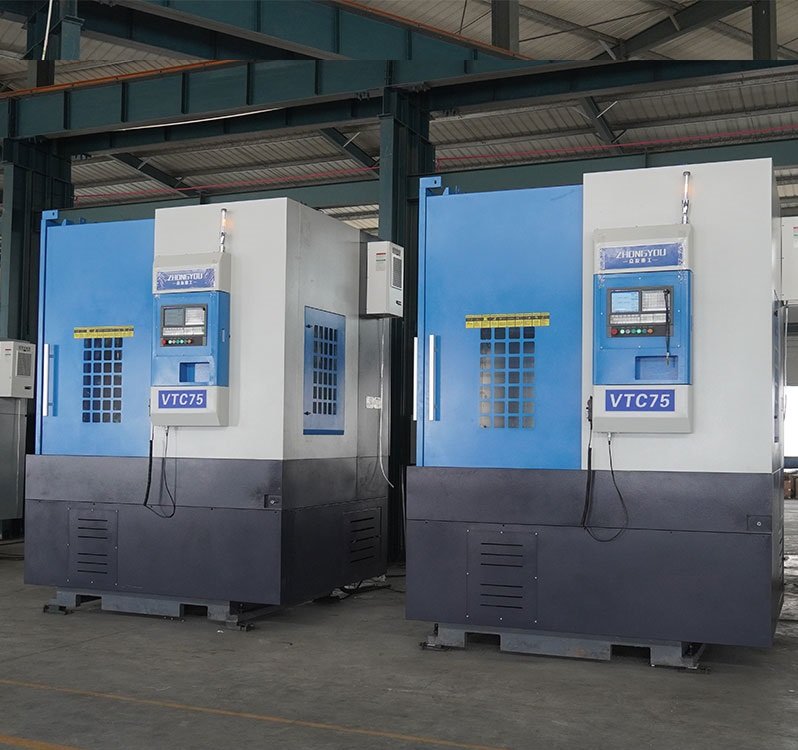

Customer Case
Technical Specifications
| 主要技术参数 | Specifications | 单位 | VTC45 | VTC65 | VTC75 | VTC80 | VTC1000 | VTC1250 | VTC1400 | VTC1600 | |
| 加工 范围 |
最大回转直径 | Maximm tuning diaretr | mm | 500 | 650 | 750 | 900 | 1000 | 1250 | 1400 | 1600 |
| 最大车削直径 | Mxirum tuning diaretr | mm | 450 | 600 | 700 | 800 | 850 | 1000 | 1200 | 1400 | |
| 卡盘 | 三爪液压卡盘直径 | Three jiaw hydraulic chuck diamena | M | 12 | 21 | 24 | 24 | 24 | 32 | 手动四爪卡1250 | 手动四爪卡盘1400 |
| 刀塔 | 刀塔形式 | Turet frm | 卧式8工位 | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | |
| 行程 | X轴行程 | Tool towe X axis travel | mm | 400 | 430 | 720 | 700 | 700 | -50-650 | -50-750 | -50-850 |
| Z轴行程 | Tunet Z-axs ravel | mm | 500 | 550 | 750 | 700 | 700 | 800 | 800 | 800 | |
| 刀塔下端面距卡盘上端面距离 | Distence between owe eng face of turet andLpo cnd face duck |
170-560 | 0-550 | 850 | 0-800 | 0-800 | 150-950 | 150-950 | 150-950 | ||
| 线规 丝杠 |
X/Z线规 | x/Z wre gauge | 45滚柱 | 45/55滚柱 | 45/55滚柱 | 45/55滚柱 | 45/55滚柱 | 55/55滚柱 | 55/65滚柱 | 65滚柱 | |
| X/Z丝杠直径 | X/Z srew daneta | mm | φ40 | φ40/φ50 | φ40 | φ40/φ50 | φ40/φ50 | φ50/φ50 | φ50 | ①63 | |
| 外形 尺寸 |
长×宽×高 | Lergh ×wich ×heif | m | 2.3×2.2×3.2 | 2.35*2.26*3.2 | 2.7×2.1×3.4 | 2.5×2.25×3.15 | 2.6×2.35×3.15 | 2.7×2.85×3.25 | 2.8×2.95×3.25 | 3.0×3.0×3.25 |
Detailed Parameters
| 主要技术参数 | Specifications | 单位 | VTC45 | VTC65 | VTC75 | VTC80 | VTC1000 | VTC1250 | VTC1400 | VTC1600 | |
| 加工 范围 |
最大回转直径 | Maximm tuning diaretr | mm | 500 | 650 | 750 | 900 | 1000 | 1250 | 1400 | 1600 |
| 最大车削直径 | Mxirum tuning diaretr | mm | 450 | 600 | 700 | 800 | 850 | 1000 | 1200 | 1400 | |
| 卡盘 | 三爪液压卡盘直径 | Three jiaw hydraulic chuck diamena | M | 12 | 21 | 24 | 24 | 24 | 32 | 手动四爪卡1250 | 手动四爪卡盘1400 |
| 刀塔 | 刀塔形式 | Turet frm | 卧式8工位 | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | |
| 行程 | X轴行程 | Tool towe X axis travel | mm | 400 | 430 | 720 | 700 | 700 | -50-650 | -50-750 | -50-850 |
| Z轴行程 | Tunet Z-axs ravel | mm | 500 | 550 | 750 | 700 | 700 | 800 | 800 | 800 | |
| 刀塔下端面距卡盘上端面距离 | Distence between owe eng face of turet andLpo cnd face duck |
170-560 | 0-550 | 850 | 0-800 | 0-800 | 150-950 | 150-950 | 150-950 | ||
| 线规 丝杠 |
X/Z线规 | x/Z wre gauge | 45滚柱 | 45/55滚柱 | 45/55滚柱 | 45/55滚柱 | 45/55滚柱 | 55/55滚柱 | 55/65滚柱 | 65滚柱 | |
| X/Z丝杠直径 | X/Z srew daneta | mm | φ40 | φ40/φ50 | φ40 | φ40/φ50 | φ40/φ50 | φ50/φ50 | φ50 | ①63 | |
| 外形 尺寸 |
长×宽×高 | Lergh ×wich ×heif | m | 2.3×2.2×3.2 | 2.35*2.26*3.2 | 2.7×2.1×3.4 | 2.5×2.25×3.15 | 2.6×2.35×3.15 | 2.7×2.85×3.25 | 2.8×2.95×3.25 | 3.0×3.0×3.25 |
