automatic salt lick block making machine
The automatic salt lick block making machine is widely used in the animal nutrition feed industry. It’s is a kind of hydraulic press machine for making animal licking nutrition blocks. The press machine’s tonnage depends on the weight of the salt blocks, such as a 315-ton press machine suitable for making a 5kg salt block, 500-ton salt block press machine suitable for making 10kg. The below table shows the press machine suitable for which kind of weight of salt blocks.
- 2000-ton capacity
- Energy saving design
- Low maintenance
- CE certified
Description
The automatic salt lick block making machine is widely used in the animal nutrition feed industry. It’s is a kind of hydraulic press machine for making animal licking nutrition blocks. The press machine’s tonnage depends on the weight of the salt blocks, such as a 315-ton press machine suitable for making a 5kg salt block, 500-ton salt block press machine suitable for making 10kg. The below table shows the press machine suitable for which kind of weight of salt blocks.
Finished salt block
The press machine’s tonnage depends on the weight of the salt blocks, such as a 315-ton press machine suitable for making a 5kg salt block, 500-ton salt block press machine suitable for making 10kg. The below table shows the press machine suitable for which kind of weight of salt blocks.
salt lick block making machine is a professional machine for producing cattle and sheep licking salt blocks, the salt particles will be compressed into a block by the press with mould, the salt blocks contain much nutrition for animals, Also applied to compress salt or other protein, molasses into blocks.

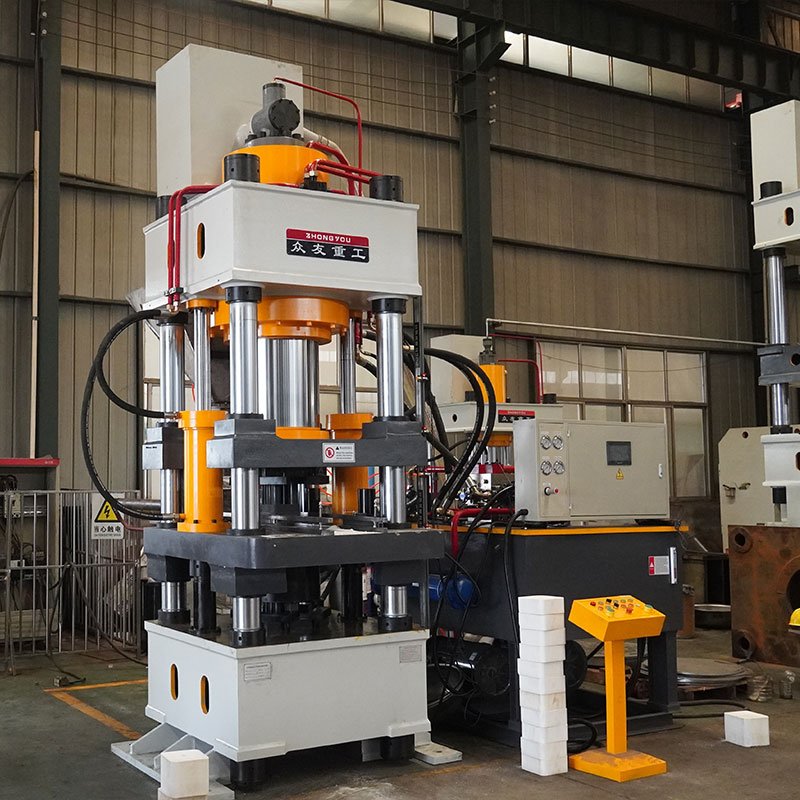

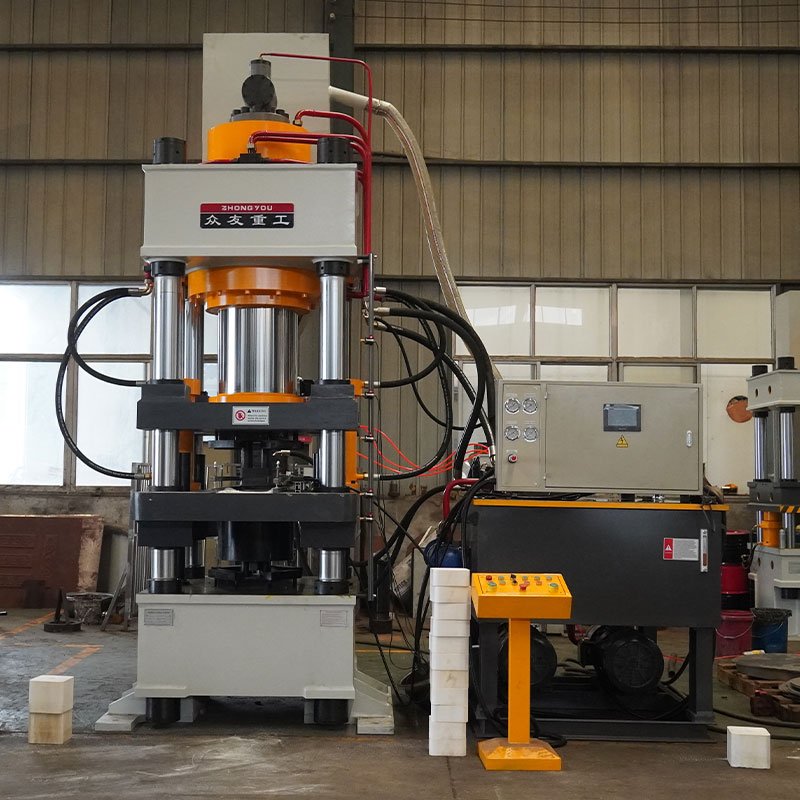

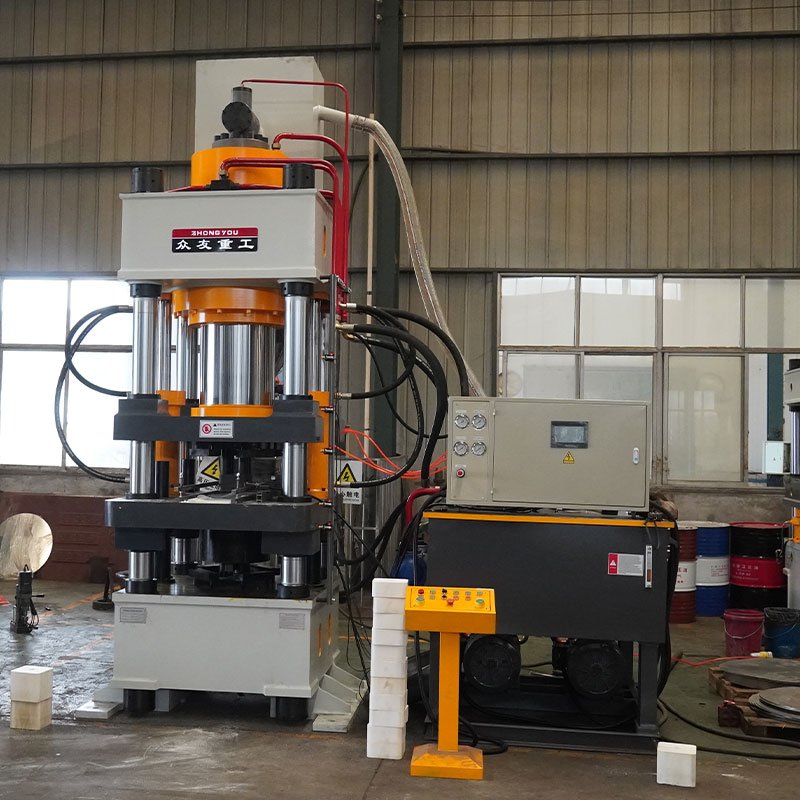

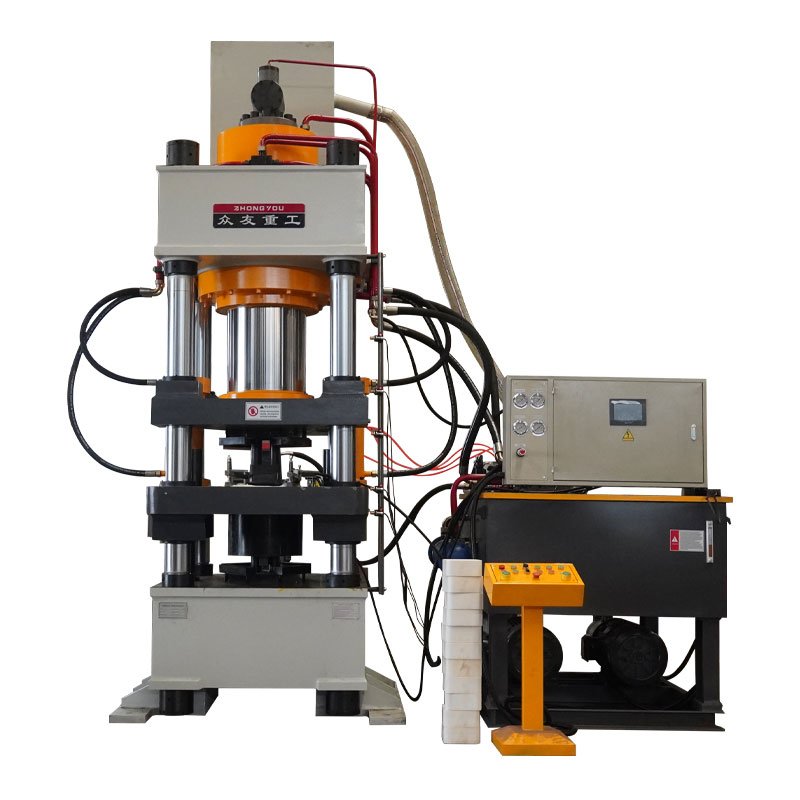

The productivity is 2-3 pieces salt blocks per minute, it’s automatic control four-column hydraulic press machine.
The Salt Block Press Machine consists of three parts: main engine, hydraulic pump station and electrical control system.
1. Mainframe: consists of frame, hydraulic cylinder, mould, supporting mould and punch.
2. Hydraulic pump station: consists of motor, hydraulic valve, oil roadblock and tubing.
3. Electrical control cabinet: composed of the electrical control system and text display.
Usually, the shape of the salt block is round or square, another shape is also available, we will provide customized mould, such as logo can be compressed on a salt block.
Compression molding process
Customer Case
Technical Specifications
| Model | Tonnage | Weight of Molding Salt Brick | Mold | Configuration |
|---|---|---|---|---|
| YZ79-315T | 315 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-400T | 400 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-500T | 500 tons | 5KG-10KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-630T | 630 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-800T | 800 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1000T | 1000 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1200T | 1200 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1500T | 1500 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
Detailed Parameters
| Model | Tonnage | Weight of Molding Salt Brick | Mold | Configuration |
|---|---|---|---|---|
| YZ79-315T | 315 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-400T | 400 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-500T | 500 tons | 5KG-10KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-630T | 630 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-800T | 800 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1000T | 1000 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1200T | 1200 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1500T | 1500 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
