Description

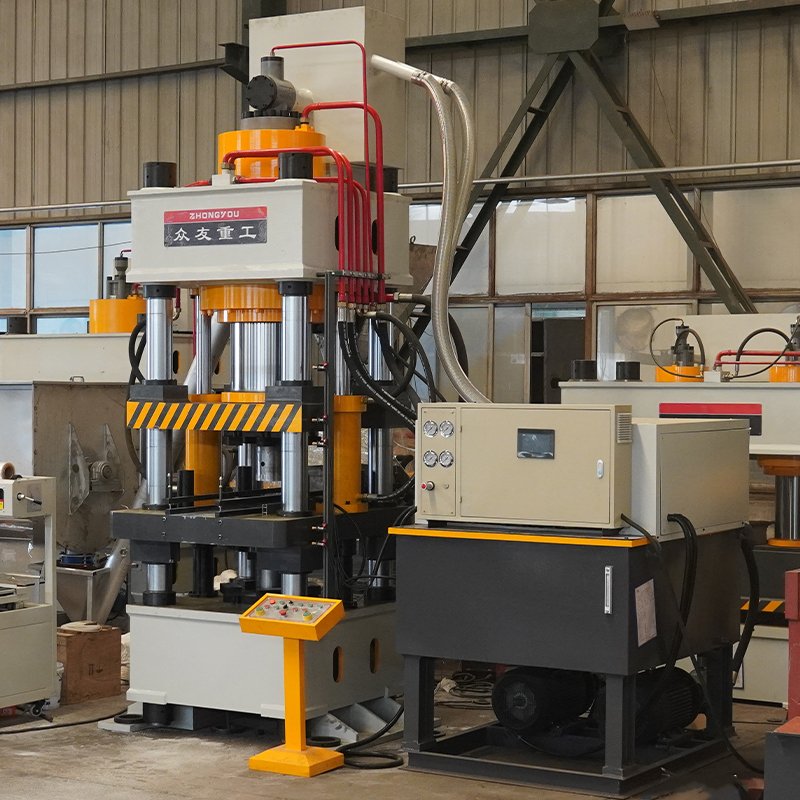

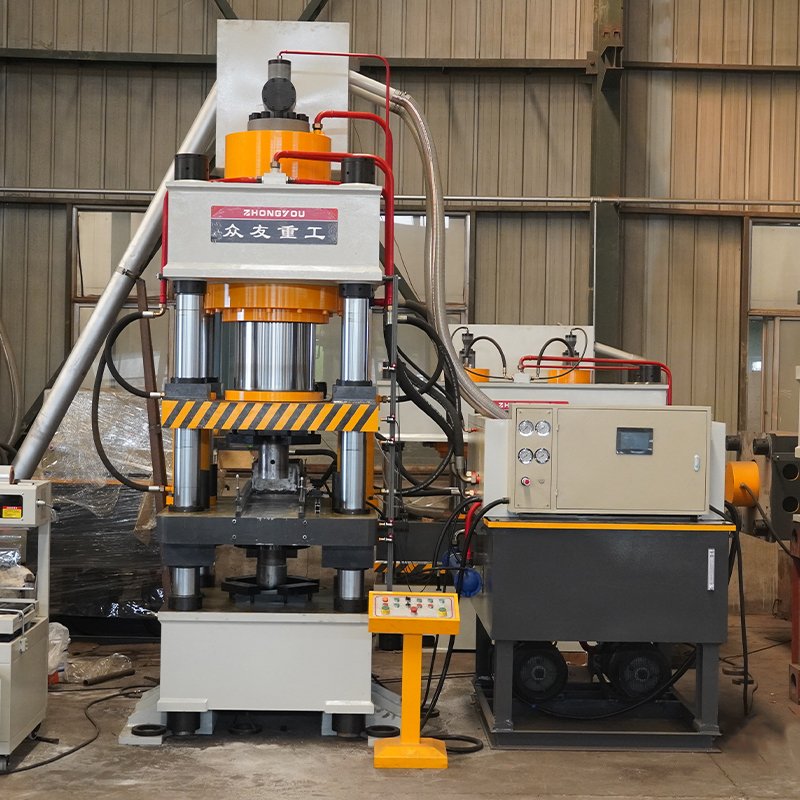

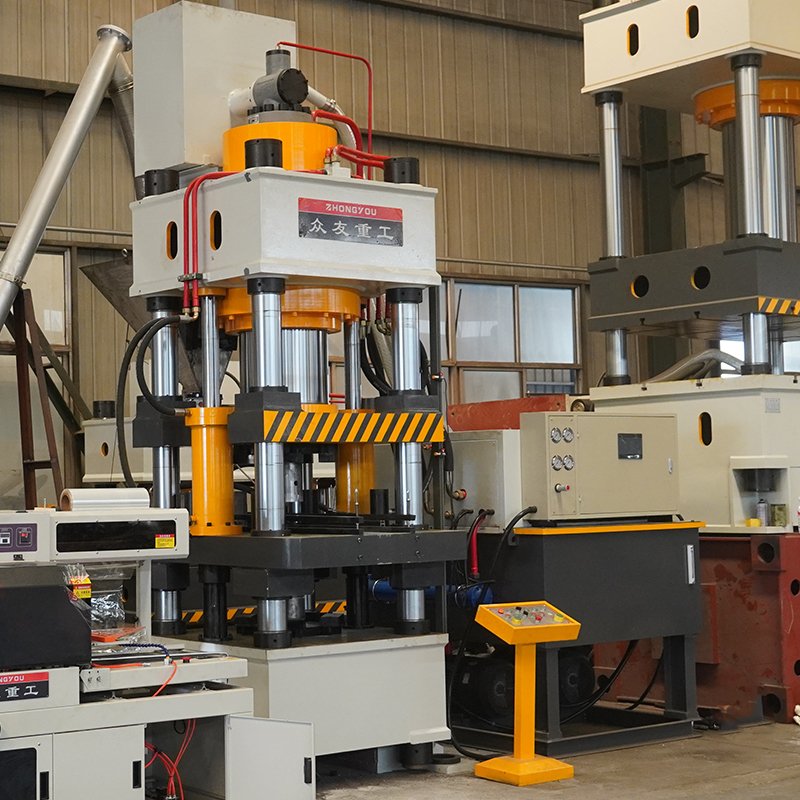

500 ton cow salt lick block machine for making 10kg block suitable for making 10kg salt block,the shape of the block can be round or square shape or others customized shape.The productivity is 2-3 pieces salt blocks per minute,it’s automatic control four column hydraulic press machine.
The Salt Block press Machine consists of three parts: main engine, hydraulic pump station and electrical control system.
1. Mainframe: consists of frame, hydraulic cylinder, mould, supporting mould and punch.
2. Hydraulic pump station: consists of motor, hydraulic valve, oil road block and tubing.
3. Electrical control cabinet: composed of electrical control system and text display.
Salt block press machine is a a professional machine for producing cattle and sheep licking salt blocks,the salt particles will be compressed into block by the press with mould, the salt blocks contains many nurtrition for animals, Also applied to compress salt or other protein,molasses into blocks.
Usually,the shape of the salt block is round or square,other shape is also available,we will provide customized mould,such as logo can be compressed on salt block.
Compression molding process
Customer Case
Technical Specifications
| Model | Tonnage | Weight of Molding Salt Brick | Mold | Configuration |
|---|---|---|---|---|
| YZ79-315T | 315 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-400T | 400 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-500T | 500 tons | 5KG-10KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-630T | 630 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-800T | 800 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1000T | 1000 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1200T | 1200 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1500T | 1500 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
Detailed Parameters
| Model | Tonnage | Weight of Molding Salt Brick | Mold | Configuration |
|---|---|---|---|---|
| YZ79-315T | 315 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-400T | 400 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-500T | 500 tons | 5KG-10KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-630T | 630 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-800T | 800 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1000T | 1000 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1200T | 1200 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1500T | 1500 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
Product Video
