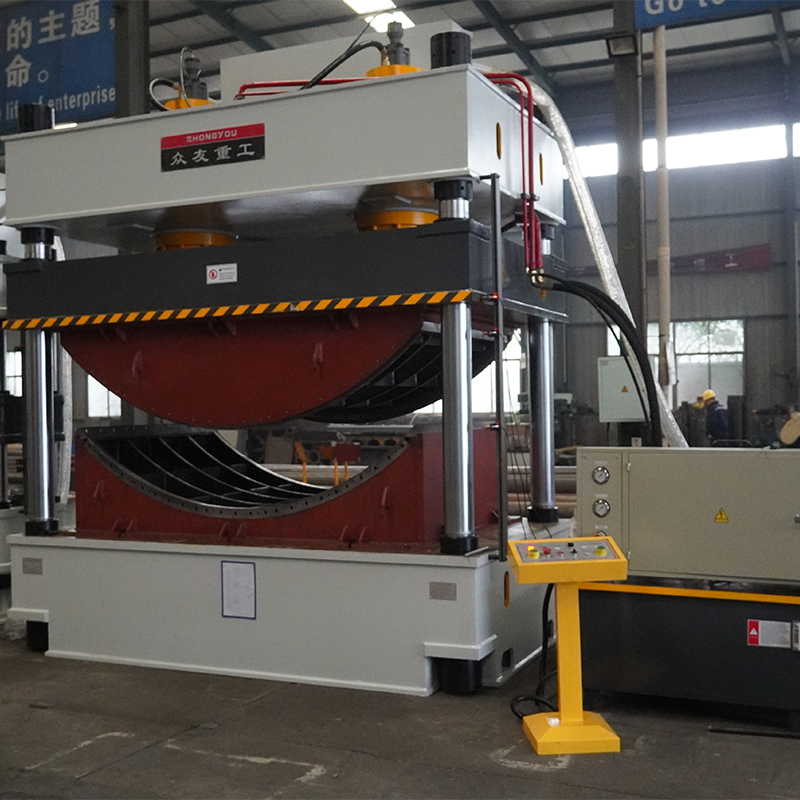

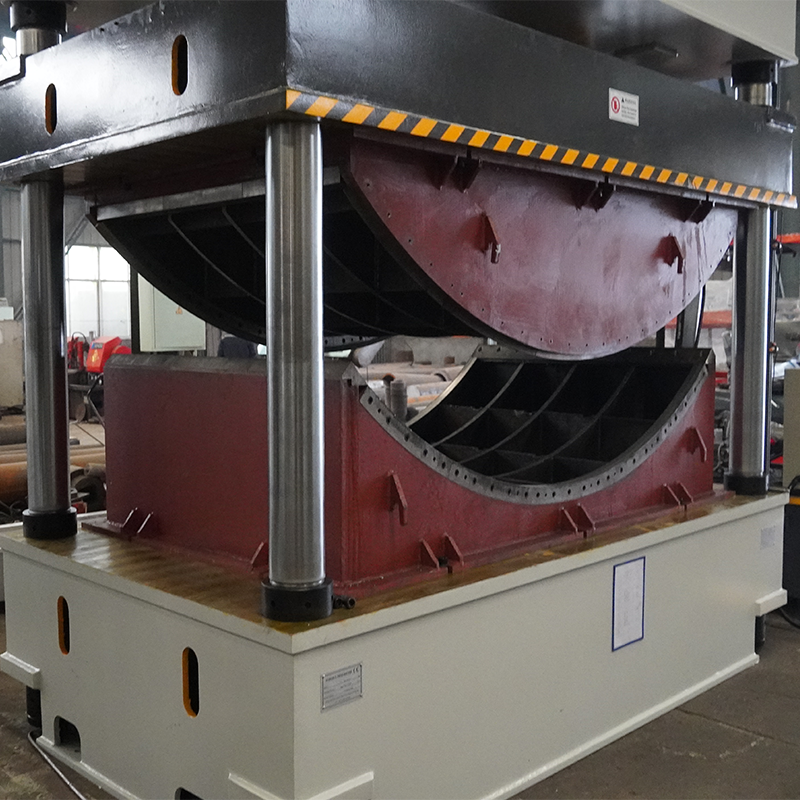

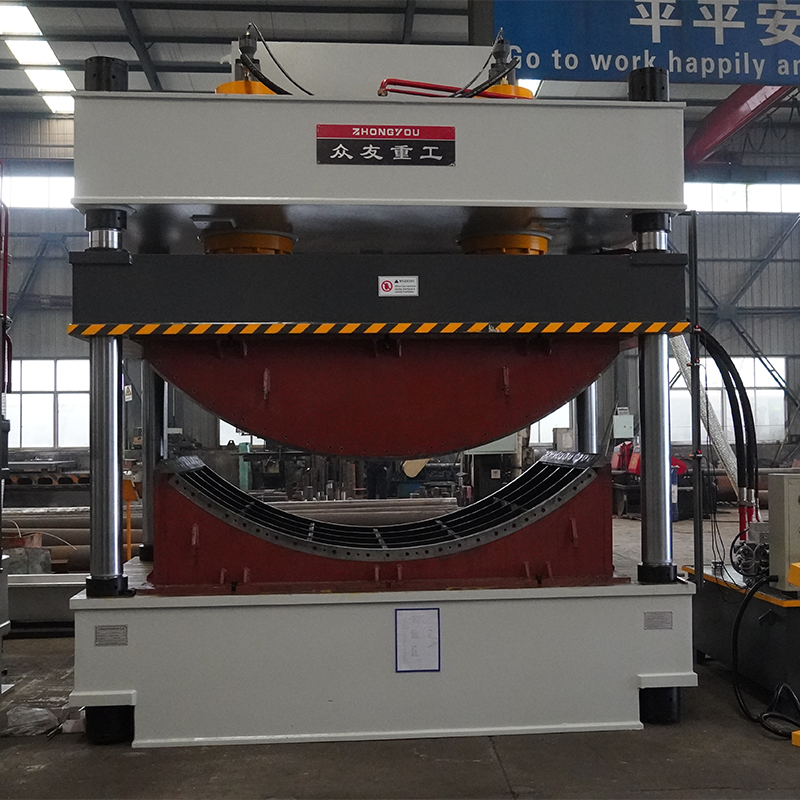

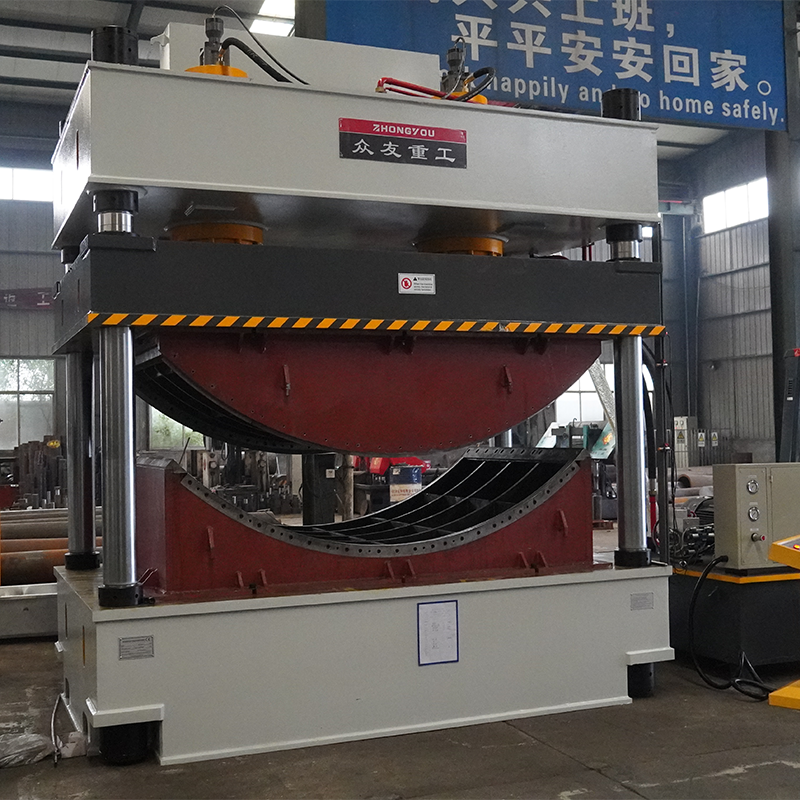

400 tons double table steel plate bending machine

400 tons double table steel plate bending machine

The 400-ton double-table steel plate bending hydraulic press is a “high-efficiency player” in the field of large-tonnage bending, balancing efficiency and flexibility through the double-table design, suitable for batch processing or diversified needs of manufacturing scenarios.

WeChat QR Code
Scan to connect on WeChat
WhatsApp QR Code
Scan to chat on WhatsApp
+86 13562463338 zhongyou@chinazhongyou.cn

Description

400 tons double table steel plate bending hydraulic press is a large tonnage, high-precision metal forming equipment, mainly used for steel bending processing (such as right-angle bending, obtuse/sharp angle bending, etc.), is widely used in steel structure, construction machinery, shipbuilding, pressure vessels, automotive parts and other fields. Its core feature is the “double table” design, which can significantly improve production efficiency and meet batch or diversified processing needs.
Typical application scenarios
Steel structure engineering: processing of H-beams, flange edges of box beams, and bending of connecting plates.
Construction machinery: bending of reinforcement bars for excavator arms and loader frames.
Shipbuilding: plate bending of hull structural parts.
Pressure vessel: bending of transition section of head and cylinder splicing.
Automobile/rail vehicles: precision bending of chassis supports and carriage frames.

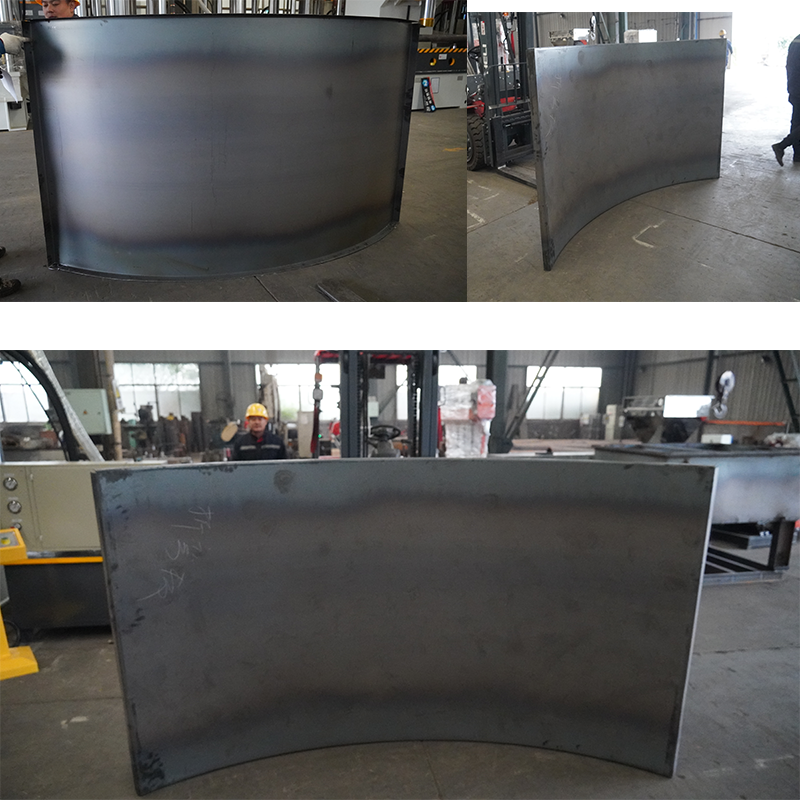

Compression molding process

400 tons double table steel plate bending machine Compression molding process

Customer Case

400 tons double table steel plate bending machine Customer Case

Technical Specifications

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300

Detailed Parameters

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300
