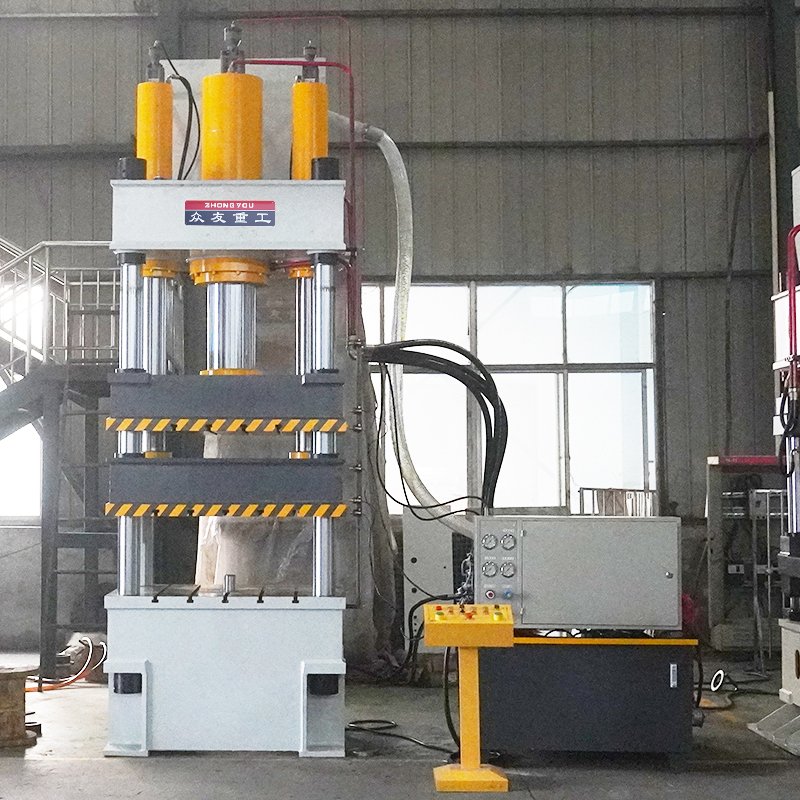

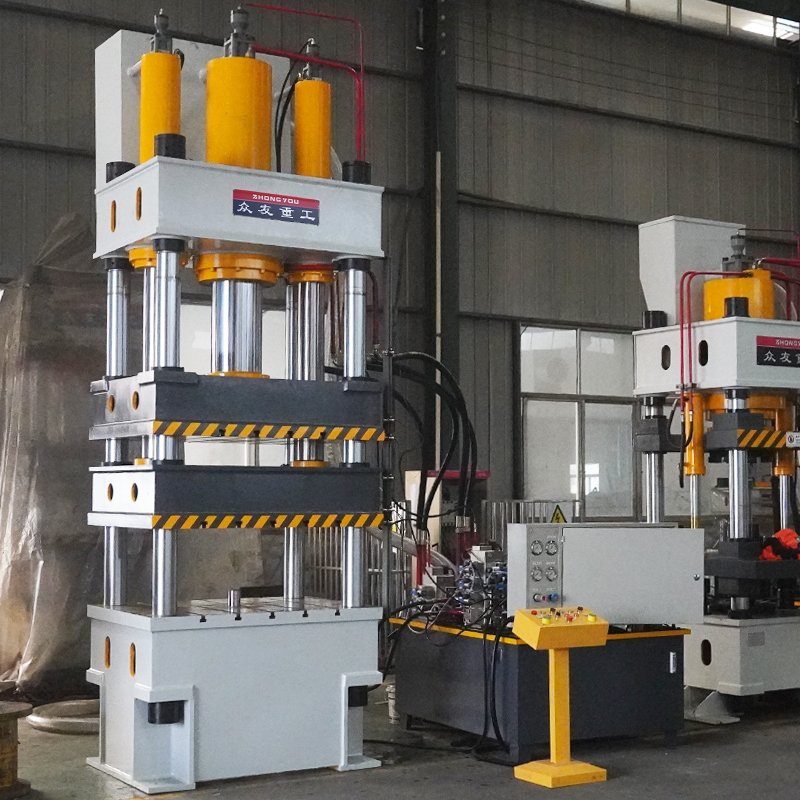

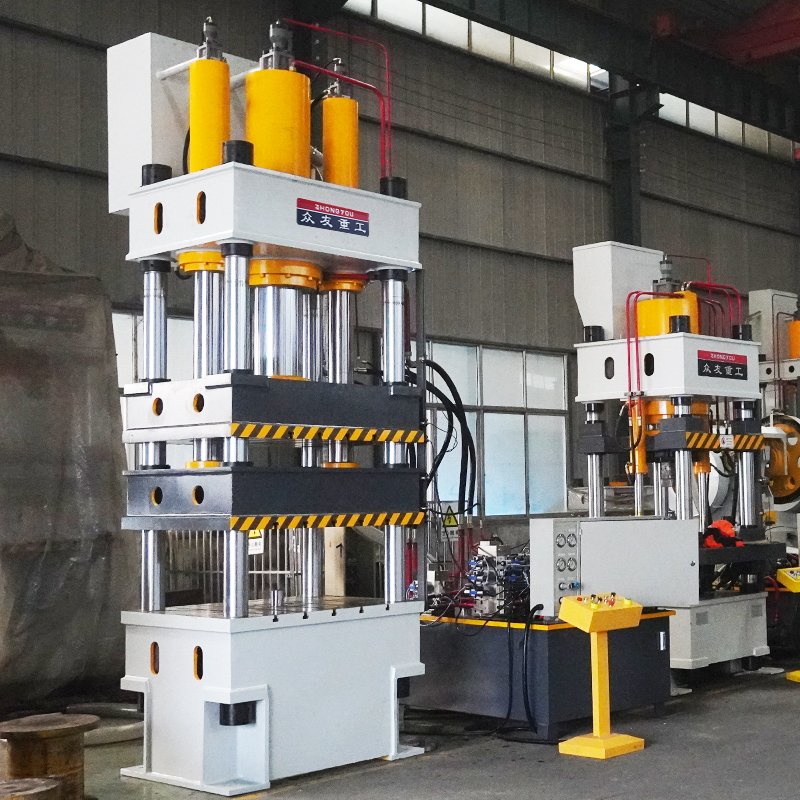

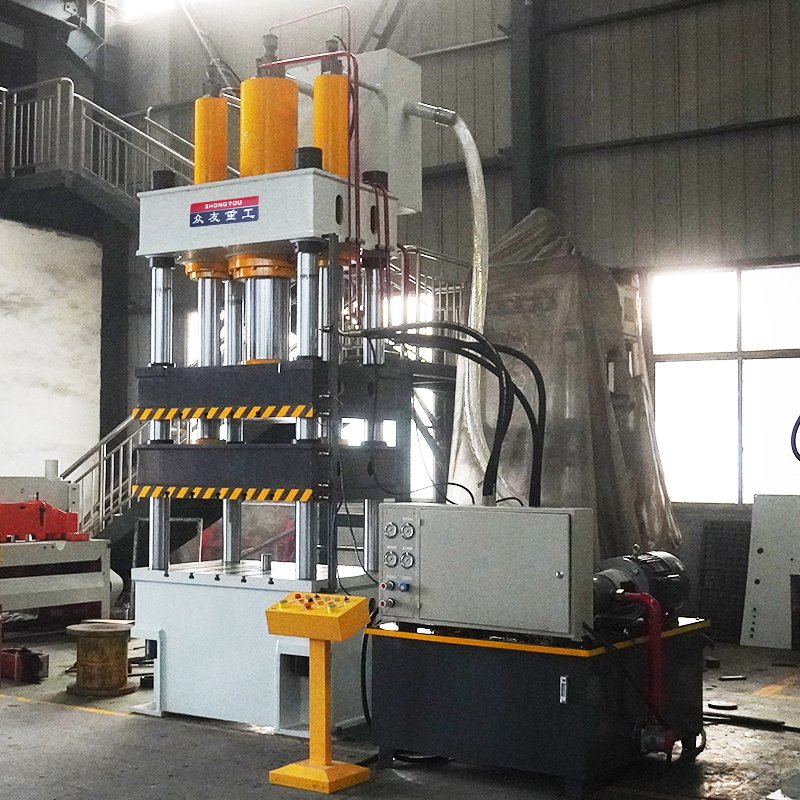

315 Ton Dual Action Hydraulic Deep Drawing Press for Metal Forming
The 315-ton double-acting thin-sheet drawing press is an industrial machine widely used for deep drawing of metal sheets. It is primarily used in the production of stainless steel kitchenware, heads, containers, automotive body panels, and other products.
Description
The 315-ton double-acting drawing press is a large-scale metal sheet forming machine. Its key feature is the independent drive of two sliders—an outer slider that controls the flanging force and an inner slider responsible for drawing and forming. The coordinated action of these two sliders enables precise control over sheet metal flow, making the machine suitable for challenging processes such as deep drawing and thinning.
Main Application Areas: Automotive Parts (Largest Demand)
Body panels, fuel tanks, chassis components, brake pads, bumpers, axle housings, etc.
The 315-ton capacity covers most small and medium-sized automotive stampings; large body panels require 800 tons or more
Kitchenware/Stainless Steel Products (Most Typical Applications): Rice cooker inner pots, stainless steel sinks, stainless steel cookware, shallow stainless steel bowls
Buckets, stainless steel water tanks, tea cup lids, metal serving trays, etc.
These products require moderate drawing depths, making the 315-ton double-action machine the best fit
Heads/Containers: Pressure vessel heads, various tank end caps
Equipped with a hydraulic cushion for deep drawing; head forming is a classic application for 315-ton double-action presses
Hardware/Sheet Metal Parts: Motor shrouds, fan housings, custom-shaped metal parts, corrugated sheets, anchor plate trays, firefighting equipment
Capable of flanging, bending, punching, and shallow drawing
Views: 0
Compression molding process
Customer Case
Technical Specifications
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
