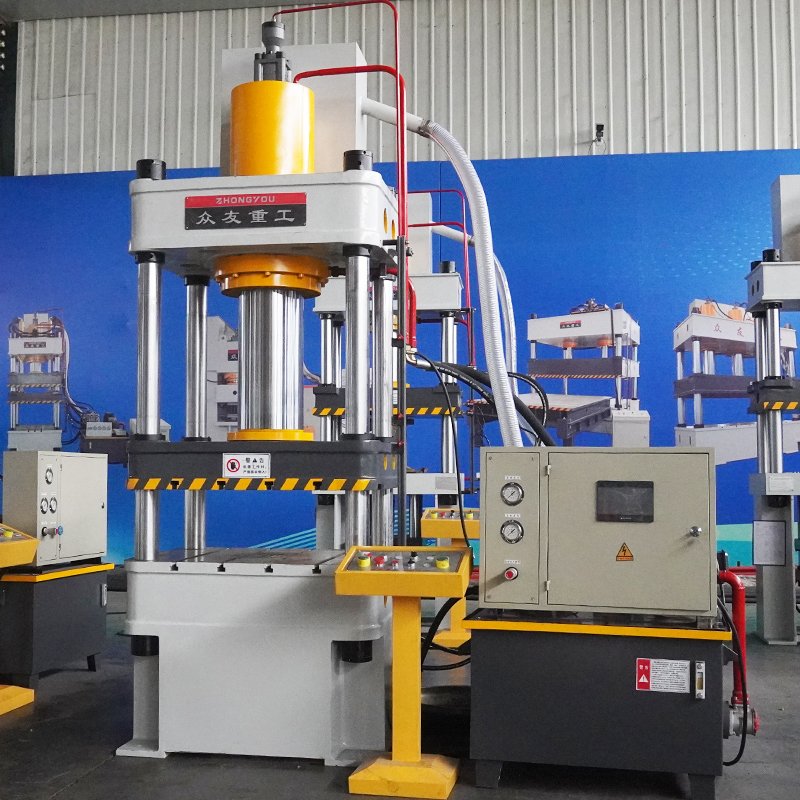

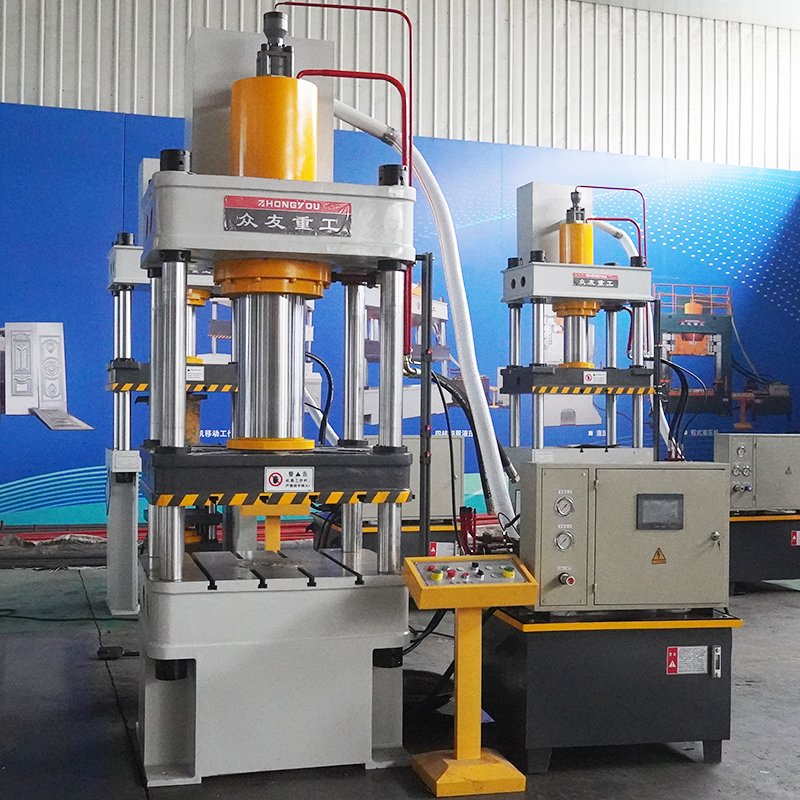

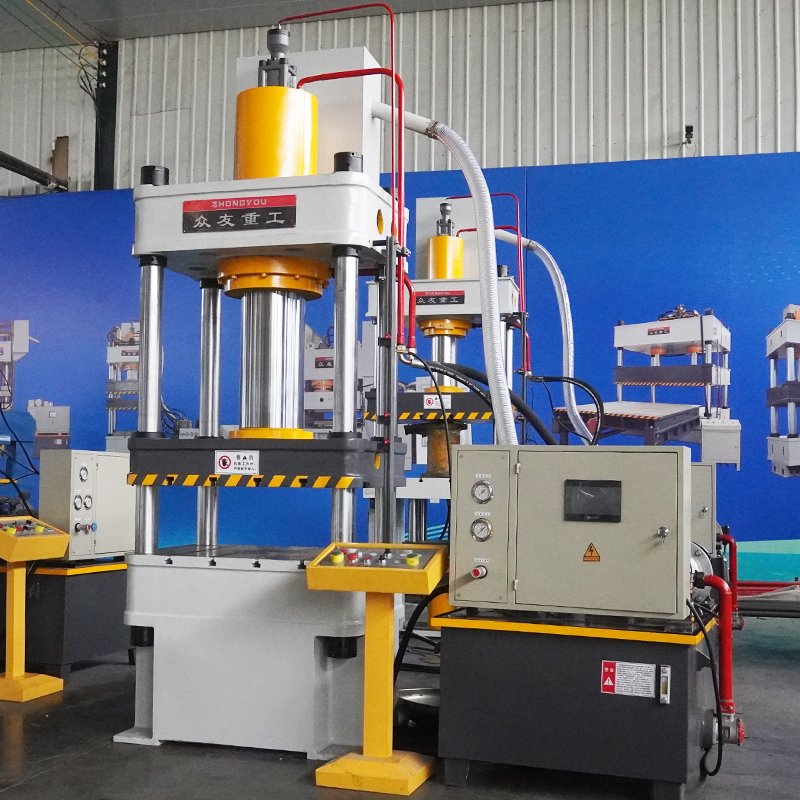

200T 4 column hydraulic press machine For metal forming in automotive parts

Description

The 200-ton automotive parts hydraulic press is a pressure machine specifically designed for the processing of automotive components. It typically features a three-beam, four-column structure, offering high stability, precision, and versatility to meet the automotive industry’s stringent requirements for processes such as stamping, drawing, and forming.

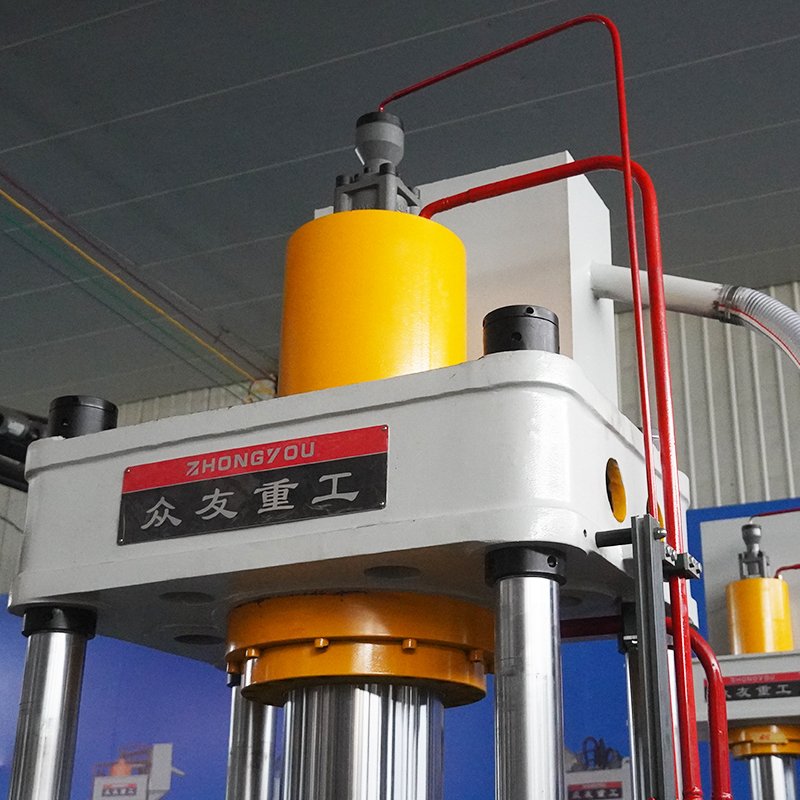

Three-beam, four-column design: The structure consists of an upper beam, a moving beam, a lower beam, and four columns, forming a stable frame that ensures rigidity and resistance to off-center loads during operation.
The moving crossbeam (slide) is driven by a hydraulic cylinder to move up and down, thereby processing the workpiece.
High Precision and Stability: Key components (such as the main cylinder and columns) are made of high-strength materials (e.g., 45# forged steel, 50# forged steel) and undergo precision machining and heat treatment to ensure they remain distortion-free during long-term use.
The hydraulic system employs cartridge valve integrated control, reducing leakage points and ensuring reliable operation and a long service life.
Versatility: Suitable for various processes including metal forming, pressing, punching, and stretching. It can process components such as automotive exhaust pipe heat shields, air filter housings, nameplates, brake pads, bearing sleeves, and control arms. Some models support a dual-cylinder design with high synchronization accuracy, making them ideal for pressing large sheet metal parts or complex-shaped components.

Views: 0

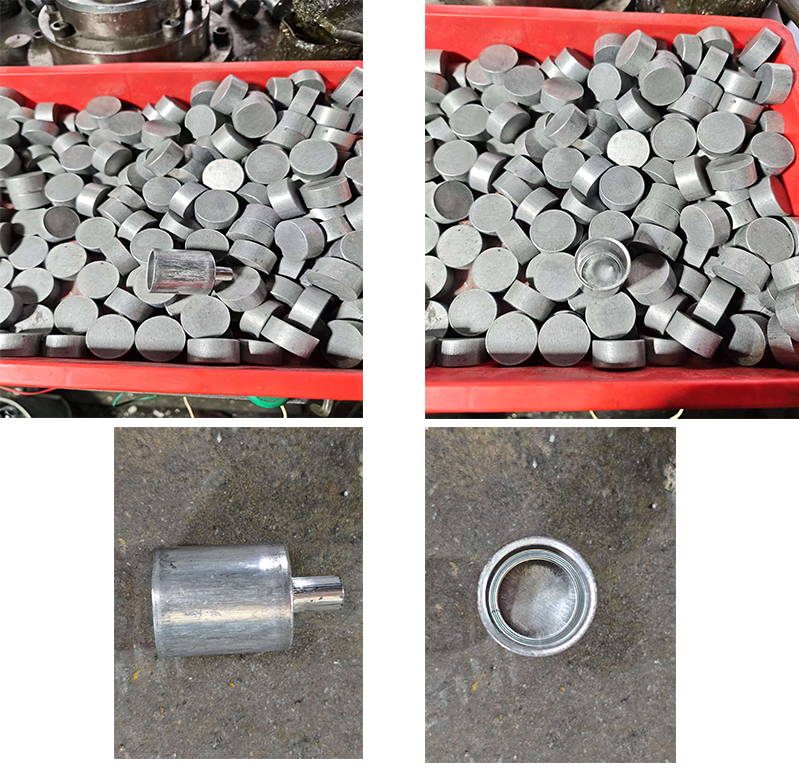

Compression molding process

Customer Case
