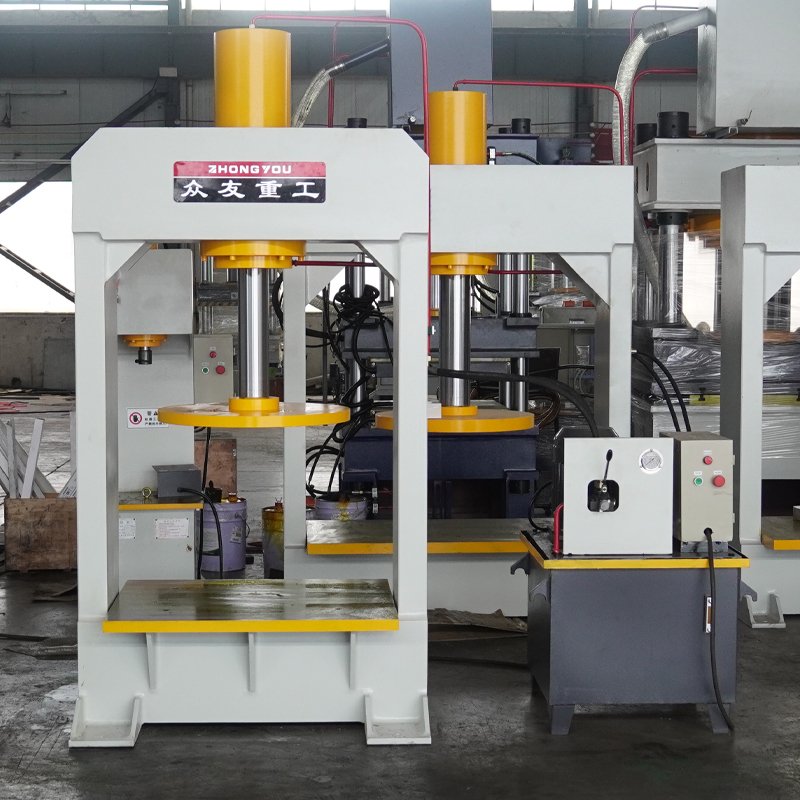

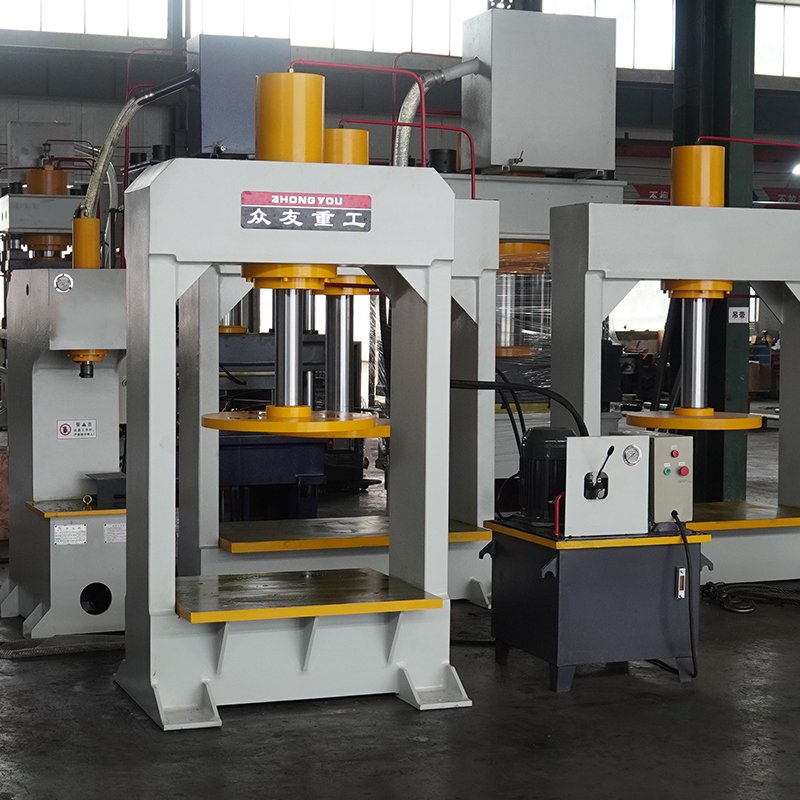

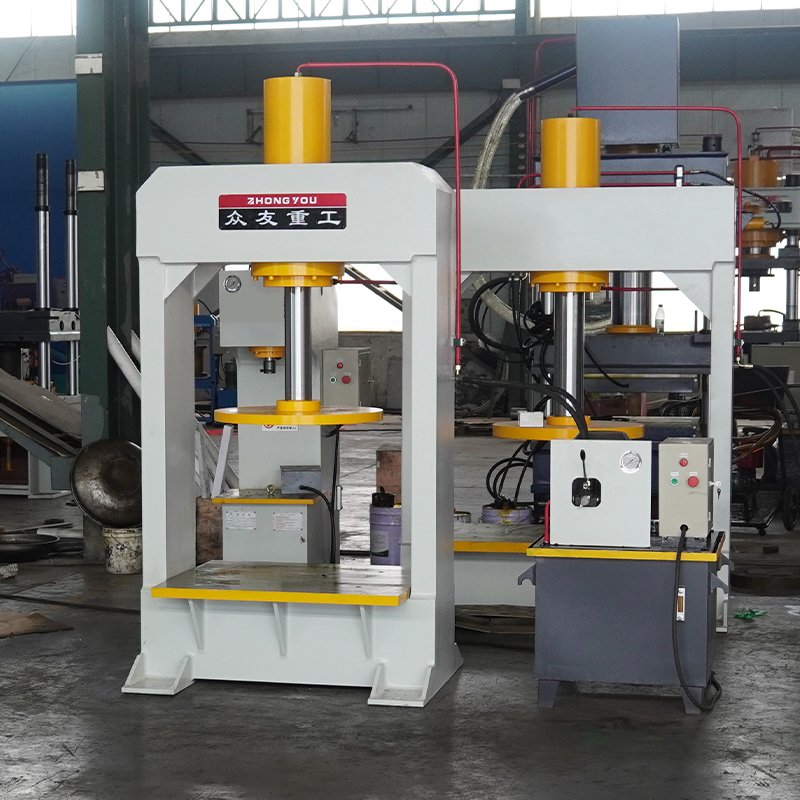

100 Ton/120 Ton/160 Ton/200 Ton H Frame Hydraulic Forklift Solid Tire Press Machine
The factory specializing in the production of rims solid tire pressure tire machine, solid wheel disassembly machine, mobile forklift tire press, forklift tire disassembly machine, truck tire disassembly machines, models were 100 tons, 120 tons, 160 tons , 200 tons. we could customize the machine according to suctomers’ requirments.
- 2000-ton capacity
- Energy saving design
- Low maintenance
- CE certified
Description
100 Ton/120 Ton/160 Ton/200 Ton H Frame Hydraulic Forklift Solid Tire Press Machine
features:
The factory specializing in the production of rims solid tire pressure tire machine, solid wheel disassembly machine, mobile forklift tire press, forklift tire disassembly machine, truck tire disassembly machines, models were 100 tons, 120 tons, 160 tons , 200 tons. we could customize the machine according to suctomers’ requirments.
advantage
tire press machine has good stability, simple operation, small energy consumption, low noise of simple operation, easy maintenance, economic and durable, long service life, small hydraulic impact, have independent electrical control system, reliable operation, intuitive, easy maintenance.
Sturdy structure: the frame is cut down from the steel plate as a whole for welding, and the thickness can be up to 20mm, featuring high stiffness and high precision finite element analysis, small mechanical deformation after vibration aging treatment, good stability and long service life.
Diversified functions: widely used in the machinery industry for disassembling, forming, straightening, stretching and plate forming, and can be used as the necessary pressure equipment in the modern automobile repair industry.
Convenient operation: some models are controlled by manual valves, which are easy to operate and understand.
Convenient lifting: Hydraulic lifting arm can be added to facilitate the handling of tyres.
Compression molding process
Customer Case
Technical Specifications
| Tonnage | Working Pressure | Cylinder Diameter/Rod Diameter | Effective Table Size | Opening Height | Stroke | Pressing Speed | Return Speed | Motor Power | Oil Pump Specification |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 31.5 | D200/d100 | 1000×800 | 1100 | 500 | 7mm/s | 10mm/s | 5.5kw | 10McY (fixed) |
| 120 | 31.5 | D220/d110 | 1000×800 | 1100 | 600 | 6mm/s | 8mm/s | 5.5kw | 10McY (fixed) |
| 160 | 31.5 | D250/d150 | 1400×800 | 1100 | 600 | 6-12mm/s | 15mm/s | 5.5kw | 25McY (fixed) |
| 200 | 31.5 | D290/d160 | 1500×800 | 1200 | 600 | 4-9mm/s | 12mm/s | 5.5kw | 25McY (fixed) |
| 250 | 31.5 | D310/d180 | 1500×800 | 1200 | 600 | 6-12mm/s | 15mm/s | 7.5kw | 40McY (fixed) |
| 300 | 31.5 | D360/d220 | 1500×800 | 1200 | 600 | 4-9mm/s | 15mm/s | 7.5kw | 40McY (fixed) |
