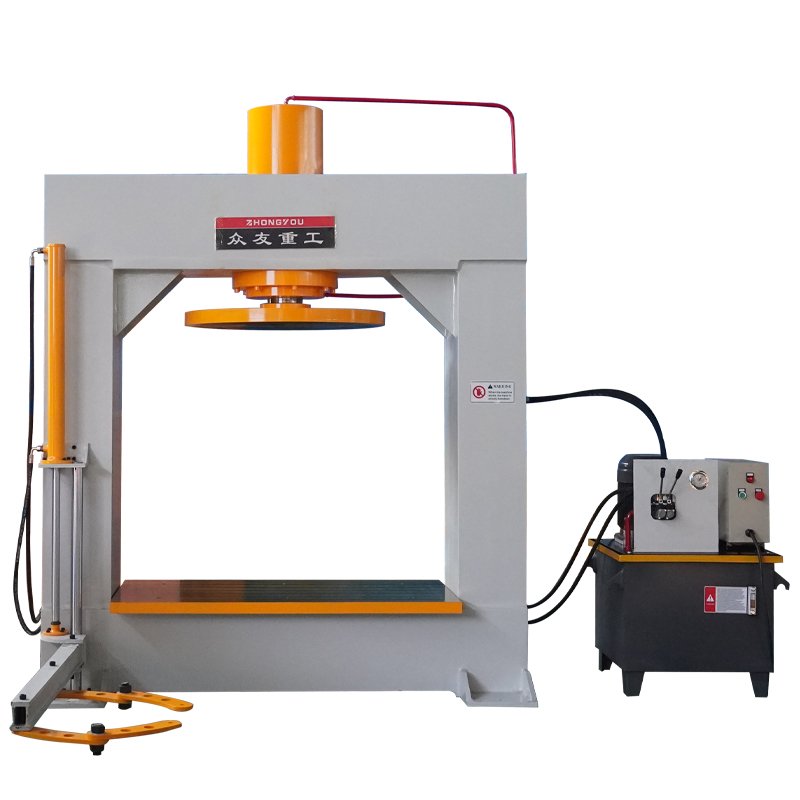

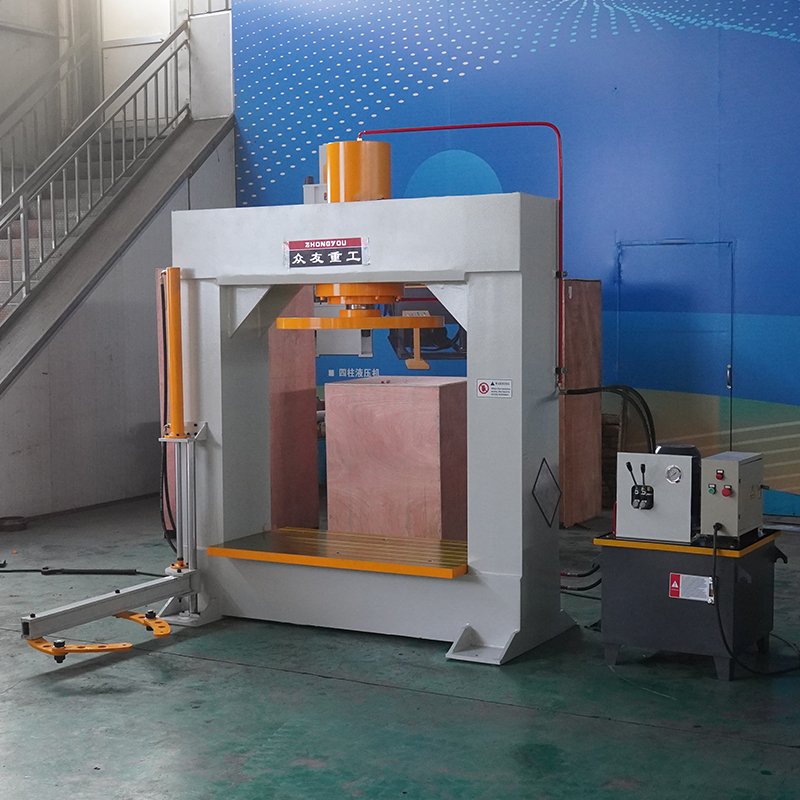

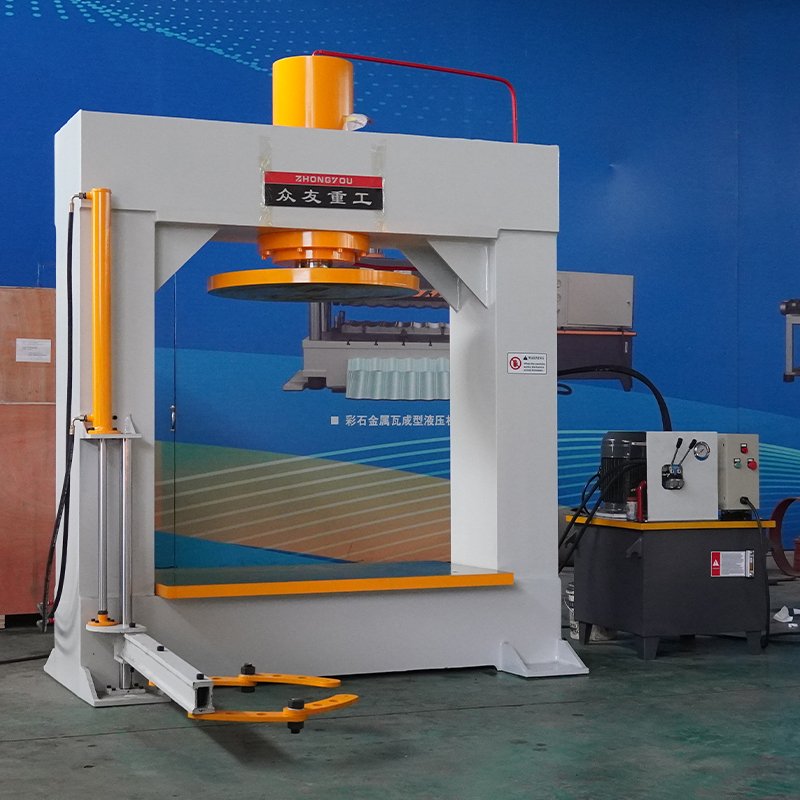

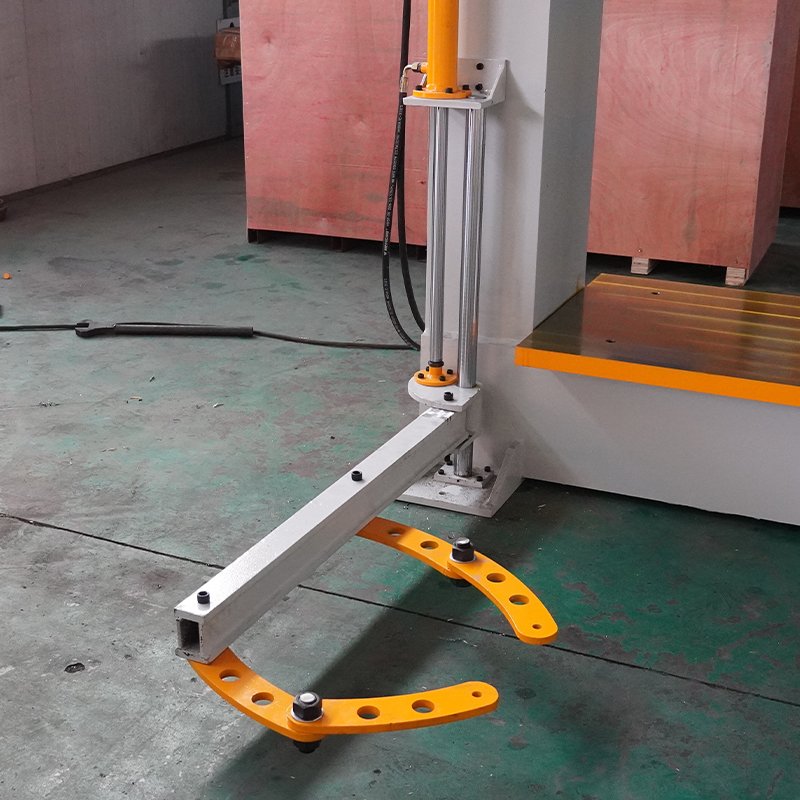

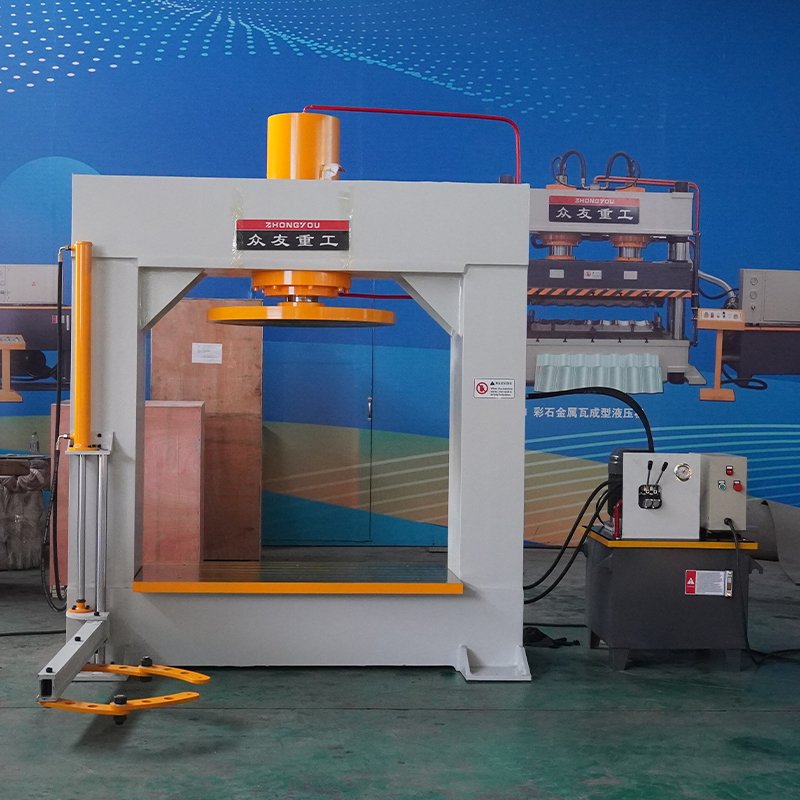

Zhongyou 200-ton gantry tire press with lifting arm
The 200-ton tire press is a kind of equipment specially used for dismantling and mounting wheels and tires with bezels, especially suitable for dismantling and mounting all kinds of solid tires (e.g., forklift trucks and engineering trucks tires).
Description
Equipment features
Solid structure: adopting gantry frame structure, high rigidity, large operation space, able to withstand large pressure without deformation.
Easy to operate: equipped with manual valve control, the operation is simple and intuitive, even inexperienced operators can quickly get started.
Large tonnage: 200 tons of pressure is enough to meet the needs of large-tonnage tire demounting, improve work efficiency.
Long life: the equipment is made of high-quality materials, through precision processing and strict testing to ensure long-term stable operation.
Good stability: the hydraulic transmission system is characterized by good stability and fast response speed, which can ensure the stability and reliability of the equipment in the working process.
Application Scenario
Forklift tire demounting: the demounting of solid tires of forklift trucks requires large pressure, which can be easily handled by the 200-ton tire press.
Construction vehicle tire demounting: construction vehicle tires are usually larger in size and heavier in weight, the 200 ton press can provide enough pressure for demounting.
Other solid tire demounting: such as industrial vehicles, agricultural machinery and other solid tire demounting, can also use 200 tons of tire press.
Compression molding process
Customer Case
Technical Specifications
| Tonnage | Working Pressure | Cylinder Diameter/Rod Diameter | Effective Table Size | Opening Height | Stroke | Pressing Speed | Return Speed | Motor Power | Oil Pump Specification |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 31.5 | D200/d100 | 1000×800 | 1100 | 500 | 7mm/s | 10mm/s | 5.5kw | 10McY (fixed) |
| 120 | 31.5 | D220/d110 | 1000×800 | 1100 | 600 | 6mm/s | 8mm/s | 5.5kw | 10McY (fixed) |
| 160 | 31.5 | D250/d150 | 1400×800 | 1100 | 600 | 6-12mm/s | 15mm/s | 5.5kw | 25McY (fixed) |
| 200 | 31.5 | D290/d160 | 1500×800 | 1200 | 600 | 4-9mm/s | 12mm/s | 5.5kw | 25McY (fixed) |
| 250 | 31.5 | D310/d180 | 1500×800 | 1200 | 600 | 6-12mm/s | 15mm/s | 7.5kw | 40McY (fixed) |
| 300 | 31.5 | D360/d220 | 1500×800 | 1200 | 600 | 4-9mm/s | 15mm/s | 7.5kw | 40McY (fixed) |
Detailed Parameters
| Tonnage | Working Pressure | Cylinder Diameter/Rod Diameter | Effective Table Size | Opening Height | Stroke | Pressing Speed | Return Speed | Motor Power | Oil Pump Specification |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 31.5 | D200/d100 | 1000×800 | 1100 | 500 | 7mm/s | 10mm/s | 5.5kw | 10McY (fixed) |
| 120 | 31.5 | D220/d110 | 1000×800 | 1100 | 600 | 6mm/s | 8mm/s | 5.5kw | 10McY (fixed) |
| 160 | 31.5 | D250/d150 | 1400×800 | 1100 | 600 | 6-12mm/s | 15mm/s | 5.5kw | 25McY (fixed) |
| 200 | 31.5 | D290/d160 | 1500×800 | 1200 | 600 | 4-9mm/s | 12mm/s | 5.5kw | 25McY (fixed) |
| 250 | 31.5 | D310/d180 | 1500×800 | 1200 | 600 | 6-12mm/s | 15mm/s | 7.5kw | 40McY (fixed) |
| 300 | 31.5 | D360/d220 | 1500×800 | 1200 | 600 | 4-9mm/s | 15mm/s | 7.5kw | 40McY (fixed) |
