wooden pallet making machine

wooden pallet making machine

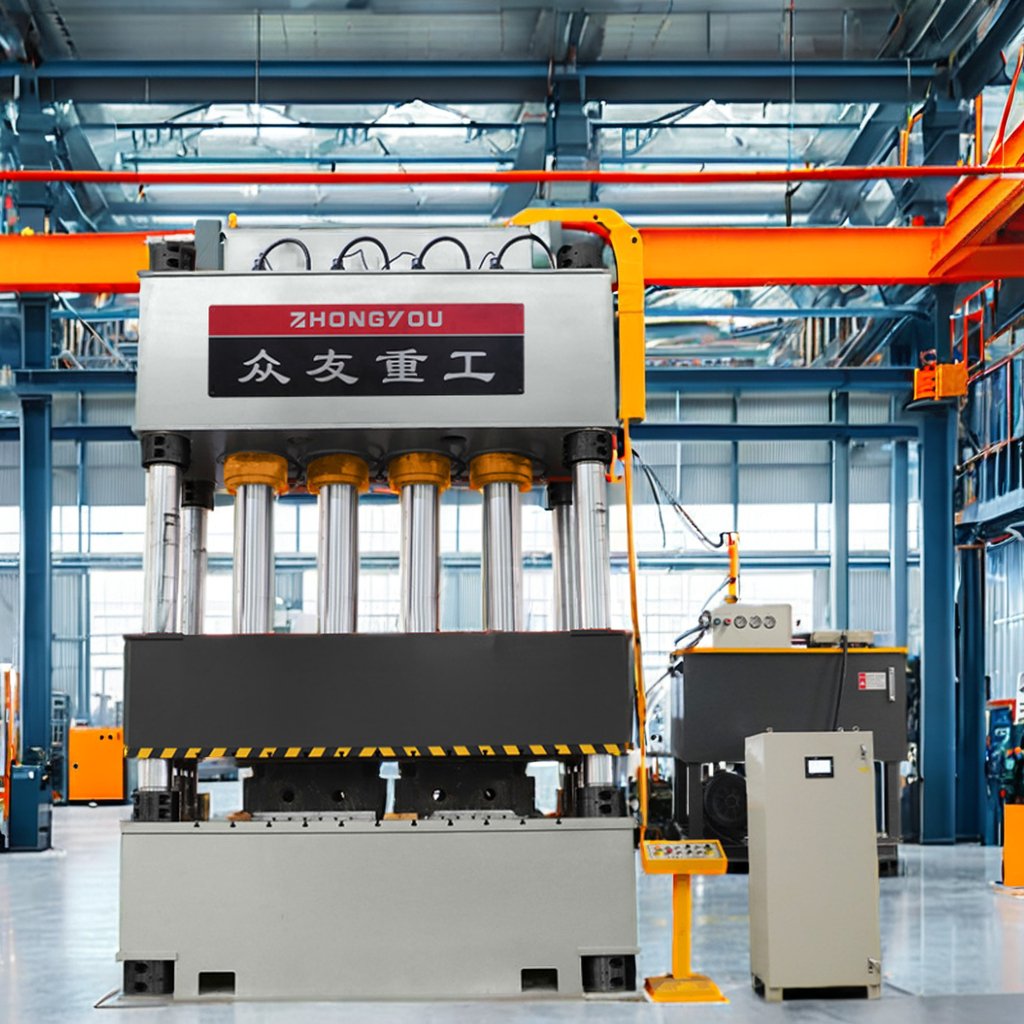

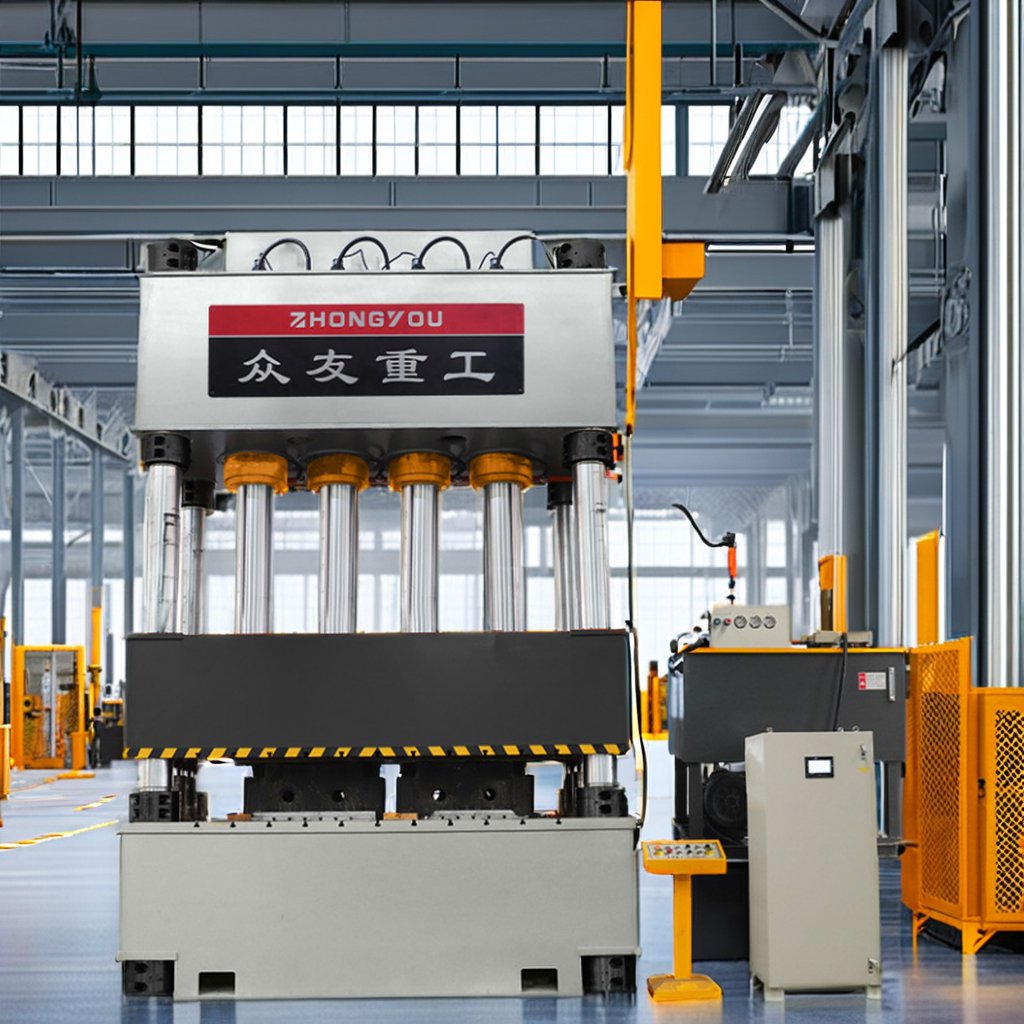

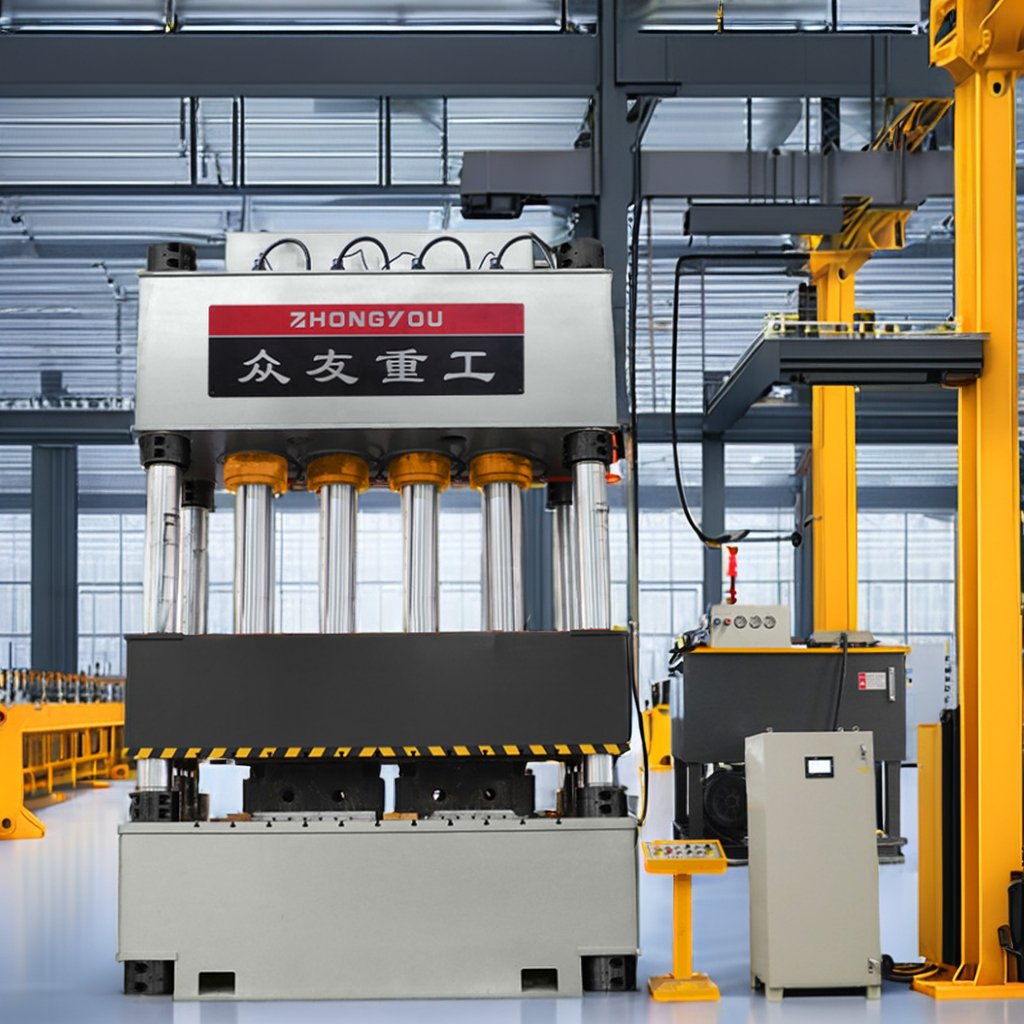

Wood chip pallet hydraulic press” is a kind of special equipment which takes wood chips (or wood fiber, sawdust and other biomass wastes) as the main raw material, and presses and shapes them into environmentally friendly wood chip pallet through hydraulic pressure.

WeChat QR Code
Scan to connect on WeChat
WhatsApp QR Code
Scan to chat on WhatsApp
+86 13516379383 zhongyoupress@foxmail.com

Description

Wood chip pallet hydraulic press” takes wood chips (or mixed biomass fiber) as raw material, through the continuous high pressure provided by the hydraulic system, the raw material particles are closely fitted, and combined with adhesive (or cured by hot pressing) to form a pallet with a certain strength and dimensional stability. The combination of adhesive (or hot press curing) results in a dimensionally stable pallet with a certain degree of strength.
Main application areas
Logistics industry: e-commerce warehousing, express transportation, alternative to wooden pallets, reduce packaging costs.
Agricultural export: vegetable, fruit pallets, fumigation-free, no insect moth, in line with international quarantine requirements.
Wood processing enterprises: digesting sawdust and shavings waste, realizing “cash for waste” and reducing solid waste treatment costs.

Compression molding process

wooden pallet making machine Compression molding process

Customer Case

wooden pallet making machine Customer Case

Technical Specifications

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300

Detailed Parameters

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300
