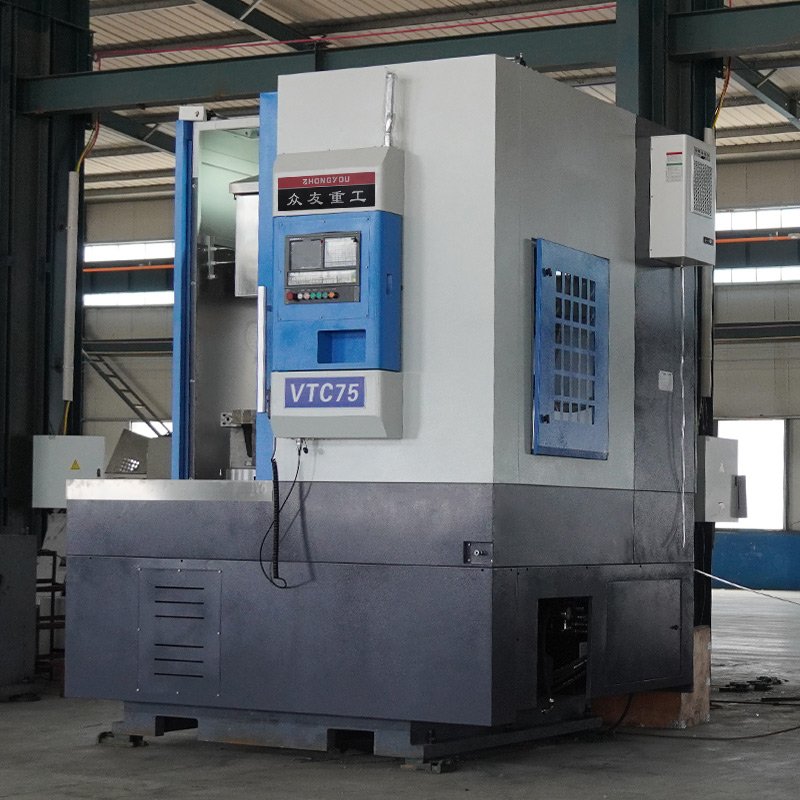

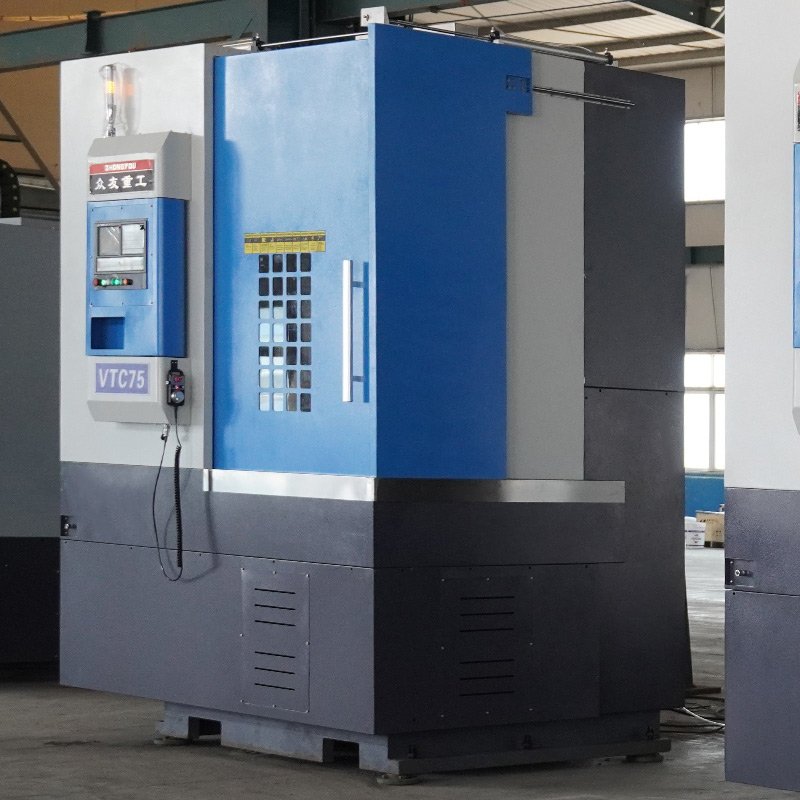

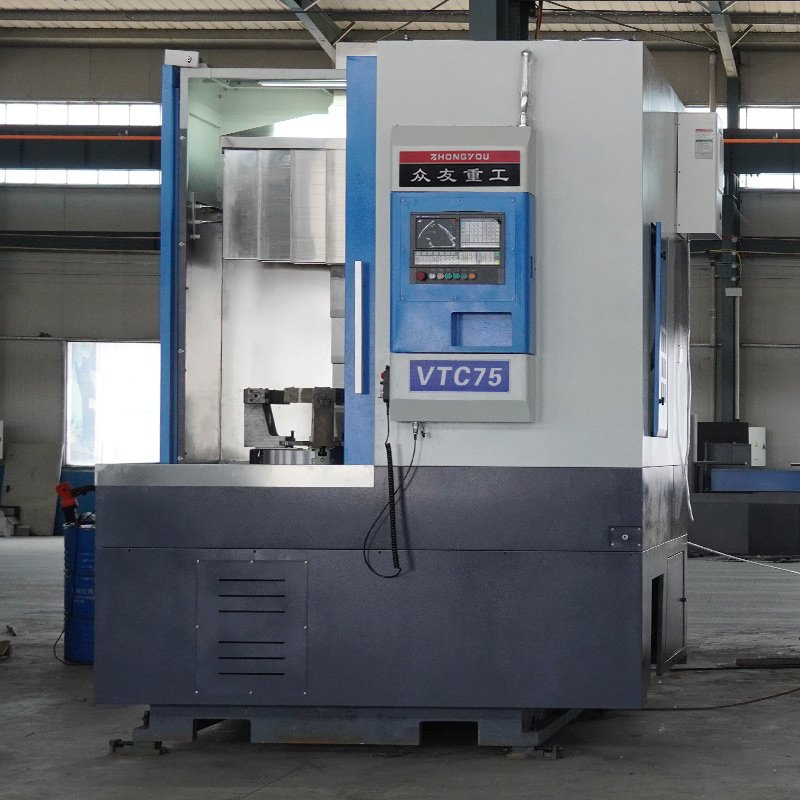

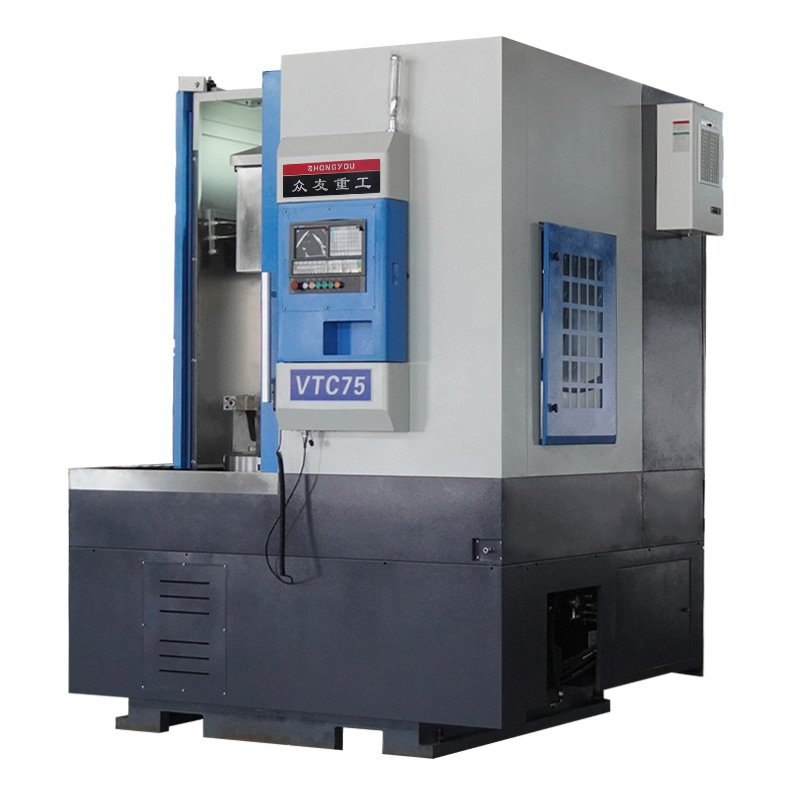

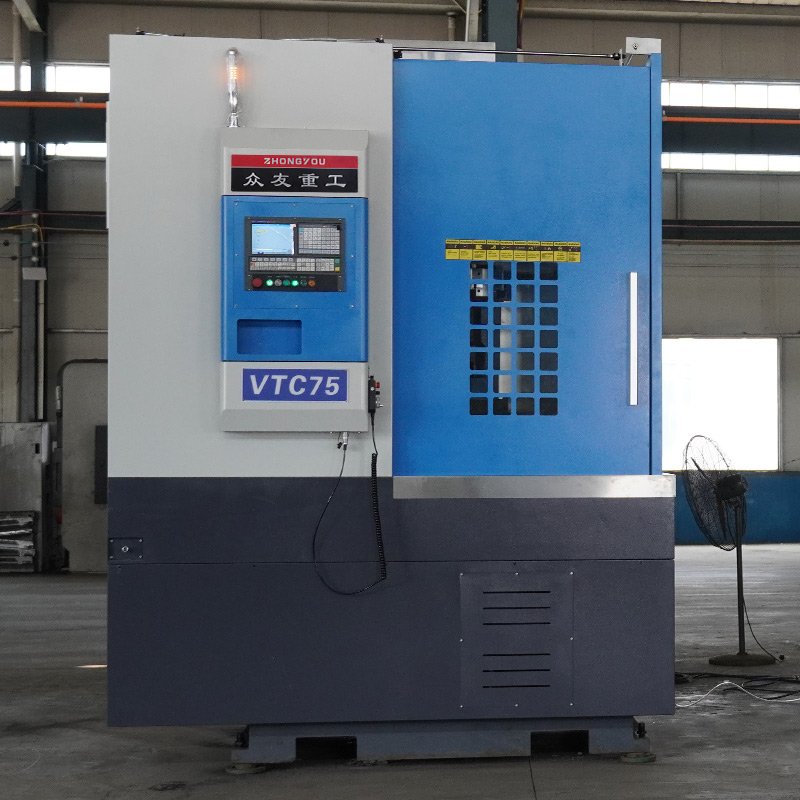

VTC75 CNC Vertical Turning Lathe
VTC75 CNC Vertical Lathe is a CNC vertical lathe designed for high-precision machining of small and medium-sized rotary parts, and belongs to the middle model of VTC series (vertical CNC lathe). Its core feature is to take into account the machining accuracy, efficiency and flexibility, suitable for automotive, mold, aerospace, general machinery and other fields of small-lot multi-variety or medium-lot production of precision parts.


Description
VTC75 CNC vertical lathe is mainly used for precision machining of small and medium-sized rotary parts, typical parts include:
Automotive parts: wheel hubs (aluminum alloy), clutch housings (cast iron), gearbox housings, steering knuckle arms;
Mold industry: mold positioning rings, fixture substrates, small cores (such as injection molds, die-casting molds);
Aerospace: small engine cases, aircraft mounts (titanium/aluminum alloy);
General machinery: motor shell (cast iron / aluminum alloy), pump body (stainless steel), valve flange;
Precision instruments: optical equipment brackets, sensor housings (high dimensional accuracy requirements).
Compression molding process

Customer Case

Technical Specifications
Max.rotating diameter | mm | ∮560 | ∮650 | ∮750 | ∮750 | ∮750 |
Max.turning diameter of workpiece | mm | ∮450 | ∮600 | ∮700 | ∮550 | ∮700 |
Spindle end face form | Straight | Straight | Straight | Straight | Straight | |
Spindle speed | rpm | 3000 | 100-1000 | 50-1500 | 50-1000 | 500-1000 |
Hydraulic chuck diameter | mm | 500 | 500 | 630 | 500 | 630 |
Tool post type | pcs | eight-station | eight-station | eight-station | eight-station | eight-station |
Tool shank diameter | mm | 32 | 32 | 32 | 32 | 32 |
Inner diameter tool holder | mm | ∮40 | ∮40 | ∮50 | ∮50 | |
Center tool holder | mm | 160 | ||||
X axis travel | mm | 400 | 450 | 700 | 280 | 450 |
Z axis travel | mm | 500 | 600 | 700 | 500 | 700 |
Oil tank capacity | L | 50 | 50 | 50 | 50 | 50 |
Oil pressure motor | kw | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Water Capacity | L | 180 | 200 | 200 | 200 | 200 |
Rotating water motor | w | 250 | 450 | 450 | 450 | 450 |
Flush motor | kw | 250 | 450 | 450 | 450 | 450 |
X axis servo motor torque | NM | 12 | 18 | 18 | 15 | 15 |
Z axis servo motor torque | NM | 22 | 30 | 18 | 15 | 15 |
Main Servo motor power | kw | 11/15 | 18.5 | 22 | 18.5 | 22 |
Repeat positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
Positioning accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
Dimension | mm | 1700X1880X2500 | 2000X1950X3000 | 2450X1900X3200 | 3000X2400X2700 | 3200X2400X3200 |
Weight | kg | 5500 | 8000 | 9500 | 7000 | 9000 |
Voltage | 3¢-AC 380V 50Hz±5% | 3¢-AC 380V 50Hz±5% | 3¢-AC 380V 50Hz±5% | 3¢-AC 380V 50Hz±5% | 3¢-AC 380V 50Hz±5% | |
Electricity Leakage/outage protection | √ | √ | √ | √ | √ | |
Three-color light indication | √ | √ | √ | √ | √ | |
Long-term stable working conditions | environment Temperature 5~38°, humidity <85% | environment Temperature 5~38°, humidity <85% | environment Temperature 5~38°, humidity <85% | environment Temperature 5~38°, humidity <85% | environment Temperature 5~38°, humidity <85% | |
Noise meets national standards | √ | √ | √ | √ | √ | |
☆The equipment adopts fully enclosed protection, and the protective device is safe and reliable and should comply with GB15760-1995 General Technical Regulations on Safety Protection of Metal Cutting Machine Tools. ☆Equipped with various hydraulic, gas and water pipeline direction signs, marking the working range of various instruments, and marking the grade of the medium used. ☆The diameter of the hydraulic chuck and the tool holder station can be selected according to the processing requirements. |
