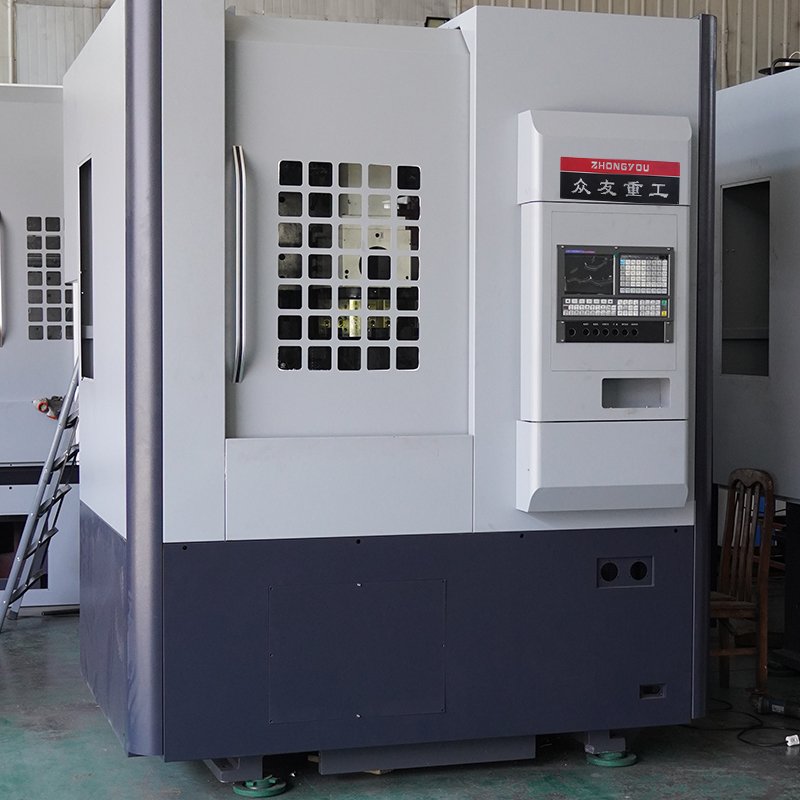

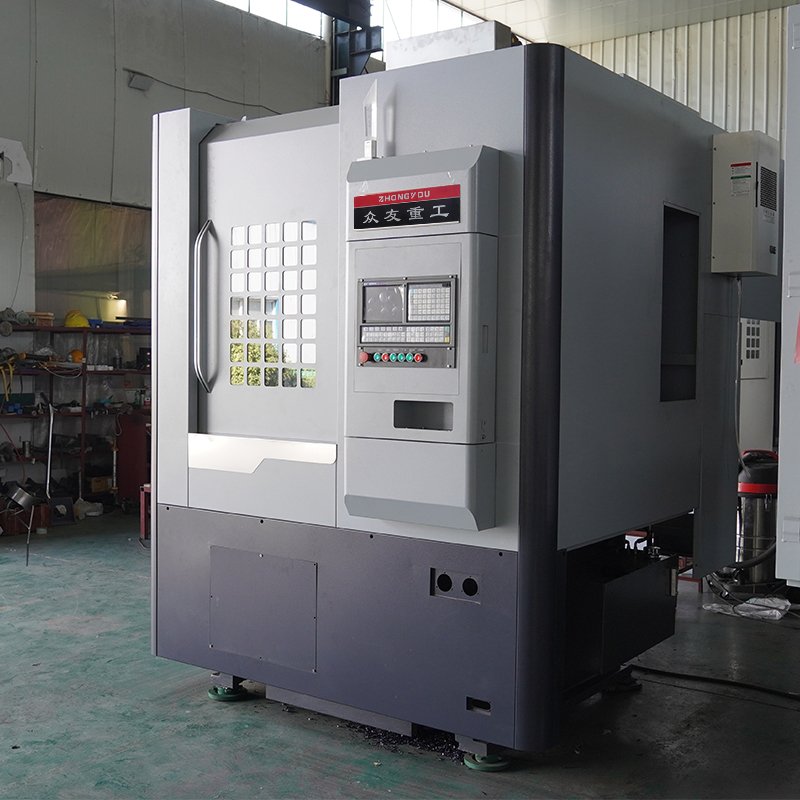

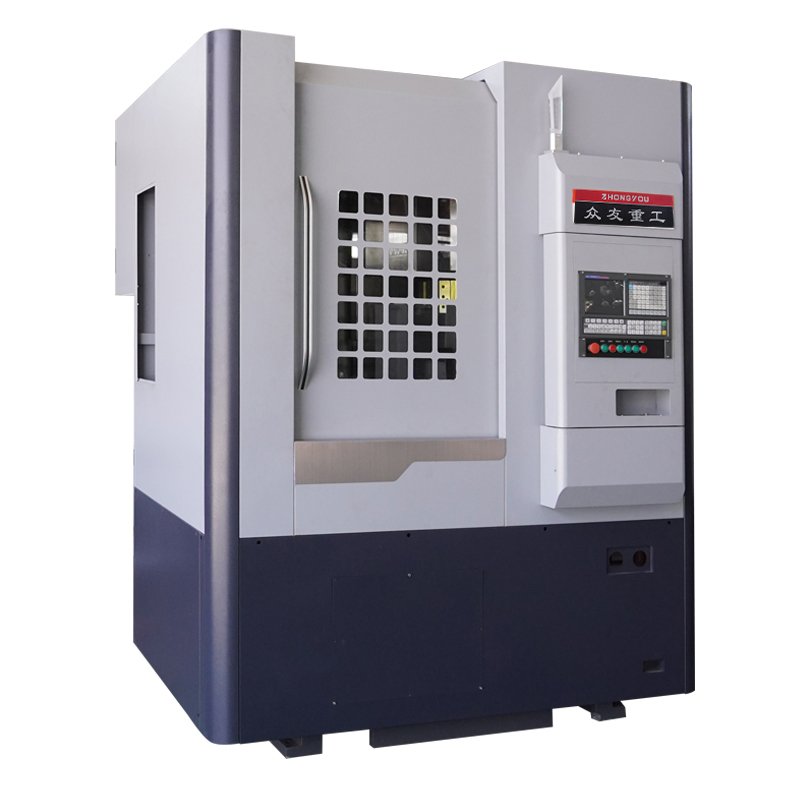

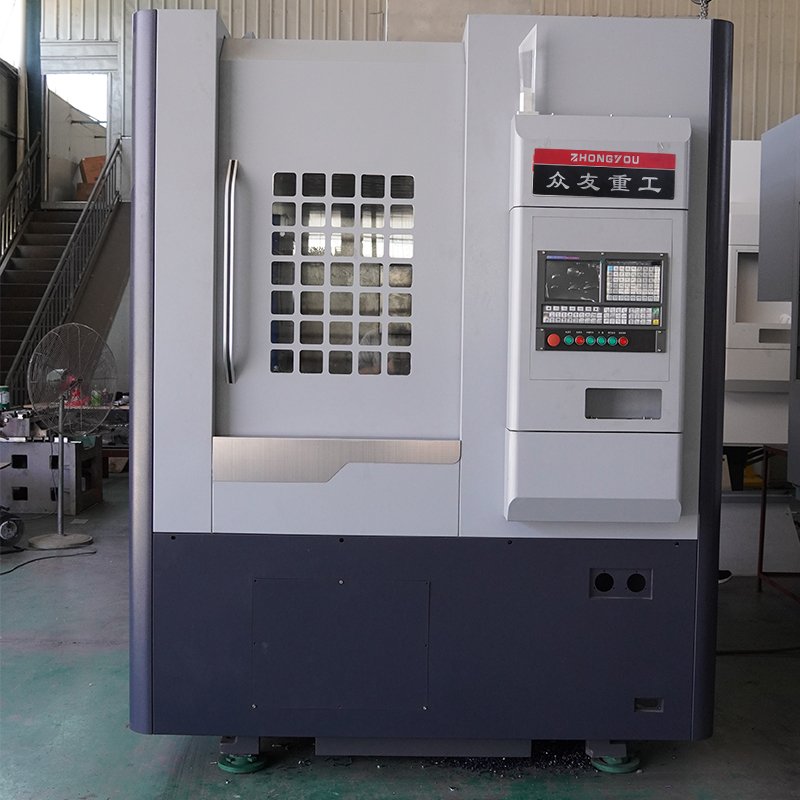

vertical cnc lathe machine VCT45
CNC Vertical Lathe 45 is a precision machining machine designed for small rotary body parts. With compact structure, moderate cost and high flexibility, it is widely used in precision machinery, automotive parts, electronic equipment and other fields. It is an ideal choice for small and medium-sized manufacturing enterprises.
Description
CNC Vertical Lathe 45 is a precision machining machine designed for small rotary body parts. With compact structure, moderate cost and high flexibility, it is widely used in precision machinery, automotive parts, electronic equipment and other fields. It is an ideal choice for small and medium-sized manufacturing enterprises.
CNC Vertical Lathe 45 is suitable for machining small rotary body parts with a diameter ≤ 450mm, typical workpieces include:
Small gear blanks, flanges (such as hydraulic valve flanges, pipe joint flanges);
Motor end caps (small power motors), pump bodies (e.g. water pumps, oil pump housings);
Bearing housings, brake discs (for motorcycles/electric vehicles), precision bushings;
Short shaft parts (e.g. step shafts, drive shafts with center holes)
Compression molding process
Customer Case
Technical Specifications
| Specification Item | Unit | VT45 | VT65 | VT75 | VTS525 | VTS527 |
|---|---|---|---|---|---|---|
| Maximum Swing Diameter | mm | ∮560 | ∮650 | ∮750 | ∮750 | ∮750 |
| Maximum Cutting Diameter | mm | ∮450 | ∮600 | ∮700 | ∮550 | ∮700 |
| Spindle End Face Type | – | Straight | Straight | Straight | Straight | Straight |
| Spindle Speed | rpm | 3000 | 100-1000 | 50-1500 | 50-1000 | 500-1000 |
| Chuck Diameter | mm | 500 | 500 | 630 | 500 | 630 |
| Tool Capacity | pc | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station |
| External Tool Shank | mm | 32 | 32 | 32 | 32 | 32 |
| Internal Tool Shank | mm | ∮40 | ∮40 | – | ∮50 | ∮50 |
| X-axis Travel | mm | 400 | 450 | 700 | 280 | 450 |
| Z-axis Travel | mm | 500 | 600 | 700 | 500 | 700 |
| Hydraulic Tank Capacity | L | 50 | 50 | 50 | 50 | 50 |
| Hydraulic Motor | kW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Coolant Tank Capacity | L | 180 | 200 | 200 | 200 | 200 |
| Coolant Pump | W | 250 | 450 | 450 | 450 | 450 |
| Coolant Power | kW | 250 | 450 | 450 | 450 | 450 |
| X-axis Servo Motor | Nm | 12 | 18 | 18 | 15 | 15 |
| Z-axis Servo Motor | N·m | 22 | 30 | 18 | 15 | 15 |
| Spindle Servo Motor | kW | 11/15 | 18.5 | 22 | 18.5 | 22 |
| Repeatability | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Positioning Accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Dimensions (L×W×H) | mm | 1700×1880×2500 | 2000×1950×3000 | 2450×1900×3200 | 3000×2400×2700 | 3200×2400×3200 |
| Weight (with accessories) | kg | 5500 | 8000 | 9500 | 7000 | 9000 |
| Power Supply | – | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% |
| Leakage/Power Failure Protection | – | Yes | Yes | Yes | Yes | Yes |
| Three-color Light Indicator | – | Yes | Yes | Yes | Yes | Yes |
| Long-term Stable Operating Conditions | – | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% |
| Noise Compliance with National Standards | – | Yes | Yes | Yes | Yes | Yes |
| ☆ The equipment features full enclosure protection with reliable safety devices, complying with GB15760-1995 “Safety Protection Technical Conditions for Metal Cutting Machine Tools”.^[1]^
☆ Equipped with various hydraulic, pneumatic, and water pipeline indicators, marking the working ranges of all instruments and the grades of media used.^[2]^ ☆ Hydraulic chuck diameter and tool post stations can be selected according to processing requirements.^[3]^ |
||||||
