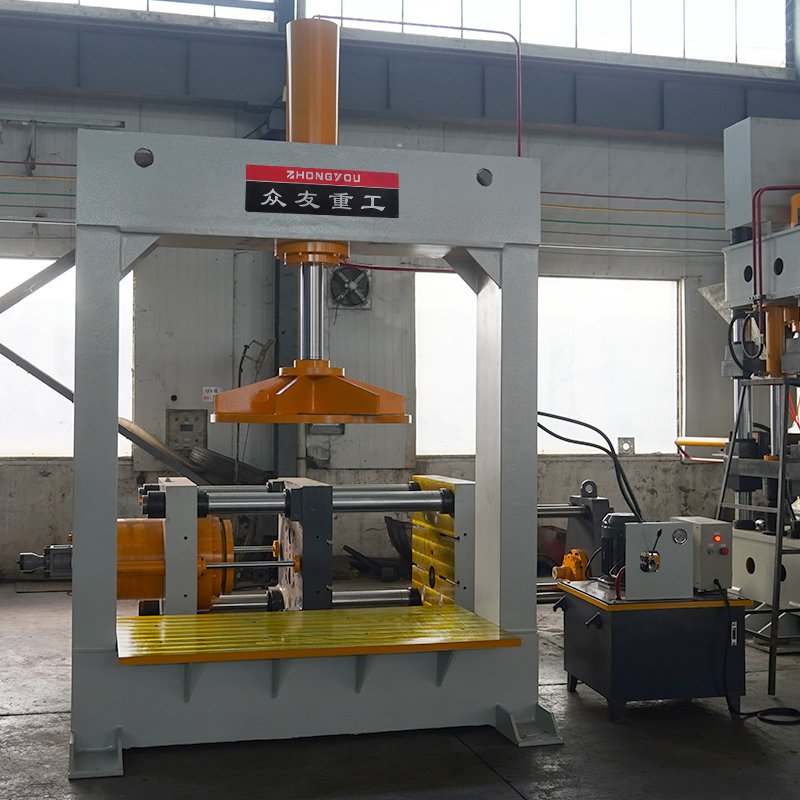

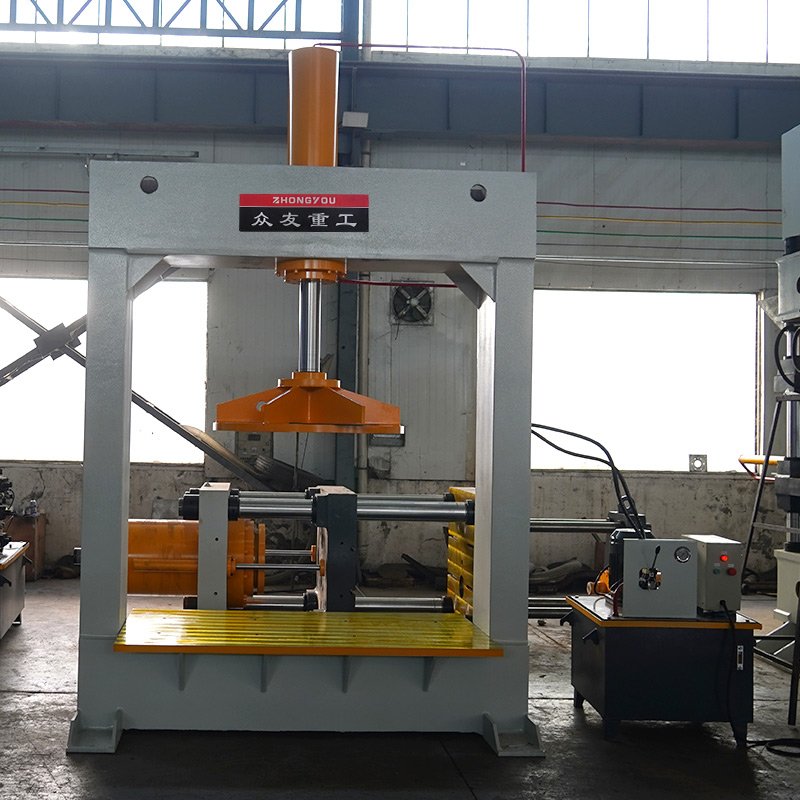

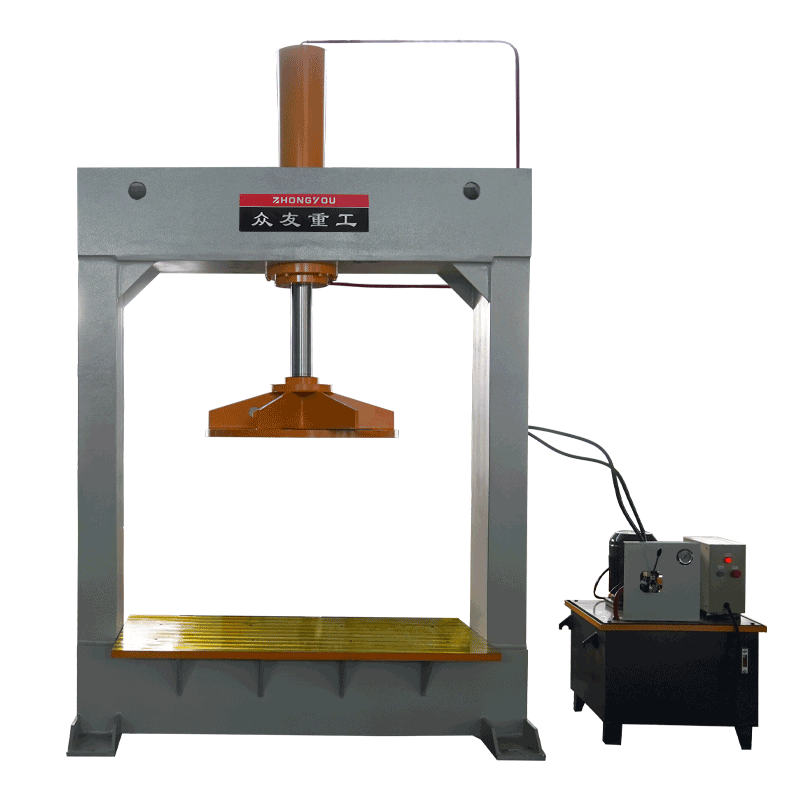

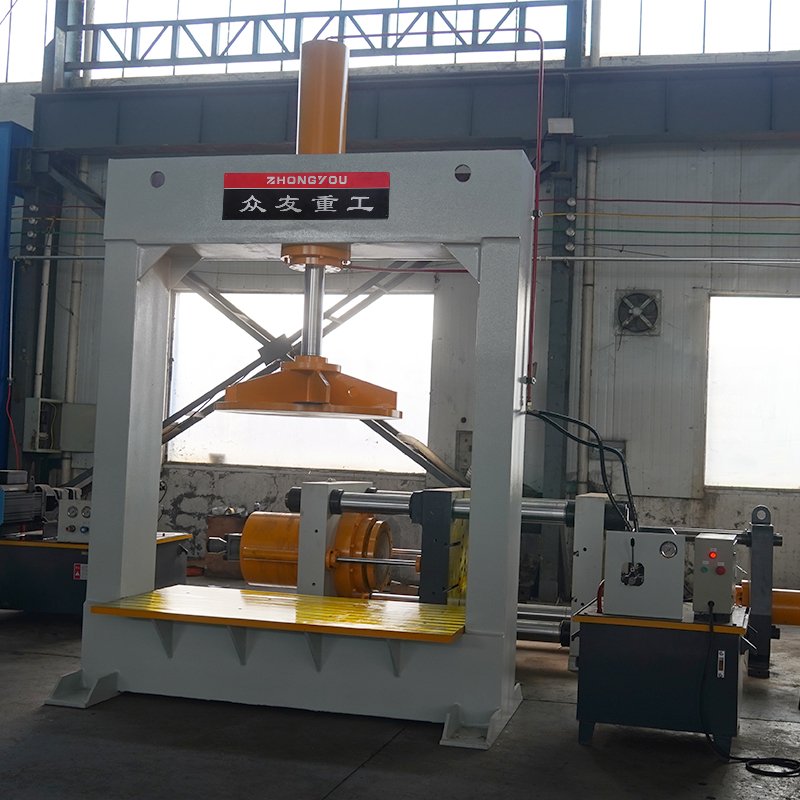

YM-120 Ton H Frame Hydraulic Solid Forklift Tire Tyre Press
Mounting and Dismounting Tires Forklift Tire Press Machine has good stability, simple operation, small energy consumption, low noise of simple operation, easy maintenance, economic and durable, long service life, small hydraulic impact, have independent electrical control system, reliable operation, intuitive, easy maintenance.
- 2000-ton capacity
- Energy saving design
- Low maintenance
- CE certified
Description
YM-120 Ton H Frame Hydraulic Solid Forklift Tire Tyre Press
The factory specializes in the production of rim type solid tire tire press, solid wheel hub changer, forklift tire press machine, forklift tire changer, engineering vehicle tire changer, etc.,The Forklift Tyre press Machine can be produced into 100 tons, 120 tons, 150 tons, 160 tons, 200 tons. It can press conventional solid tires, press-fit solid tires, and adopts the universal standard rim.

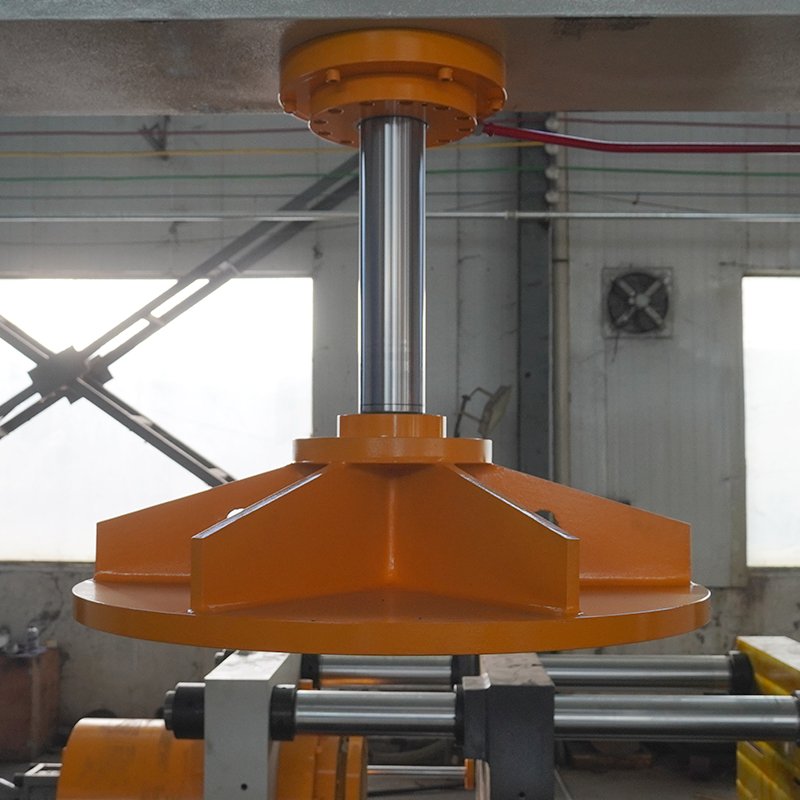

Put solid tire on the worktable when you use it, it will press the ram on the rim and press it into the tire.
The tire press can be divided into a manual tire press and an electric tire press according to the mode and size of the exercise. The electric tire press is generally suitable for the disassembly and assembly of heavy automobile tires.
Compression molding process
Customer Case
Technical Specifications
| Tonnage | Working Pressure | Cylinder Diameter/Rod Diameter | Effective Table Size | Opening Height | Stroke | Pressing Speed | Return Speed | Motor Power | Oil Pump Specification |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 31.5 | D200/d100 | 1000×800 | 1100 | 500 | 7mm/s | 10mm/s | 5.5kw | 10McY (fixed) |
| 120 | 31.5 | D220/d110 | 1000×800 | 1100 | 600 | 6mm/s | 8mm/s | 5.5kw | 10McY (fixed) |
| 160 | 31.5 | D250/d150 | 1400×800 | 1100 | 600 | 6-12mm/s | 15mm/s | 5.5kw | 25McY (fixed) |
| 200 | 31.5 | D290/d160 | 1500×800 | 1200 | 600 | 4-9mm/s | 12mm/s | 5.5kw | 25McY (fixed) |
| 250 | 31.5 | D310/d180 | 1500×800 | 1200 | 600 | 6-12mm/s | 15mm/s | 7.5kw | 40McY (fixed) |
| 300 | 31.5 | D360/d220 | 1500×800 | 1200 | 600 | 4-9mm/s | 15mm/s | 7.5kw | 40McY (fixed) |
Detailed Parameters
| Tonnage | Working Pressure | Cylinder Diameter/Rod Diameter | Effective Table Size | Opening Height | Stroke | Pressing Speed | Return Speed | Motor Power | Oil Pump Specification |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 31.5 | D200/d100 | 1000×800 | 1100 | 500 | 7mm/s | 10mm/s | 5.5kw | 10McY (fixed) |
| 120 | 31.5 | D220/d110 | 1000×800 | 1100 | 600 | 6mm/s | 8mm/s | 5.5kw | 10McY (fixed) |
| 160 | 31.5 | D250/d150 | 1400×800 | 1100 | 600 | 6-12mm/s | 15mm/s | 5.5kw | 25McY (fixed) |
| 200 | 31.5 | D290/d160 | 1500×800 | 1200 | 600 | 4-9mm/s | 12mm/s | 5.5kw | 25McY (fixed) |
| 250 | 31.5 | D310/d180 | 1500×800 | 1200 | 600 | 6-12mm/s | 15mm/s | 7.5kw | 40McY (fixed) |
| 300 | 31.5 | D360/d220 | 1500×800 | 1200 | 600 | 4-9mm/s | 15mm/s | 7.5kw | 40McY (fixed) |
