Single-arm steel ball press
Single arm steel ball pressing equipment usually refers to a single arm hydraulic press used to press steel balls. This type of equipment has a wide range of applications in processes such as steel pipe pressing steel balls, and is capable of pressing and molding steel pipes or other metal materials into steel balls through high pressure.
Description
Single arm steel ball pressing equipment usually refers to a single arm hydraulic press used to press steel balls. This type of equipment has a wide range of applications in processes such as steel pipe pressing steel balls, and is capable of pressing and molding steel pipes or other metal materials into steel balls through high pressure.
Advantages:
Extremely easy to operate: the C-type structure is open on three sides for easy access to the working area, especially suitable for frequent loading and unloading of small workpieces and debugging.
Compact and small footprint: Compared to four-column machines, the structure is simpler and has a smaller footprint.
Lower cost: Manufacturing and maintenance costs are usually lower than those of four-column or frame hydraulic presses of the same tonnage.
Flexible functions: by changing different upper and lower molds, it can complete a variety of work such as press fitting, punching, bending and straightening.

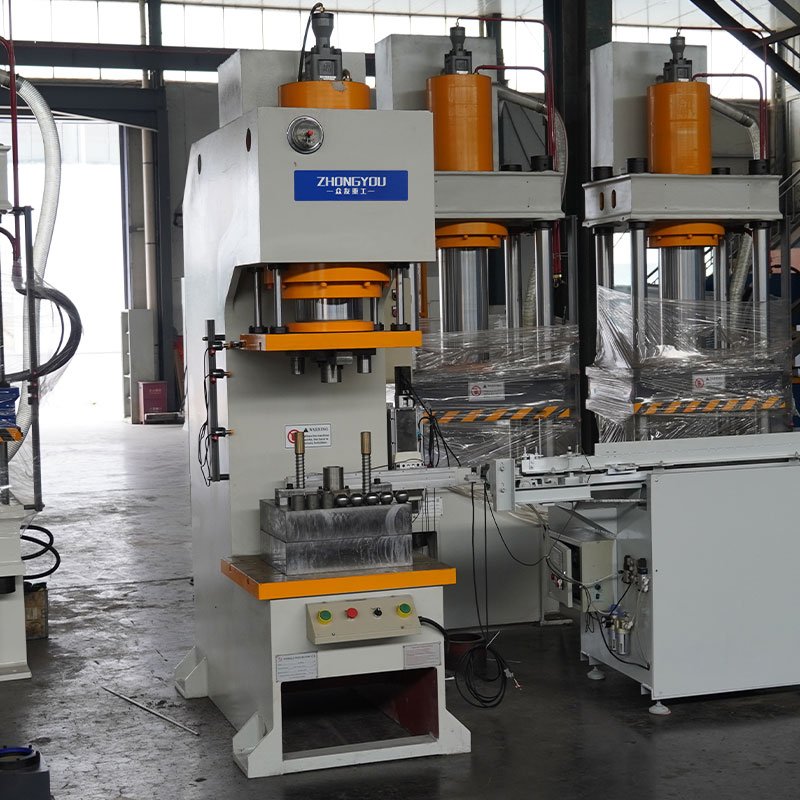

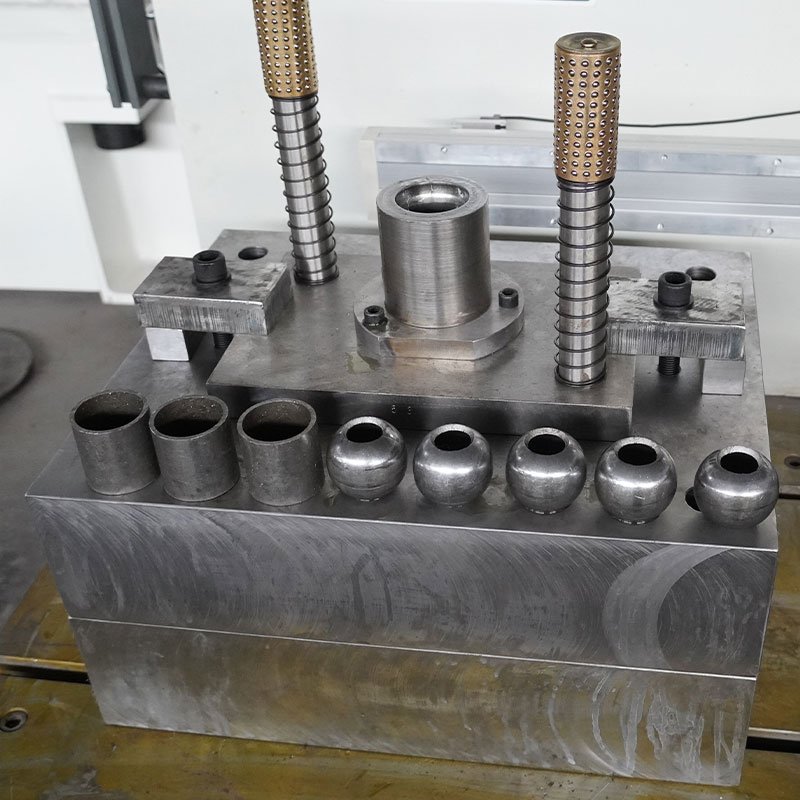

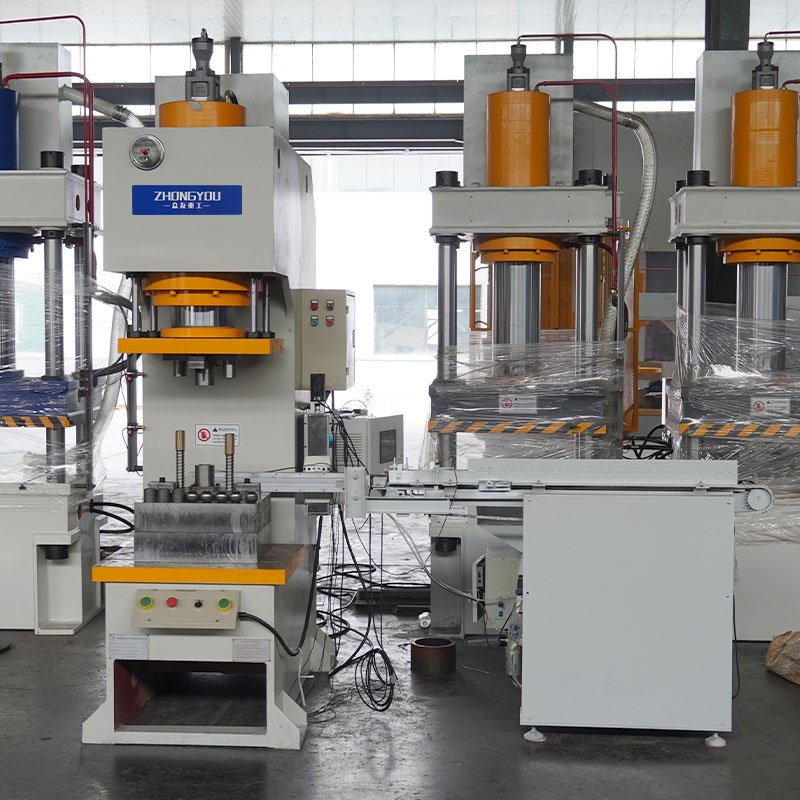

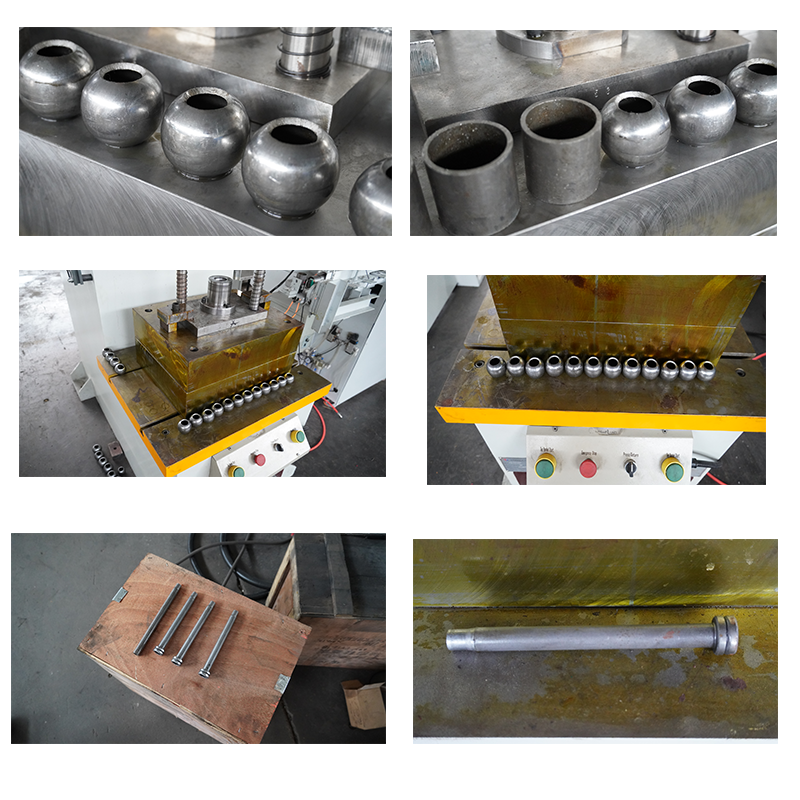

Compression molding process
Customer Case
Technical Specifications
| Name | Unit | YQ41-20 | YQ41-40 | YQ41-63 | YQ41-100 | YQ41-160 | YQ41-200 | YQ41-250 | YQ41-315 | YQ41-500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 200 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | 5000 |
| Effective Stroke | mm | 200 | 200 | 300 | 300 | 400 | 500 | 200 | 500 | 500 |
| Opening Height | mm | 600 | 600 | 700 | 700 | 800 | 1000 | 1000 | 1200 | 1200 |
| Throat Depth | mm | 200 | 220 | 240 | 280 | 320 | 360 | 420 | 500 | 600 |
| Downstroke Speed | mm/s | 160 | 19 | 13 | 10 | 13 | 15 | 15 | 50 | 50 |
| Return Speed | mm/s | 19 | 25 | 17 | 13 | 20 | 20 | 20 | 60 | 55 |
| Worktable Width (Left to Right) | mm | 500 | 500 | 600 | 700 | 700 | 800 | 900 | 1050 | 1200 |
| Worktable Depth (Front to Back) | mm | 400 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1050 |
| Punching Hole Diameter | mm | 80 | 100 | 120 | 200 | 200 | 220 | 220 | 240 | 240 |
Detailed Parameters
| Name | Unit | YQ41-20 | YQ41-40 | YQ41-63 | YQ41-100 | YQ41-160 | YQ41-200 | YQ41-250 | YQ41-315 | YQ41-500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 200 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | 5000 |
| Effective Stroke | mm | 200 | 200 | 300 | 300 | 400 | 500 | 200 | 500 | 500 |
| Opening Height | mm | 600 | 600 | 700 | 700 | 800 | 1000 | 1000 | 1200 | 1200 |
| Throat Depth | mm | 200 | 220 | 240 | 280 | 320 | 360 | 420 | 500 | 600 |
| Downstroke Speed | mm/s | 160 | 19 | 13 | 10 | 13 | 15 | 15 | 50 | 50 |
| Return Speed | mm/s | 19 | 25 | 17 | 13 | 20 | 20 | 20 | 60 | 55 |
| Worktable Width (Left to Right) | mm | 500 | 500 | 600 | 700 | 700 | 800 | 900 | 1050 | 1200 |
| Worktable Depth (Front to Back) | mm | 400 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1050 |
| Punching Hole Diameter | mm | 80 | 100 | 120 | 200 | 200 | 220 | 220 | 240 | 240 |
