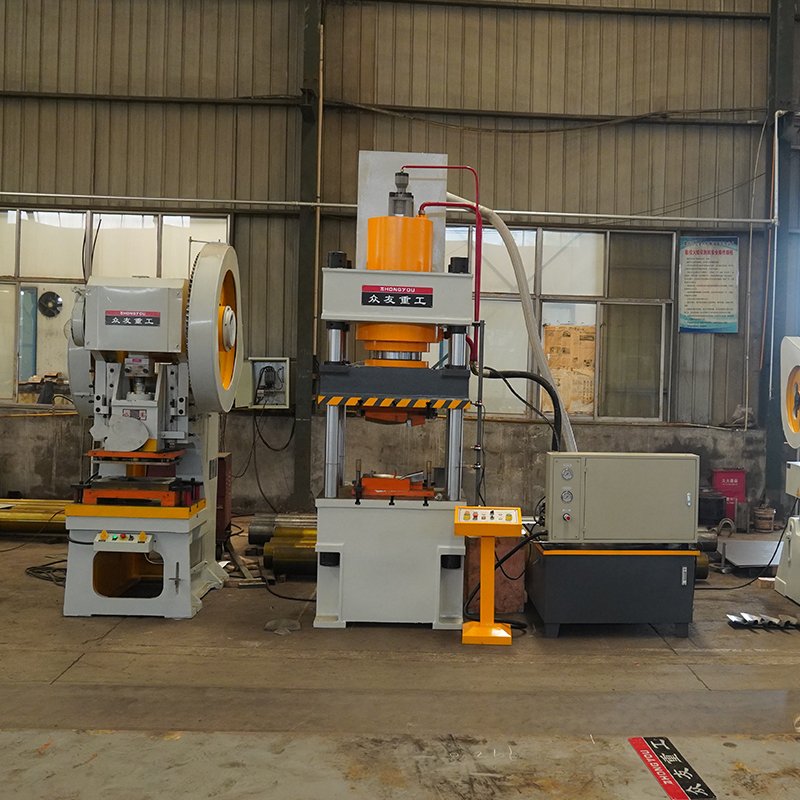

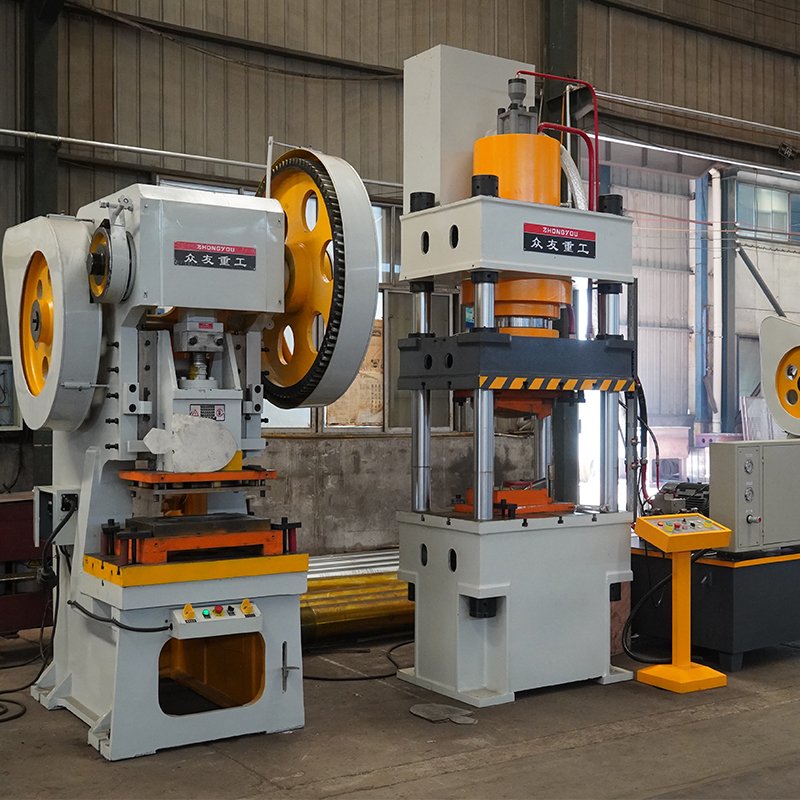

Shovel Production Line Metal Stamping Hydraulic Press
Zhongyou Heavy Industry has customized a shovel production line for a Brazilian client. The automated material handling line incorporates integrated equipment for coil unwinding, leveling, feeding, shearing, forming/stretching, and trimming/punching.
Description
Zhongyou Heavy Industry has customized a shovel production line for a Brazilian client. The automated material handling line incorporates integrated equipment for coil unwinding, leveling, feeding, shearing, forming/stretching, and trimming/punching.
An automated shovel production line primarily consists of the following sections and core equipment:
Section 1: Shovel Head Forming Section
Cutting – Shearing Machine/Uncoiling Line
Process: Cutting large steel coil or plate stock into rectangular or specific-shaped blanks required for manufacturing individual shovel heads.
Equipment: Slitting uncoiling line, high-speed shearing machine. Automated lines utilize integrated equipment for uncoiling, leveling, feeding, and shearing.

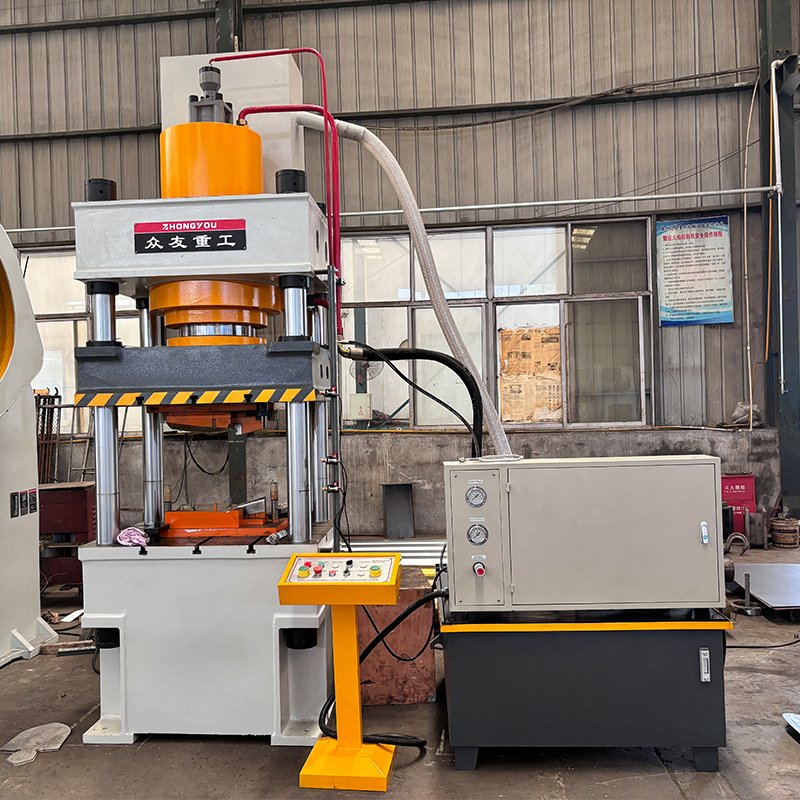

Stamping Forming – Core Process
a. Forming/Drawing: The flat blank undergoes one or multiple stamping operations within dies to preliminarily form the concave (scoop-shaped) profile of the shovel head. This is the typical application scenario for the 200-ton gantry hydraulic press or mechanical press you previously inquired about.
Equipment: Large-tonnage hydraulic presses (e.g., 200-ton, 315-ton), mechanical presses.
b. Trimming/Punching: Removing excess flash from the edges of the formed shovel head and punching holes for installing the shovel handle.
Equipment: Medium-to-small tonnage punching presses.
Views: 0

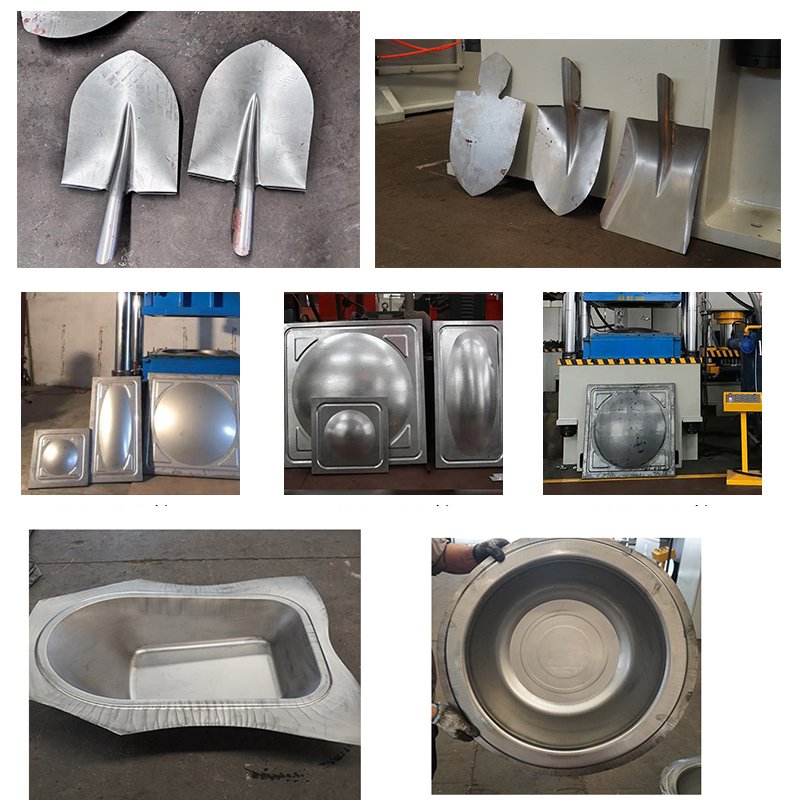

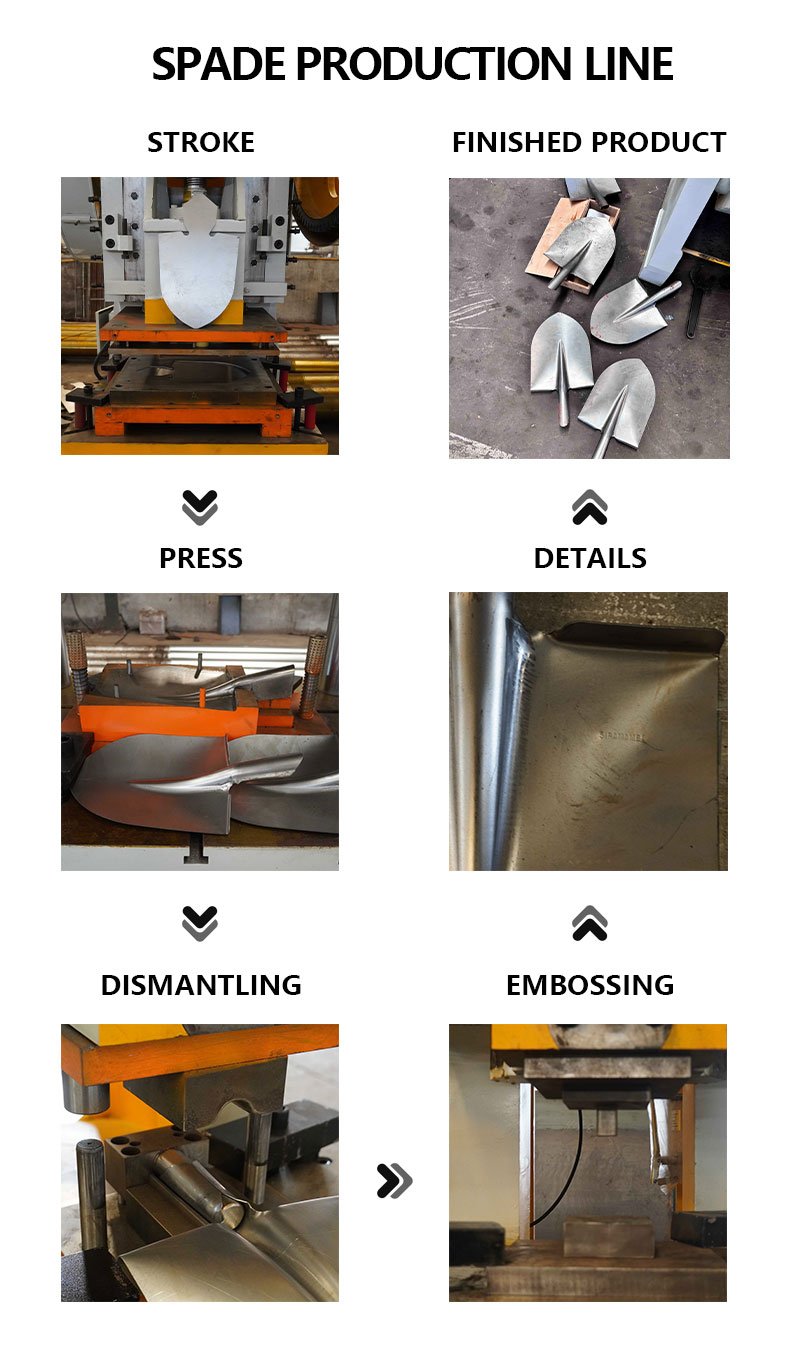

Compression molding process
Customer Case
Technical Specifications
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
