Salt Brick Machine Production Line

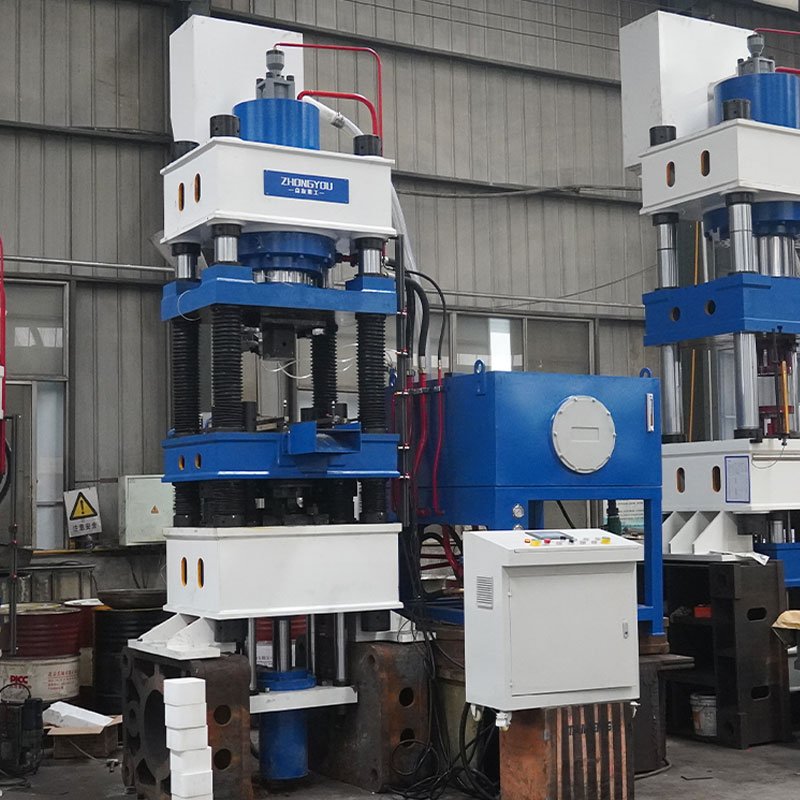

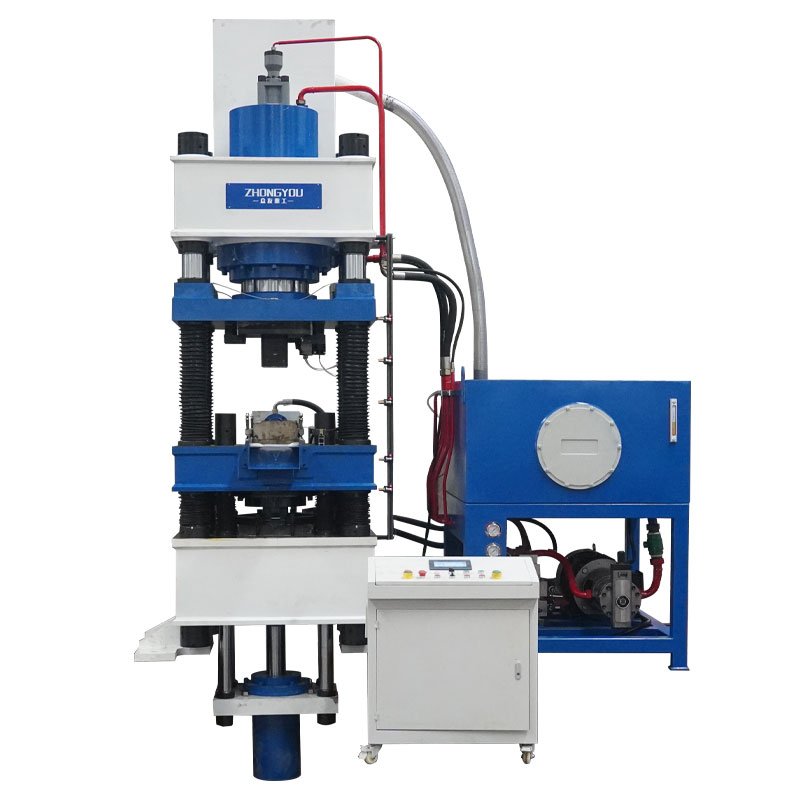

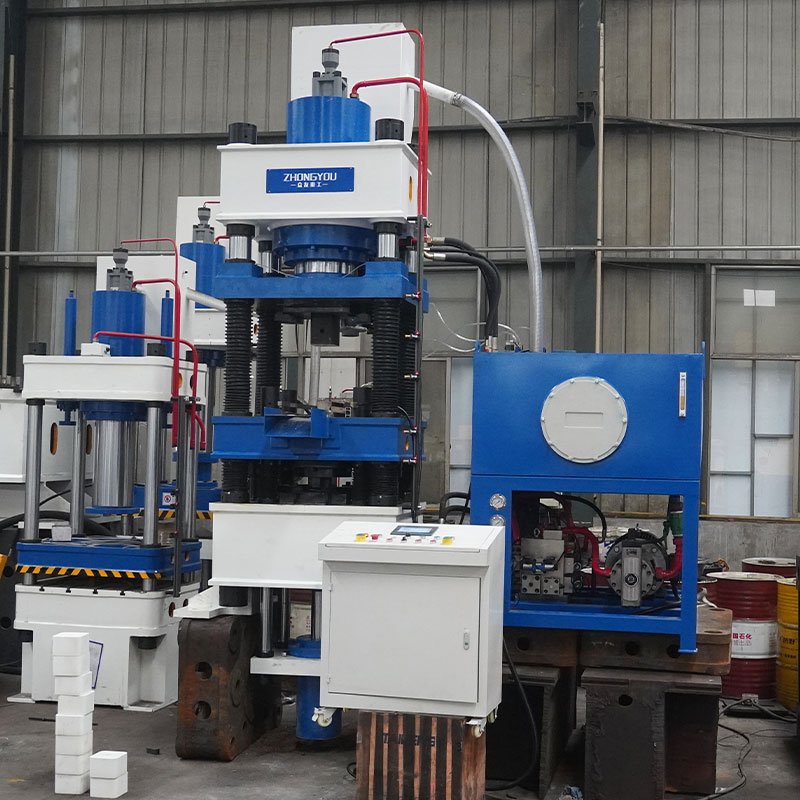

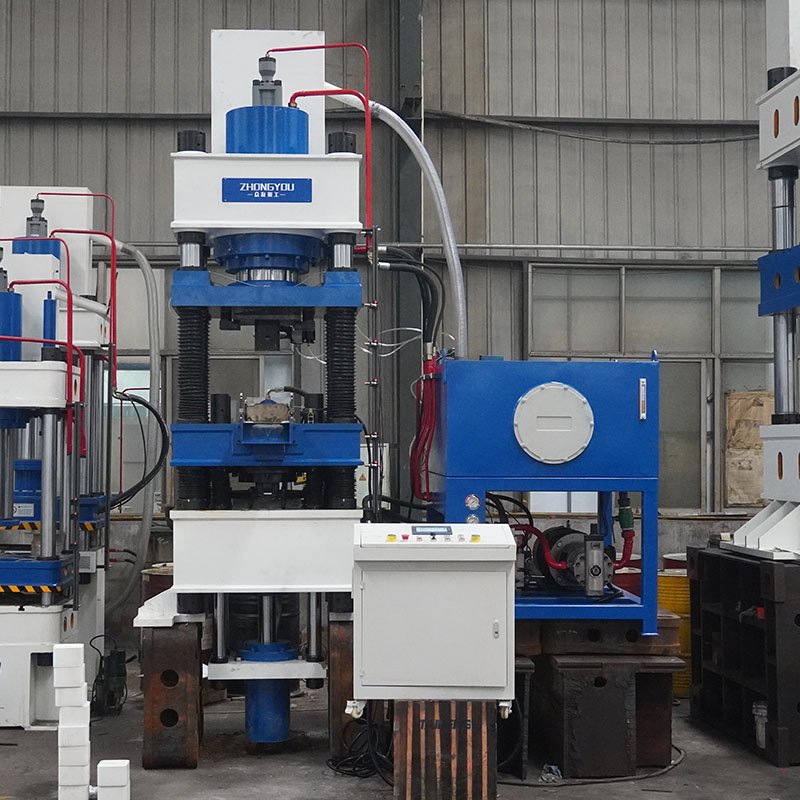

The 315-ton salt brick production line is a fully automated system centered around a 315-ton hydraulic press, designed for manufacturing salt brick products such as cattle and sheep lick blocks.
Description
The 315-ton salt brick production line is a fully automated system centered around a 315-ton hydraulic press, designed for manufacturing salt brick products such as cattle and sheep lick blocks.
High Pressure, High Precision: A 315-ton pressing force ensures the density and strength of salt brick products, meeting the licking needs of cattle and sheep. Simultaneously, the equipment features a high-precision control system that guarantees dimensional accuracy during compression.
Highly Automated: The production line integrates functions including ingredient mixing, material feeding, pressing, discharge, and automatic stacking, enabling fully automated production. This not only boosts production efficiency but also reduces labor costs.

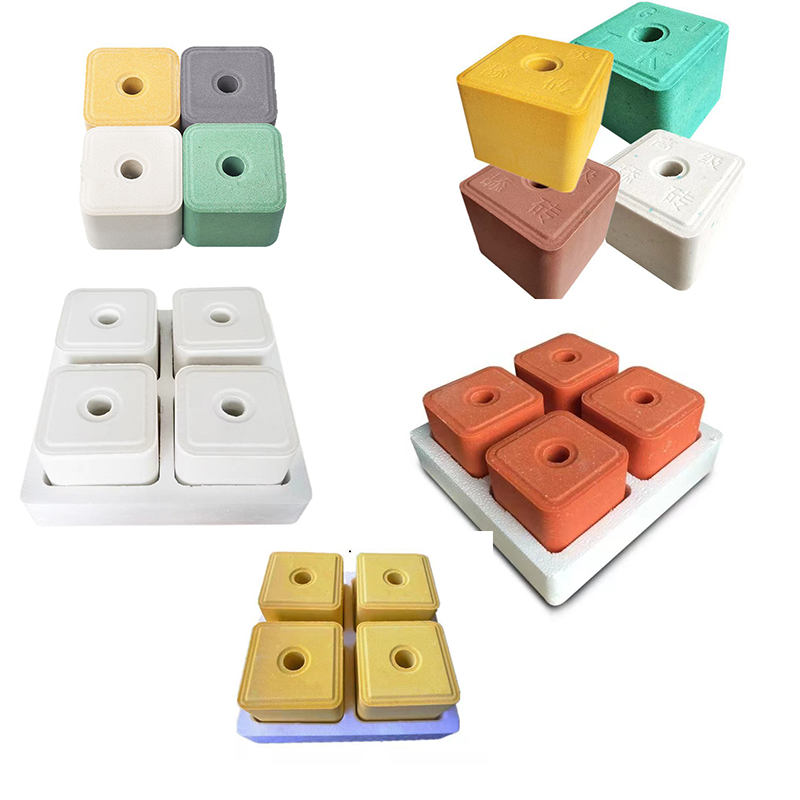

The 315-ton salt block production line is widely used in the manufacturing of cattle and sheep lick blocks. By scientifically blending the required salt, minerals, trace elements, and nutrients for livestock, the mixture is thoroughly mixed and then compressed into blocks by the salt block machine for animals to lick. This equipment can also produce salt blocks in various shapes, such as round or square, to meet the diverse needs of different customers.
Views: 0
Compression molding process
Customer Case
Technical Specifications
| Model | Tonnage | Weight of Molding Salt Brick | Mold | Configuration |
|---|---|---|---|---|
| YZ79-315T | 315 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-400T | 400 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-500T | 500 tons | 5KG-10KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-630T | 630 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-800T | 800 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1000T | 1000 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1200T | 1200 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1500T | 1500 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
Detailed Parameters
| Model | Tonnage | Weight of Molding Salt Brick | Mold | Configuration |
|---|---|---|---|---|
| YZ79-315T | 315 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-400T | 400 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-500T | 500 tons | 5KG-10KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-630T | 630 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-800T | 800 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1000T | 1000 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1200T | 1200 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1500T | 1500 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
