Metal stamping hydraulic presses

Description

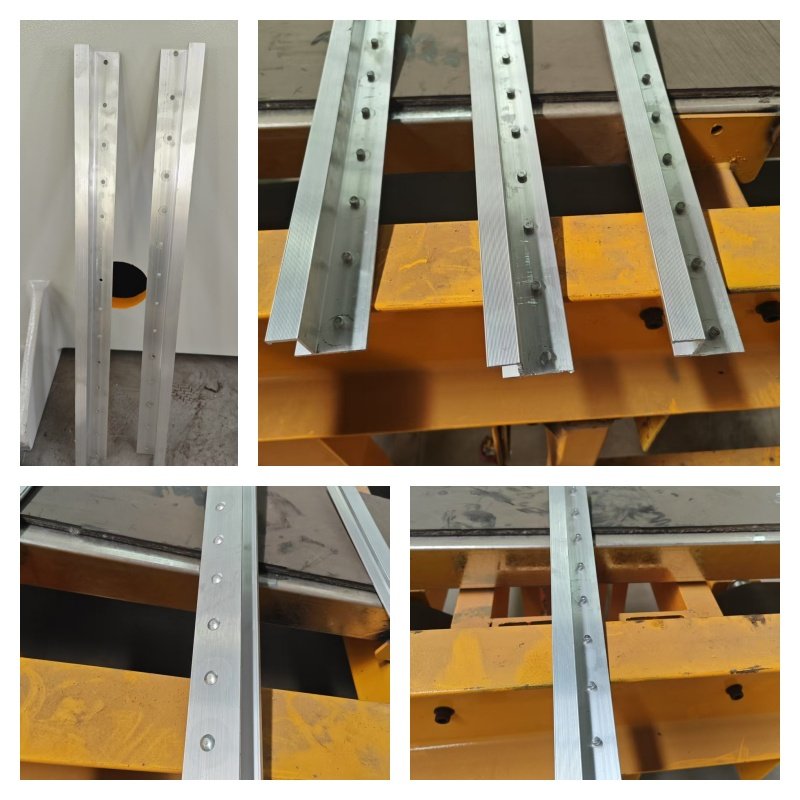

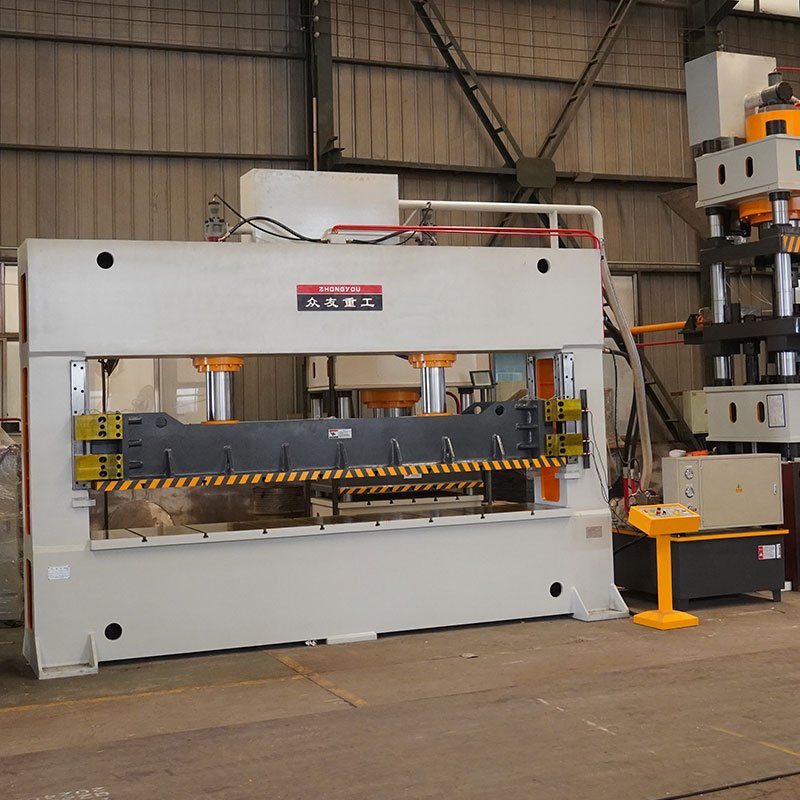

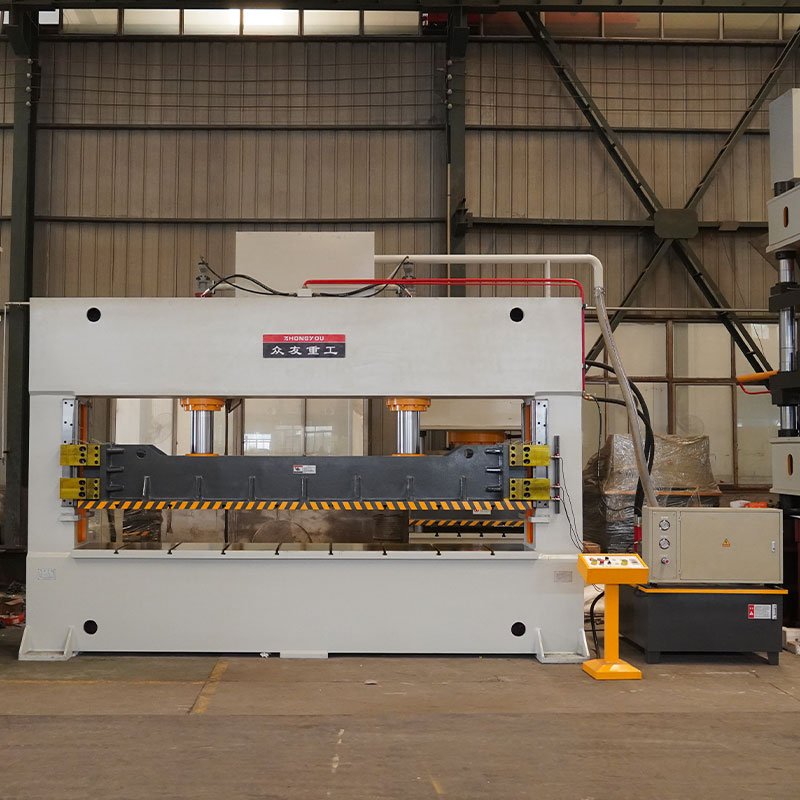

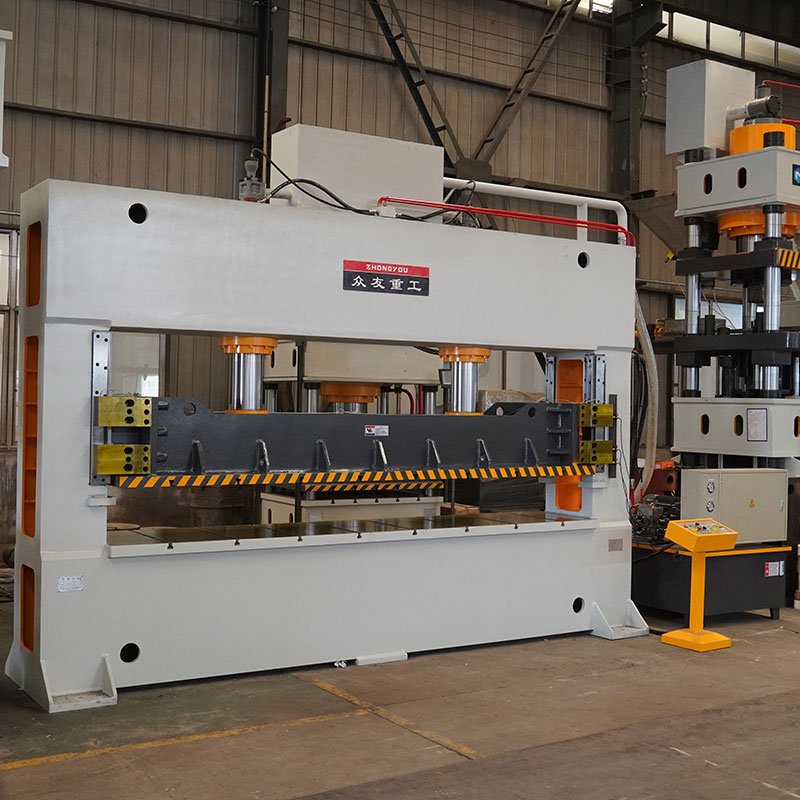

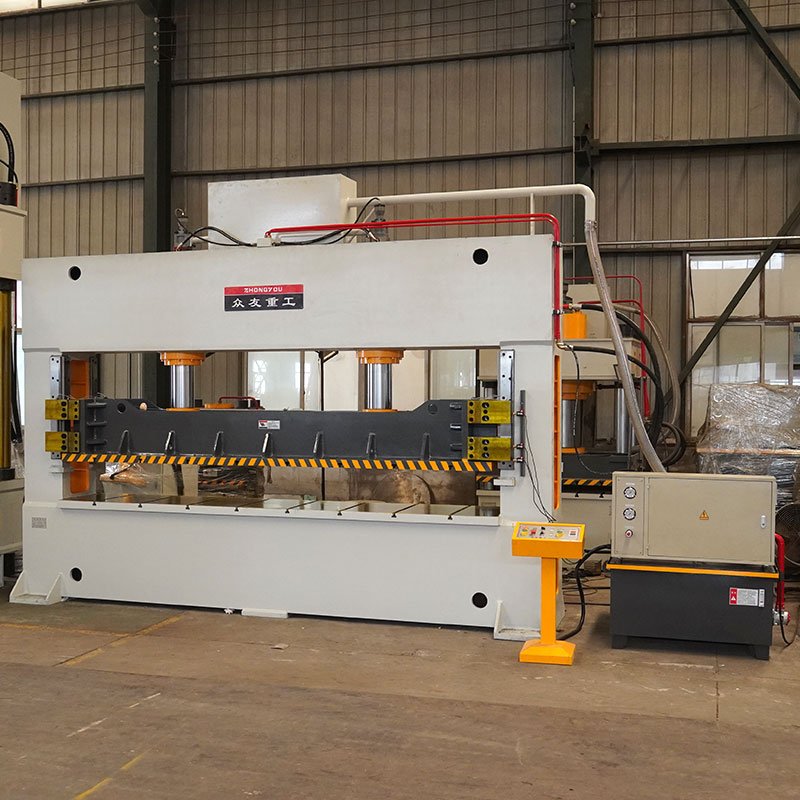

The 200-ton frame hydraulic press is a large-tonnage hydraulic molding equipment, mainly used for metal, plastic, powder metallurgy and other materials pressure processing, its core features are strong structural rigidity, stable pressure, suitable for scenes that require high tonnage molding.This hydraulic press is a special hydraulic equipment designed for punching sheet metal parts (such as side panels, top panels, bottom panels, door panels, etc.) of refrigerated truck compartments. Its core demand is to meet the multi-specification hole patterns (round holes, square holes, shaped holes, etc.) of the sheet metal parts, and batch and efficient production, taking into account the precision and stability at the same time.

Frame hydraulic press (also known as “four-column hydraulic press” or “frame hydraulic press”) through the frame structure (usually the whole cast steel or welded steel structure) as the main support, the internal installation of hydraulic cylinders to provide pressure, with the worktable and slide to complete the workpiece pressing,molding, straightening and other processes.

Core Advantages
High rigidity and stability: the frame-type structure (especially the overall cast steel structure) has strong resistance to deformation, which is suitable for precision molding under large tonnage;
Precise and controllable pressure: through the hydraulic valve group and PLC control, it can realize the functions of constant-pressure pressing and holding pressure to ensure the consistency of the workpiece;
Flexibility of process: it can be matched with different molds to achieve a variety of processes such as stamping, stretching, straightening and powder pressing;
High degree of automation: optional photoelectric protection, automatic feeding, counting and other functions to enhance production efficiency;
Convenient maintenance: modular design, hydraulic system and electrical components are easy to overhaul.

Compression molding process

Customer Case
