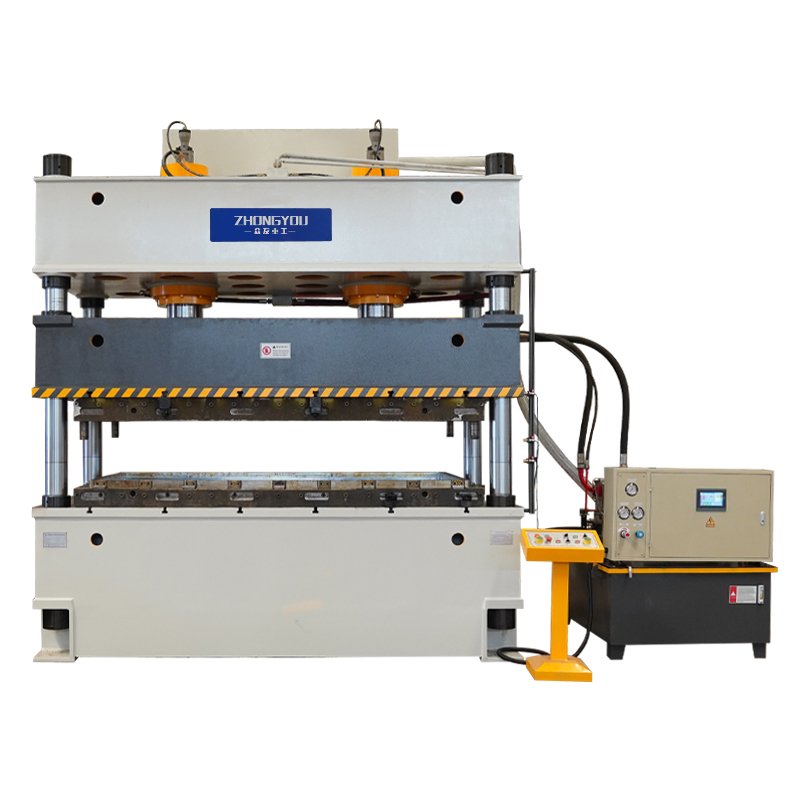

hydraulic press machine PP PE hydraulic press machine

hydraulic press machine PP PE hydraulic press machine

PP PE pot making hydraulic press machine structure is f […]

SKU: HPS-2000 In Stock
  • 2000-ton capacity
  • Energy saving design
  • Low maintenance
  • CE certified

Contact Sales

WhatsApp Call Now

Description

PP PE pot making hydraulic press machine structure is formed, and various parameters and tabletops can be customized according to customer needs. The hydraulic control adopts a cartridge valve integrated system, which is durable and has a long service life. Hydraulic press machine adopts buttons for centralized control, which can realize three operation modes: manual, semi-automatic and automatic.

Processing of metal thin plate parts: applicable to the forming and processing of metal covering parts in the automobile and home appliance industries, such as the stamping and deep drawing forming process of metal thin plate parts.
2. metal parts pressure forming: including die forming, extrusion forming of metal profiles, hot and cold die forging, free forging and other processing technology.
3. powder products industry: such as magnetic materials, powder metallurgy and other fields of compression moulding.
4. non-metallic material press forming: such as SMC moulding, hot press forming of automotive interior parts, rubber products, etc.
5. Other applications: such as press fitting, calibration, plastic sealing, embossing and other processes.

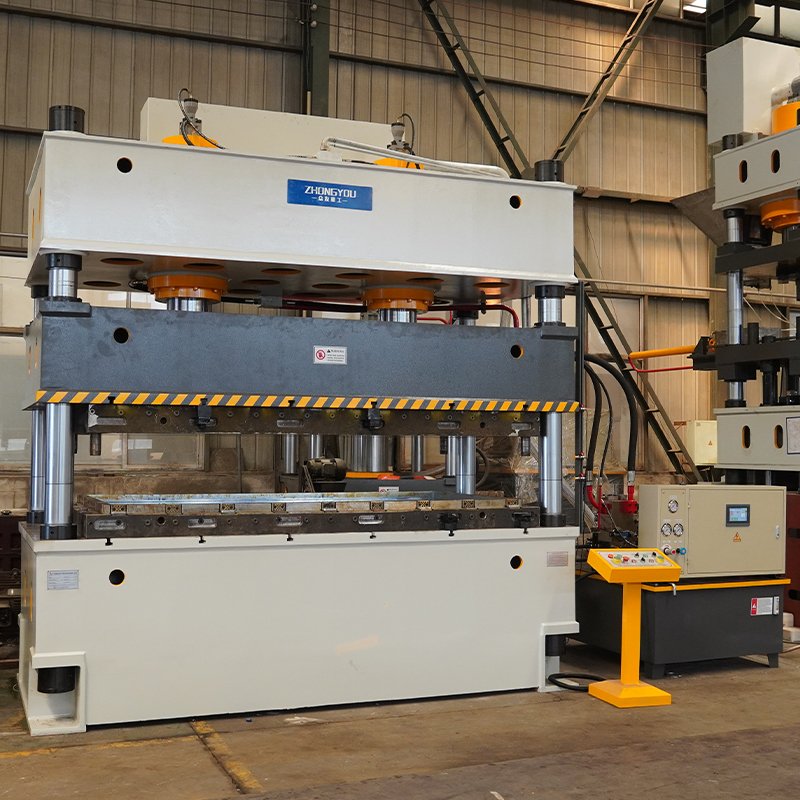

Compression molding process

hydraulic press machine PP PE hydraulic press machine Compression molding process

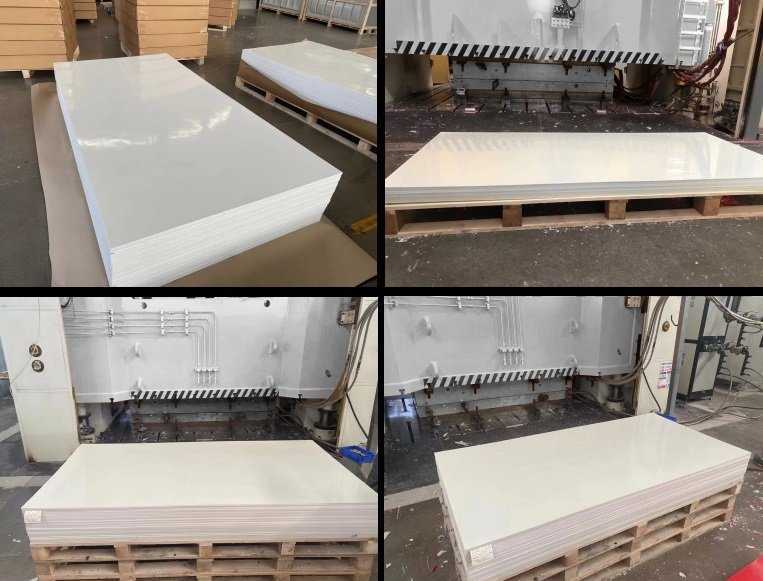

Customer Case

hydraulic press machine PP PE hydraulic press machine Customer Case

Technical Specifications

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300

Detailed Parameters

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300
