Hydraulic press for the moulding of polymer antique-style roof tiles

Description

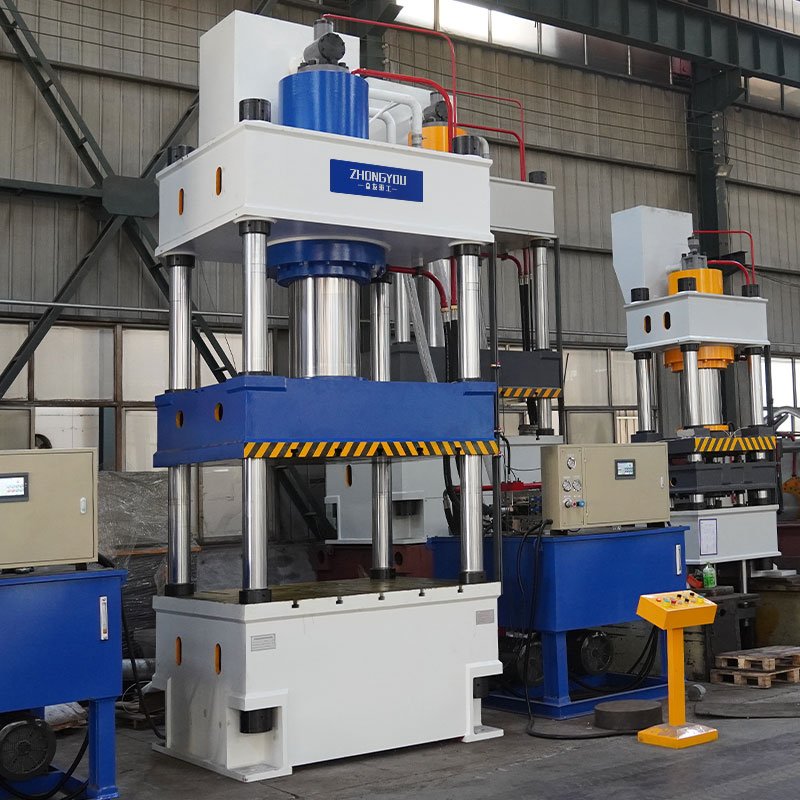

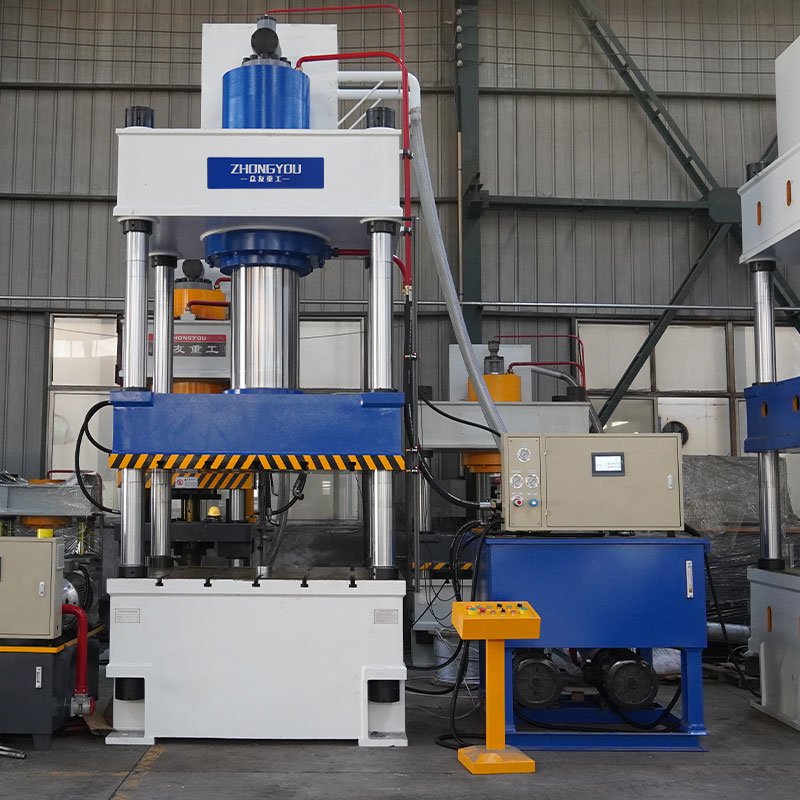

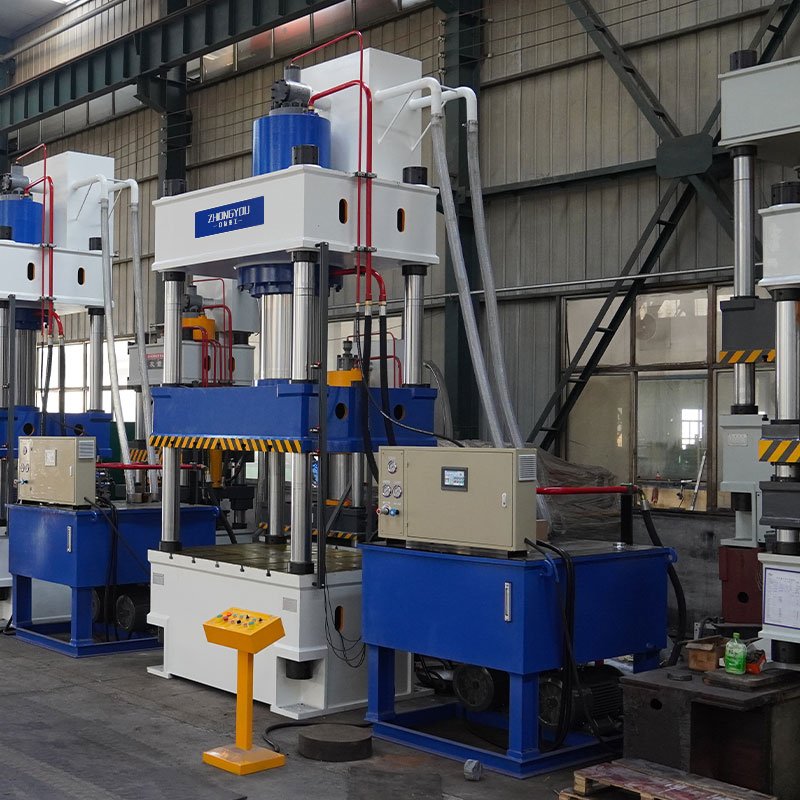

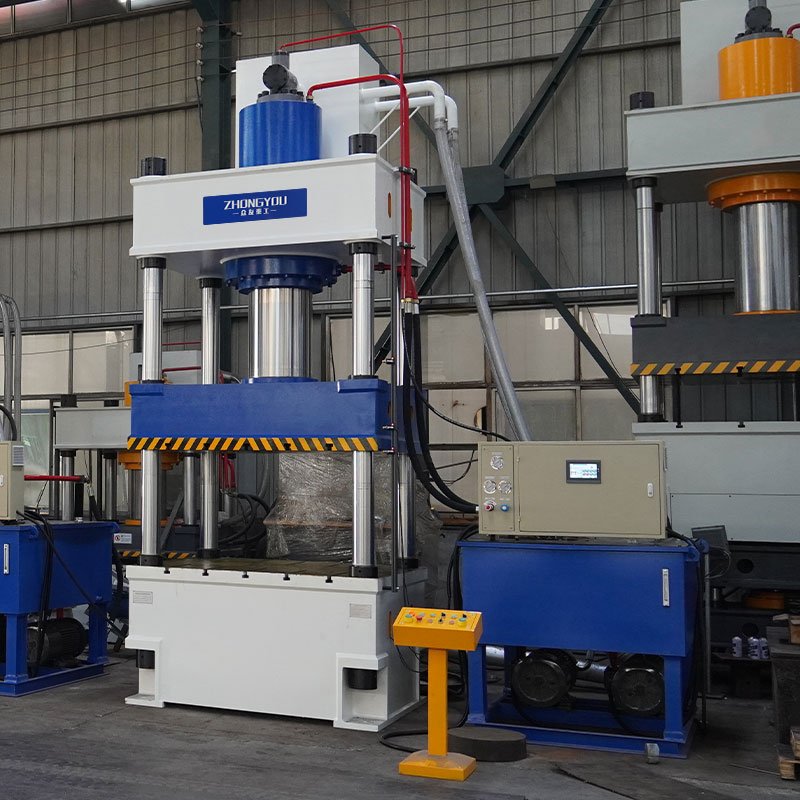

The 500 hydraulic press, designed and developed by Zhongyou Heavy Industry for a client in Tianjin, is specifically engineered for the hot moulding of polymer composite materials. It is used to produce small blue-green roof tiles for traditional architecture, integrated roof tiles, wall coping, drip tiles and antique-style ridge tiles.
Suitable raw materials: SMC (Sheet Moulding Compound), BMC (Bulk Moulding Compound), glass fibre + resin mixtures, polymer-stone powder composites, and polyester fibreglass raw materials.
Key Advantages of the Equipment
High moulding quality: Uniform pressure across the entire moulding area ensures clear and dense relief patterns on the tile surface, with no material shortages, air bubbles or delamination, eliminating the need for secondary trimming;
High degree of automation: One-button cycle operation requires only one operator for loading and unloading, significantly reducing labour costs;
High versatility: Simply by changing the mould, the machine can produce a wide range of traditional architectural components, including small blue tiles, wall copings, antique-style ridges and gutter tiles;
Durable and energy-efficient: The four-column rigid frame resists fatigue, the servo system reduces energy consumption, and the integrated hydraulic circuit minimises leakage;
Superior finished product performance: Moulded tiles are lightweight, waterproof, freeze-thaw resistant and corrosion-resistant, serving as a replacement for traditional clay and cement tiles.

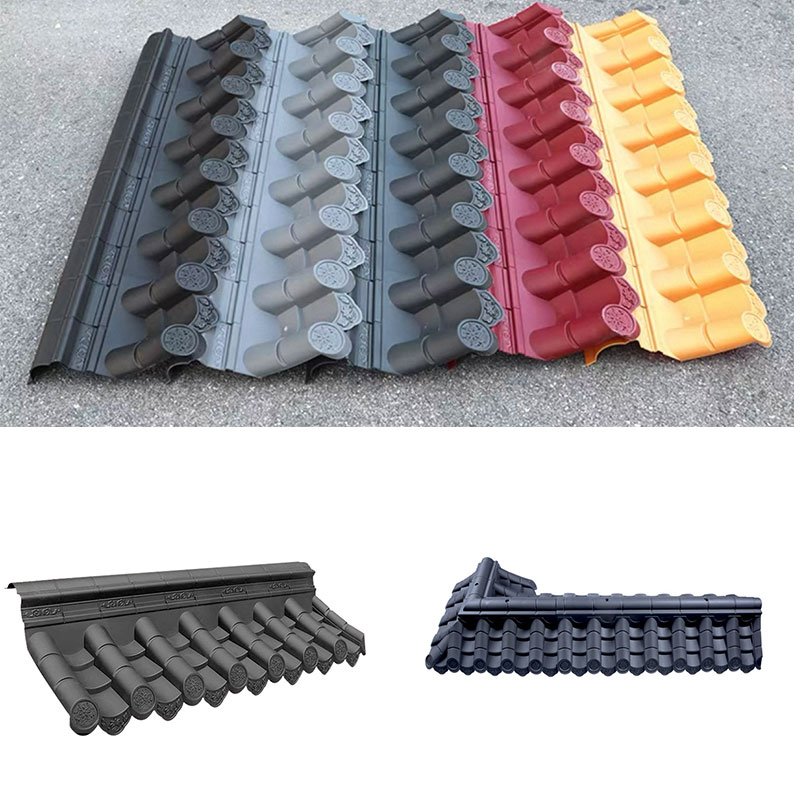

Compression molding process

Customer Case
