400T Grey Bucket Truck Trolley Tensile Press Machine Sheet Metal Forming Press with Moulds

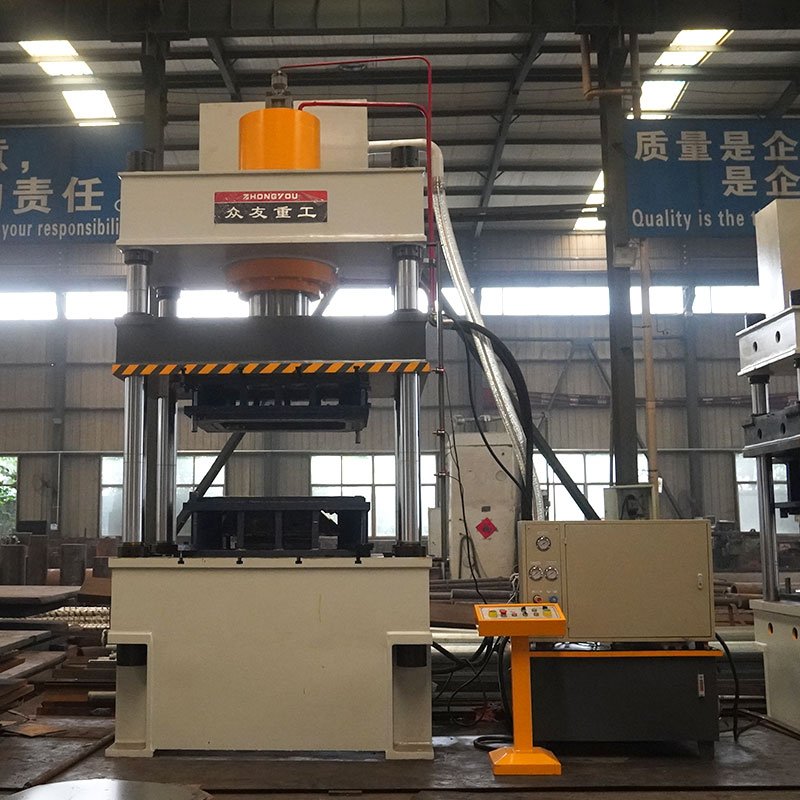

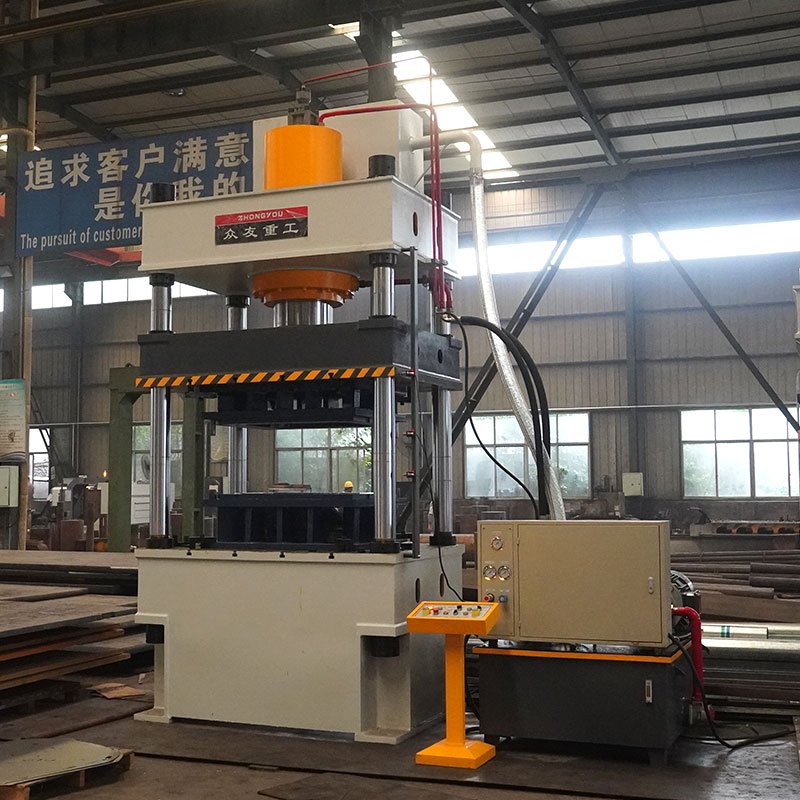

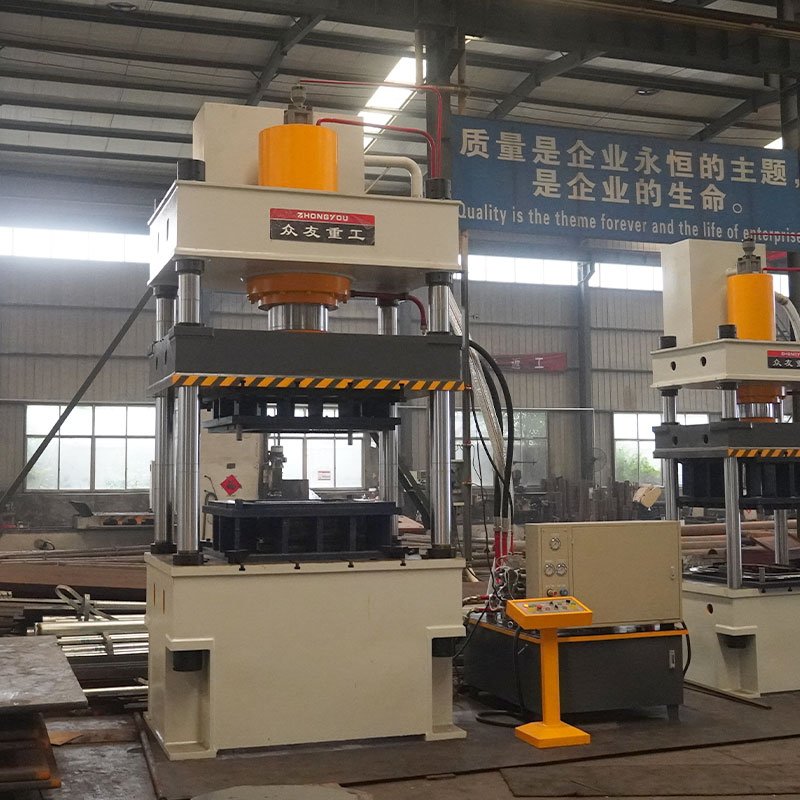

Grey Bucket Truck Hydraulic Press is a hydraulic equipment specially designed for the production of grey bucket trucks.
- 2000-ton capacity
- Energy saving design
- Low maintenance
- CE certified
Description
Grey Bucket Truck Hydraulic Press is a hydraulic equipment specially designed for the production of grey bucket trucks.
Grey Bucket Truck Hydraulic Press is mainly used in the manufacture of grey bucket trucks, which can realise the one-time forming of grey bucket trucks’ buckets.By equipping different moulds, it can also be used to produce other types of metal products, such as trolleys, metal containers, etc.。
High precision and stability: the hydraulic press for grey hopper truck has high precision and stability, which can ensure the forming quality of the grey hopper truck bucket.Its high guiding precision and strong lateral force resistance are conducive to improving production efficiency and product quality.
Multi-functionality: the hydraulic press for grey hopper truck can be used for the stretching, bending and forming process of metal plates, and it can also be used for operations such as dropping, calibrating, pressing and blanking.One machine can meet a variety of process requirements, reduce production costs.
Easy to operate: the hydraulic press for grey hopper truck adopts centralised control by push button, which is easy to operate.At the same time, the equipment is also equipped with photoelectric protection device and emergency stop button to ensure the safety of personnel and equipment during operation.
Energy saving and high efficiency: the hydraulic press for grey bucket truck adopts advanced hydraulic technology and electric control technology, featuring low energy consumption and high efficiency.It reduces the production cost while ensuring the production quality.
Compression molding process
Customer Case
Technical Specifications
| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |
Detailed Parameters
| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |
