High Precision CNC Machine Tools

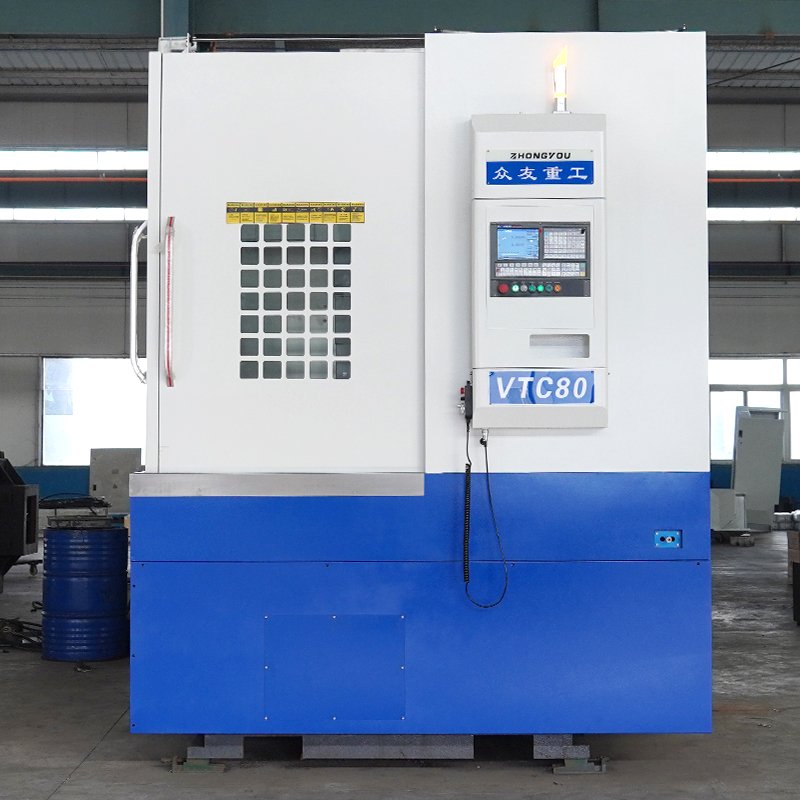

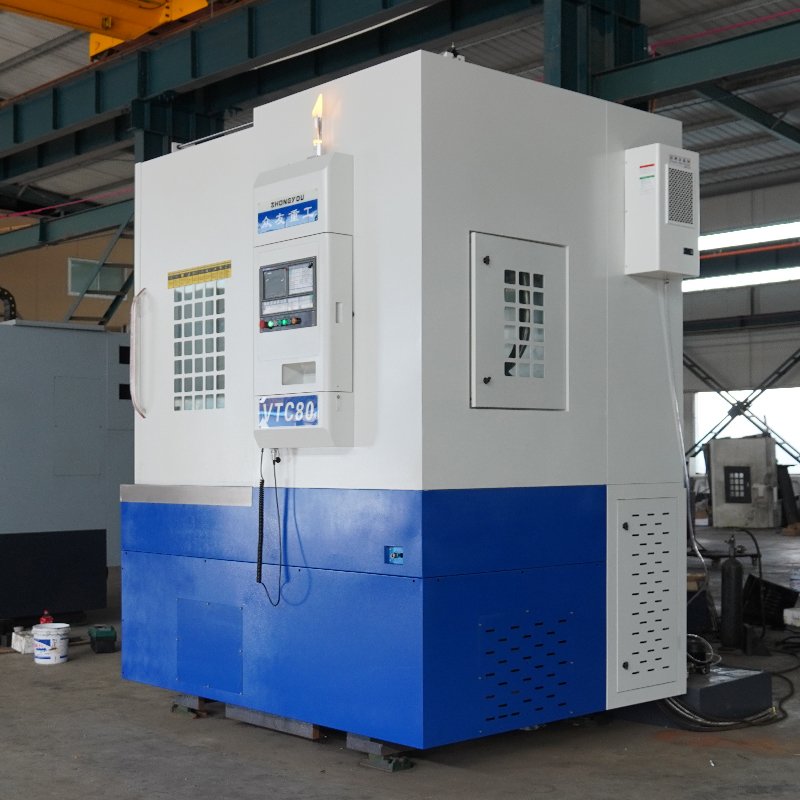

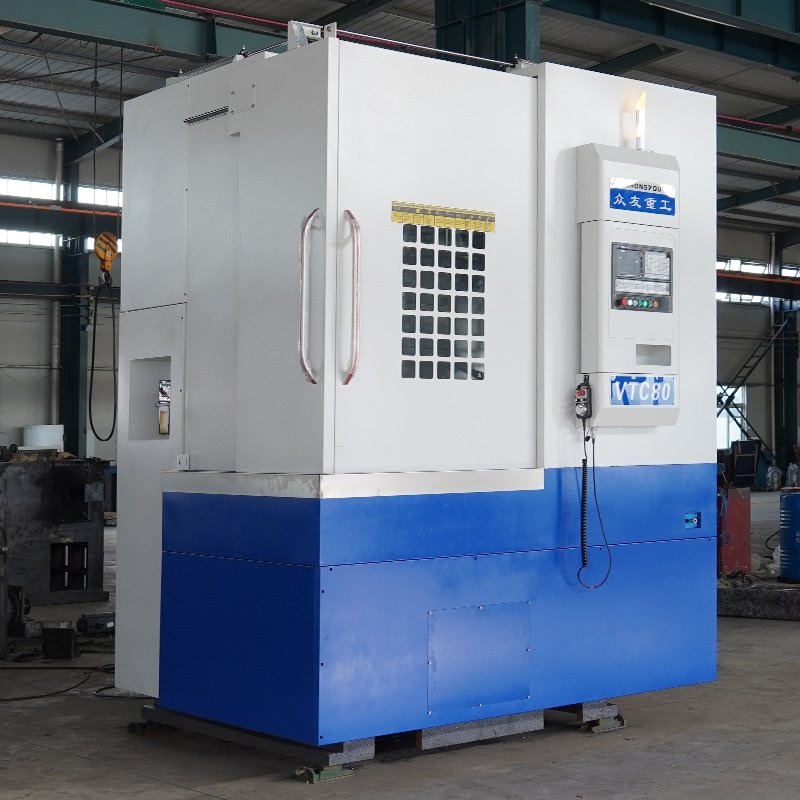

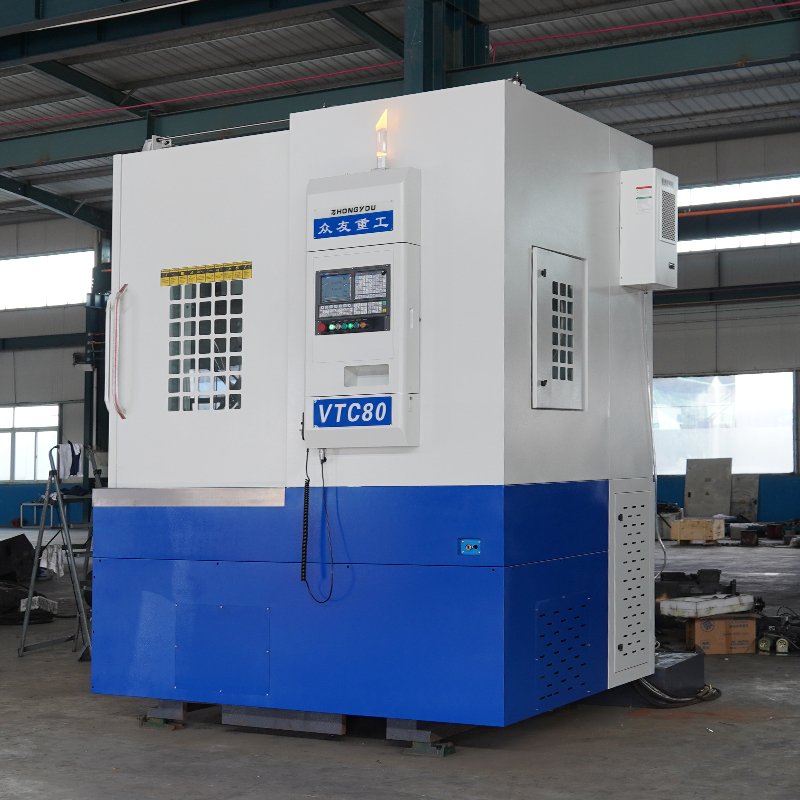

VTC80 CNC Vertical Turning Lathe is a high-precision CNC machine for machining large rotary body parts, mainly used in batch or single piece production, applicable to automotive, wind power, aerospace, mold and other fields of precision parts machining
Scan to connect on WeChat
Scan to chat on WhatsApp
Description

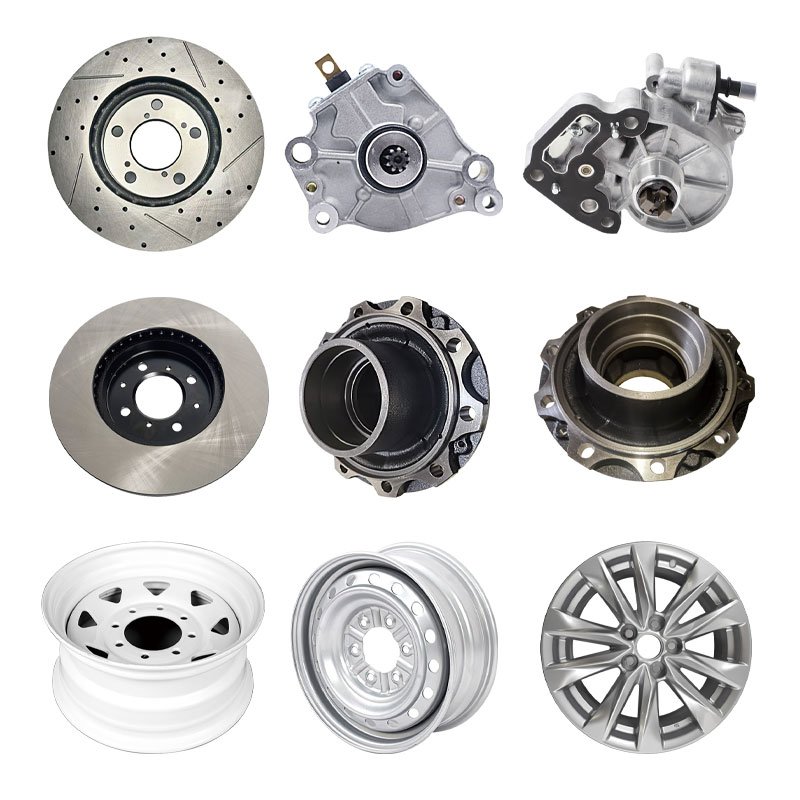

VTC80 is a CNC vertical lathe (Vertical CNC Lathe), the core function is to control the tool through the CNC system to carry out the external round, end face, bore, thread, groove and other processes on rotary workpieces (such as discs, hubs, flanges, etc.). The core function of the machine is to control the tool by the CNC system to carry out the finish machining of external circle, end face, bore, thread, groove and other processes on rotary workpieces (such as disk, hub, flange, etc.). Its “vertical” structure is different from the horizontal lathe, the workpiece is clamped on the rotary table, and the tool moves along the vertical (Z-axis) and horizontal (X-axis) directions, which is suitable for machining large-diameter and short-length parts, and the clamping stability is better.
Compression molding process

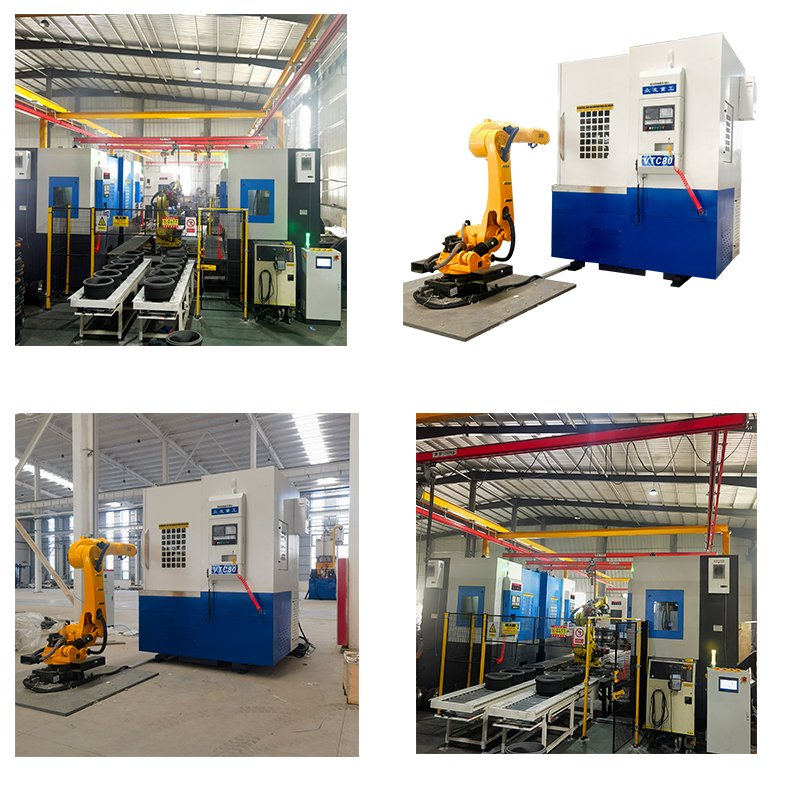

Customer Case
Technical Specifications
| Max.rotating diameter | mm | ∮560 | ∮650 | ∮750 | ∮750 | ∮750 |
| Max.turning diameter of workpiece | mm | ∮450 | ∮600 | ∮700 | ∮550 | ∮700 |
| Spindle end face form | Straight | Straight | Straight | Straight | Straight | |
| Spindle speed | rpm | 3000 | 100-1000 | 50-1500 | 50-1000 | 500-1000 |
| Hydraulic chuck diameter | mm | 500 | 500 | 630 | 500 | 630 |
| Tool post type | pcs | eight-station | eight-station | eight-station | eight-station | eight-station |
| Tool shank diameter | mm | 32 | 32 | 32 | 32 | 32 |
| Inner diameter tool holder | mm | ∮40 | ∮40 | ∮50 | ∮50 | |
| Center tool holder | mm | 160 | ||||
| X axis travel | mm | 400 | 450 | 700 | 280 | 450 |
| Z axis travel | mm | 500 | 600 | 700 | 500 | 700 |
| Oil tank capacity | L | 50 | 50 | 50 | 50 | 50 |
| Oil pressure motor | kw | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Water Capacity | L | 180 | 200 | 200 | 200 | 200 |
| Rotating water motor | w | 250 | 450 | 450 | 450 | 450 |
| Flush motor | kw | 250 | 450 | 450 | 450 | 450 |
| X axis servo motor torque | NM | 12 | 18 | 18 | 15 | 15 |
| Z axis servo motor torque | NM | 22 | 30 | 18 | 15 | 15 |
| Main Servo motor power | kw | 11/15 | 18.5 | 22 | 18.5 | 22 |
| Repeat positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Positioning accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Dimension | mm | 1700X1880X2500 | 2000X1950X3000 | 2450X1900X3200 | 3000X2400X2700 | 3200X2400X3200 |
| Weight | kg | 5500 | 8000 | 9500 | 7000 | 9000 |
| Voltage | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | |
| Electricity Leakage/outage protection | √ | √ | √ | √ | √ | |
| Three-color light indication | √ | √ | √ | √ | √ | |
| Long-term stable working conditions | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | |
| Noise meets national standards | √ | √ | √ | √ | √ | |
| ☆The equipment adopts fully enclosed protection, and the protective device is safe and reliable and should comply with GB15760-1995 General Technical Regulations on Safety Protection of Metal Cutting Machine Tools. ☆Equipped with various hydraulic, gas and water pipeline direction signs, marking the working range of various instruments, and marking the grade of the medium used. ☆The diameter of the hydraulic chuck and the tool holder station can be selected according to the processing requirements. |
||||||
