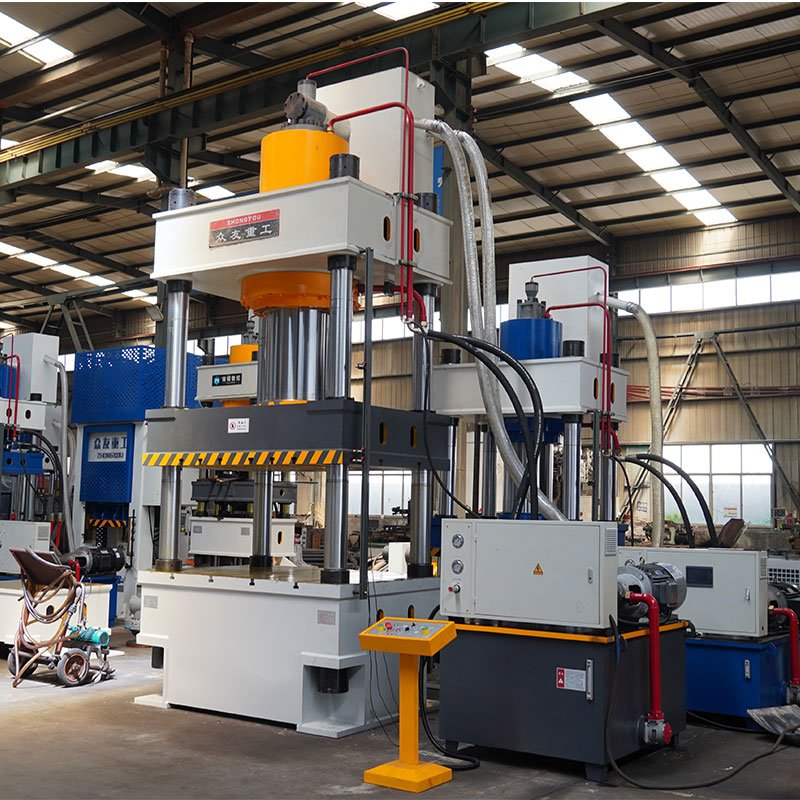

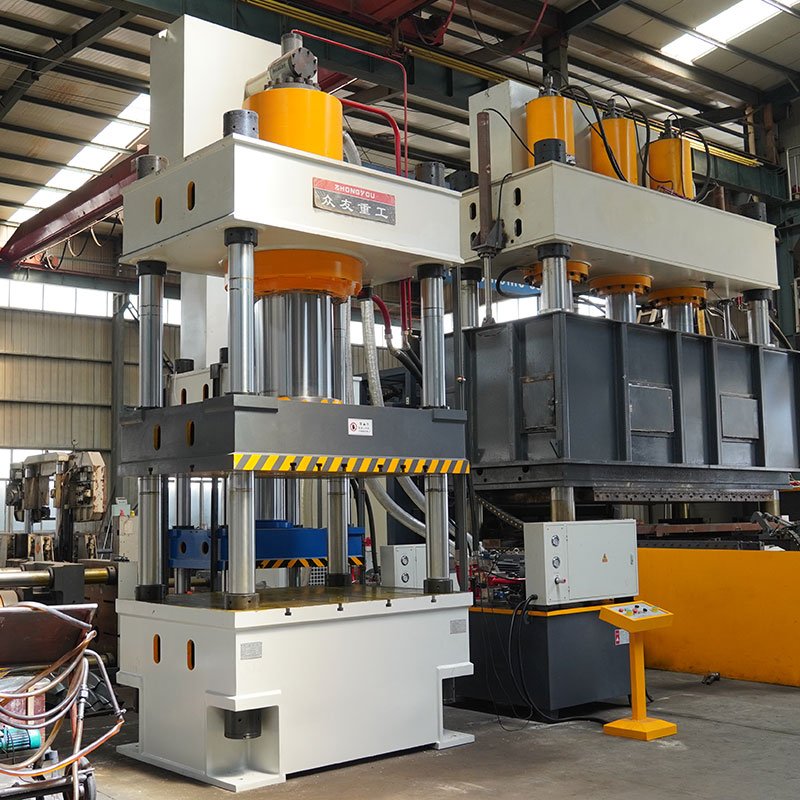

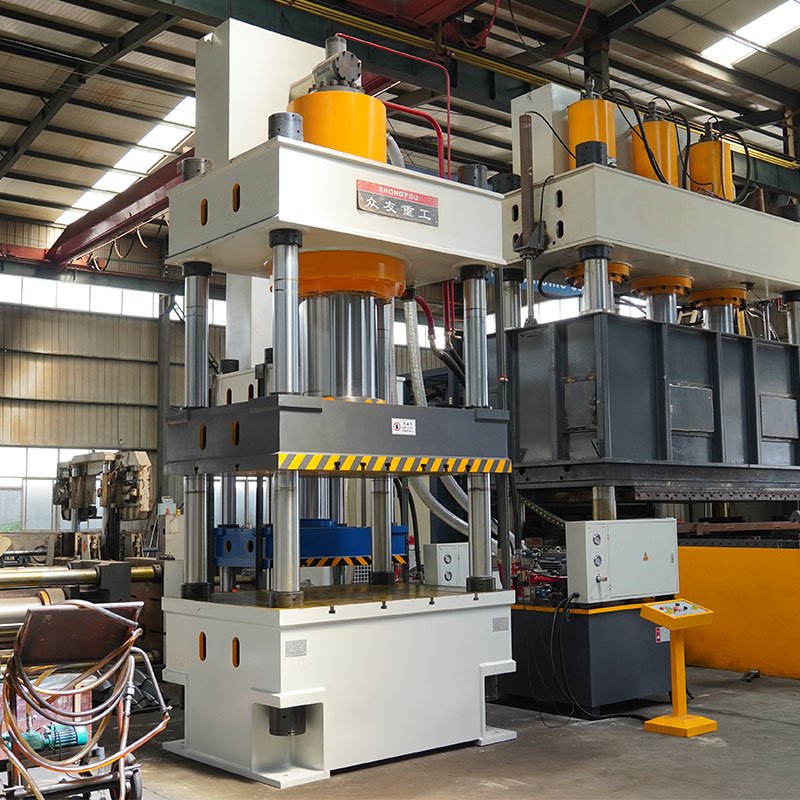

Heavy Duty 630 Ton Four Column Hydraulic Press for Compression Molding, Stamping and Forging

Heavy Duty 630 Ton Four Column Hydraulic Press for Compression Molding, Stamping and Forging

This 630 ton four-column hydraulic press is a heavy-duty hydraulic forming machine. It features strong pressing force, high rigidity and stable performance. Widely used for powder compacting, composite material molding, metal stamping, hot pressing and forging. Equipped with PLC & touch screen control, multiple safety protection. Custom specifications and automatic feeding system are optional.

WeChat QR Code
Scan to connect on WeChat
WhatsApp QR Code
Scan to chat on WhatsApp
+86 13562463338 zhongyou@chinazhongyou.cn

Description

Our 630 Ton Four-Column Hydraulic Press adopts classic four-column structural design, which delivers high structural rigidity and excellent load uniformity. The optimized hydraulic system provides stable, adjustable pressing force and speed, ensuring consistent product quality for mass production.
This hydraulic press supports a wide range of processing applications, including powder metallurgy pressing, ceramic powder forming, SMC composite molding, metal sheet stamping, hot forging, briquetting, and refractory material pressing. It is popular in industries such as new energy, powder metallurgy, auto parts, refractory materials, and composite materials.
It is equipped with PLC + human-machine touch screen control. Operators can set pressure, holding time, stroke and speed directly on the screen. Overload protection, emergency stop and safety grating are standard safety configurations to protect operators and the machine.
Main Advantages
Robust four-column frame, long service life, low deformation under heavy load
Precise pressure & position control, high finished product consistency
Flexible operation modes: manual, semi-automatic and fully automatic
Low failure rate, easy maintenance
Customizable: worktable size, pressing stroke, opening height, automation solutions
We provide non-standard customization according to your product drawings and process requirements. Contact us to get a tailored technical plan and quotation.

Compression molding process

Heavy Duty 630 Ton Four Column Hydraulic Press for Compression Molding, Stamping and Forging Compression molding process

Customer Case

Heavy Duty 630 Ton Four Column Hydraulic Press for Compression Molding, Stamping and Forging Customer Case

Technical Specifications

参数 单位 YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
公称力 KN 630 1000 1000 2000 2000 3150 3150
系统最大工作压力 Mpa 25 25 25 25 25 25 25
滑块最大开口高度 mm 700 800 900 1100 900 1250 1000
滑块最大行程 mm 400 500 600 500 600 800 600
工作台有效面积 mm 610*500 630*550 750*700 1000*1000 800*800 1260*1160 800*800
滑块空程下降速度 mm/s 100 100 100 100 100 100 100
压制速度 mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
回程速度 mm/s 80 90 90 90 90 100 90
顶出力 KN 100 200 200 400 400 630 630
顶出最大行程 mm 160 200 200 200 200 300 300
名称 单位 YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
公称力 KN 4000 5000 6300 8000 10000 12500 16000
系统最大工作压力 Mpa 25 25 25 25 25 25 25
滑块最大开口高度 mm 1250 1500 1500 1500 1500 1500 1500
滑块最大行程 mm 800 900 900 900 900 900 900
工作台有效面积 mm 1250*1160 1400*1400 1500*1500 1600*1600 1600*1600 1600*1600 1600*1600
滑块空程下降速度 mm/s 100 100 150 100 180 180 190
压制速度 mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
回程速度 mm/s 100 180 200 90 220 200 220
顶出力 KN 630 1000 1000 400 1000 1000 1600
顶出最大行程 mm 300 300 300 200 300 300 300

Detailed Parameters

参数 单位 YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
公称力 KN 630 1000 1000 2000 2000 3150 3150
系统最大工作压力 Mpa 25 25 25 25 25 25 25
滑块最大开口高度 mm 700 800 900 1100 900 1250 1000
滑块最大行程 mm 400 500 600 500 600 800 600
工作台有效面积 mm 610*500 630*550 750*700 1000*1000 800*800 1260*1160 800*800
滑块空程下降速度 mm/s 100 100 100 100 100 100 100
压制速度 mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
回程速度 mm/s 80 90 90 90 90 100 90
顶出力 KN 100 200 200 400 400 630 630
顶出最大行程 mm 160 200 200 200 200 300 300
名称 单位 YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
公称力 KN 4000 5000 6300 8000 10000 12500 16000
系统最大工作压力 Mpa 25 25 25 25 25 25 25
滑块最大开口高度 mm 1250 1500 1500 1500 1500 1500 1500
滑块最大行程 mm 800 900 900 900 900 900 900
工作台有效面积 mm 1250*1160 1400*1400 1500*1500 1600*1600 1600*1600 1600*1600 1600*1600
滑块空程下降速度 mm/s 100 100 150 100 180 180 190
压制速度 mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
回程速度 mm/s 100 180 200 90 220 200 220
顶出力 KN 630 1000 1000 400 1000 1000 1600
顶出最大行程 mm 300 300 300 200 300 300 300
