Glass fiber reinforced plastic water tank hydraulic press Machines 315 ton molding presses

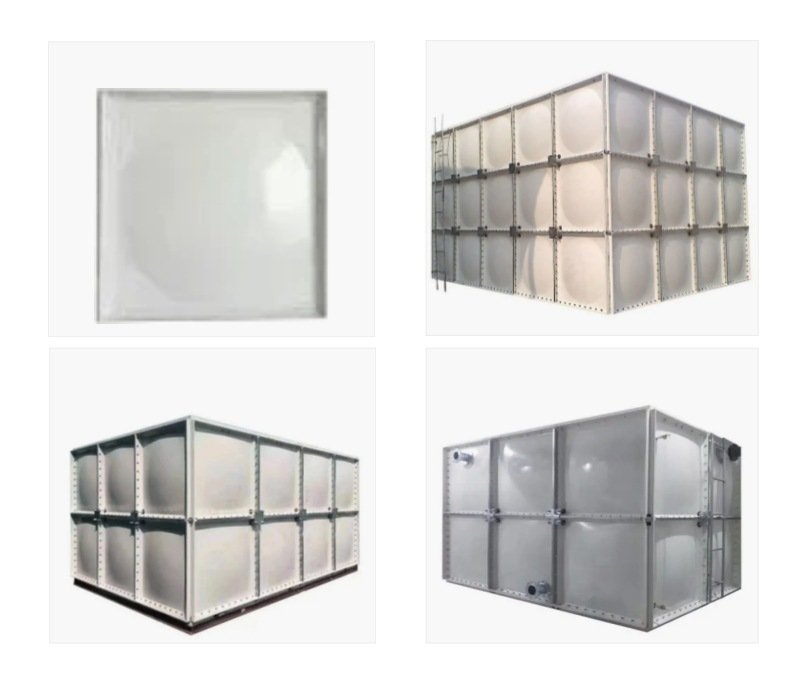

Glass fiber reinforced plastic water tank hydraulic press is the key equipment dedicated to FRP water tank molding and processing, which presses and molds FRP composite materials (e.g. SMC, BMC, etc.) under high temperature and high pressure through molding process, with the features of high efficiency, high precision and high stability.
- 2000-ton capacity
- Energy saving design
- Low maintenance
- CE certified
Description

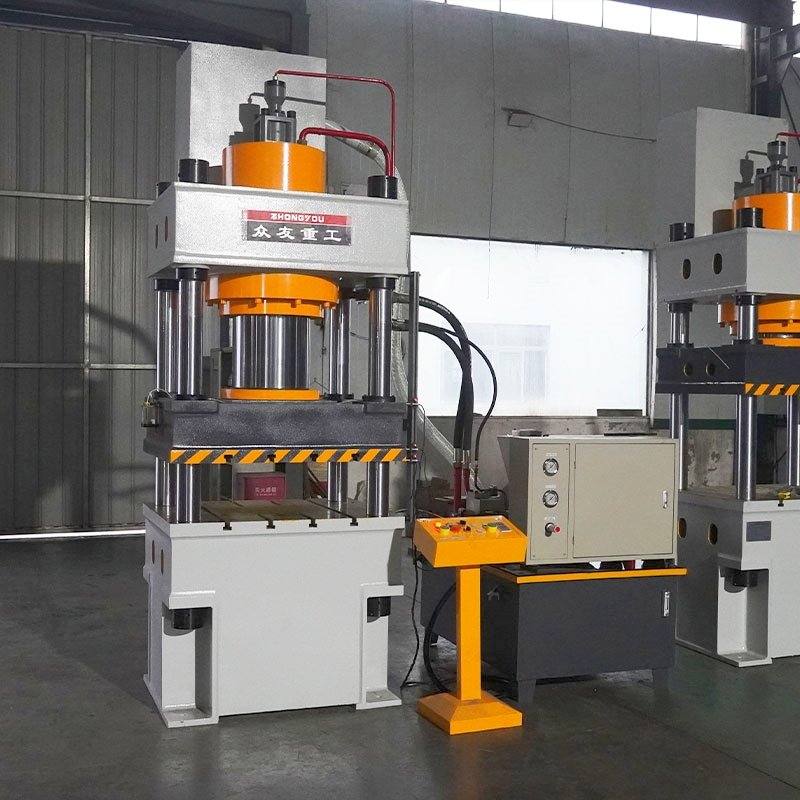

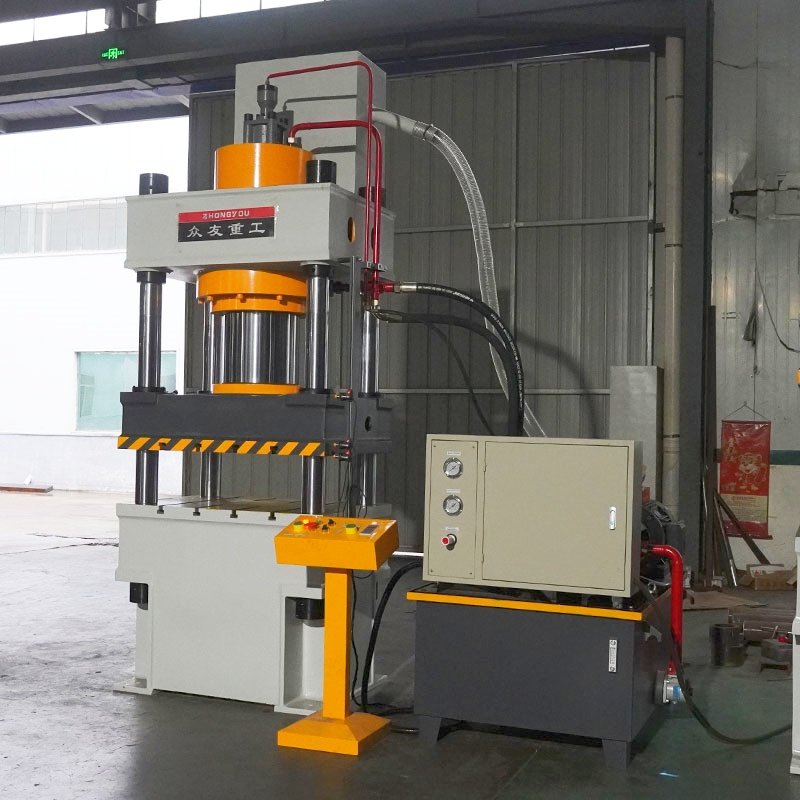

Glass fiber reinforced plastic water tank hydraulic pressthree-beam and four-column structure or frame structure, which is composed of main machine, hydraulic system, electric control system and mold.The working principle is to provide pressure through the hydraulic system, so that the upper mold and the lower mold closed, the FRP mold plastic in high temperature and high pressure compression molding.T
he equipment has the following features:
Precise pressure control: adopting proportional servo control system, with wide range of pressure adjustment and high precision.
Flexible temperature control: the temperature of the mold can be controlled at multiple points to ensure uniform curing of the material.
Action flow programmable: support rapid downward movement, segmental pressing, holding pressure, slow mold opening, ejecting and other actions to adapt to different process requirements.
Fiberglass reinforced plastic water tank molding press is a kind of special equipment that applies pressure to the material through the mold to make it undergo plastic deformation or curing reaction in the closed mold cavity, so as to obtain the products of specific shapes and properties.It is the core equipment of molding process, widely used in plastics, rubber, composites, ceramics and other fields, especially in thermosetting materials (such as phenolic resins, epoxy resins) and high-precision parts in the production of indispensable.
Compression molding process

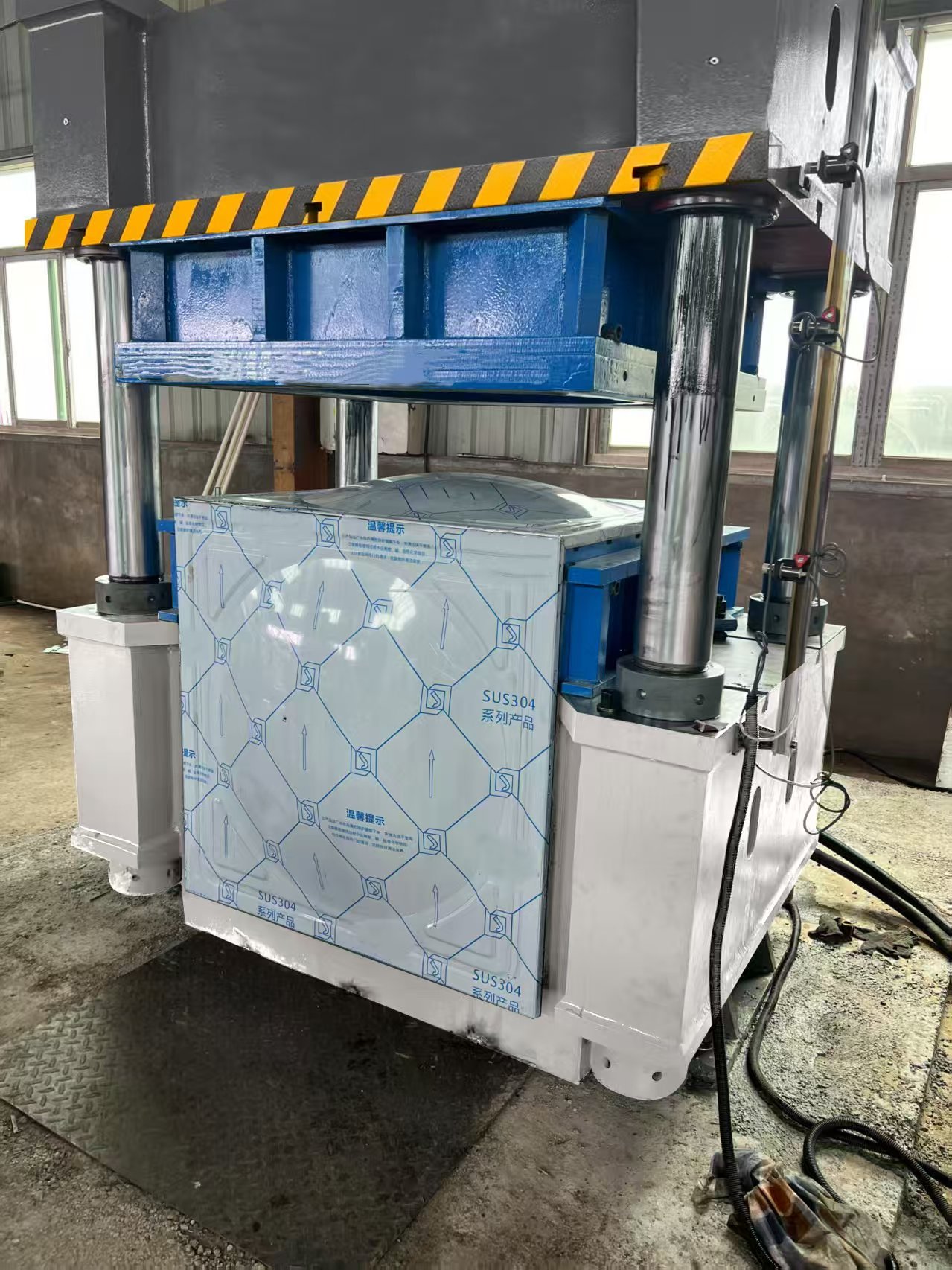

Customer Case
Technical Specifications
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
