Deep Drawing Hydraulic Press
The 500-ton stainless steel basin stretching hydraulic press is a hydraulic device specifically designed for the stretching and forming of metal products such as large stainless steel basins.
Description
500-ton Stainless Steel Basin Drawing Hydraulic Press is a hydraulic device specifically designed for drawing and forming metal products such as large stainless steel basins.
Stainless Steel Product Drawing
Suitable for drawing and forming metal products including stainless steel basins, sinks, pots and pans, water tanks, and inner pots for rice cookers.
Capable of producing single-bowl, double-bowl, triple-bowl, and other styles of stainless steel sinks to meet the needs of kitchens, catering, and related industries.
Metal Sheet Processing
Suitable for stretching, flanging, punching, and forming processes on automotive body panels, heads, hardware components, anchor rod trays, and other metal sheets.
Processable materials include stainless steel sheets, galvanized sheets, iron sheets, copper sheets, aluminum sheets, etc.
Composite Material Forming
Select models support compression molding of composite materials like fiberglass and carbon fiber, meeting demands in aviation, wind power, and other sectors.
Views: 0

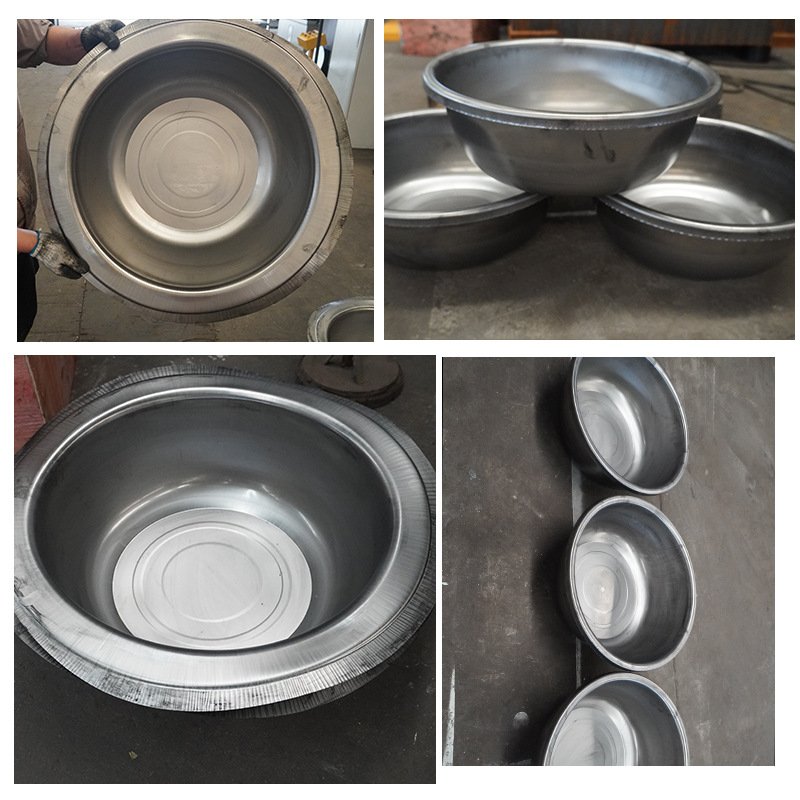

Compression molding process
Customer Case
Technical Specifications
| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |
Detailed Parameters
| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |
