Compressed Wooden Pallet Hydraulic Press Machine

Compressed Wooden Pallet Hydraulic Press Machine

This hydraulic press which is used for compressed wood pallets has a bigger working table. It can press products with large sizes. The servo system makes the machine use less electricity and produce less noise. The touch screen can show the production information and also be used to change the machine’s programs. It is a very intelligent hydraulic machine.

SKU: HPS-2000 In Stock

2000-ton capacity
Energy saving design
Low maintenance
CE certified

Contact Sales

WhatsApp Email Call Now

Description

High precision control: Equipped with precise temperature and pressure control system to ensure moulding precision.

High efficiency and energy saving: Adopting optimised heating and hydraulic system to reduce energy consumption and improve production efficiency.

Intelligent operation: Equipped with PLC control system, supporting the storage and call of process parameters, easy to operate.

Safe and Reliable: Equipped with multiple safety protection devices, such as overload protection, temperature monitoring, etc., to ensure the safe operation of the equipment.

Compression molding process

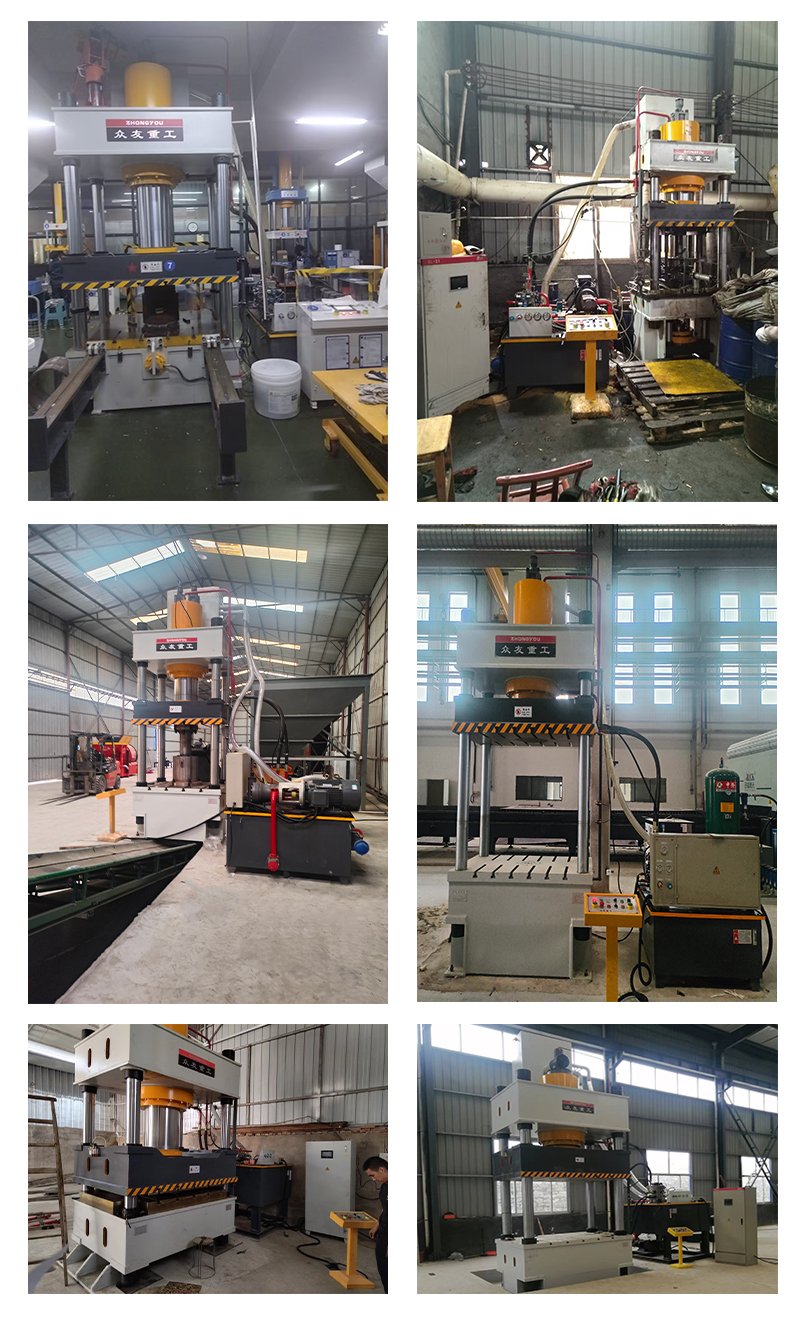

Customer Case

Technical Specifications

YQ32 Technical Parameters
	Unit	YQ32—63	YQ32—100A	YQ32—100B	YQ32—200A	YQ32—200B	YQ32—315A	YQ32—315B
Nominal force	KN	630	1000	1000	2000	2000	3150	3150
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	700	800	900	900	1100	1000	1250
Max Stroke of Slider	mm	400	500	600	600	700	600	800
Effective table size	mm	610×500	630×550	750×700	800×800	1000×1000	800×800	1260×1160
Down speed	mm/s	100	100	100	100	100	100	100
Pressing speed	mm/s	11～22	7～15	7～15	7～18	7～18	7～12	7～12
Return speed	mm/s	80	90	90	90	90	90	100
Ejection cylinder force	KN	100	200	200	400	400	630	630
Stroke of ejection cylinder	mm	160	200	200	200	200	300	300

	Unit	YQ32—400	YQ32—500	YQ32—630	YQ32—800	YQ32—1000	YQ32—1250	YQ32—1600
Nominal force	KN	4000	5000	6300	8000	10000	12500	16000
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	1250	1500	1500	1500	1500	1500	1500
Max Stroke of Slider	mm	800	900	900	900	900	900	900
Effective table size	mm	1260×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Down speed	mm/s	100	150	150	180	180	180	190
Pressing speed	mm/s	5～11	10～18	9～18	9～18	10～18	6～15	6～14
Return speed	mm/s	100	180	200	180	220	200	220
Ejection cylinder force	KN	630	1000	1000	1000	1000	1000	1600
Stroke of ejection cylinder	mm	300	300	300	300	300	300	300

Detailed Parameters

YQ32 Technical Parameters
	Unit	YQ32—63	YQ32—100A	YQ32—100B	YQ32—200A	YQ32—200B	YQ32—315A	YQ32—315B
Nominal force	KN	630	1000	1000	2000	2000	3150	3150
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	700	800	900	900	1100	1000	1250
Max Stroke of Slider	mm	400	500	600	600	700	600	800
Effective table size	mm	610×500	630×550	750×700	800×800	1000×1000	800×800	1260×1160
Down speed	mm/s	100	100	100	100	100	100	100
Pressing speed	mm/s	11～22	7～15	7～15	7～18	7～18	7～12	7～12
Return speed	mm/s	80	90	90	90	90	90	100
Ejection cylinder force	KN	100	200	200	400	400	630	630
Stroke of ejection cylinder	mm	160	200	200	200	200	300	300

	Unit	YQ32—400	YQ32—500	YQ32—630	YQ32—800	YQ32—1000	YQ32—1250	YQ32—1600
Nominal force	KN	4000	5000	6300	8000	10000	12500	16000
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	1250	1500	1500	1500	1500	1500	1500
Max Stroke of Slider	mm	800	900	900	900	900	900	900
Effective table size	mm	1260×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Down speed	mm/s	100	150	150	180	180	180	190
Pressing speed	mm/s	5～11	10～18	9～18	9～18	10～18	6～15	6～14
Return speed	mm/s	100	180	200	180	220	200	220
Ejection cylinder force	KN	630	1000	1000	1000	1000	1000	1600
Stroke of ejection cylinder	mm	300	300	300	300	300	300	300
