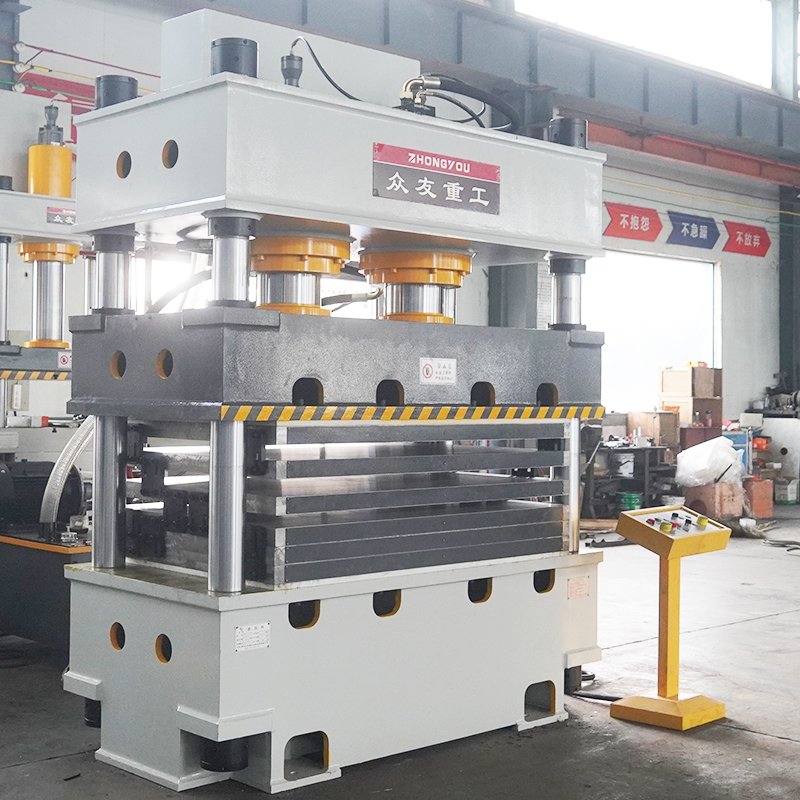

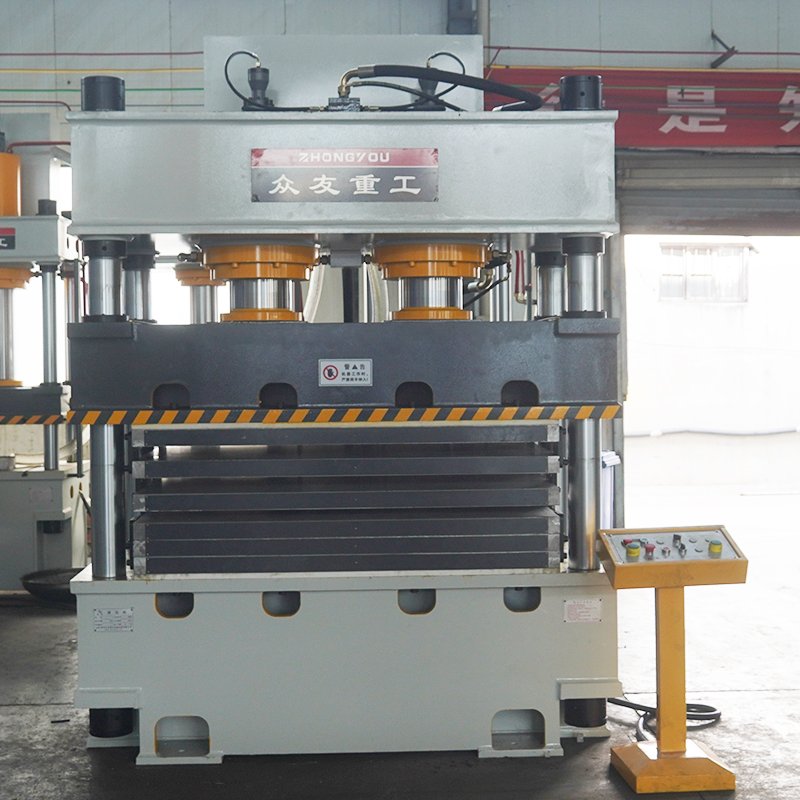

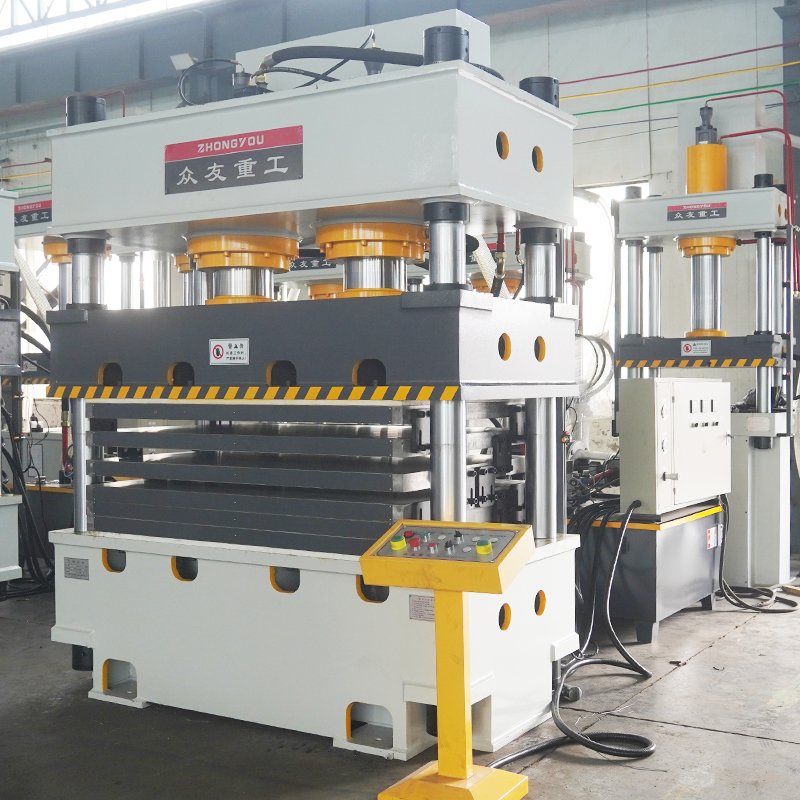

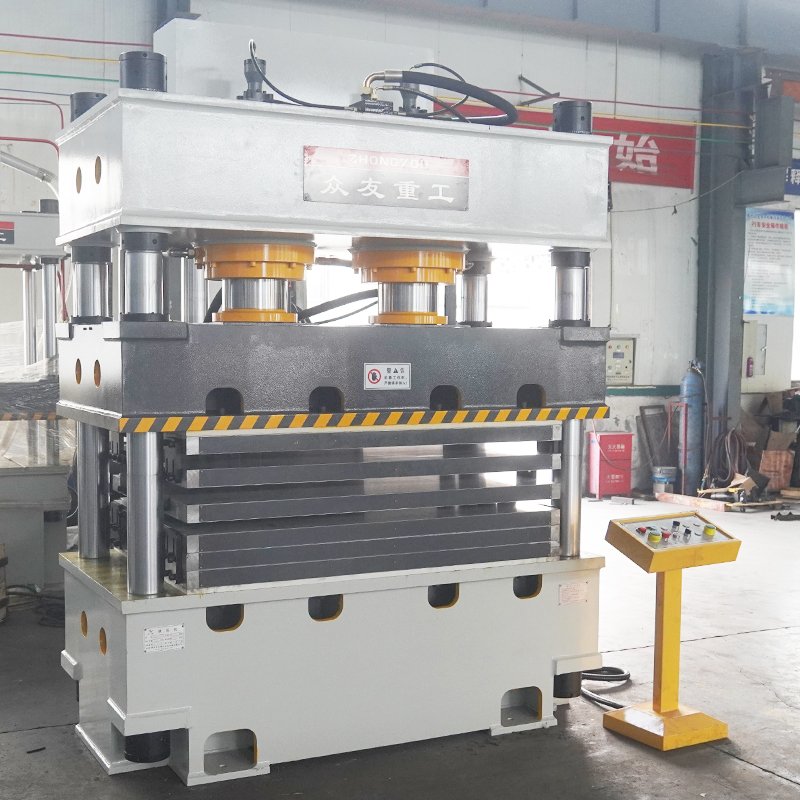

Composite Aluminium Honeycomb Panel Multi-layer Hot Press Hydraulic Press for Fire Door Panel

Composite Aluminium Honeycomb Panel Multi-layer Hot Press Hydraulic Press for Fire Door Panel

The 315-ton hydraulic press is designed to achieve interlayer bonding between the aluminium honeycomb core and the panel (fire-coated aluminium/steel sheet) by means of high temperature and high pressure to ensure uniform compaction of the material and to achieve the performance of fireproofing, soundproofing and lightweighting.Core Role
Through high temperature and high pressure, the aluminium honeycomb core and the panel (fireproof coated aluminium/steel plate) are bonded between layers to ensure uniform compaction of the material and achieve the performance of fireproofing, sound insulation and light weight.

SKU: HPS-2000 In Stock
  • 2000-ton capacity
  • Energy saving design
  • Low maintenance
  • CE certified

Contact Sales

WhatsApp Call Now

Description

The 315-ton hydraulic press is designed to achieve interlayer bonding between the aluminium honeycomb core and the panel (fire-coated aluminium/steel sheet) by means of high temperature and high pressure to ensure uniform compaction of the material and to achieve the performance of fireproofing, soundproofing and lightweighting.Core Role
Through high temperature and high pressure, the aluminium honeycomb core and the panel (fireproof coated aluminium/steel plate) are bonded between layers to ensure uniform compaction of the material and achieve the performance of fireproofing, sound insulation and light weight.
2. Process flow
◦ Pre-pressure stage: Preliminary pressure is applied after laminating the aluminium honeycomb core and the panel to exclude air.
◦ High-temperature and high-pressure curing: heating to 120-200°C (depending on the type of adhesive), keeping pressure for 10-30 minutes to cure the adhesive layer.
◦ Pressurisation and cooling: slowly reduce pressure and cool down to avoid deformation of the finished product.

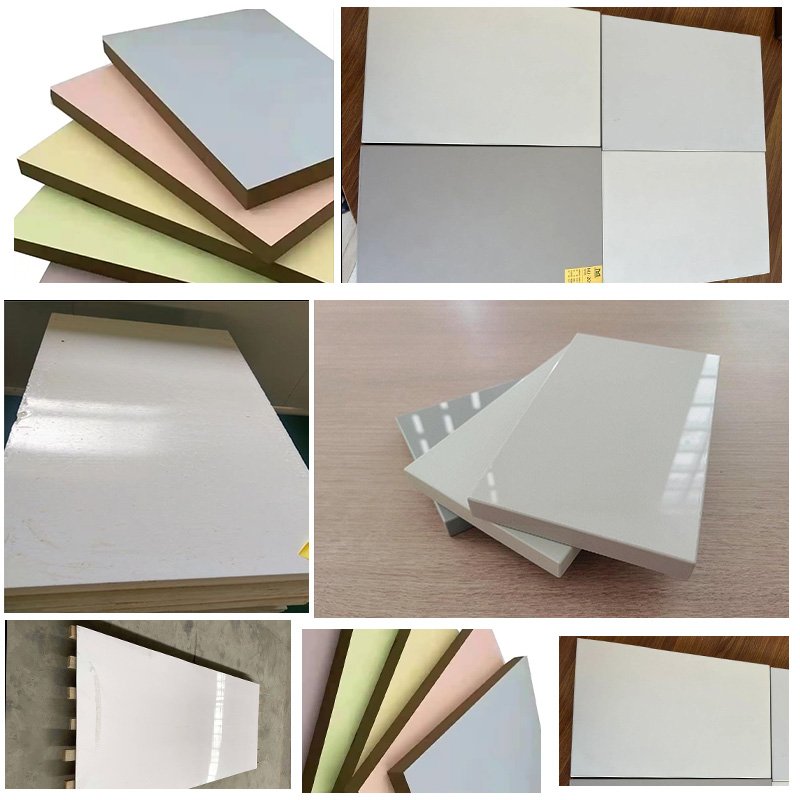

Compression molding process

Composite Aluminium Honeycomb Panel Multi-layer Hot Press Hydraulic Press for Fire Door Panel Compression molding process

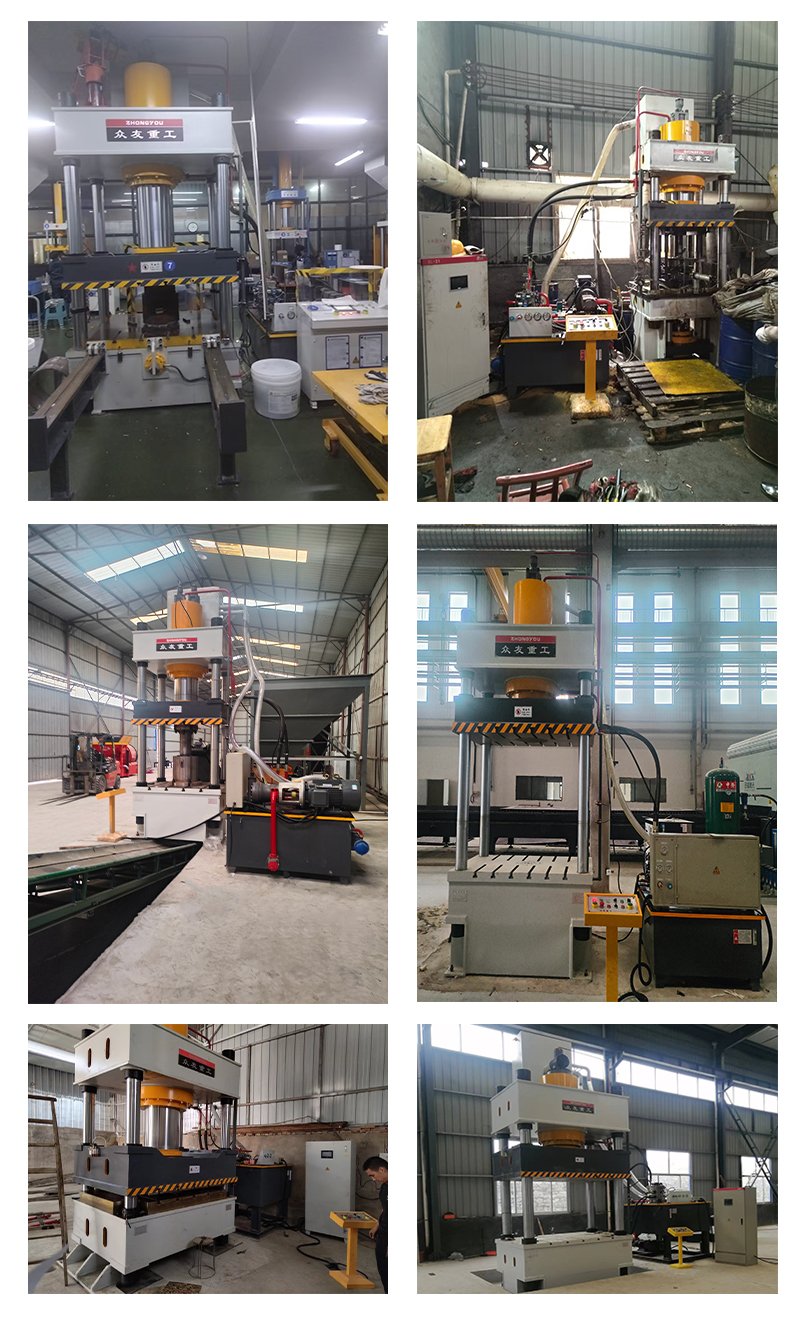

Customer Case

Composite Aluminium Honeycomb Panel Multi-layer Hot Press Hydraulic Press for Fire Door Panel Customer Case

Technical Specifications

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300

Detailed Parameters

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300
