The Zhongyou Bulletproof Helmet Press machine is a classic three – beam and four – column hydraulic press. It can output extremely high pressure and meanwhile features extremely high precision, ensuring that the pressed helmets fully meet the design standards. The electrical system is equipped with a temperature controller, which can precisely control the temperature of the mold and ensure that the mold remains within the optimal temperature range. According to the different materials and design standards of the products, we can provide you with different hydraulic presses.

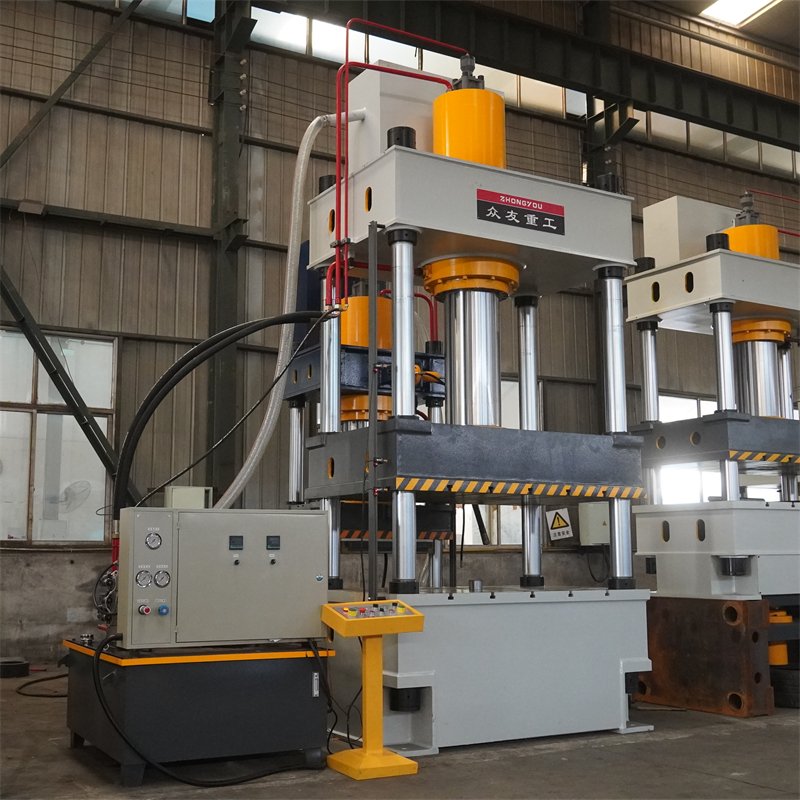

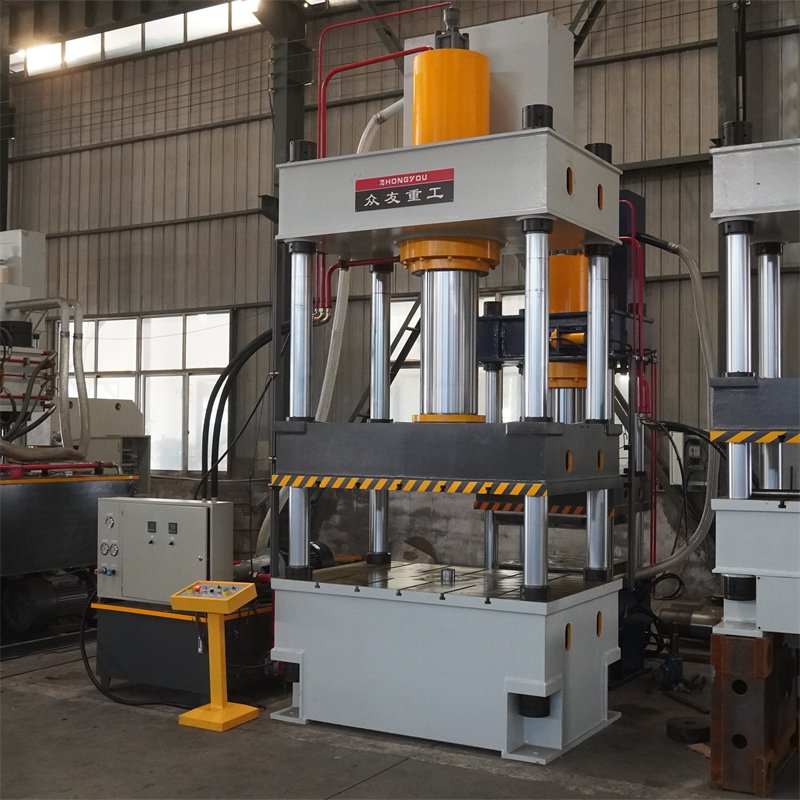

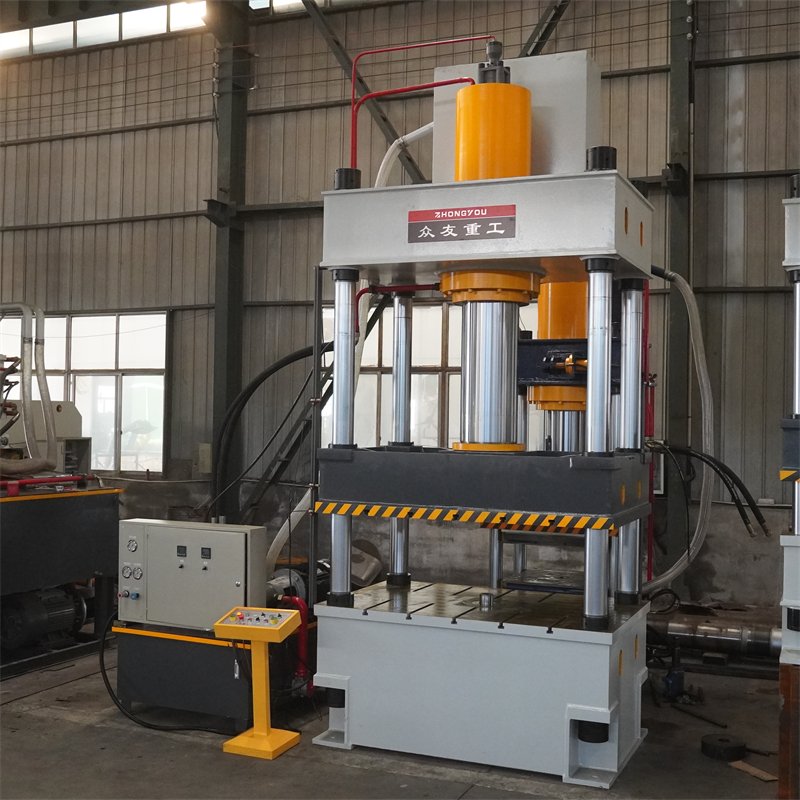

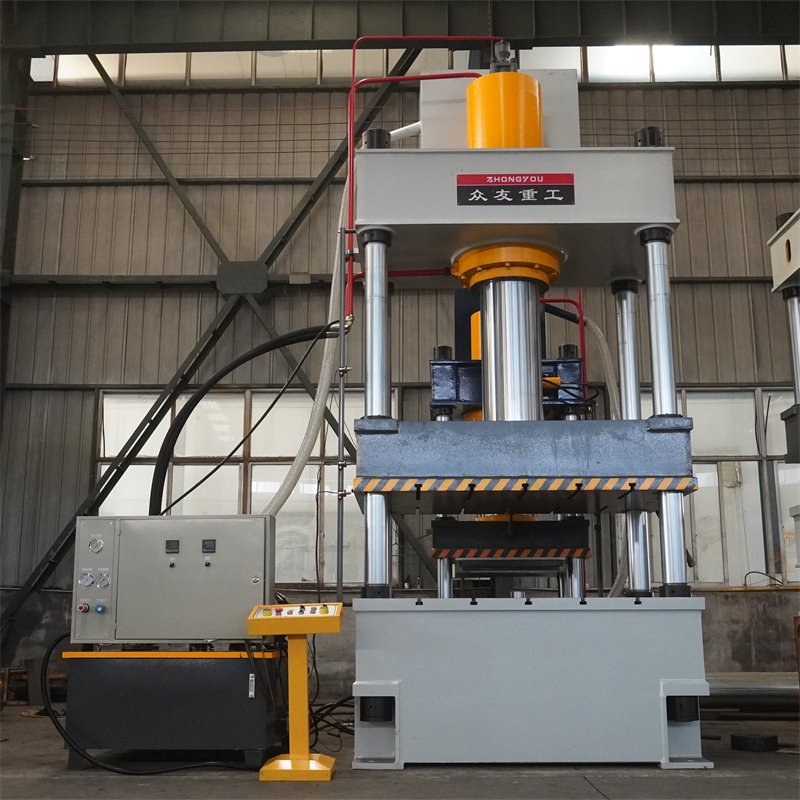

Equipment details

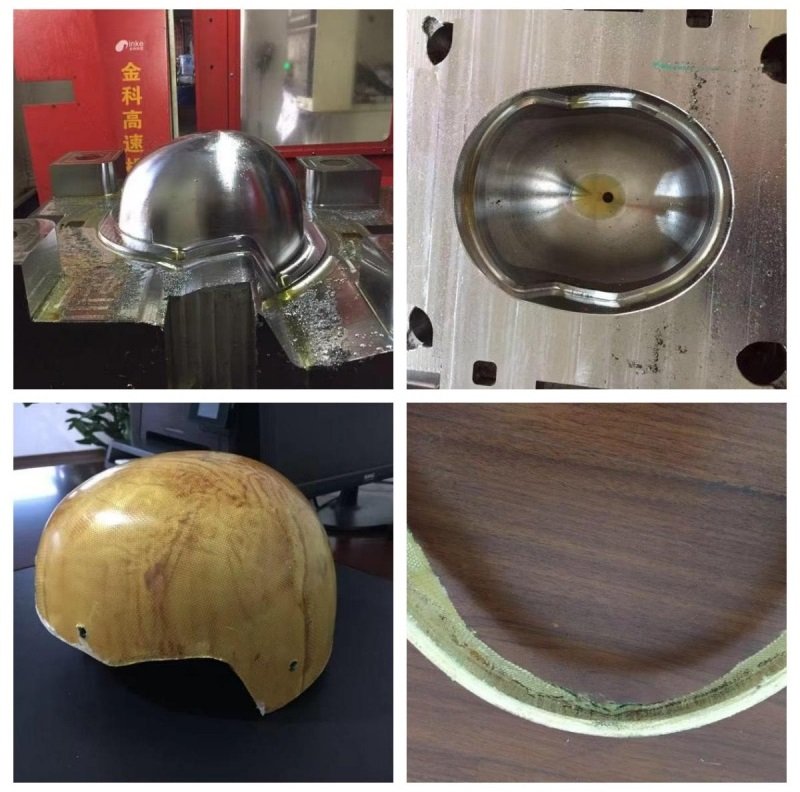

Pressed Product
Parameters
Regular model parameters for reference only. We support customisation on demand.
|
YQ32 Technical Parameters |
||||||||
| Unit | YQ32—63 | YQ32—100A | YQ32—100B | YQ32—200A | YQ32—200B | YQ32—315A | YQ32—315B | |
| Nominal force | KN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Max.open height | mm | 700 | 800 | 900 | 900 | 1100 | 1000 | 1250 |
| Max Stroke of Slider | mm | 400 | 500 | 600 | 600 | 700 | 600 | 800 |
| Effective table size | mm | 610×500 | 630×550 | 750×700 | 800×800 | 1000×1000 | 800×800 | 1260×1160 |
| Down speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing speed | mm/s | 11～22 | 7～15 | 7～15 | 7～18 | 7～18 | 7～12 | 7～12 |
| Return speed | mm/s | 80 | 90 | 90 | 90 | 90 | 90 | 100 |
| Ejection cylinder force | KN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Stroke of ejection cylinder | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Unit | YQ32—400 | YQ32—500 | YQ32—630 | YQ32—800 | YQ32—1000 | YQ32—1250 | YQ32—1600 | |
| Nominal force | KN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Max.open height | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Max Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective table size | mm | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Down speed | mm/s | 100 | 150 | 150 | 180 | 180 | 180 | 190 |
| Pressing speed | mm/s | 5～11 | 10～18 | 9～18 | 9～18 | 10～18 | 6～15 | 6～14 |
| Return speed | mm/s | 100 | 180 | 200 | 180 | 220 | 200 | 220 |
| Ejection cylinder force | KN | 630 | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 |
| Stroke of ejection cylinder | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
Performance Characteristics
1.Three-beam, four-column structure: Provides stable structure, high precision, and ample operational space.
2.Advanced hydraulic system: Features integrated cartridge valves, and the electrical system uses brand-name components for high-precision pressing, reliable quality, and easy maintenance.
3.Equipped with a PLC (Programmable Logic Controller) and a temperature controller, it can precisely control the pressing accuracy and the mold temperature.
4.Button control: Simple to operate.
5.Adjustable parameters: Pressure, stroke, and holding time can be adjusted.
6.Scientific design: Simple structure, easy to maintain.
