animal licking salt block making machine

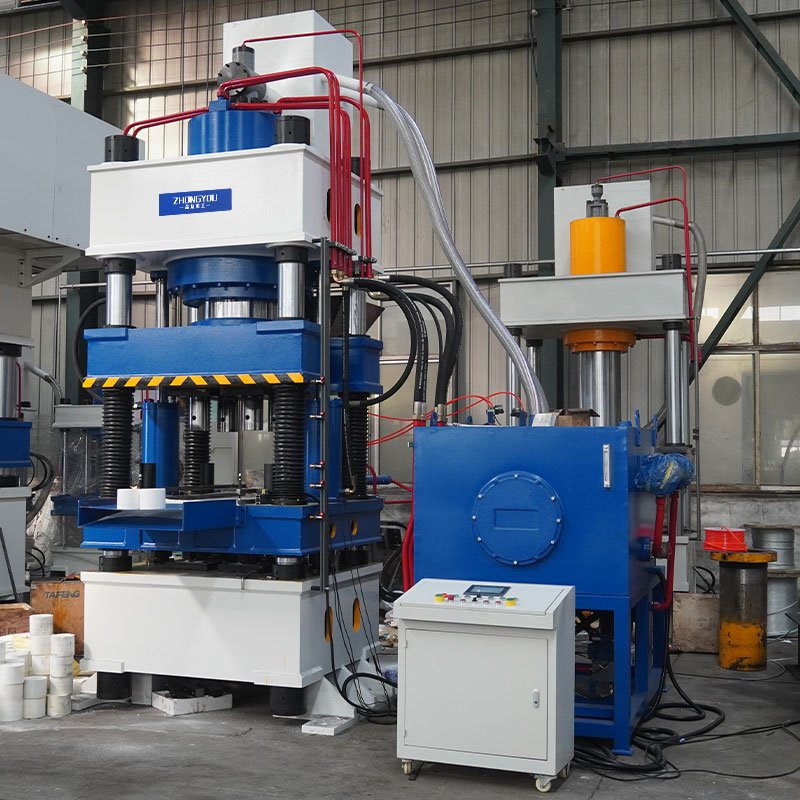

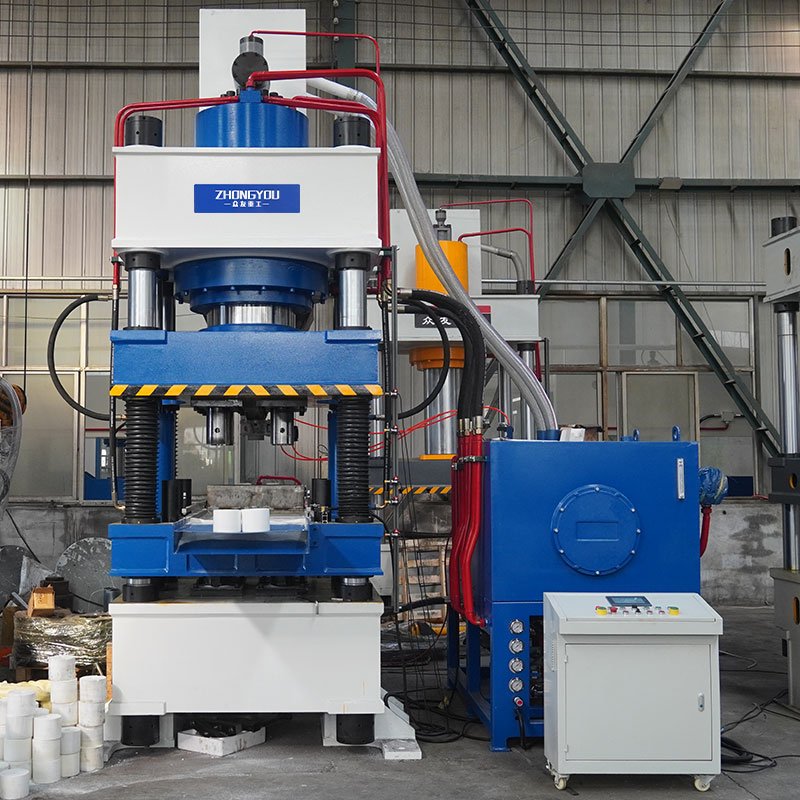

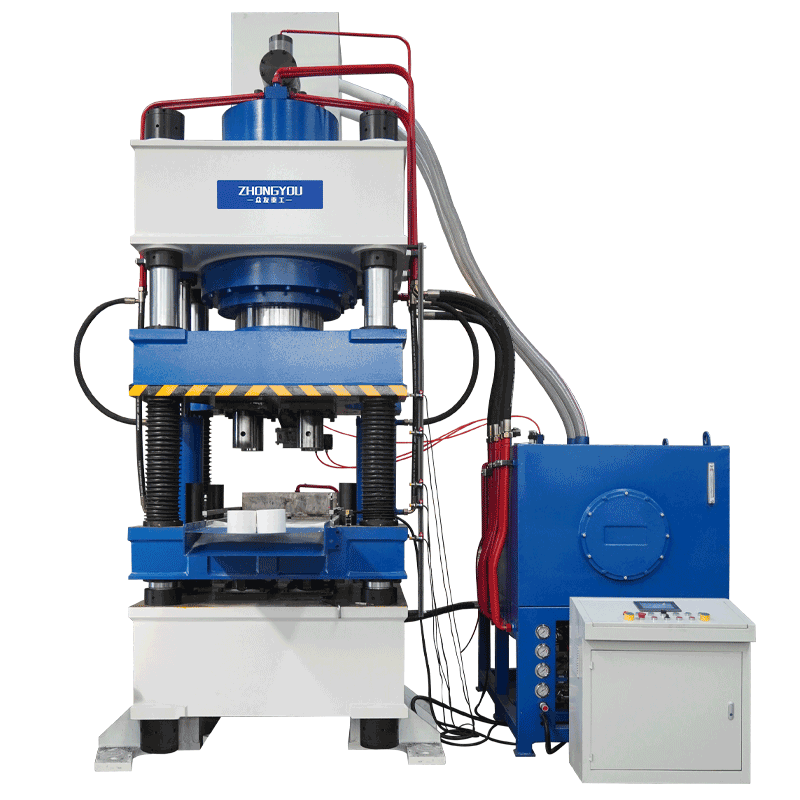

The 630-ton salt brick machine is a fully automatic hydraulic powder molding press specifically designed for the production of salt bricks for livestock. It features a four-beam, four-column structure and is characterized by high strength, high precision, and high-efficiency production.
Description
The 630-ton salt brick machine is a fully automatic hydraulic powder molding press specifically designed for the production of salt bricks for livestock. It features a four-beam, four-column structure and is characterized by high strength, high precision, and high-efficiency production.

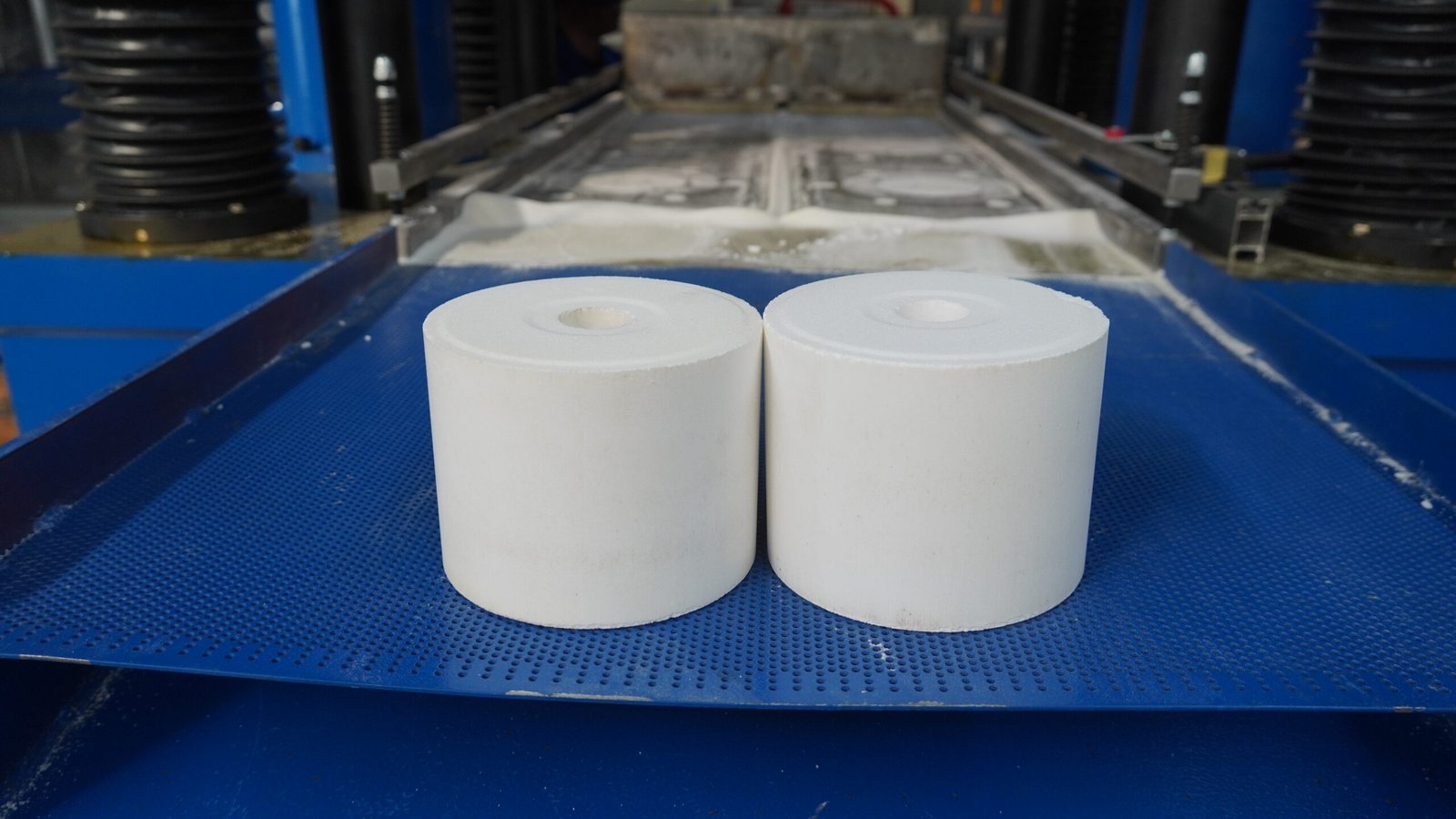

Function: It mixes mineral trace elements with salt powder and presses the mixture through a mold to form cylindrical or square salt bricks, which are provided for cattle and sheep to lick in order to supplement their bodies with trace elements.
Structure: The four-beam, four-column structure consists of three main components: the main unit, the electrical control system, and the hydraulic power unit. The main unit includes the die, hydraulic press frame, worktable, oil cylinder, and hydraulic cylinders.
The 630-ton salt brick press is widely used in the following fields:
Livestock Industry: Production of cattle lick blocks, sheep lick blocks, nutritional lick blocks, and feed lick blocks to provide cattle and sheep with trace elements such as calcium, phosphorus, iodine, copper, and zinc.
Chemical Industry: Pressing of corrosion-resistant salt bricks for the storage and transportation of chemical raw materials.
Other Fields: Such as the pressing of fish bait and nutritional pellets to meet the needs of various industries.
Views: 0

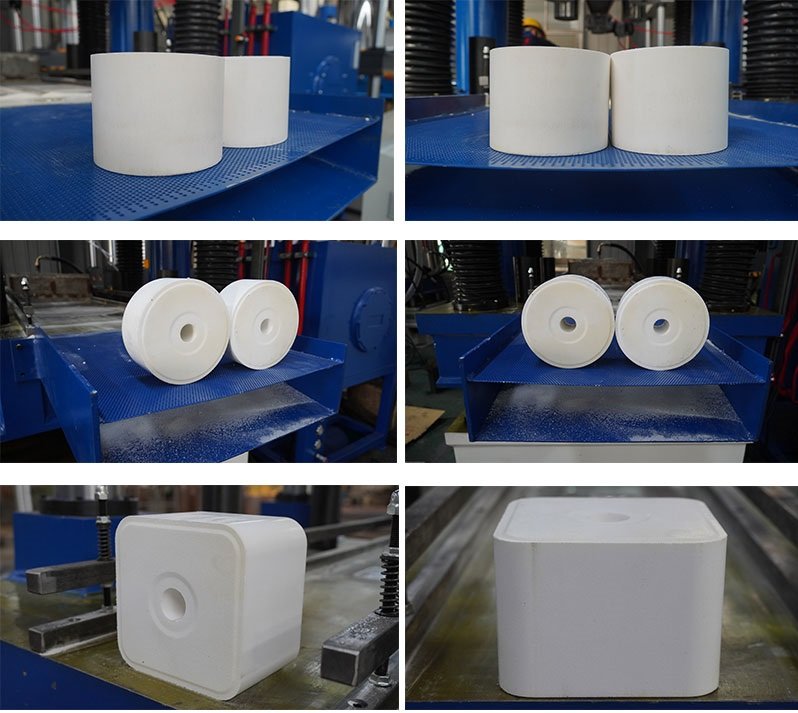

Compression molding process
Customer Case
Technical Specifications
| Model | Tonnage | Weight of Molding Salt Brick | Mold | Configuration |
|---|---|---|---|---|
| YZ79-315T | 315 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-400T | 400 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-500T | 500 tons | 5KG-10KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-630T | 630 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-800T | 800 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1000T | 1000 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1200T | 1200 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1500T | 1500 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
Detailed Parameters
| Model | Tonnage | Weight of Molding Salt Brick | Mold | Configuration |
|---|---|---|---|---|
| YZ79-315T | 315 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-400T | 400 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-500T | 500 tons | 5KG-10KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-630T | 630 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-800T | 800 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1000T | 1000 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1200T | 1200 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1500T | 1500 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
