500-ton Head Stretching Machine dish head hydraulic press

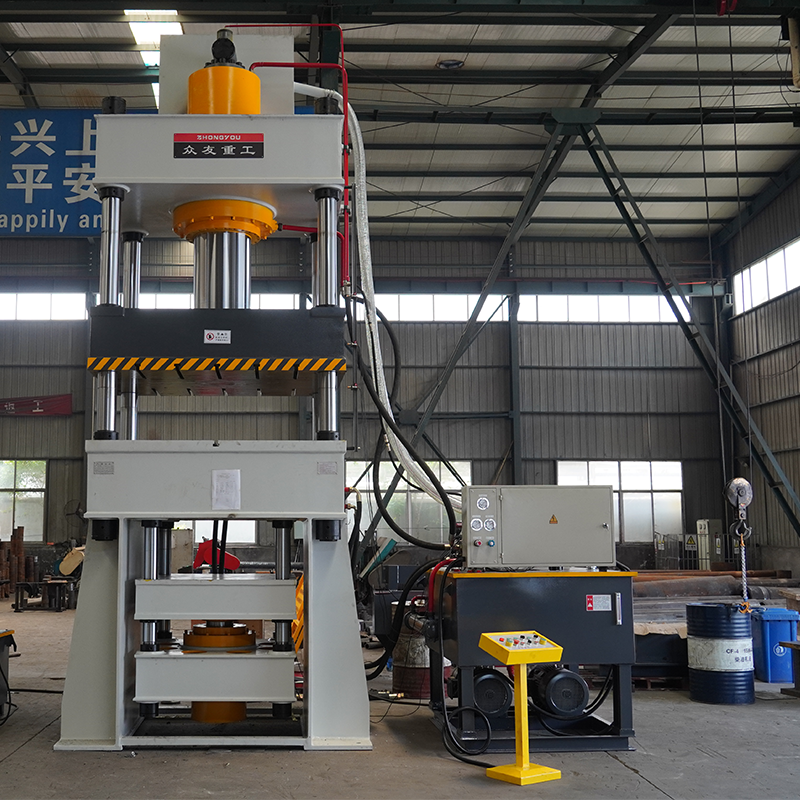

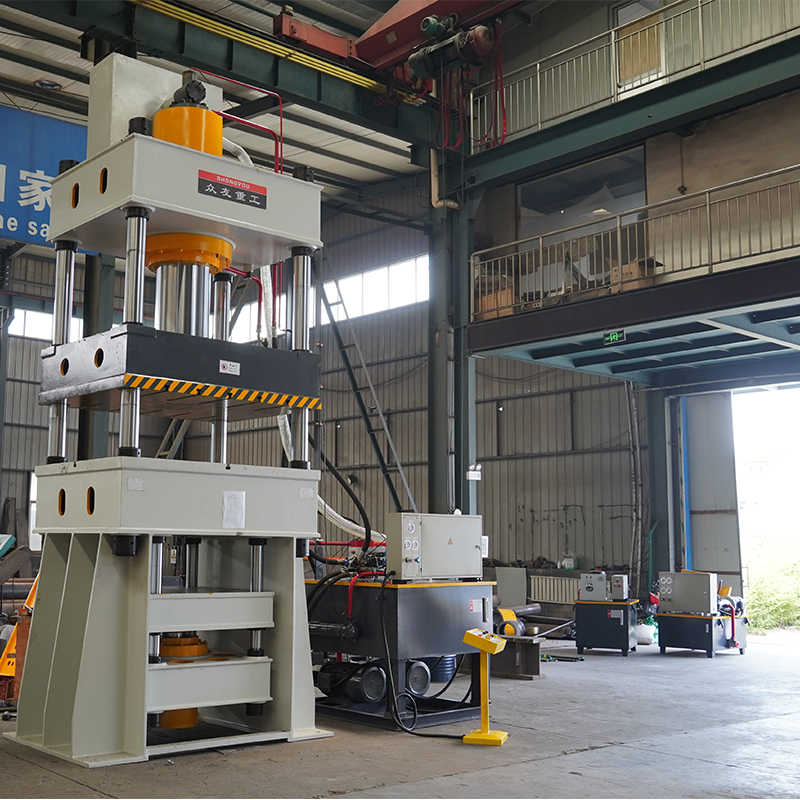

The head stretching machine employs a hydraulic transmission system, utilizing high-pressure oil to drive the cylinder’s movement, thereby achieving the stretching and forming of the head.
Description
The head stretching machine employs a hydraulic transmission system, utilizing high-pressure oil to drive the cylinder’s movement, thereby achieving the stretching and forming of the head.

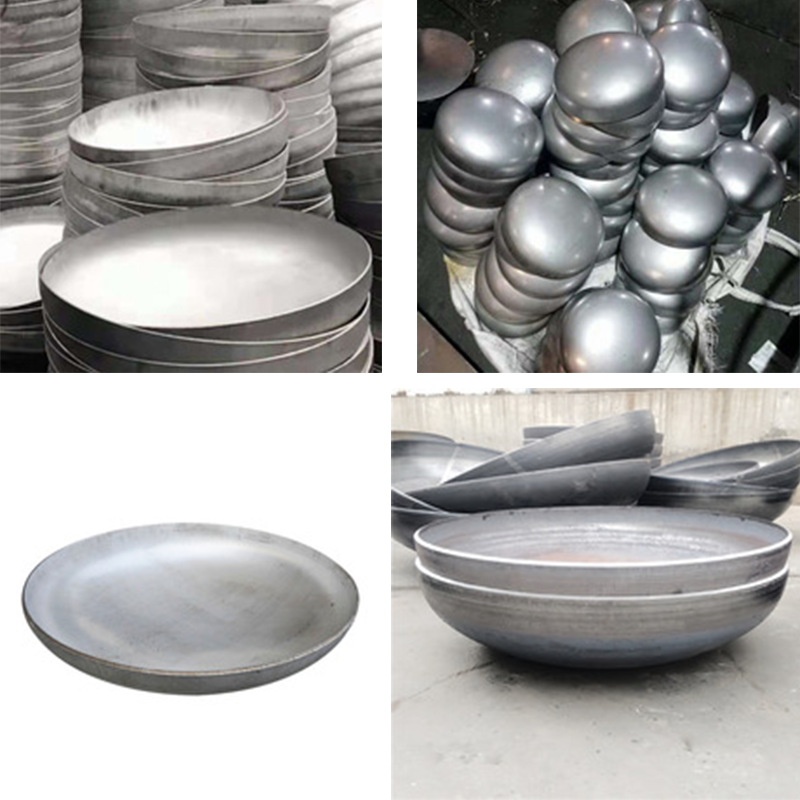

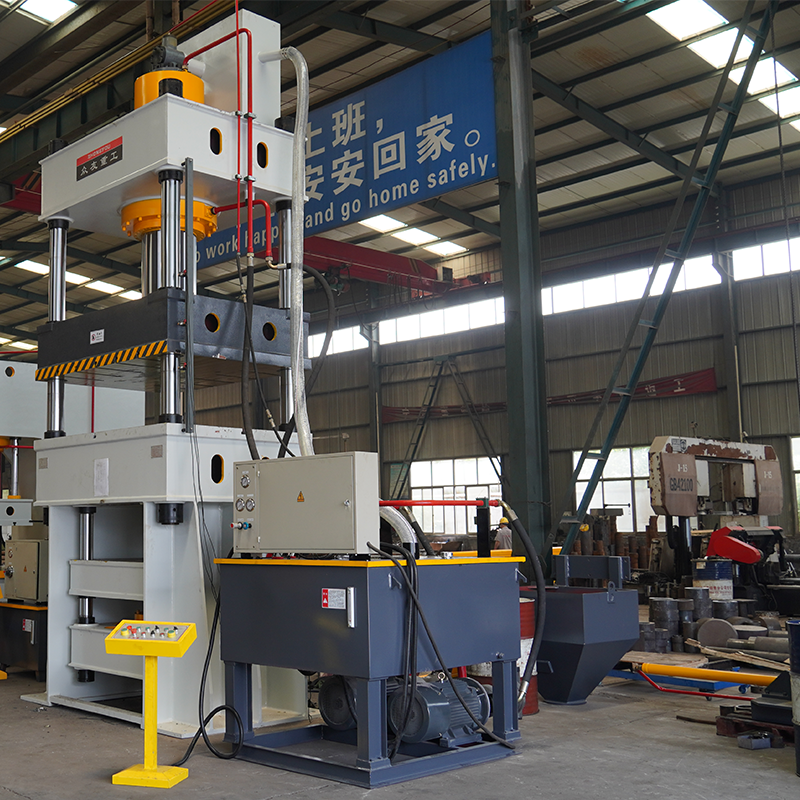

It is primarily used for cold and hot forming of heads for various pressure vessels, and can also be employed for processes such as drum forming, flanging, and leveling of thick and thin steel plates.
Head drawing machines are extensively utilized across industries including petroleum, electronics, chemical engineering, pharmaceuticals, light textiles, food processing, machinery, construction, nuclear power, aerospace, and defense. Within these sectors, heads serve as the primary pressure-bearing components of pressure vessels, where their quality and performance directly impact the long-term safe and reliable operation of the vessels. Consequently, head drawing machines hold an irreplaceable position in these industries.
Views: 0
Compression molding process
Customer Case
Technical Specifications
| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |
Detailed Parameters
| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |
