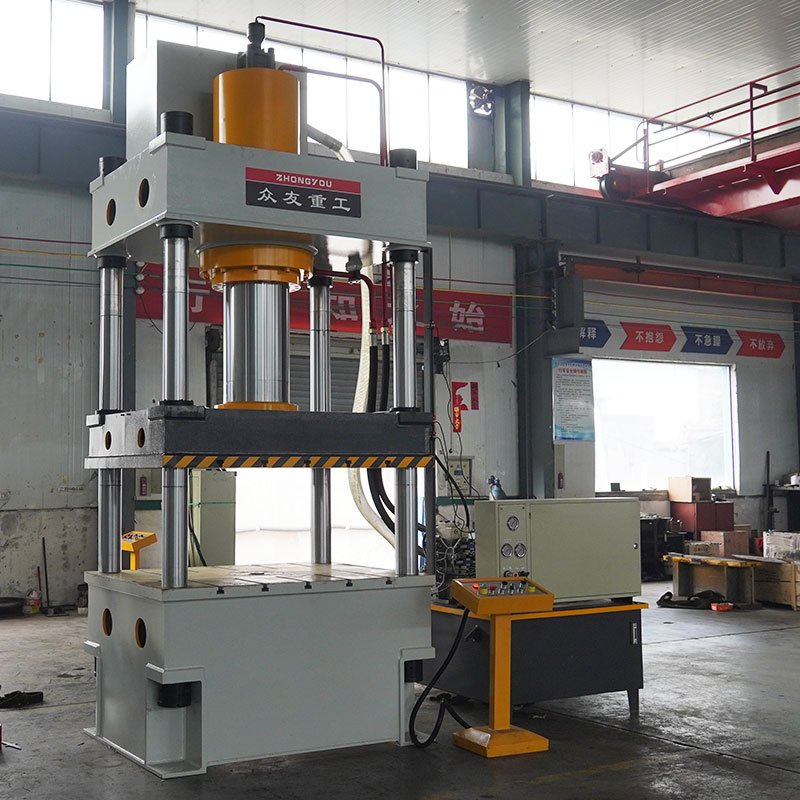

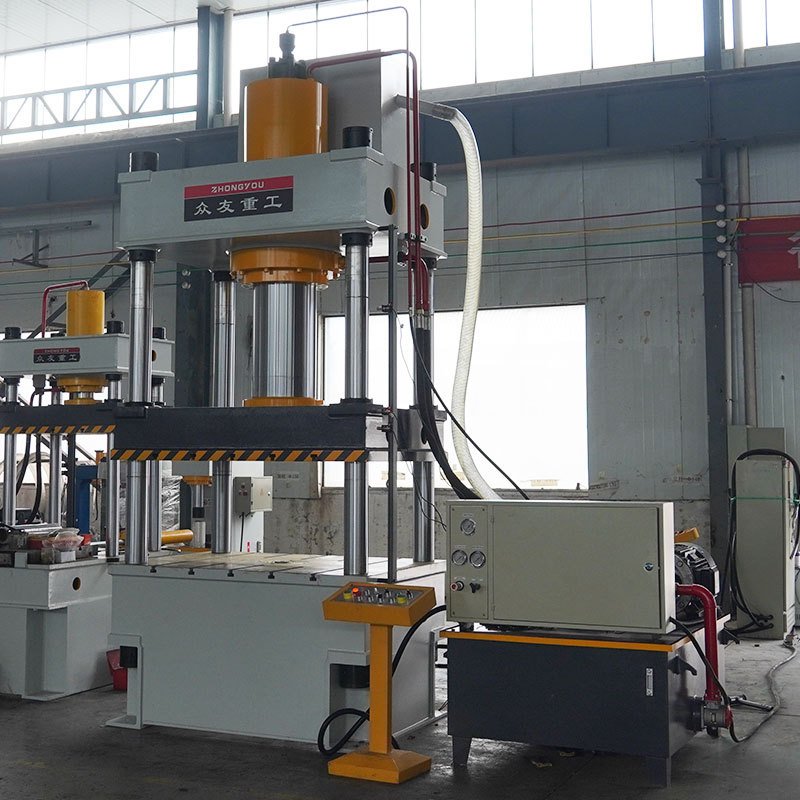

315-ton PE Sand Paver Forming Hydraulic Press

315-ton PE Sand Paver Forming Hydraulic Press

PE sand and gravel moulding hydraulic press can efficiently produce PE sand and gravel with consistent quality and shape, which is widely used in construction and decoration industry.

SKU: HPS-2000 In Stock
  • 2000-ton capacity
  • Energy saving design
  • Low maintenance
  • CE certified

Contact Sales

WhatsApp Call Now

Description

PE sand and gravel moulding hydraulic press can efficiently produce PE sand and gravel with consistent quality and shape, which is widely used in construction and decoration industry.
Working principle of PE sand pavement tile production:
1. Preparation: pre-treated PE sand and additives (e.g. pigments, reinforcing agents) are thoroughly mixed and put into moulds. 2.
. Hydraulic moulding: the mould filled with PE sand is put into the hydraulic press.The hydraulic pump is activated and pressure is delivered through the hydraulic system.The hydraulic cylinder transfers this pressure to the mould, compressing the PE sand. 3 .
. Forming process: The pressure ensures that the PE sand completely fills the mould cavity and is tightly bonded.The pressure and the moulding time can be adjusted to achieve the desired density and strength of the pavement blocks.4 .
. Curing and demoulding: After holding the pressure for a certain period of time, the hydraulic press stops.The pavement bricks are cured inside the mould for a certain period of time.After curing, the mould is opened and the formed pavement bricks are taken out.
Key components of PE sand pavement brick moulding hydraulic press:
1. Hydraulic system: It consists of hydraulic pump, hydraulic cylinder and pipeline.The hydraulic pump delivers pressurised hydraulic oil to the hydraulic cylinder, and the control valve regulates the pressure. 2.
. Moulds: metal parts with precise dimensions and patterns to define the shape and surface texture of the pavement bricks.3 .
. Pressure regulator: allows the operator to fine-tune the compression force applied to the PE sand to ensure optimal pavement tile density and structural integrity.4 .
. Control system: monitors and automates the moulding process.It adjusts parameters such as pressure, cycle time and temperature to ensure consistent product quality.

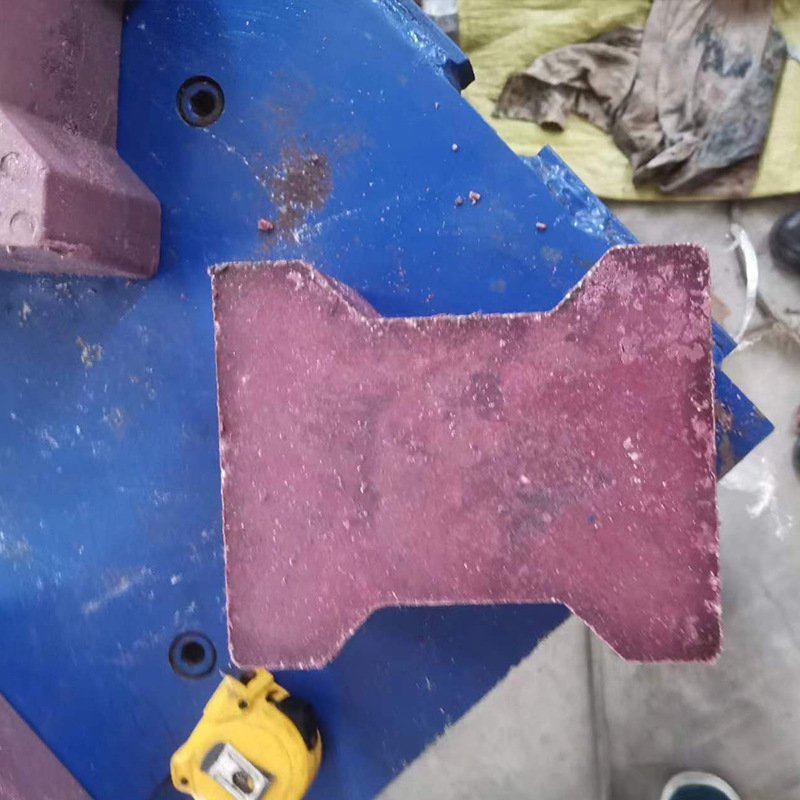

Compression molding process

315-ton PE Sand Paver Forming Hydraulic Press Compression molding process

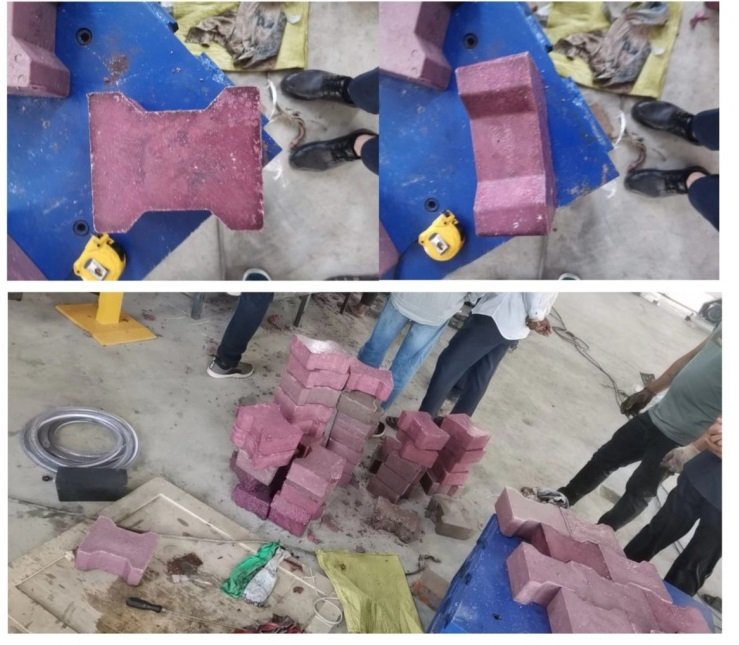

Customer Case

315-ton PE Sand Paver Forming Hydraulic Press Customer Case

Technical Specifications

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300

Detailed Parameters

Parameter Unit YQ32-63 YQ32-100A YQ32-100B YQ32-200A YQ32-200B YQ32-315A YQ32-315B
Nominal Force kN 630 1000 1000 2000 2000 3150 3150
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 700 800 900 1100 900 1250 1000
Maximum Stroke of Slider mm 400 500 600 500 600 800 600
Effective Area of Workbench mm 610×500 630×550 750×700 1000×1000 800×800 1260×1160 800×800
Slider Free Fall Speed mm/s 100 100 100 100 100 100 100
Pressing Speed mm/s 11-22 7-15 7-15 7-18 7-18 7-12 7-12
Return Speed mm/s 80 90 90 90 90 100 90
Ejecting Force kN 100 200 200 400 400 630 630
Maximum Ejecting Stroke mm 160 200 200 200 200 300 300
Name Unit YQ32-400 YQ32-500 YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Nominal Force kN 4000 5000 6300 8000 10000 12500 16000
Maximum System Working Pressure MPa 25 25 25 25 25 25 25
Maximum Open Height of Slider mm 1250 1500 1500 1500 1500 1500 1500
Maximum Stroke of Slider mm 800 900 900 900 900 900 900
Effective Area of Workbench mm 1250×1160 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Slider Free Fall Speed mm/s 100 100 150 100 180 180 190
Pressing Speed mm/s 5-11 10-18 9-18 7-18 10-18 6-15 6-14
Return Speed mm/s 100 180 200 90 220 200 220
Ejecting Force kN 630 1000 1000 400 1000 1000 1600
Maximum Ejecting Stroke mm 300 300 300 200 300 300 300
