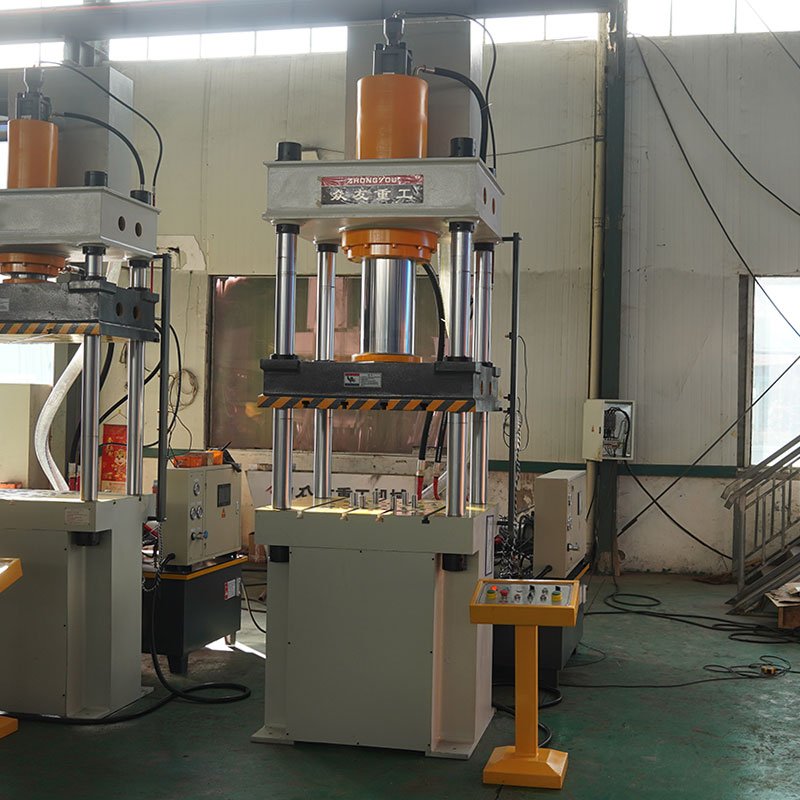

200T hydraulic deep drawing press machine For molding filter housing

Description

“200-ton filter housing hydraulic press”: This equipment is a hydraulic forming machine specifically designed for the production of filter housings (typically made of metal). Its core function involves applying powerful hydraulic pressure (200 tons) to stretch, punch, or extrude metal sheets to form filter housings of various shapes.
Three-beam, four-column structure: This equipment typically features a three-beam, four-column structural design, comprising an upper crossbeam, a movable crossbeam, a lower crossbeam, and four columns. This structure provides stable support and precise guidance, ensuring accuracy and stability during operation.
The hydraulic system is the core component of the stretching machine, comprising hydraulic cylinders, hydraulic pumps, hydraulic valves, and other elements. It drives the machine’s operations, providing sufficient power and control functions.
Automated Control: Modern stretching machines are typically equipped with automated control systems that enable automatic adjustment, positioning, and monitoring, thereby enhancing operational efficiency and precision.
The 200-ton filter housing drawing machine is widely used in the automotive parts manufacturing sector, particularly for the forming of filter housings. It can withstand high pressures and loads, making it suitable for drawing larger workpieces or materials. Additionally, this equipment can be used for the forming of automotive exhaust heat shields, vehicle emblems, brake pads, and bearing sleeves, among other components.

Views: 0

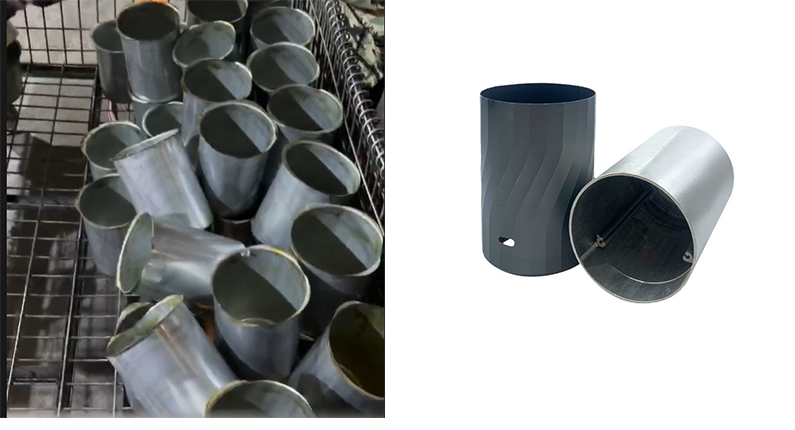

Compression molding process

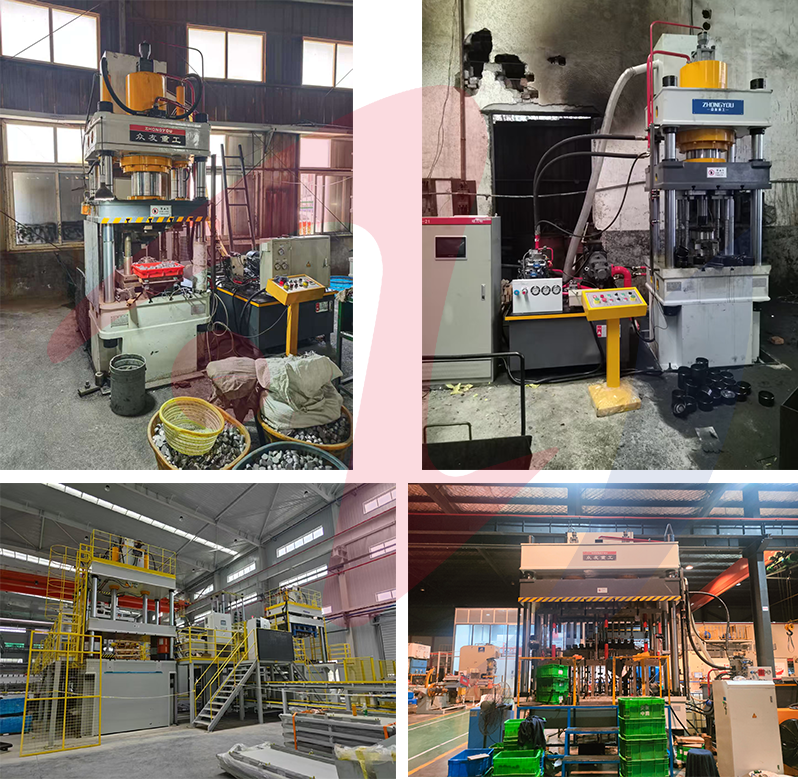

Customer Case
