160-ton metal stamping single-arm hydraulic press

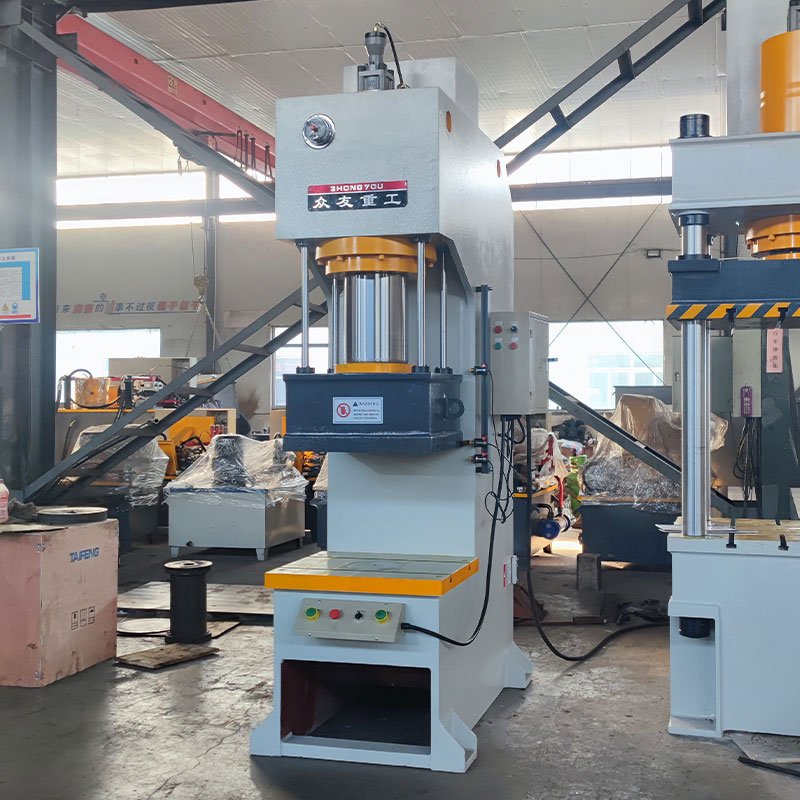

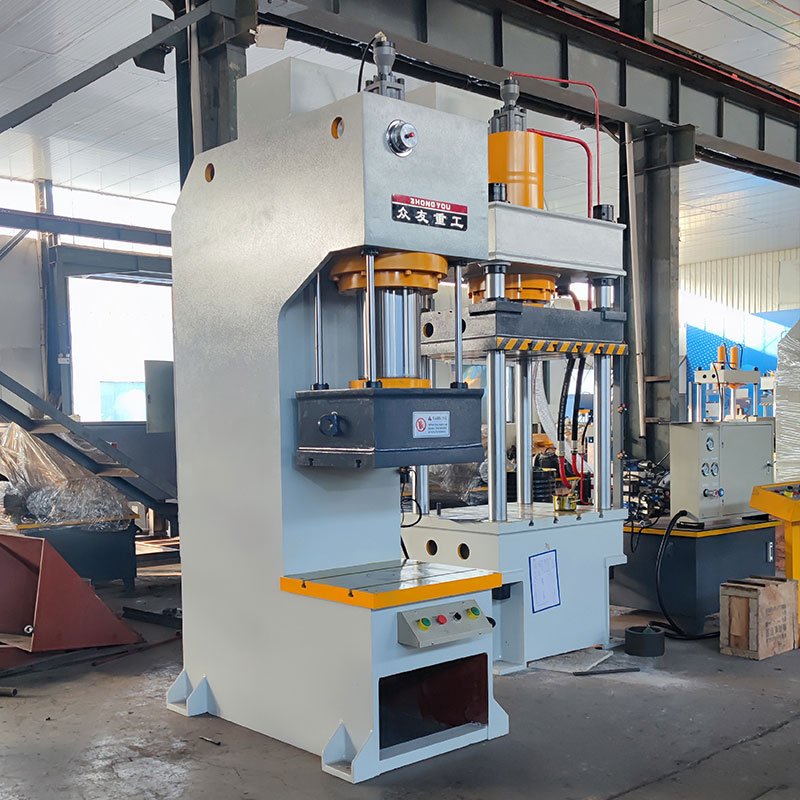

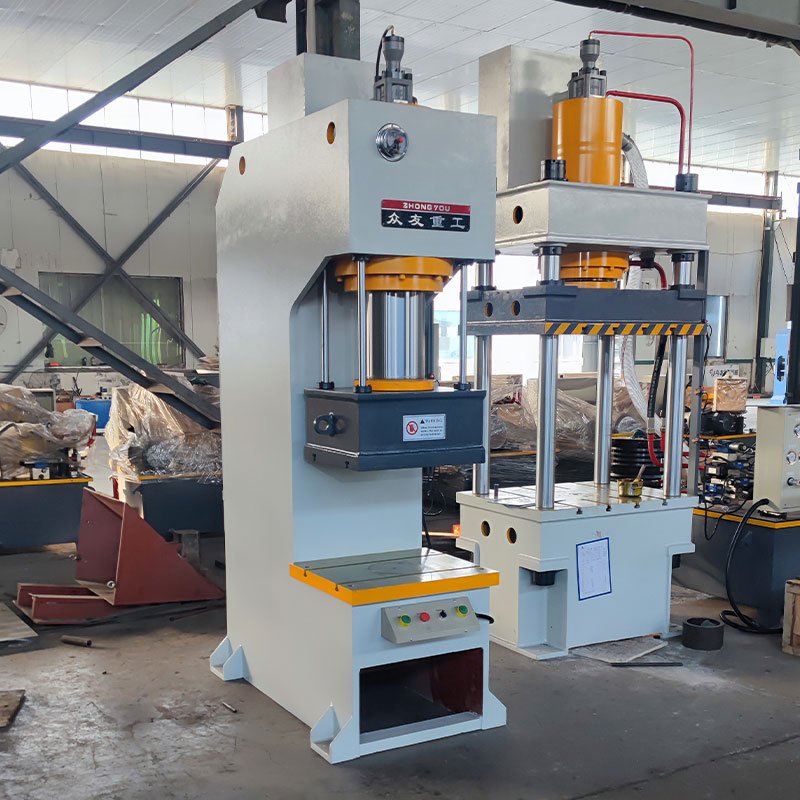

A hydraulic press with a nominal working pressure of 160 tons, featuring a single-arm (C-frame) structure. Four guide columns are integrated between the moving crossbeam and the worktable, and the worktable incorporates blanking holes or slots.
Description
A hydraulic press with a nominal working pressure of 160 tons, featuring a single-arm (C-frame) structure. Four guide columns are integrated between the moving crossbeam and the worktable, and the worktable incorporates blanking holes or slots.
Sheet Metal Stamping: Punching, Blanking: Stamping metal sheets with scrap falling directly through blanking holes.
Drawing, Embossing: Four-column guidance ensures uniform wall thickness in drawn parts.
Powder Metallurgy: Pressing metal powders or non-metallic powders (e.g., ceramics, graphite) into compacts. Formed compacts can be ejected via ejector mechanisms and blanking holes.
Plastic Products: Molding thermosetting plastics (e.g., BMC/SMC) or trimming/punching product edges.
Bearing Industry: Stamping and forming bearing cages.
Electrical Components: Press forming contacts and terminals.
Views: 0
Compression molding process
Customer Case
Technical Specifications
| Name | Unit | YQ41-20 | YQ41-40 | YQ41-63 | YQ41-100 | YQ41-160 | YQ41-200 | YQ41-250 | YQ41-315 | YQ41-500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 200 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | 5000 |
| Effective Stroke | mm | 200 | 200 | 300 | 300 | 400 | 500 | 200 | 500 | 500 |
| Opening Height | mm | 600 | 600 | 700 | 700 | 800 | 1000 | 1000 | 1200 | 1200 |
| Throat Depth | mm | 200 | 220 | 240 | 280 | 320 | 360 | 420 | 500 | 600 |
| Downstroke Speed | mm/s | 160 | 19 | 13 | 10 | 13 | 15 | 15 | 50 | 50 |
| Return Speed | mm/s | 19 | 25 | 17 | 13 | 20 | 20 | 20 | 60 | 55 |
| Worktable Width (Left to Right) | mm | 500 | 500 | 600 | 700 | 700 | 800 | 900 | 1050 | 1200 |
| Worktable Depth (Front to Back) | mm | 400 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1050 |
| Punching Hole Diameter | mm | 80 | 100 | 120 | 200 | 200 | 220 | 220 | 240 | 240 |
Detailed Parameters
| Name | Unit | YQ41-20 | YQ41-40 | YQ41-63 | YQ41-100 | YQ41-160 | YQ41-200 | YQ41-250 | YQ41-315 | YQ41-500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 200 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | 5000 |
| Effective Stroke | mm | 200 | 200 | 300 | 300 | 400 | 500 | 200 | 500 | 500 |
| Opening Height | mm | 600 | 600 | 700 | 700 | 800 | 1000 | 1000 | 1200 | 1200 |
| Throat Depth | mm | 200 | 220 | 240 | 280 | 320 | 360 | 420 | 500 | 600 |
| Downstroke Speed | mm/s | 160 | 19 | 13 | 10 | 13 | 15 | 15 | 50 | 50 |
| Return Speed | mm/s | 19 | 25 | 17 | 13 | 20 | 20 | 20 | 60 | 55 |
| Worktable Width (Left to Right) | mm | 500 | 500 | 600 | 700 | 700 | 800 | 900 | 1050 | 1200 |
| Worktable Depth (Front to Back) | mm | 400 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1050 |
| Punching Hole Diameter | mm | 80 | 100 | 120 | 200 | 200 | 220 | 220 | 240 | 240 |
