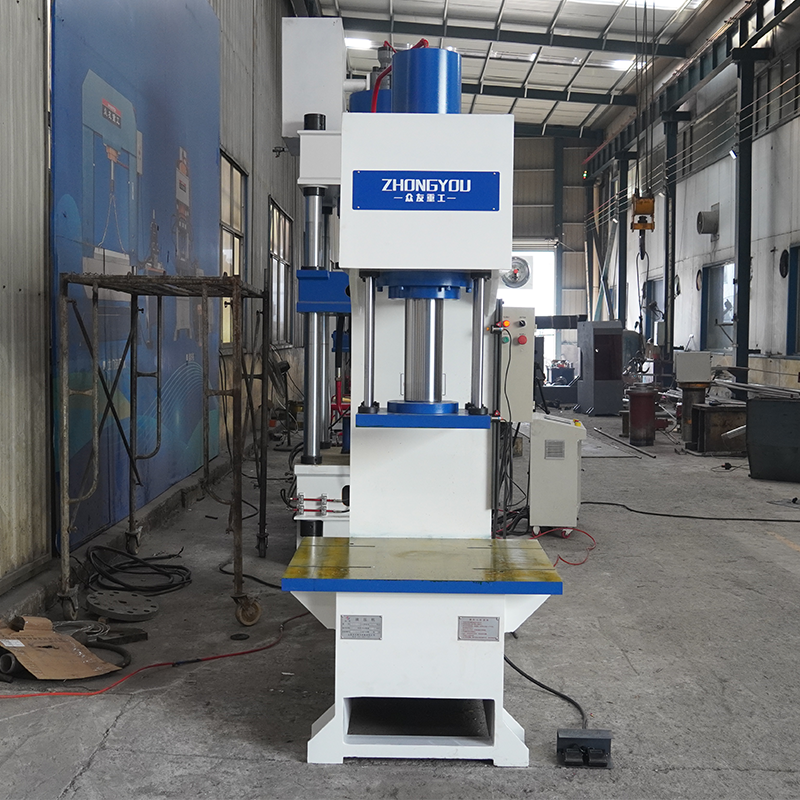

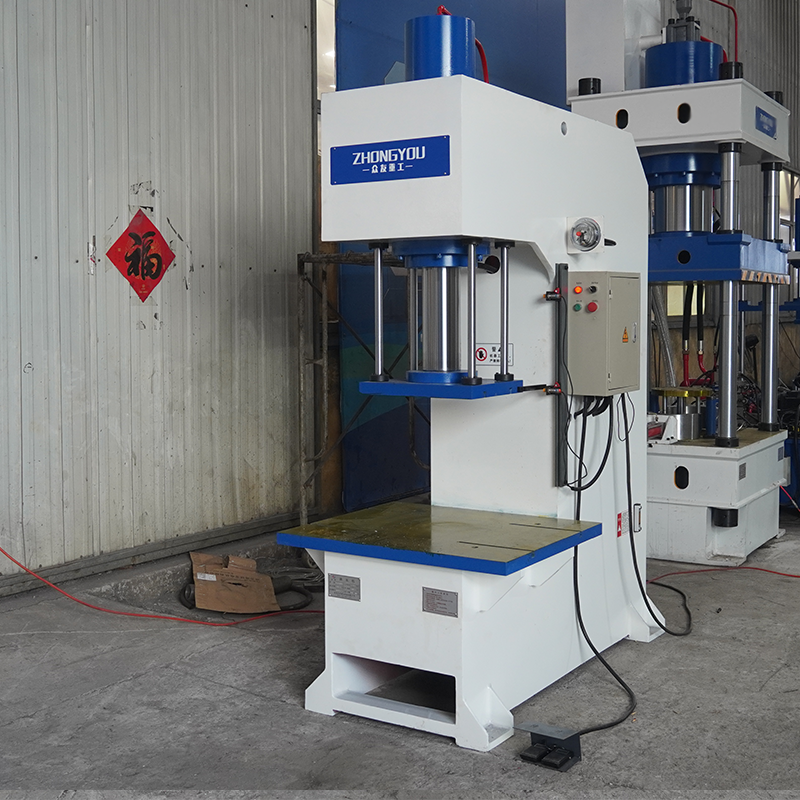

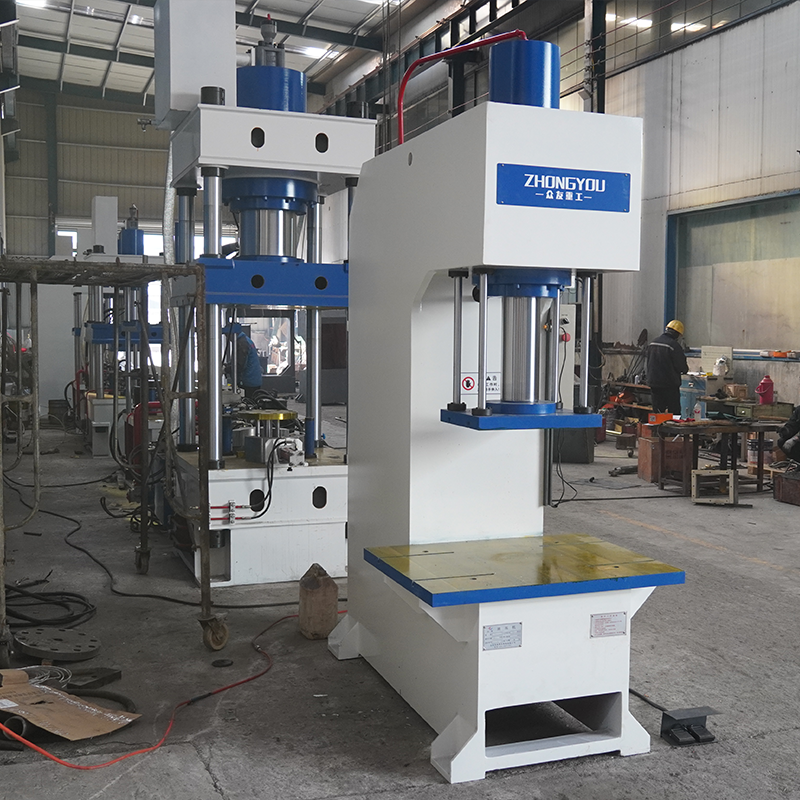

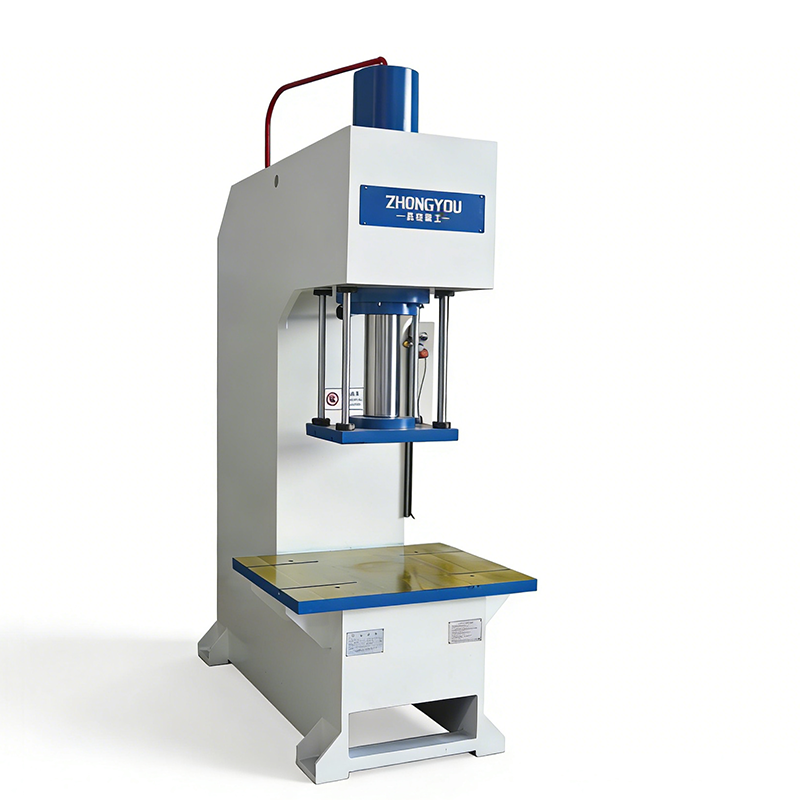

100-ton single-column hydraulic press
The 100-ton single-column hydraulic press is a versatile small-to-medium-sized hydraulic press, also known as a C-frame 100-ton single-column hydraulic press. It features a C-frame open structure and consists of a main cylinder, a hydraulic power system, and an electrical system. The machine body is designed using finite element analysis and is constructed from high-quality steel plates welded together. After welding, it undergoes high-frequency vibration treatment to eliminate welding stresses, ensuring the machine body remains resistant to deformation.
Description
The 100-ton single-column hydraulic press is a versatile small-to-medium-sized hydraulic press, also known as a C-frame 100-ton single-column hydraulic press. It features a C-frame open structure and consists of a main cylinder, a hydraulic power system, and an electrical system. The machine body is designed using finite element analysis and is constructed from high-quality steel plates welded together. After welding, it undergoes high-frequency vibration treatment to eliminate welding stresses, ensuring the machine body remains resistant to deformation.
Applications:
Metalworking: Suitable for straightening shaft-type parts and profiles, as well as press-fitting sleeve-type parts. It can also perform processes such as bending, embossing, forming, and simple drawing of sheet metal parts.
Non-metalworking: Can be used for pressing powder and plastic products with less stringent requirements.
Other Applications: Press-fitting of motor rotors and stators; press-fitting of electronic connectors and electrical components; and pressing of eyewear, latches, and hardware parts.
Views: 0
Compression molding process
Customer Case
Technical Specifications
| Name | Unit | YQ41-20 | YQ41-40 | YQ41-63 | YQ41-100 | YQ41-160 | YQ41-200 | YQ41-250 | YQ41-315 | YQ41-500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 200 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | 5000 |
| Effective Stroke | mm | 200 | 200 | 300 | 300 | 400 | 500 | 200 | 500 | 500 |
| Opening Height | mm | 600 | 600 | 700 | 700 | 800 | 1000 | 1000 | 1200 | 1200 |
| Throat Depth | mm | 200 | 220 | 240 | 280 | 320 | 360 | 420 | 500 | 600 |
| Downstroke Speed | mm/s | 160 | 19 | 13 | 10 | 13 | 15 | 15 | 50 | 50 |
| Return Speed | mm/s | 19 | 25 | 17 | 13 | 20 | 20 | 20 | 60 | 55 |
| Worktable Width (Left to Right) | mm | 500 | 500 | 600 | 700 | 700 | 800 | 900 | 1050 | 1200 |
| Worktable Depth (Front to Back) | mm | 400 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1050 |
| Punching Hole Diameter | mm | 80 | 100 | 120 | 200 | 200 | 220 | 220 | 240 | 240 |
Detailed Parameters
| Name | Unit | YQ41-20 | YQ41-40 | YQ41-63 | YQ41-100 | YQ41-160 | YQ41-200 | YQ41-250 | YQ41-315 | YQ41-500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 200 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | 5000 |
| Effective Stroke | mm | 200 | 200 | 300 | 300 | 400 | 500 | 200 | 500 | 500 |
| Opening Height | mm | 600 | 600 | 700 | 700 | 800 | 1000 | 1000 | 1200 | 1200 |
| Throat Depth | mm | 200 | 220 | 240 | 280 | 320 | 360 | 420 | 500 | 600 |
| Downstroke Speed | mm/s | 160 | 19 | 13 | 10 | 13 | 15 | 15 | 50 | 50 |
| Return Speed | mm/s | 19 | 25 | 17 | 13 | 20 | 20 | 20 | 60 | 55 |
| Worktable Width (Left to Right) | mm | 500 | 500 | 600 | 700 | 700 | 800 | 900 | 1050 | 1200 |
| Worktable Depth (Front to Back) | mm | 400 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1050 |
| Punching Hole Diameter | mm | 80 | 100 | 120 | 200 | 200 | 220 | 220 | 240 | 240 |
