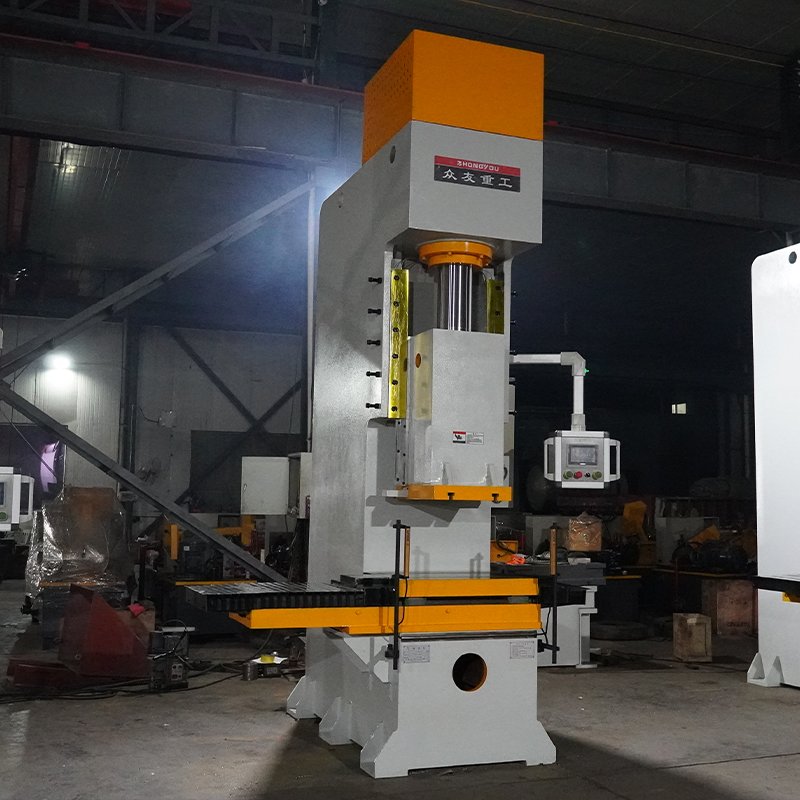

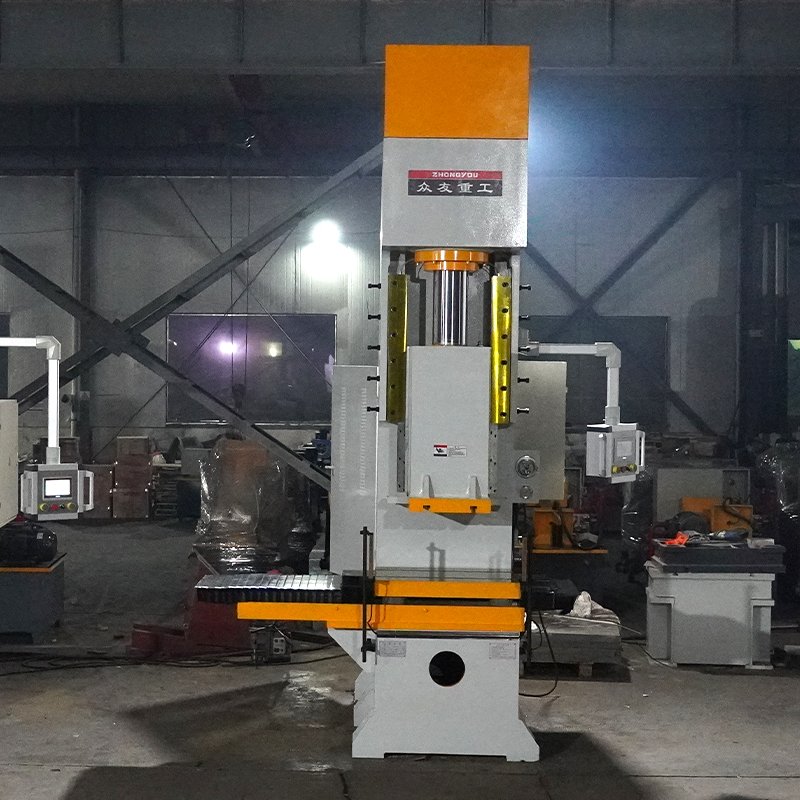

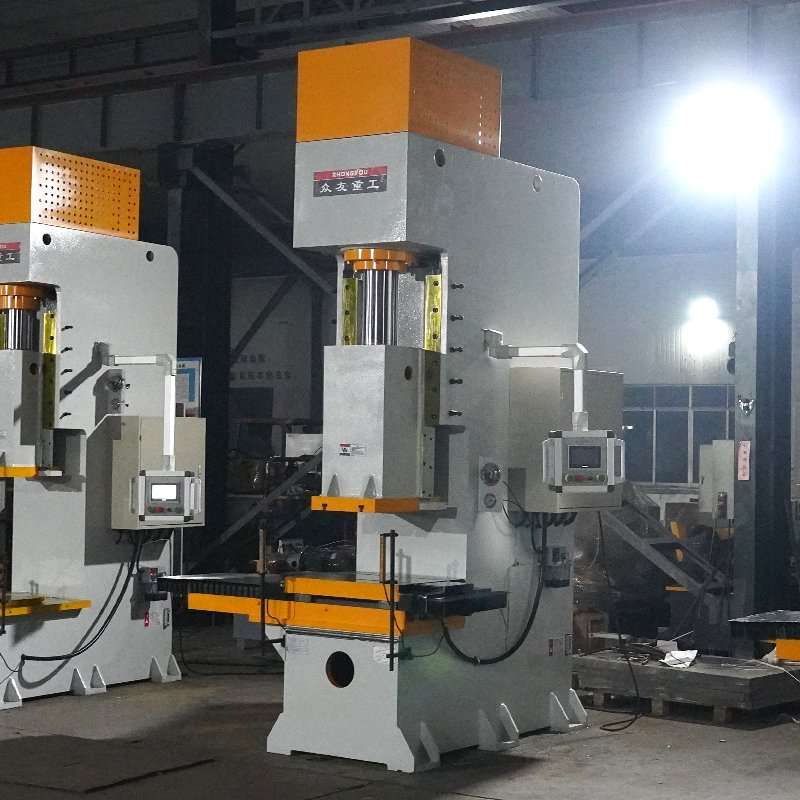

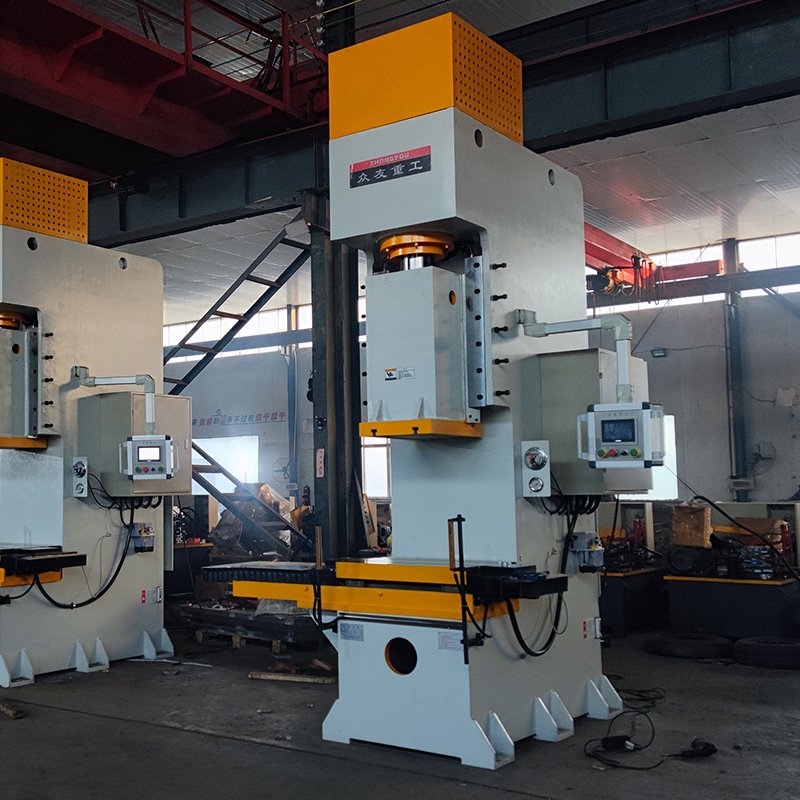

100-ton hydraulic press for sheet metal blanking
The 100-ton hydraulic press is a machine tool integrating hydraulic transmission with stamping capabilities, widely used in sheet metal blanking, bending, flanging, drawing, and cold extrusion of metal parts.
Description
The 100-ton hydraulic press is a machine tool integrating hydraulic transmission with stamping capabilities, widely used in sheet metal blanking, bending, flanging, drawing, and cold extrusion of metal parts.
Metal Processing
Aluminum extrusion (e.g., watch cases, watch bands, eyeglass frames), automotive components, hardware parts, locks, cutlery, etc.
Thin sheet drawing and forming (e.g., metal housings for motors and electrical appliances, lighting fixture components).
Non-Metal Processing
Plastic products, powder product compression molding.
Special Processes
Grinding wheel forming, correction press-fitting, tube punching (e.g., copper tubes, aluminum tubes, steel tubes, stainless steel tubes).
Views: 0

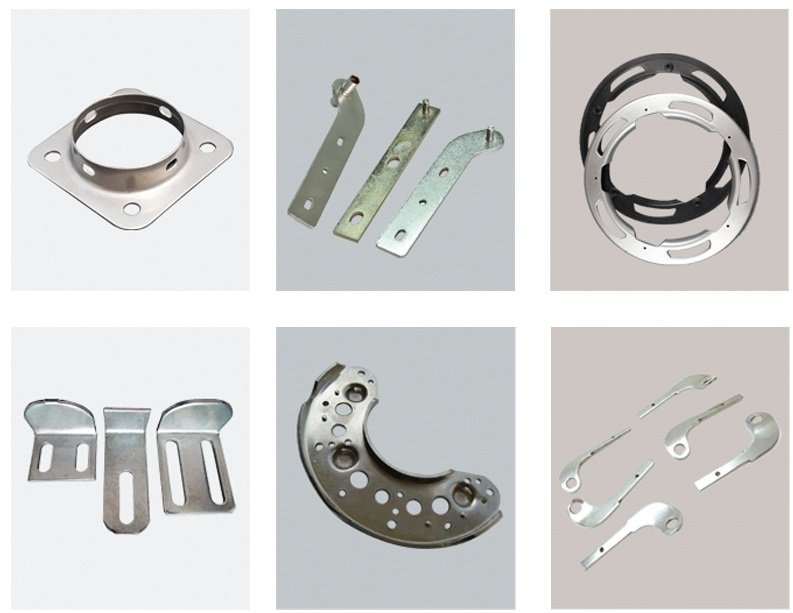

Compression molding process

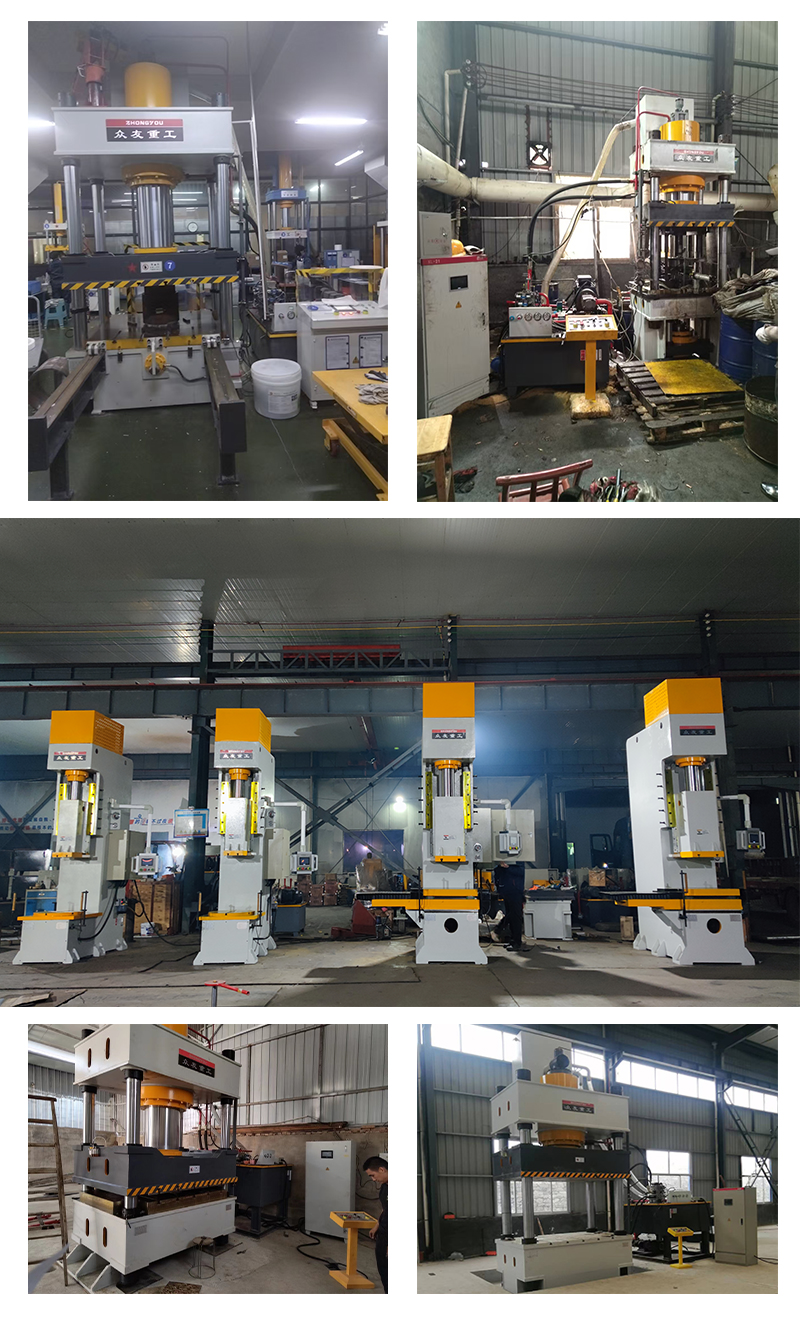

Customer Case
Technical Specifications
| Main Technical Parameters | Unit | YC21-63T | YC21-80T | YC21-100T | YC21-125T | YC21-160T | YC21-200T | YC21-315T |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | KN | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 3150 |
| Maximum Pressure of Hydraulic System | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Opening Height | mm | 400 | 500 | 500 | 500 | 600 | 600 | 700 |
| Effective Stroke | mm | 200 | 200 | 260 | 260 | 260 | 300 | 300 |
| Effective Area of Workbench (Left-Right) | mm | 700 | 800 | 1000 | 1000 | 1100 | 1100 | 1200 |
| Effective Area of Workbench (Front-Back) | mm | 450 | 480 | 600 | 600 | 700 | 700 | 800 |
| Throat Depth | mm | 220 | 250 | 310 | 310 | 360 | 360 | 410 |
| Slider Dimensions (Left-Right x Front-Back) | mm | 400*300 | 450*330 | 480*360 | 550*400 | 590*440 | 650*480 | 750*570 |
| Workbench Punching Hole Diameter | mm | 150 | 180 | 180 | 180 | 200 | 260 | 260 |
| Motor | KW | 7.5 | 11 | 11 | 15 | 18.5 | 18.5 | 30 |
Detailed Parameters
| Main Technical Parameters | Unit | YC21-63T | YC21-80T | YC21-100T | YC21-125T | YC21-160T | YC21-200T | YC21-315T |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | KN | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 3150 |
| Maximum Pressure of Hydraulic System | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Opening Height | mm | 400 | 500 | 500 | 500 | 600 | 600 | 700 |
| Effective Stroke | mm | 200 | 200 | 260 | 260 | 260 | 300 | 300 |
| Effective Area of Workbench (Left-Right) | mm | 700 | 800 | 1000 | 1000 | 1100 | 1100 | 1200 |
| Effective Area of Workbench (Front-Back) | mm | 450 | 480 | 600 | 600 | 700 | 700 | 800 |
| Throat Depth | mm | 220 | 250 | 310 | 310 | 360 | 360 | 410 |
| Slider Dimensions (Left-Right x Front-Back) | mm | 400*300 | 450*330 | 480*360 | 550*400 | 590*440 | 650*480 | 750*570 |
| Workbench Punching Hole Diameter | mm | 150 | 180 | 180 | 180 | 200 | 260 | 260 |
| Motor | KW | 7.5 | 11 | 11 | 15 | 18.5 | 18.5 | 30 |
