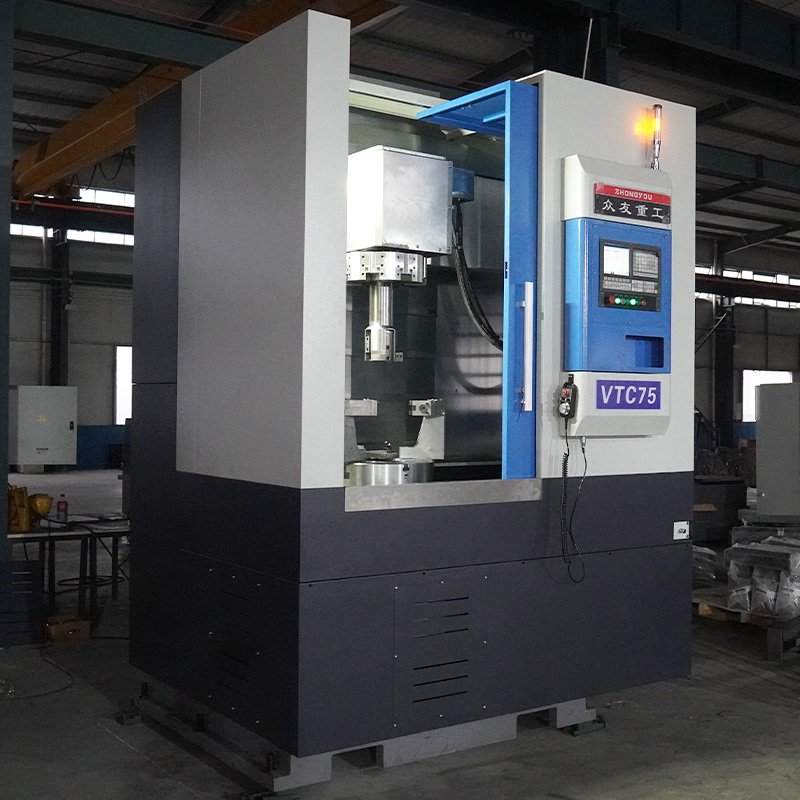

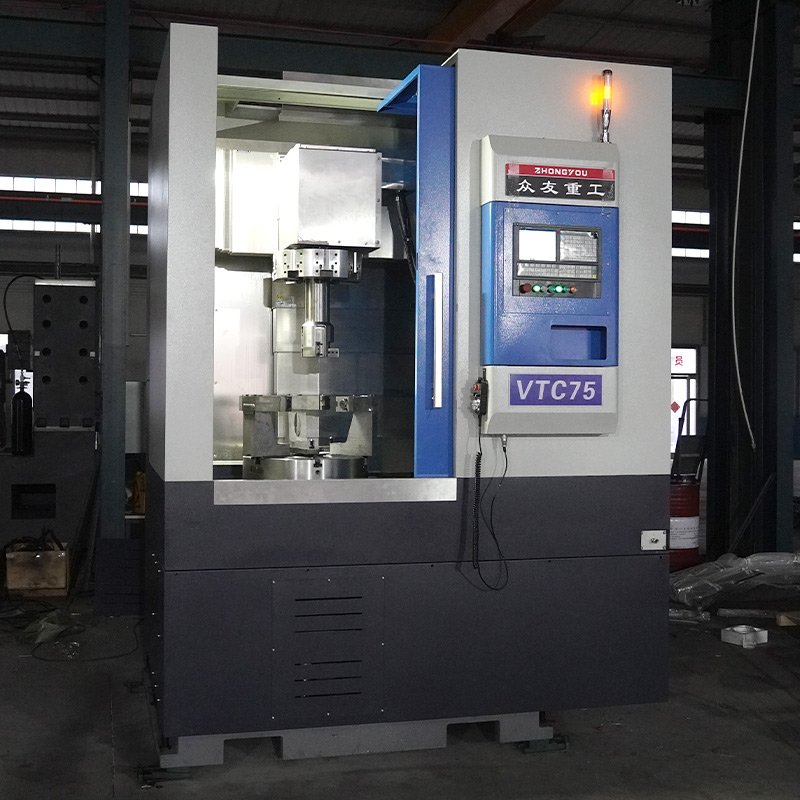

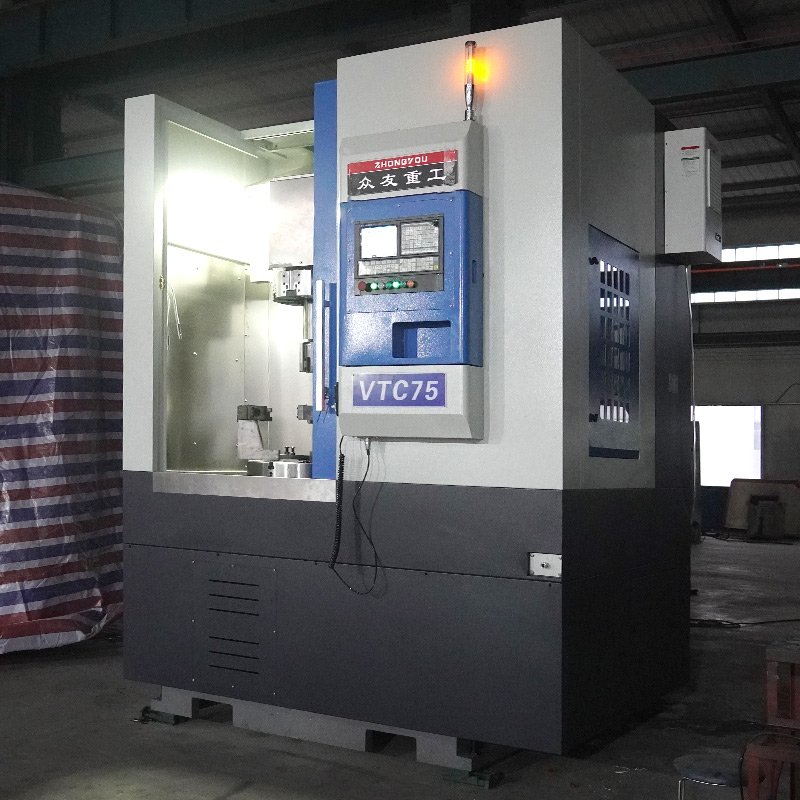

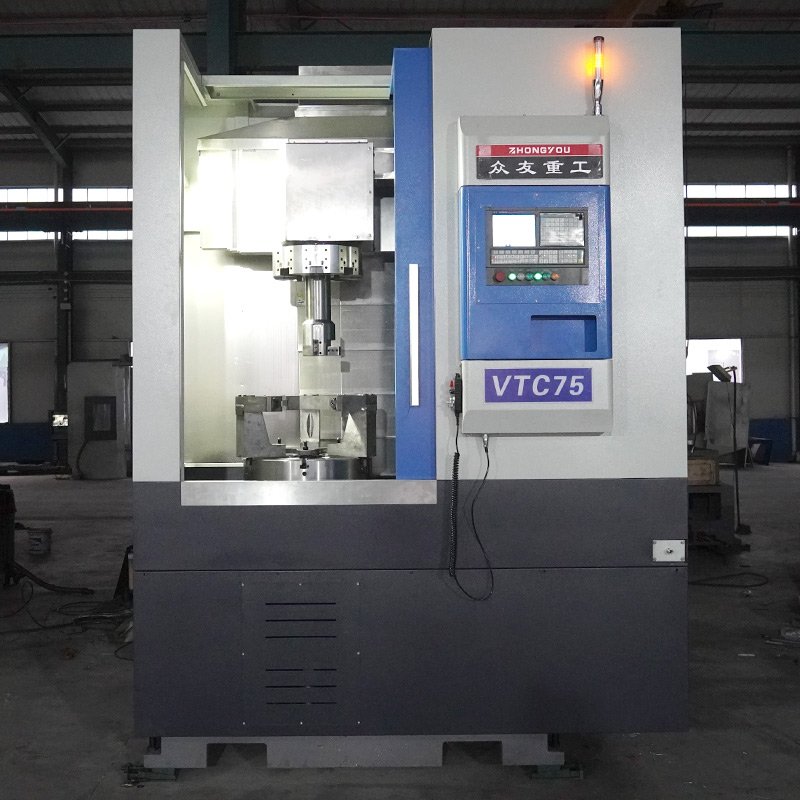

High Intelligent Vertical Turning Lathe Vertical Cutting Machine Turning Center
CNC Vertical Turning Machine is a kind of CNC machine tool with vertical spindle as the core, which is mainly used for machining rotary body parts (such as shafts, discs, sets), with high precision and high efficiency cylindrical surface, end face and thread machining capability.
- 2000-ton capacity
- Energy saving design
- Low maintenance
- CE certified
Description
CNC Vertical Turning Machine is a kind of CNC machine tool with vertical spindle as the core, which is mainly used for machining rotary body parts (such as shafts, discs, sets), with high precision and high efficiency cylindrical surface, end face and thread machining capability.
Core functions：Turning processing: external round, internal hole, taper, thread, etc.
Compound machining: support drilling, milling groove, cut off and other auxiliary processes (need to be equipped with power turret).
Automation: support programme control, automatic tool change, automatic feeding (optional robot)
Application field：Automotive manufacturing: CNC vertical lathe is widely used in the processing of automotive parts, especially for the processing of automotive brake drums, not only high processing efficiency, but also more accurate processing precision.CNC vertical lathe can once complete the brake drum fine turning, rough turning, hook bottom, groove cutting, chamfering and other processes.
Aerospace: In the aerospace equipment manufacturing industry, CNC vertical lathes are used to process high-precision and high-strength parts, ensuring the reliability and safety of complex-shaped parts.
Shipbuilding: Shipbuilding industry is also an important application field of CNC vertical lathe, which is used to process ship parts.
Mould Manufacturing: In the mould manufacturing industry, CNC vertical lathes are used to process precision moulds to ensure the accuracy and quality of the moulds.

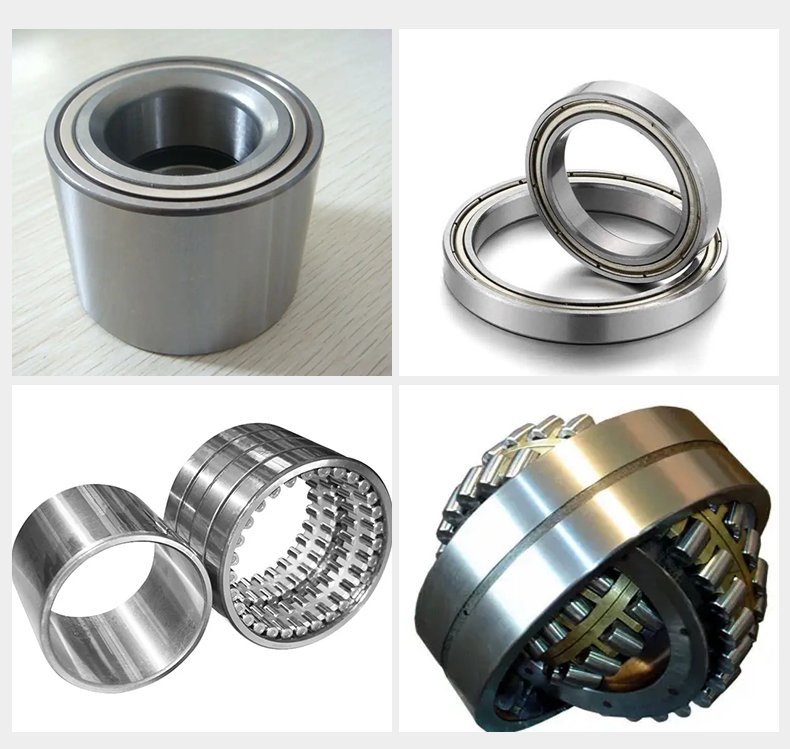

Carbide and ceramic tool machining: CNC vertical lathe is suitable for carbide and ceramic tools, roughing, semi-finishing and finishing the internal and external cylindrical surfaces, conical surfaces, end surfaces, grooves, threads and rotating surfaces of ferrous, non-ferrous and some non-metallic parts.。
Compression molding process

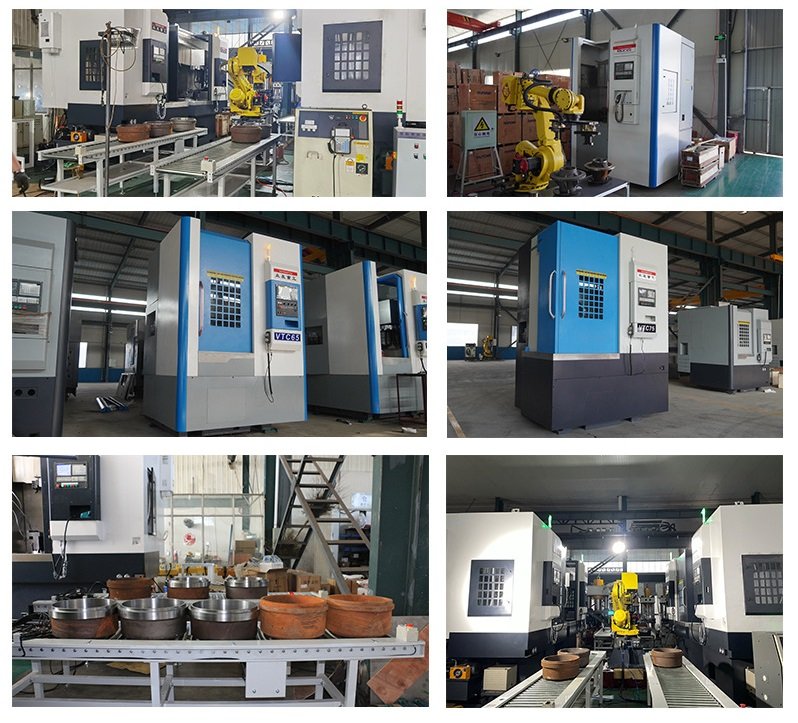

Customer Case
Technical Specifications
| Max.rotating diameter | mm | ∮560 | ∮650 | ∮750 | ∮750 | ∮750 |
| Max.turning diameter of workpiece | mm | ∮450 | ∮600 | ∮700 | ∮550 | ∮700 |
| Spindle end face form | Straight | Straight | Straight | Straight | Straight | |
| Spindle speed | rpm | 3000 | 100-1000 | 50-1500 | 50-1000 | 500-1000 |
| Hydraulic chuck diameter | mm | 500 | 500 | 630 | 500 | 630 |
| Tool post type | pcs | eight-station | eight-station | eight-station | eight-station | eight-station |
| Tool shank diameter | mm | 32 | 32 | 32 | 32 | 32 |
| Inner diameter tool holder | mm | ∮40 | ∮40 | ∮50 | ∮50 | |
| Center tool holder | mm | 160 | ||||
| X axis travel | mm | 400 | 450 | 700 | 280 | 450 |
| Z axis travel | mm | 500 | 600 | 700 | 500 | 700 |
| Oil tank capacity | L | 50 | 50 | 50 | 50 | 50 |
| Oil pressure motor | kw | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Water Capacity | L | 180 | 200 | 200 | 200 | 200 |
| Rotating water motor | w | 250 | 450 | 450 | 450 | 450 |
| Flush motor | kw | 250 | 450 | 450 | 450 | 450 |
| X axis servo motor torque | NM | 12 | 18 | 18 | 15 | 15 |
| Z axis servo motor torque | NM | 22 | 30 | 18 | 15 | 15 |
| Main Servo motor power | kw | 11/15 | 18.5 | 22 | 18.5 | 22 |
| Repeat positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Positioning accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Dimension | mm | 1700X1880X2500 | 2000X1950X3000 | 2450X1900X3200 | 3000X2400X2700 | 3200X2400X3200 |
| Weight | kg | 5500 | 8000 | 9500 | 7000 | 9000 |
| Voltage | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | |
| Electricity Leakage/outage protection | √ | √ | √ | √ | √ | |
| Three-color light indication | √ | √ | √ | √ | √ | |
| Long-term stable working conditions | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | |
| Noise meets national standards | √ | √ | √ | √ | √ | |
| ☆The equipment adopts fully enclosed protection, and the protective device is safe and reliable and should comply with GB15760-1995 General Technical Regulations on Safety Protection of Metal Cutting Machine Tools. ☆Equipped with various hydraulic, gas and water pipeline direction signs, marking the working range of various instruments, and marking the grade of the medium used. ☆The diameter of the hydraulic chuck and the tool holder station can be selected according to the processing requirements. |
||||||
